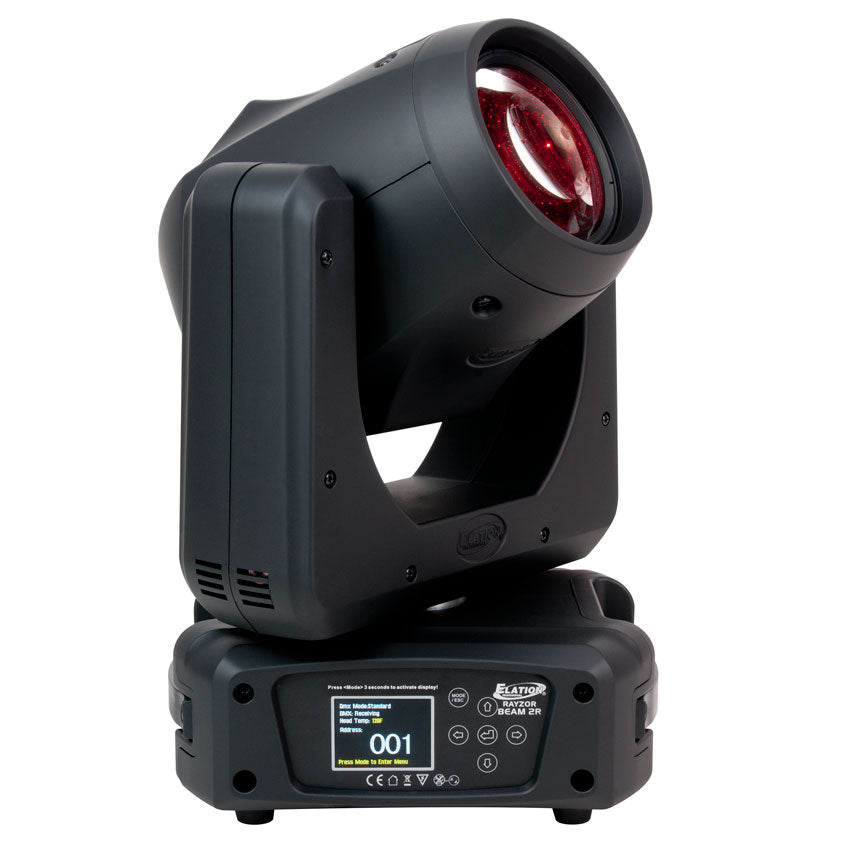

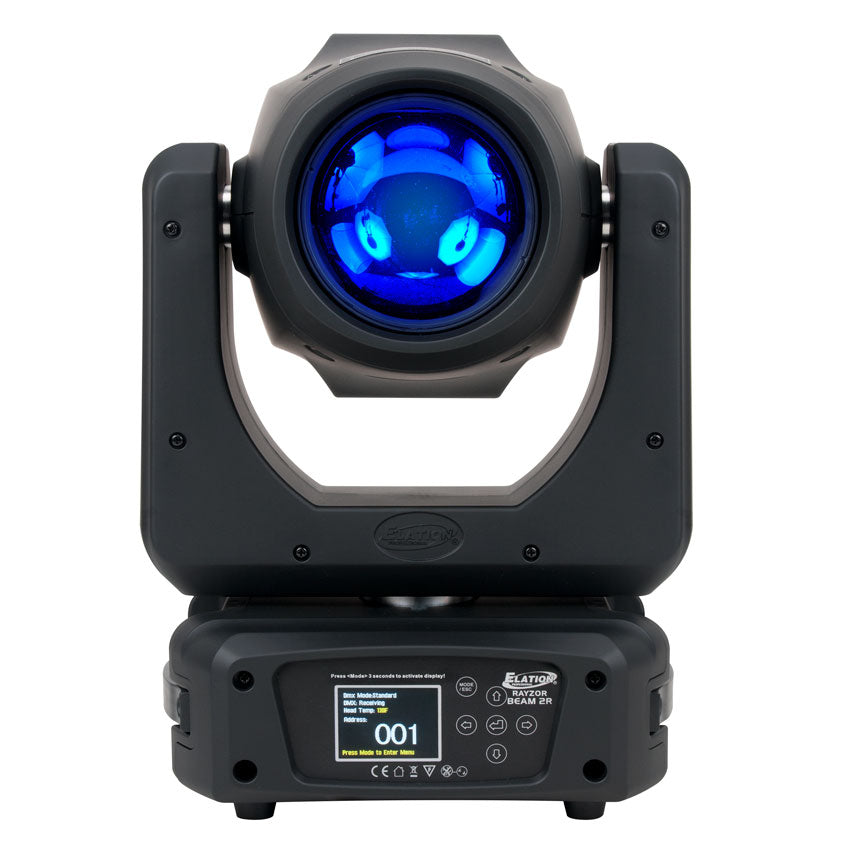

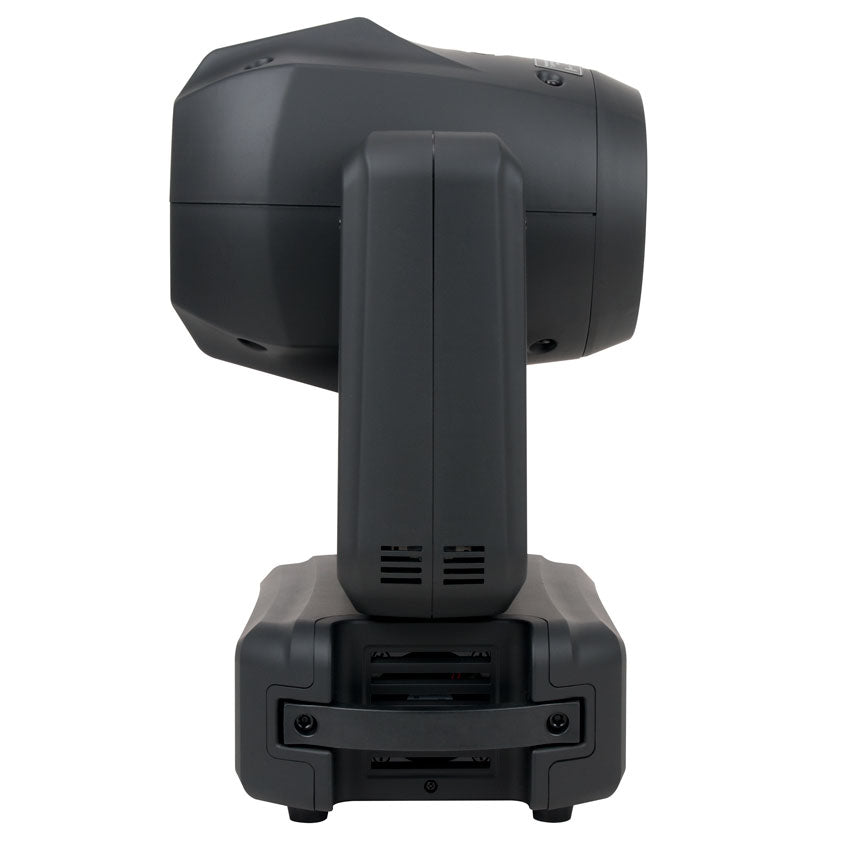

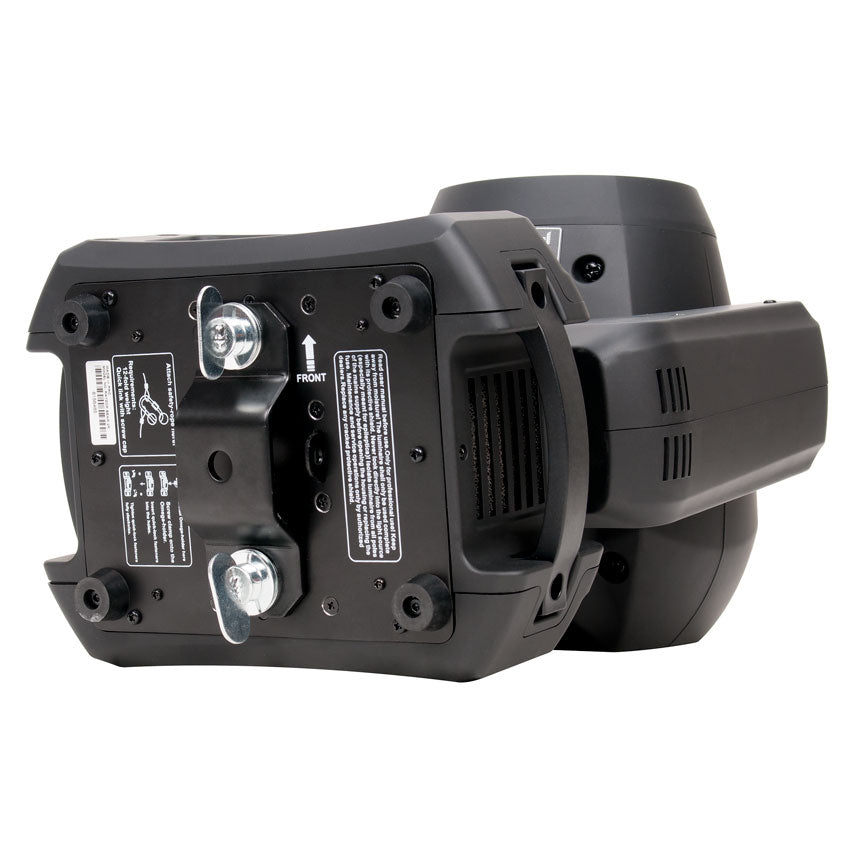

Rayzor Beam 2R
Rayzor Beam 2R
The Rayzor Beam 2R™ features the 132W Platinum 2R lamp, 3° sharp narrow beam, 8 facet rotating prism, super fast 16 bit 3-phase pan/tilt motors, variable strobe and 0-100% dimming, (13) dichroic colors including UV, CTO, CTB, plus white, (14) static gobos including (6) multi-sized beams, flicker free operation for TV and FILM, remote device management protocol support, 5pin in/out DMX and Locking Power in/out connections, (6) button touch control panel, 230W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
Features
The Rayzor Beam 2R™ features the 132W Platinum 2R lamp, 3° sharp narrow beam, 8 facet rotating prism, super fast 16 bit 3-phase pan/tilt motors, variable strobe and 0-100% dimming, (13) dichroic colors including UV, CTO, CTB, plus white, (14) static gobos including (6) multi-sized beams, flicker free operation for TV and FILM, remote device management protocol support, 5pin in/out DMX and locking power in/out connections, (6) button touch control panel, 230W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
FEATURES
3° Sharp Narrow Beam
Super Fast 16 bit 3-Phase Pan and Tilt Motors
CTO and CTB Color Correction
Flicker Free Operation for TV and FILM
Remote Device Management Protocol Support
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- Rayzor Beam 2R Vectorworks 2014 Symbol
- Rayzor Beam 2R Vectorworks 2015 Symbol
- Rayzor Beam 2R Vectorworks 2016 Symbol
Related Categories
Specifications
SOURCE
132W Platinum 2R Lamp
6,000 Hour Average Life
PHOTOMETRIC DATA
49,470 LUX 4596 FC @42.9’ (15M) / 7,500K, >75 CRI
EFFECTS
8 Facet Rotating Prisms and Macros
Variable Strobe Settings
Dimming: 0% - 100%
COLOR
(13) Dichroic Colors Including UV, CTO, CTB + White
GOBOS
(14) Static Gobos Including (6) Multi-Sized Beams

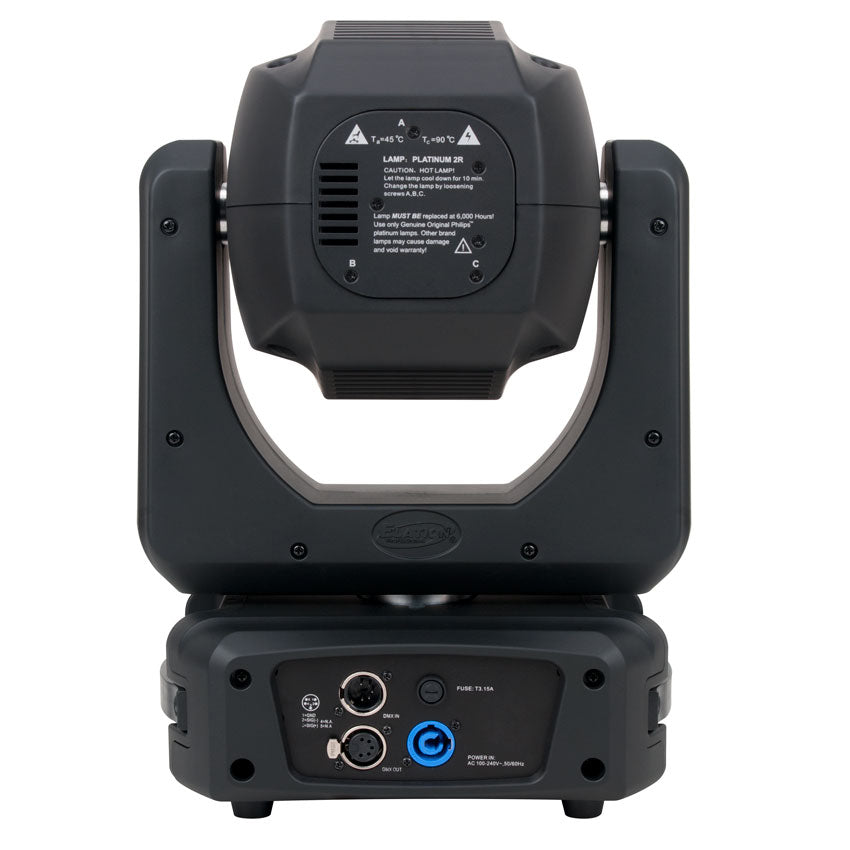

CONTROL / CONNECTIONS
(3) DMX Channel Modes (10/12/16)
Remote Device Management
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors
5pin DMX In/Out
Locking power In
SIZE / WEIGHT
Length: 11.6” (295mm)
Width: 9.6” (245mm)
Vertical Height: 16.6” (421mm)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
210W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Omega Bracket
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 5pin XLR Cable
OPTIONAL ACCESSORIES:
6-PACK ROAD CASE (click for more info)
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
