Rayzor Beam 2R 6-Pack Road Case
Rayzor Beam 2R 6-Pack Road Case
Discontinued
SKU# DRCRAY2R

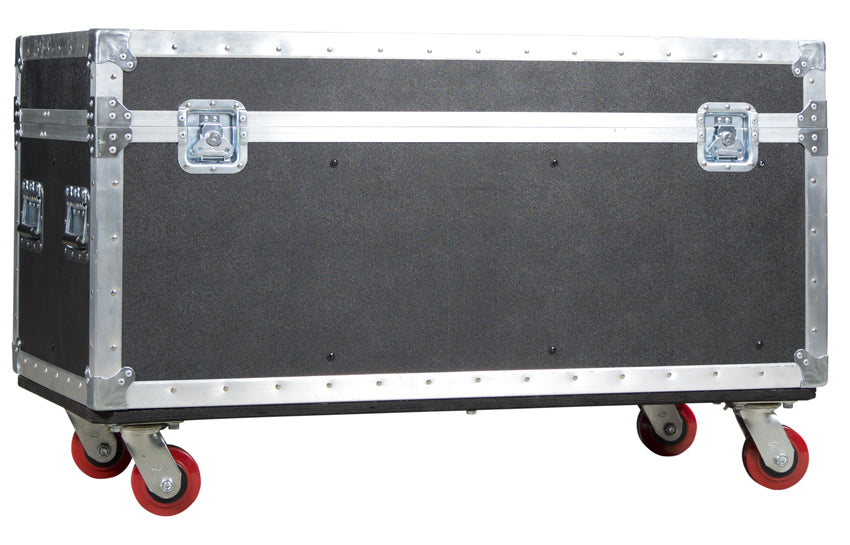

The new DRCRAY2R™ is a custom made road case to hold 6 Rayzor Beam 2R™ fixtures.
FEATURES

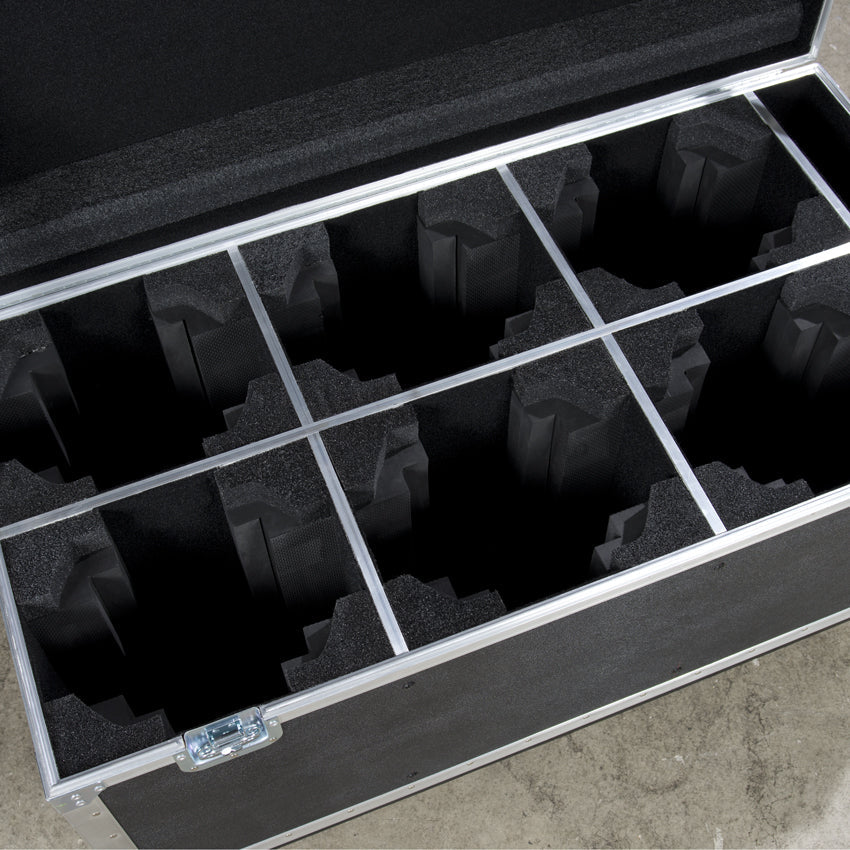

Holds (6) Rayzor Beam 2R™ Units
Top Load Design

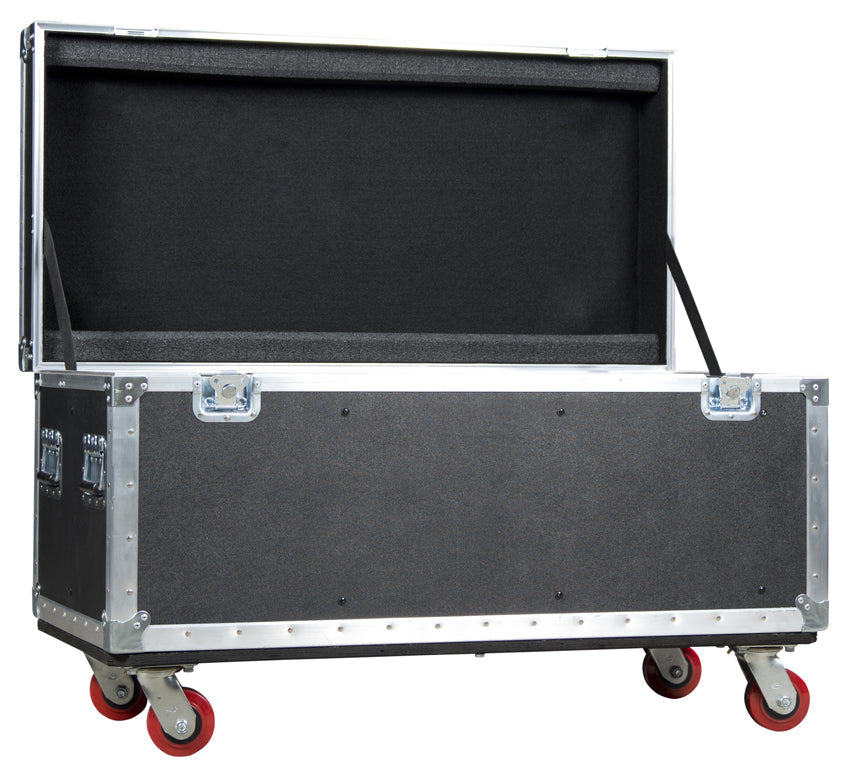

Piano Hinged Lid with Straps
Clamp/Cable Accessory Compartment
Truck Pack: 1/4 & 1/2 Pack for 90" Box Truck
Specifications
SPECIFICATIONS
ATA Approved – All Hardware Flush Mount
3/5" Plywood Walls - ABS Exterior Finish
Tongue and Groove Sealing Extrusion
3/4" Plywood Base Plate
1/2" Partition with Aluminum U-Channel
(4) 400# Rated High Impact Red Casters
(2) Med Spring Loaded Recessed Latches
(4) Med Spring Loaded Recessed Handles
(8) High Impact Flat corners
(4) Stacking Cups on Lid
(1) Piano Hinge Lid
SIZE / WEIGHT
Length: 45” (1143mm)
Width: 22.5” (571.5mm)
Vertical Height: 30.0” (762mm)
Weight: 134 lbs. (60.8 kg) EMPTY
Manufactured in the U.S.A.
Rayzor Beam 2R™ (click for more info)
Specifications and documentation subject to change without notice.
