Rayzor Q7
Rayzor Q7

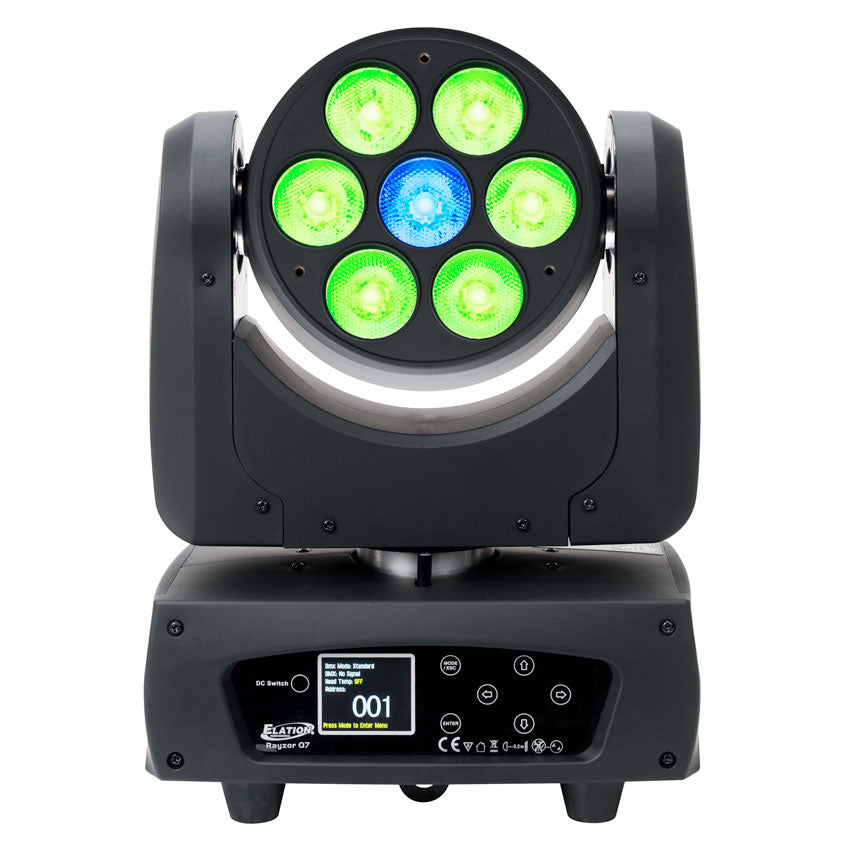

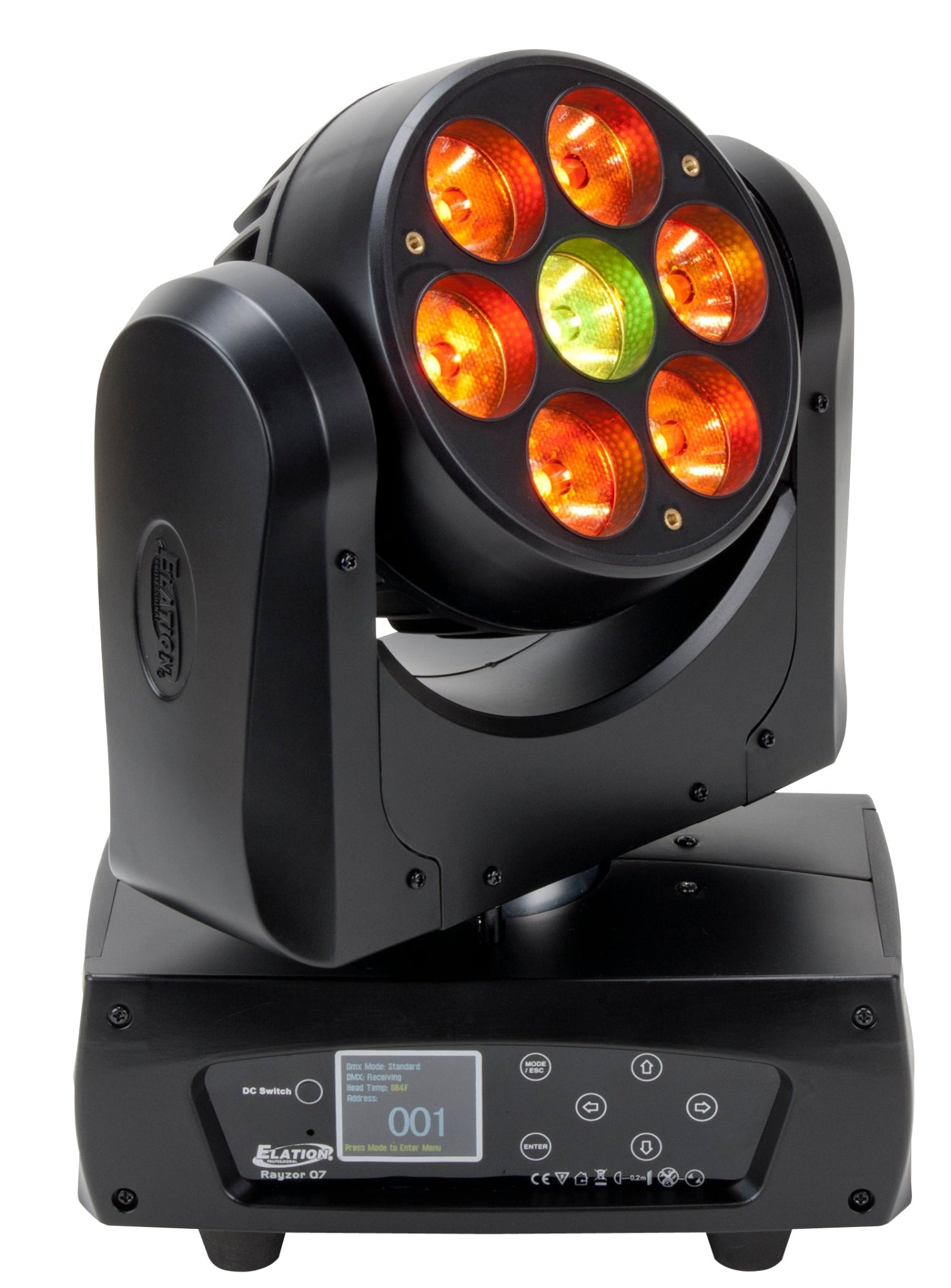

The Rayzor Q7™ features (7) 15W Osram Quad Color RGBW LEDs, a 7° beam, high speed 3-phase pan/tilt motors, electronic strobe and 0-100% dimming, (4) independent LED zones for dynamic visual effects, flicker free operation for TV and FILM, RDM (Remote Device Management) support, 5pin DMX and locking power in/out connections, (7) button touch control panel, 210W max power consumption, and a multi-voltage universal auto switching power supply (120-240v). Optional accessories including a diffusion filter and a snoot lens cover.
Features
(7) 15W QUAD Color RGBW LEDs
7° Beam
High Speed 3-Phase Pan/Tilt Motors
(4) Independant LED Zones Control
Electronic Strobe (1-18 fps) and Dimming (0-100%)
Flicker Free Operation for TV and FILM
RDM (Remote Device Management) Support
140W Max Power Consumption
Optional Diffusion Filter and Snoot Lens Cover Available
SEE ALSO
RAYZOR SERIES (click for more info)
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- Rayzor Q7 Vectorworks 2014 Symbol
- Rayzor Q7 Vectorworks 2015 Symbol
- Rayzor Q7 Vectorworks 2016 Symbol
Related Categories
Specifications
SOURCE
(7) 15W QUAD Color LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
15,500 LUX 1,440 FC @8.2’ (2.5M)
EFFECTS
(4) Independent LED Zones Control
Color and Chase Macros
Electronic Strobe (1-18 fps)
Electronic Dimming: 0% - 100%
COLOR
RGBW Color Mixing
Variable Color Temperature Presets (2700K - 8000K)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (15 / 17 / 29)
(7) Button Control Panel
Full Color 180° Reversible LCD Menu Display
16-bit 3-Phase Pan/Tilt Motors
5pin DMX In/Out
Locking Power In/Out
SIZE / WEIGHT
Length: 11.6” (295mm)
Width: 10.9” (276mm)
Vertical Height: 16.6” (421mm)
Weight: 22.0 lbs. (10 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
140W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | RoHs | IP20

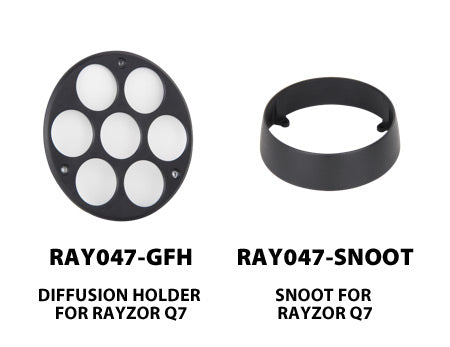

OPTIONAL ACCESSORIES:
RAY047-SNOOT - Snoot Lens Cover
RAY047-GFH - Diffusion Filter Cover
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
