RDMX6S

Features

RDM E1.20 Compliant
 5pin DMX Loop Thru Output with Built-In Termination
 (6) Opto-Isolated 5pin DMX Outputs
 powerCON In
 Universal Multi-Voltage Auto Switching Power Supply

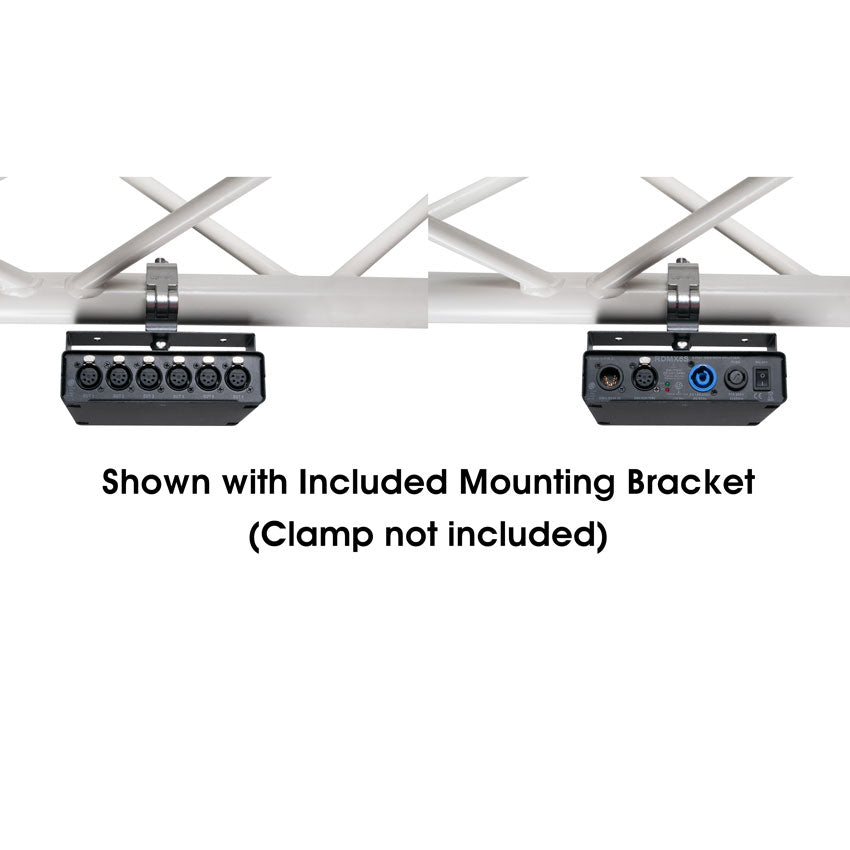

 Mounting Bracket for Truss/Clamp Installation Included
 Optional Single and Dual Unit Rack Mount Kits Available

Resources

Specifications Sheet

Dimensional Drawing

CAD Drawing

Specifications

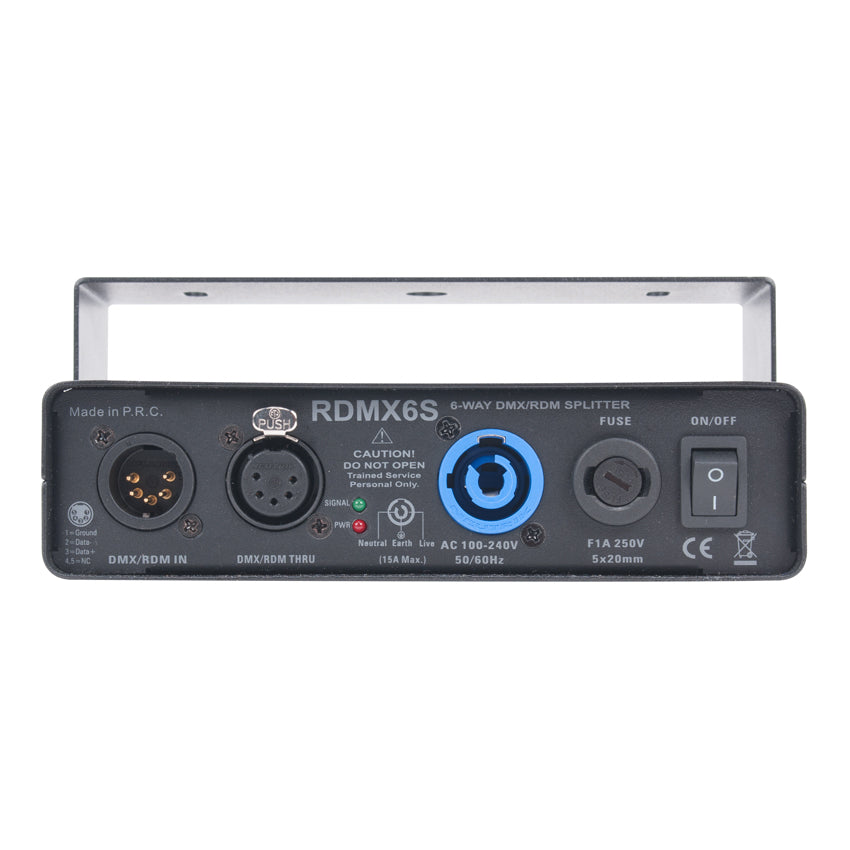

CONTROL / CONNECTIONS
 5pin DMX Input
 5pin DMX Lopp Thru Output w/Built-In Termination

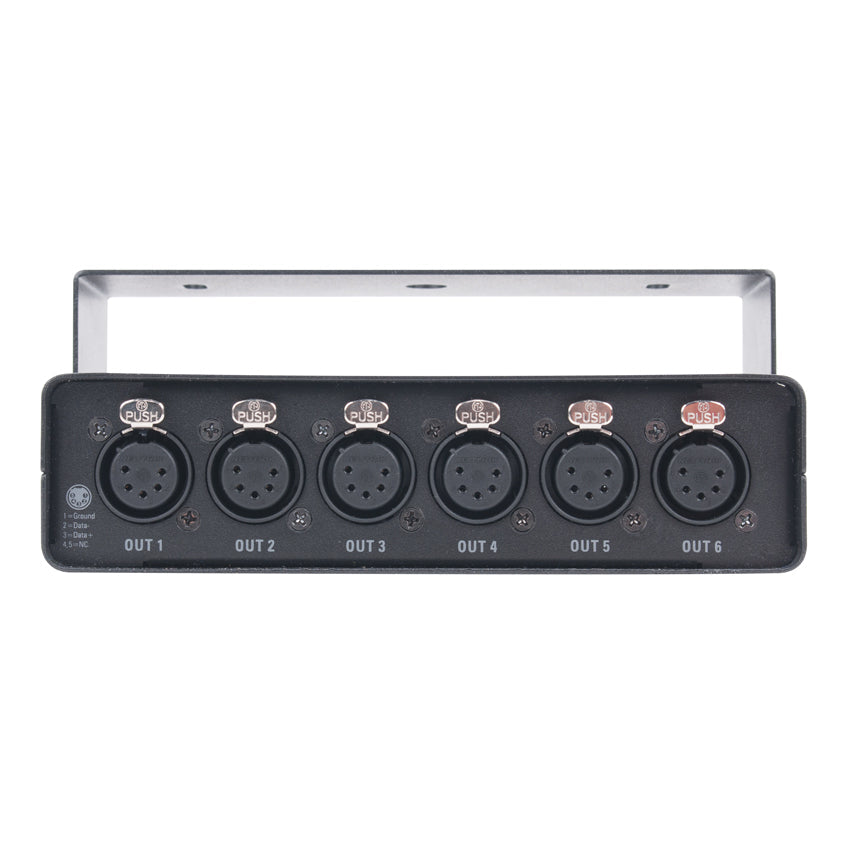

 (6) 5pin Opto-Isolated DMX Outputs
 powerCON In

 SIZE / WEIGHT
 Length: 6.8” (173mm)
 Width: 6.7” (170mm)
 Vertical Height: 2.9” (74mm) (with mounting bracket)
 Weight: 2.1 lbs. (1.0kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 3W Max Power Consumption
 14°F (-10°C) to 113°F (45°C)

 APPROVALS / RATINGS
 CE | RoHs


 OPTIONAL ACCESSORIES:

 RDM100 - Single Unit Rack Mount Kit

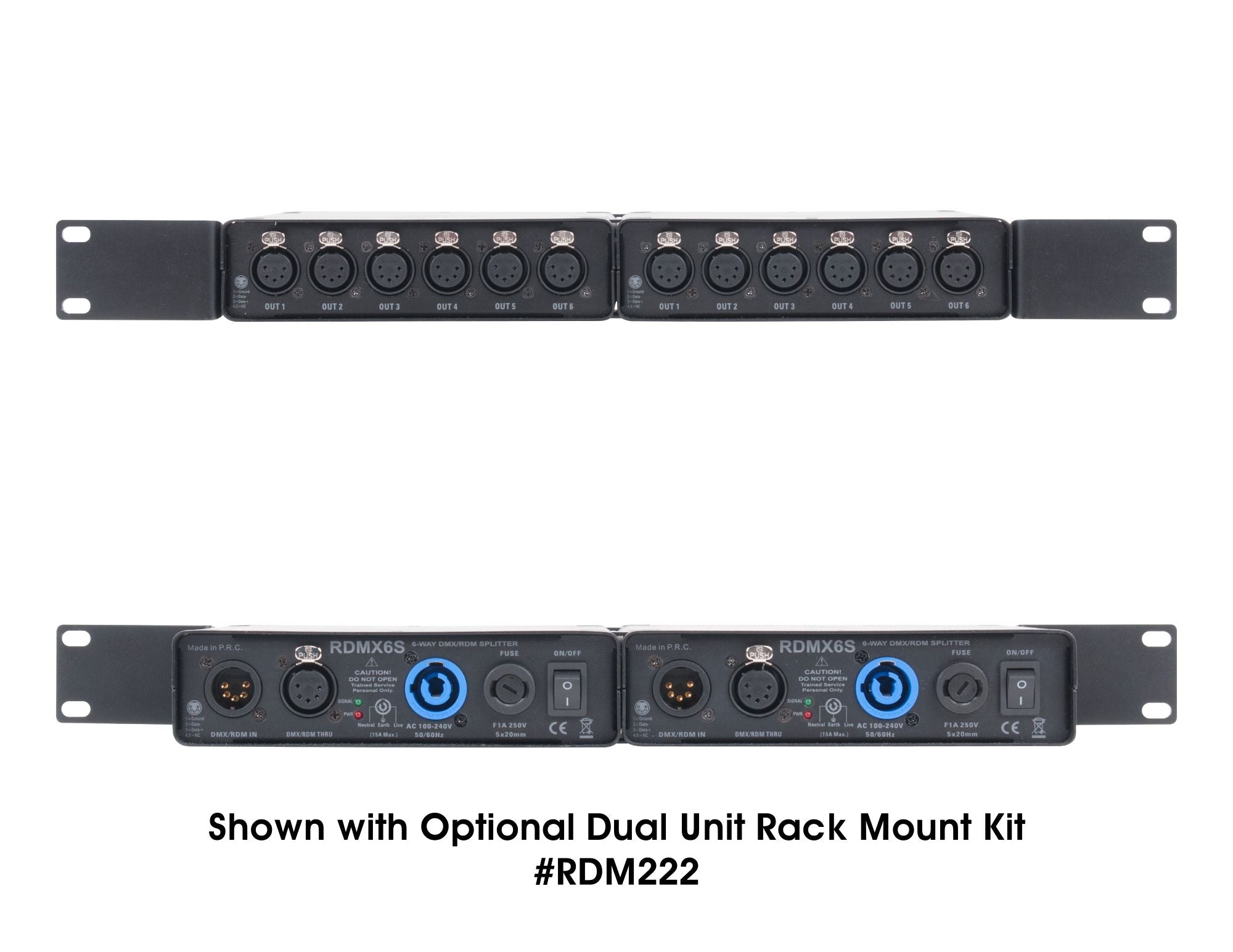

 RDM222 - Dual Unit Rack Mount Kit


 CLAMPS (click for more info)


 PRO CABLES (click for more info)

 Specifications and documentation subject to change without notice.
