Riva 36 Frost

Features

The Alkalite LED lighting system offers endless color possibilities to modify your surrounding.


This system does not produce infra-red and ultra violet light. Therefore, heat production is minimized, avoiding discoloration of objects being lit. This special feature gives the Alkalite LED lighting systems the flexibility for numerous types of applications such as architectural/ retail spaces, stage, video/film productions, night clubs, art galleries, restaurants, museums and much more.


This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.

Resources

User Manual

Specifications

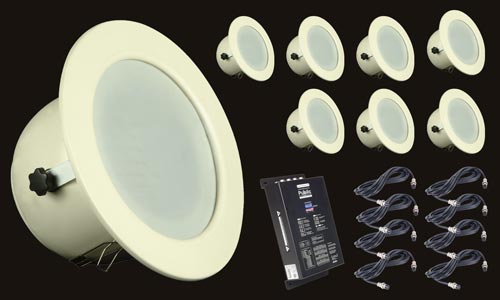

SYSTEM INCLUDES

• 8x Riva 36 fixture units

• 1x PD-80 Controller / DMX Interface

• 4 x 5 pin 3 meter cables

• 4 x 5 pin 6 meter cables


SYSTEM FEATURES

• 36 x LEDs per surface each. (12 red, 12 blue, 12 green)

• Light weight aluminum case design

• 5 pin in/out connections on rear fixture panel

• Must use PD-80 Controller

• Maximum 8 pods per controller


SHUTTER/DIMMER

• Electronic Dimming 0-100%

• Electronic Strobing 1-29 fps

• Variable speed strobe Pulse effect


COLORS

• R,G,B Additive Color Mixing

• Color Macros


MOUNTING

• Spring loaded recessed mounting hardware


OUTPUT

• 28 LUX @ 0.5 meter

• 150 degree beam angle

• Frost filter for superior color wash


DMX-512 MODE

• 512 channels

• Switchable 3 or 6 channel mode

• 3, 6, 12, 24, 48 control channel mode


SOUND ACTIVE MODE

• Color change to the sound of music


AUTO CHASE MODE

• 9 preprogrammed chases

• Adjustable speed from 0~255

• Adjustable fade time from 0~100


MANUAL RGB MODE

• Adjustable Red intensity from 0~255

• Adjustable Green intensity from 0~255

• Adjustable Blue intensity from 0~255


DIMENSIONS & WEIGHT

• Dimensions (per Riva 36) : 8.25” x 8.25” x 5” / 210 x 210 x 122mm

• Dimensions (PD-80) : 14.25” x 8” x 3.5” / 360 x 200 x 85mm

• Weight (per Riva 36): 2 lbs. / 1 kg.

• Weight (PD-80): 9 lbs. / 3.7 kg.


POWER SUPPLY

• Voltage: 0-10V Analog

• Power supply: DC 24V

• Power consumption: 5W
