RMD-1220

Features

Resources

User Manual

Specifications

• 12 Channel digital dimmer pack

• 20A per channel (2400 watts)

• USITT DMX-512A

• 3 & 5 pin Neutrik input & output

• 2U, 19” rack mount

• High Speed micro processor

• Real time zero crossing detection

• 16 digit, 2 line, blue LCD display

• Individual & block channel patching

• Dual cooling fans (Selectable speeds; Normal, Full On and Silent)

• Dual SCR thyristor per channel

• ArtNET (Ethernet protocol)

• Local on-board intensity control

• Internal scene memory (99 scenes)

• Selectable curve (Linear, Square and Non-Dim)

• DMX Fail backup feature- (Off, Hold, Off after 1 min. and Scene ## from internal memory)

• Temperature display

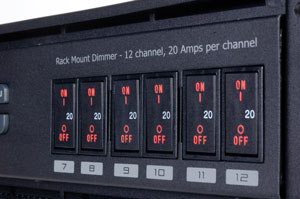

• 12 x 20A re-settable breakers

• 75A Maximum power per unit @120v
