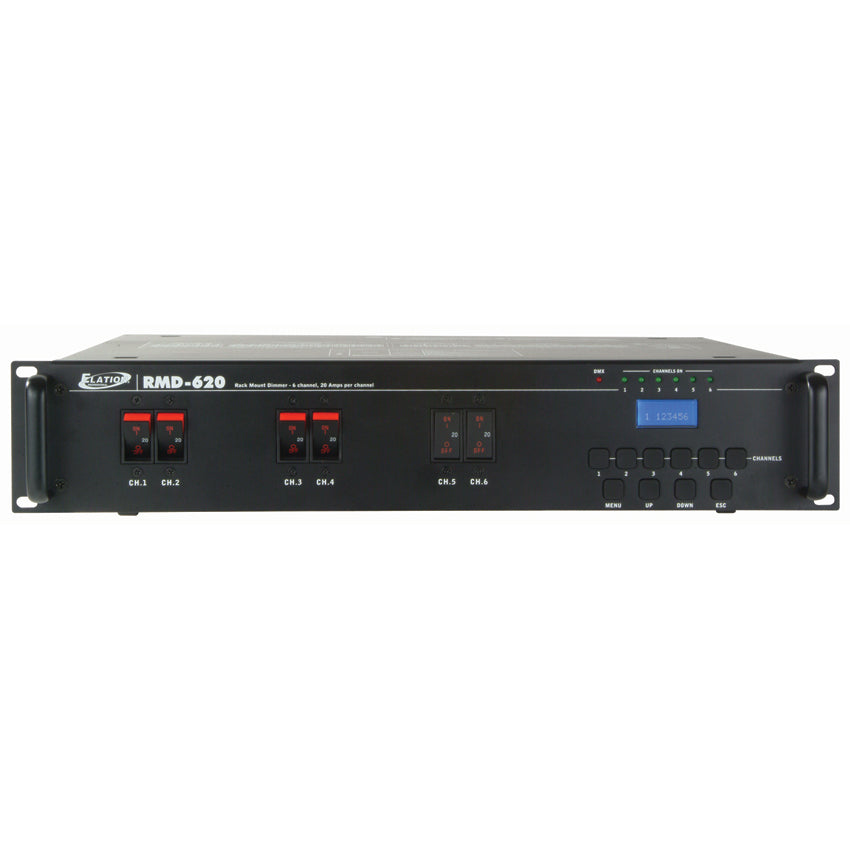

RMD 620

Features

Resources

User Manual

Specifications

Specifications

• 6 channel digital dimer pack

• 20A per channel (2400 watts)

• USITT DMX-512 (3PIN) input & output

• 2U 19” rack mount

• High speed micro processor

• Real time zero crossing detection

• Blue backlit digital display

• High quality chokes for minimal noise

• Individual or block channel patching

• Minimum channel output setting from 0-30%

• Maximum channel output setting from 70-100%

• Individual channel curve option setting

• Channel curve settings include Linear, Square, Non Dim and S-Curve.

• DMX fail backup feature- includes 12 internal chase programs, last scene hold and analog options

• Power failure memory

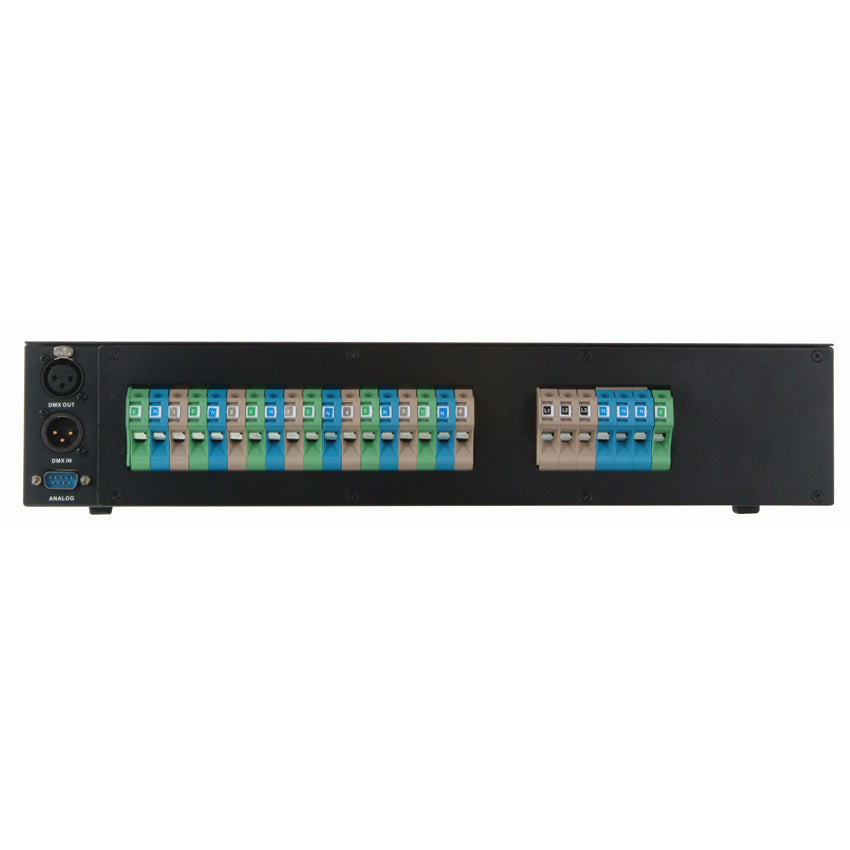

• Standard terminal type output panel- optional panels include: Edison, Socapex, Stage Pin and Power Con

• DMX Output

• Analog Output

• Fan cooled

• 6 x 20A MCB breakers.

• Dimensions- 17” x 19” x 3.5”

• Weight- 21lbs.
