S-500 Silent Snow Machine

Specifications

OUTPUT
 400 ml / min

 TANK CAPACITY
 5.2 gal (20 Liter)

 CONTROL / CONNECTIONS
 (2) DMX Channel Modes (1 / 2)
 3pin/5pin XLR In/Out
 powerCON In

 SIZE / WEIGHT
 Length: 22.3” (592mm)
 Width: 21.7” (551mm)
 Vertical Height: 25.6” (651mm)
 Weight: 82 lbs. (37.2 kg)

 ELECTRICAL
 AC120V / 60Hz
 1,200W Max Power Consumption

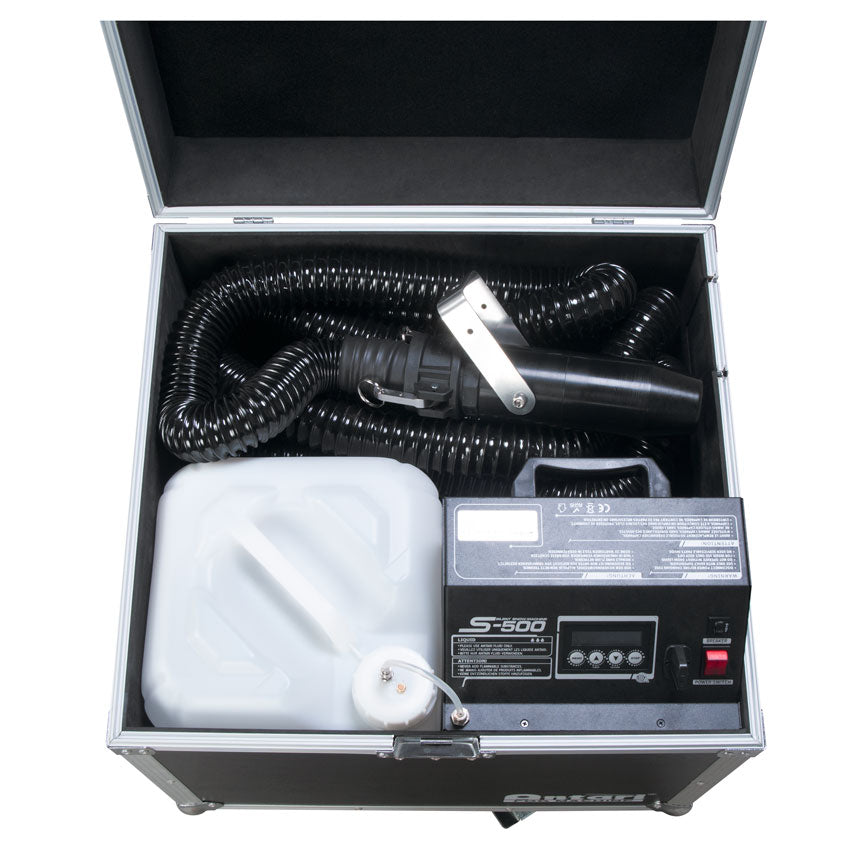

 INCLUDED ITEMS
 powerCON Cable
 5.2 gallon (20 Liter) Fluid Tank and Feed Tube
 32.8 ft (10m) Air Hose and Nozzle

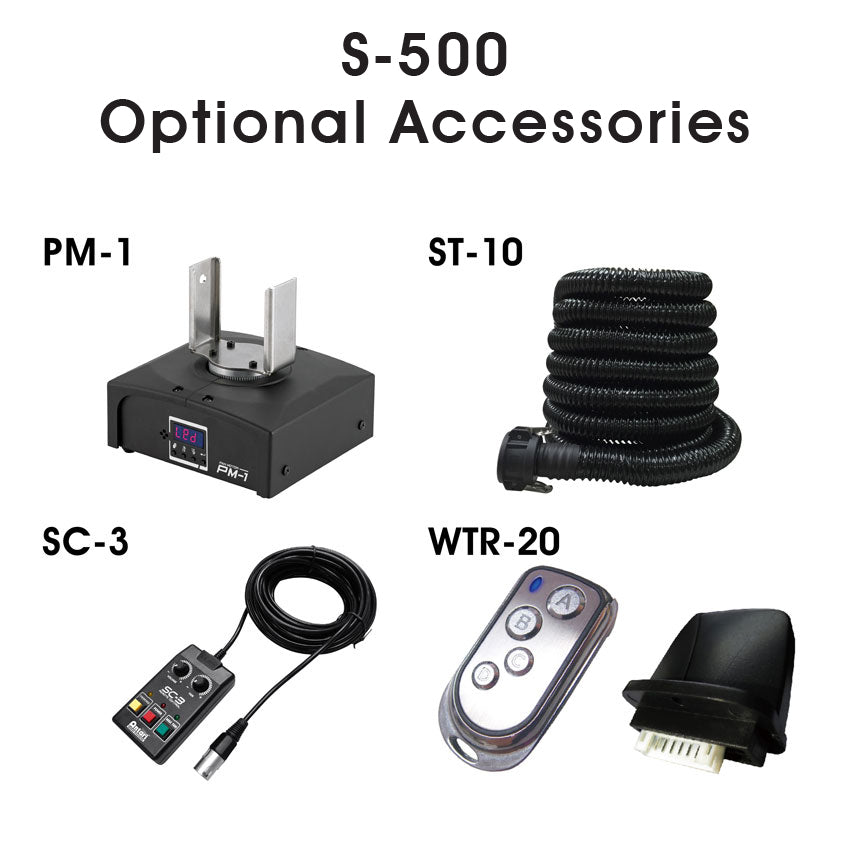

 OPTIONAL ACCESSORIES

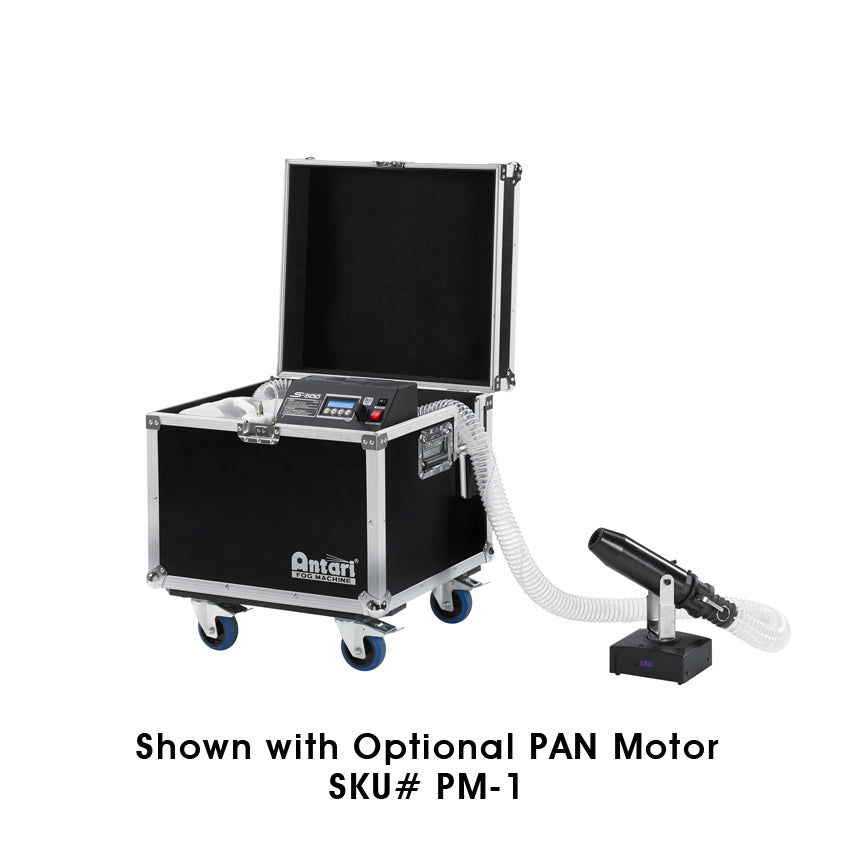

 PAN MOTOR - SKU# PM-1

 120 Degree Pan Movement | LED Control Display with 4 Buttons
 Metal Chassis with Plastic Cover

 CONTROL / CONNECTIONS
 (2) DMX Channels | 3pin XLR DMX In/Out

 INCLUDED ITEMS
 Motor, Power Cord, Omega Bracket (for clamp mounting)

 SIZE / WEIGHT
 Length: 6.7” (169mm)
 Width: 6.1” (154mm)
 Vertical Height: 5.9” (151mm)
 Weight: 4 lbs. (1.8 kg)

 ELECTRICAL
 AC120-240V 50/60Hz
 11W Max Power Consumption


 32.8 ft (10m) Air Hose Extension - SKU# ST-10

 Wired Remote Control - SKU# SC-3

 Wireless Remote Control Add On Kit - SKU# WTR-20

 Wireless DMX Add On Kit - SKU# W-DMX-PCBR




 Specifications and documentation subject to change without notice.
