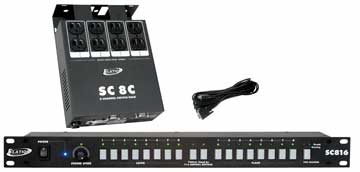

SC 816 System

Features

Resources

User Manual

Specifications

SC SP8 SPECIFICATIONS:

• 4-in-1 lighting controller with:
  1. 8-Channel NON-DMX lighting controller: latch/On/Off & flash each channel
  2. Strobe Controller: Adjust Strobe Speed 0-10V (compatible with most analog 0-10V strobes)
  3. Fog machine trigger button: trigger fog machine, “Heating” and “Ready” LED indicators (Compatible with Vaporizer, Vapor Flow, Fog Storm 1200 and Fog Storm 1700 )
  4. Chase controller button: trigger the LSC T-16F foot control chaser (sold separately)


• Stand-by (black out) mode

• Go wireless with the LSC LC Wireless no need for LCEX25 cable (sold separately)

• Built with high quality, switching triacs for longer life

• Dimensions (LxWxH): 3” x 19” x 1.75” / 76.2 x 486.6 x 44.45mm

• Weight: 2 lbs. / .9 kgs.



SC 8C Specifications:

• 8-channel switch packo Maximum load: 15 amps or 1800 watts per relay pack

• Circuit breaker protection

• Hanging bracket
• Dimensions (LxWxH): 10.5” x 7.7” x 3” / 266.5 x 195.4 x 76.2mm
• Weight: 6.5 lbs. / 3 kgs.
