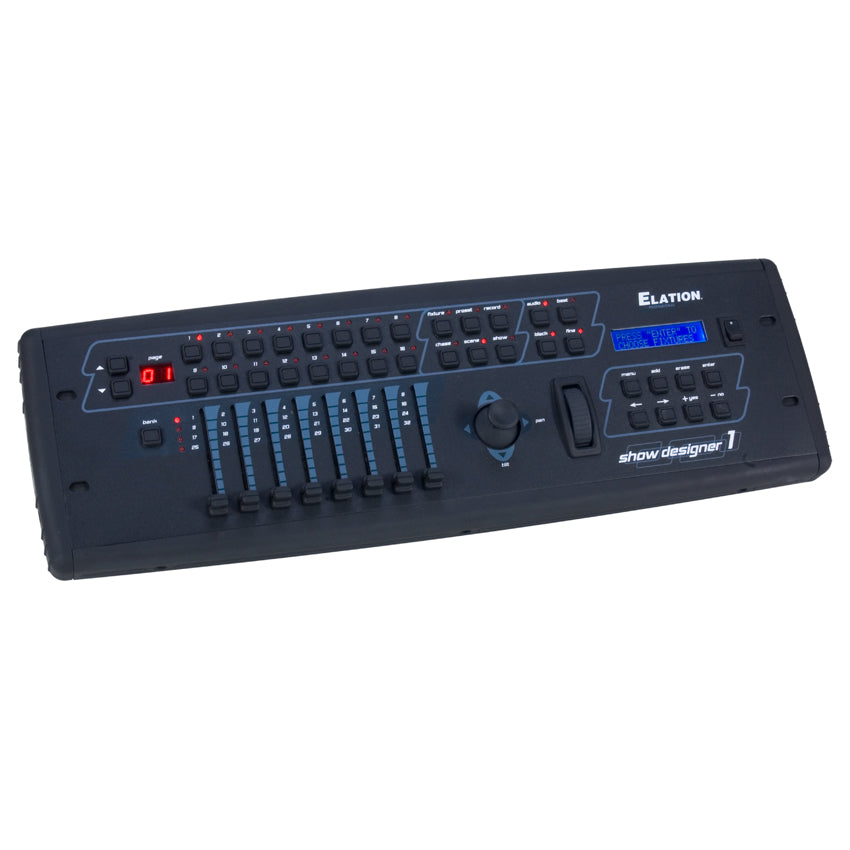

Show Designer 1

Features

 (16) Fixture Buttons
 (8) Faders and (4) Bank Buttons
 (1) Rotary Wheel for Data Entry
 Joy Stick for Pan and Tilt Control
 (32) Character Backlit LCD Display
 Holds1024 Scenes, 512 Presets, 256 Chases, 256 Shows
 Tabletop Style with Removable Outer Case for 3U Rack Mounting

Resources

User Manual

Specifications

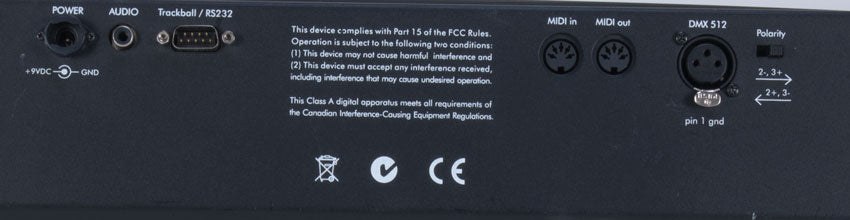

 CONTROL / CONNECTIONS
 9-12VDC External Power Supply (included)
 3pin XLR for DMX-512 Output and Polarity Switch
 MIDI In/Out, RCA Audio Input
 RS232 Port for Trackball or PC Connection

 SIZE / WEIGHT
 Length: 19.0” (483mm)
 Width: 5.25” (133.4mm)
 Vertical Height: 4.75” (121mm)
 Weight: 7.0 lbs. (3.2 kg)


 OPTIONAL ACCESSORIES:

 PRO CABLES (click for more info)

 Specifications and documentation subject to change without notice.
