Show Designer 3

Features

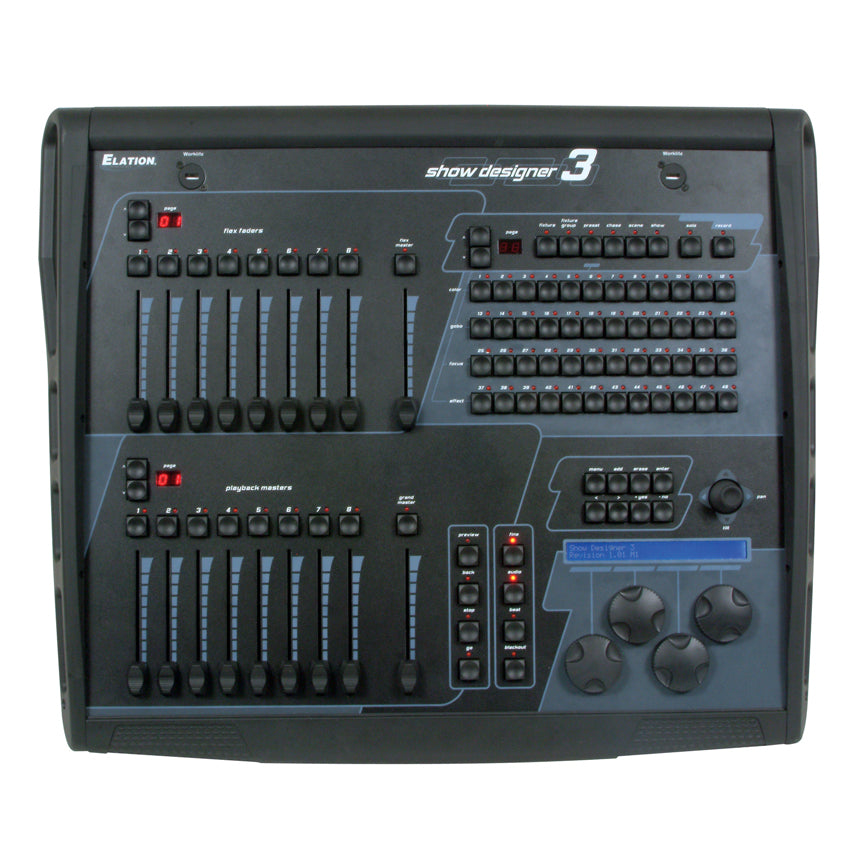

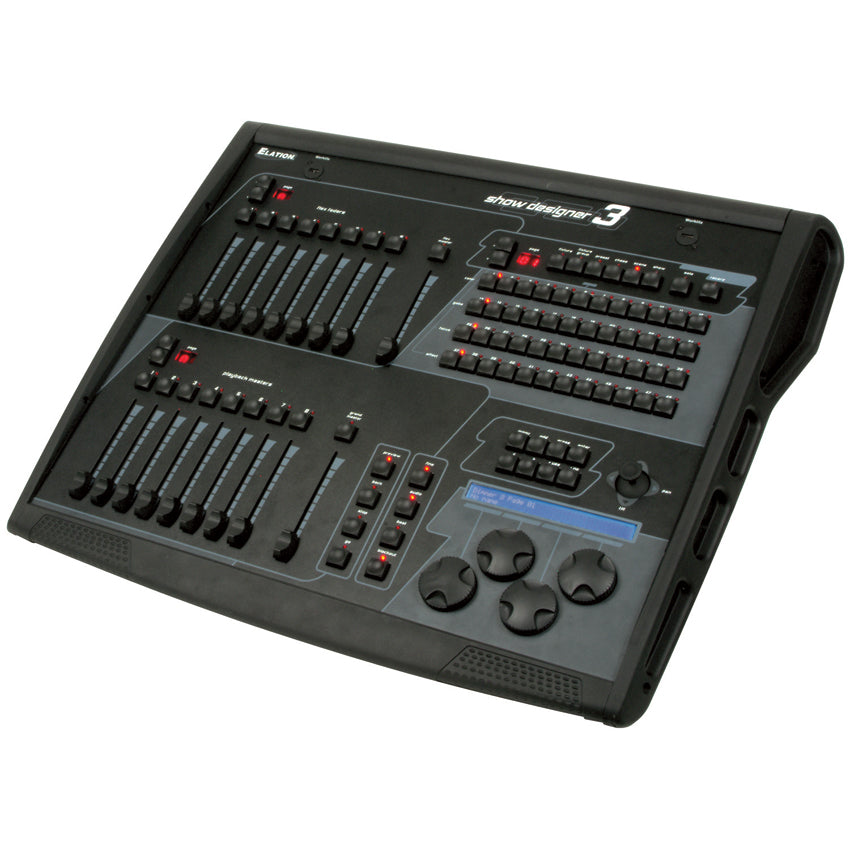

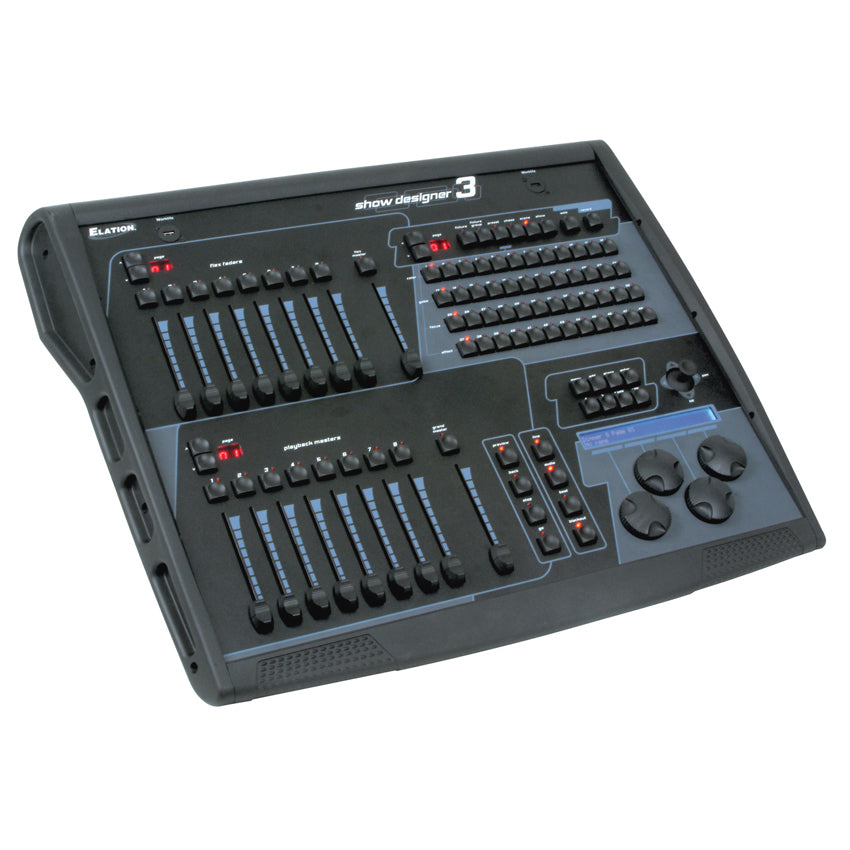

Take full control with the new Show Designer 3. This advanced lighting board is based on the successful and easy-to-use Elation Professional Show Designer 1 & 2. The Show Designer 3 expands on the existing features and adds several others. The approach of this controller is to try to simplify the programming process as much as possible while still offering a high level of control at an affordable cost. This full size universal DMX controller offers you both power and flexibility for all your programming applications. The Show Designer 3 makes programming simple and fast. A Compact Flash drive makes backing up programs, adding fixture profiles and software updates a snap. The latest fixture profiles can be downloaded off the Elation Professional website. Experience the power and take control with Show Designer 3 today!

 SHOW DESIGNER 3 ADVANTAGES:

• Easy-to-use operation

• Large moving light fixture library available

• Software updates available at www.elationlighting.com

• Compact Flash drive on rear for memory back-up, loading fixture profiles and software updates

 MAIN CONTROL FEATURES
 1536 DMX Channels
 3 DMX Universe, 3 & 5 Pin connectors on each output
 Control 48 moving light fixtures up to 32 channels each
 Control 128 Conventional dimmers
 Playback scenes using buttons or playback faders
 Effect generator to create chase effects
 Conventional dimmers can be included in scene memory or be independent.
 Factory ready color, gobo, focus & effect presets
 Large moving light fixture library available (same profiles as Show Designer 2)
 Scene preview with “Go” button
 Solo feature allows scenes to track through or play solo
 Scenes can be combined and recorded as new scenes
 Scenes, shows, chases and presets can be assigned to the playbacks.
 Playbacks can manually fade channels (LTP mode) or trigger timed fades while manually controlling dimmer levels (HTP mode)

Resources

User Manual

Specifications

 FRONT PANEL
 80 Character backlit display for easy programming
 4 menu and control data wheels
 48 Multi function Quick access buttons
 100mm faders
 8 dedicated playback faders with 32 pages
 8 flex faders with page selection for moving light channels, conventional dimmers or additional playbacks.
 Pan/tilt joystick with coarse/fine control
 Grand master fader
 Flex master fader
 Go, stop and back buttons
 Blackout, audio and beat buttons
 2 USB LITE connectors (for gooseneck lamps)

 REAR PANEL CONNECTIONS
 3 (3 Pin) DMX Outputs
 3 (5 Pin) DMX Outputs
 Midi-In port
 CF-drive for memory back up, loading fixture profiles and software updates.
 PS2 Keyboard input
 RS-232 Port, for PC interface
 RCA Audio input for Chases
 Voltage selection switch

 CAPACITY
 4752 programmable scenes
 1152 programmable chases
 1152 programmable shows
 1152 programmable presets
 48 fixture groups
 Fade times up to 90 minutes
 Run 16 chases simultaneously
 Run 17 shows simultaneously

 MECHANICAL
 Dimensions: 28” x 23” x 7 / 711 x 584 x 178mm
 Weight: 37 lbs. / 17 kgs.
 110/220V AC power supply

 OPTIONAL ACCESSORIES

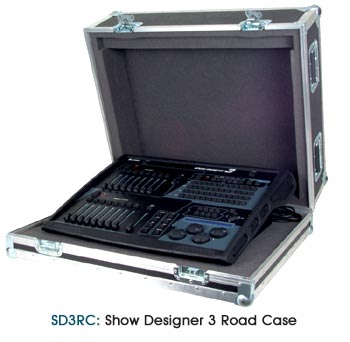

 SD3RC - Road case
 USB LITE (LED gooseneck lamp)
&nb
