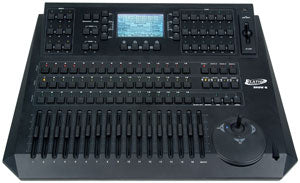

Show Q

Features

Resources

User Manual

Specifications


• 512 DMX channel moving light controller

• 64 fixtures, up to 20 channels each

• 64 programmable Scenes

• 36 programmable Shows

• 9 assignable Fixture Groups

• Password protected set-up function

• Internal fixture library

• 32MB compact flash card slot to exchange data, library, memory and set-up files

• Audio input and built in microphone for music sync functions

• Joystick for Pan / Tilt control of moving lights

• Master fader- assigned to all dimmer channels

• Polarity switch (2-, 3+, / 2+, 3-)

• RS232 to transfer information to and from a PC

• Two DMX 3-pin XLR outputs

• Two DMX 5-pin XLR outputs

• Midi In/Out & Thru connectors

• Includes vinyl dust cover

• USB socket for optional USB Light

• Power: 115V/230V selectable

• Dimensions: 21.5”L x 27”W x 6.75”H

• Weight: 14.5 lbs

• Optional accessories: USB Light & 32MB Compact Flash Card
