SNI Software Uploader
SNI Software Uploader

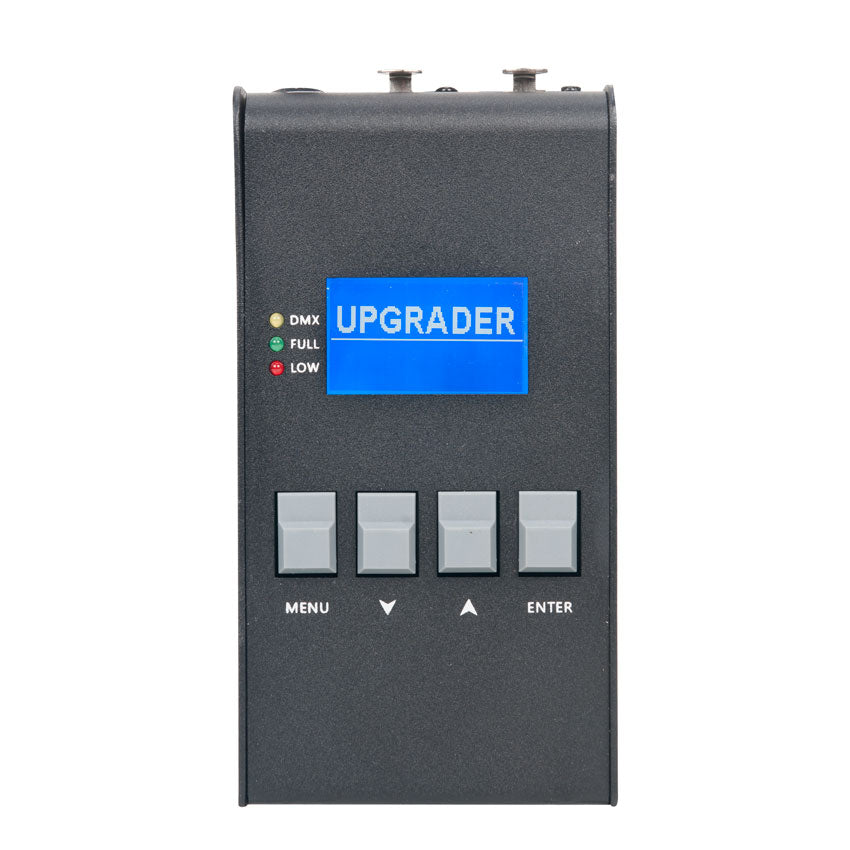

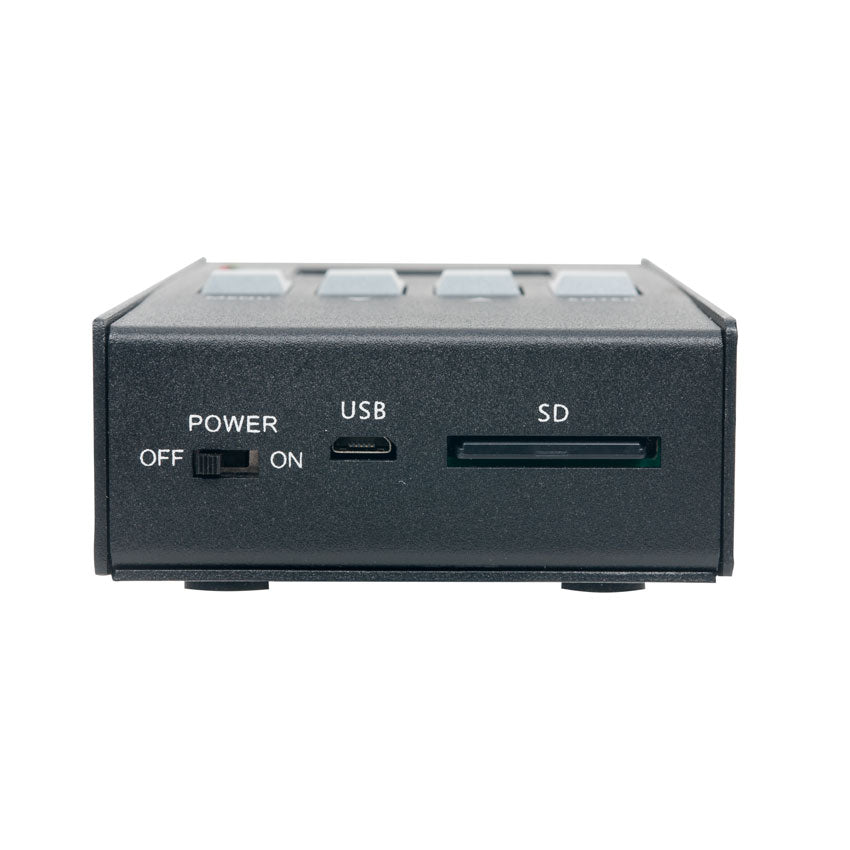

The SNI Software Uploader™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin or 5pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader. SNI Software Uploader™ features an LCD display, 4 push button control panel, a MICRO SD card slot, 3pin and 5pin XLR DMX outputs, an On/Off switch, and includes a 12VDC external power supply, USB to MICRO SD card adapter, and blank MICRO SD card.
Features
Contact Elation Service for available fixture software updates.
Click Here To Email Elation Service
SEE ALSO
SOFTWARE UPLOADERS (click for more info)
Resources
Specification information
Guides/ Manuals
Related Categories
Specifications
4 Push Button Control Panel
LCD Menu Display
3pin and 5pin DMX Out
MICRO SD Card Slot
Mini USB Input
12VDC Power Input
SIZE / WEIGHT
Length: 6.8” (173mm)
Width: 3.4” (86mm)
Vertical Height: 2.0” (51mm)
Weight: 1.1 lbs. (0.5 kg)
ELECTRICAL
12VDC External Power Supply
INCLUDED ITEMS
MICRO SD Card
USB to MICRO SD Card Adapter
5VDC External Power Supply
COMPATIBLE ELATION MODELS:
ARENA PAR
ARENA PAR ZOOM
ARENA Q7 ZOOM
PROTRON 3K LED STROBE
PROTRON 3K COLOR LED STROBE
SNIPER 2R
SNIPER PRO
TVL CYC RGBW
TVL PANEL DW
Specifications and documentation subject to change without notice.
