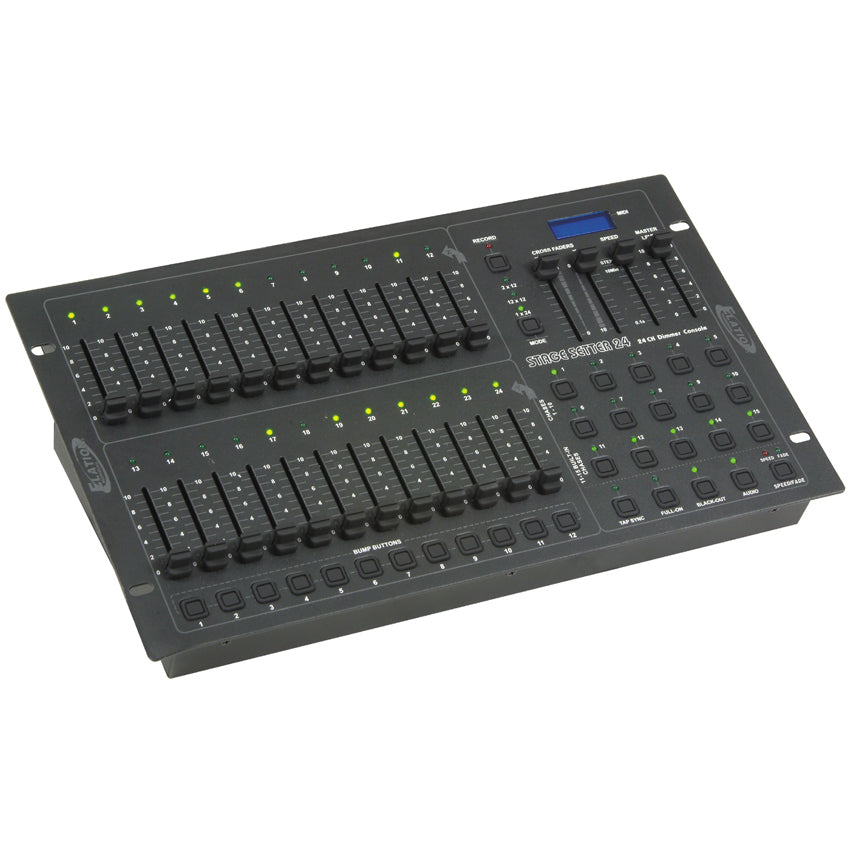

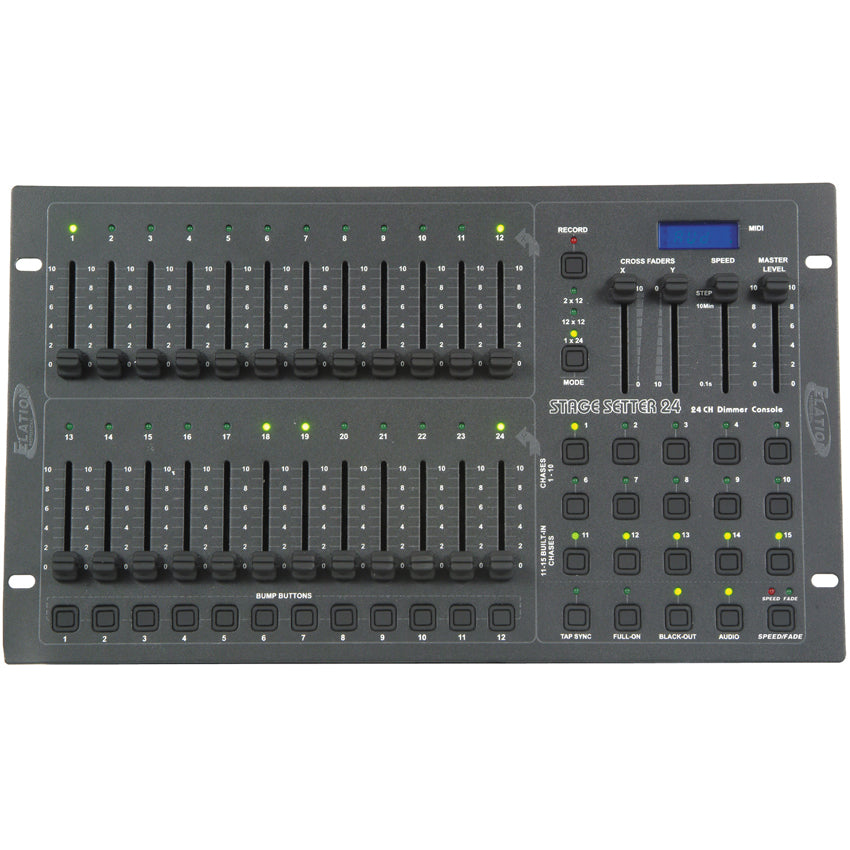

Stage Setter-24

Features

24 Total Channels DMX-512 (1990) Output
 7 Segment Information Display
 Scene Master Fader Playbacks
 Scene Master Bump Playbacks
 10 Programmable Chases
 5 Built-In Chases
 Tap Sync Speed (0.1 sec to 10 min)
 Separate Speed & Fade Control for Chase Playback

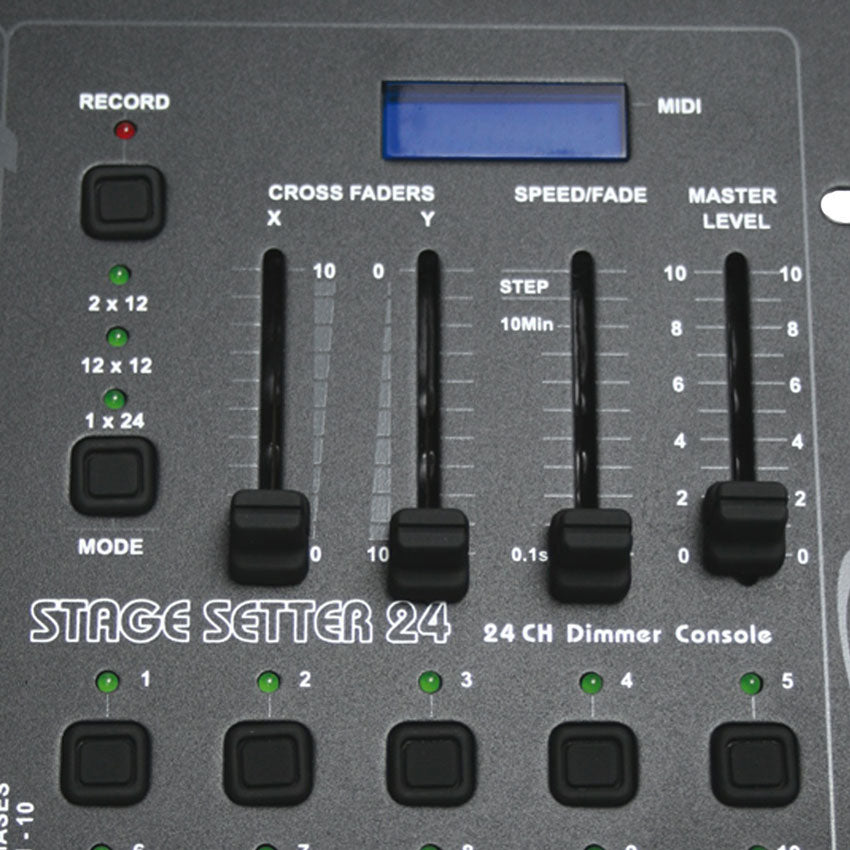

 X & Y Manual Scene Crossfade
 Audio Trigger
 MIDI Trigger
 Passcode Protected Chases

Resources

User Manual

Specifications

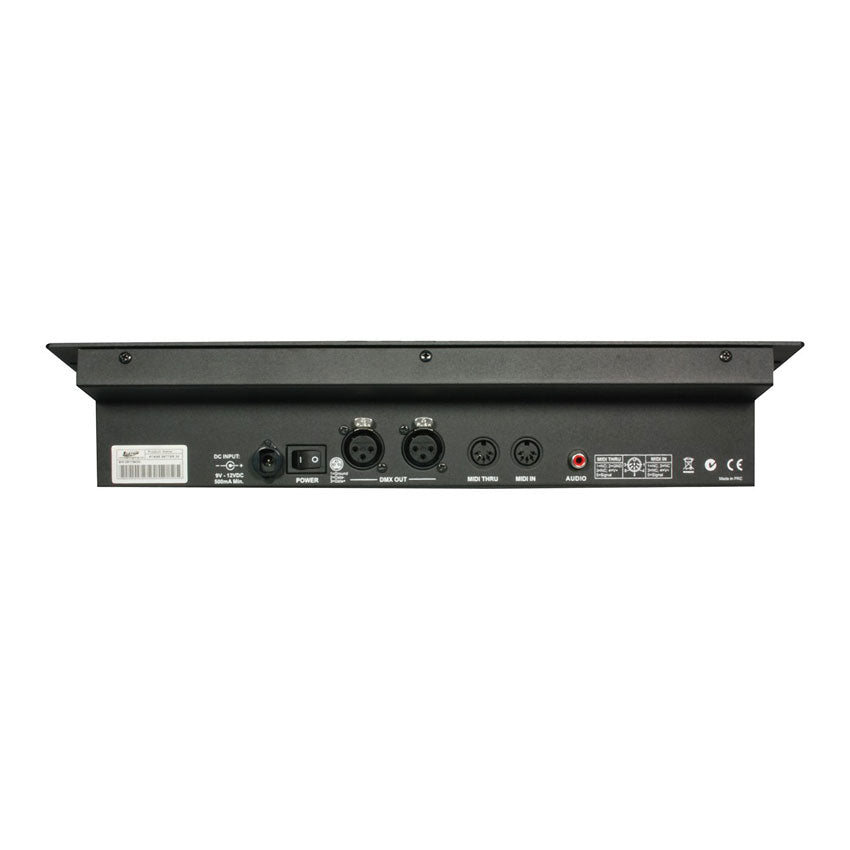

 CONTROL / CONNECTIONS
 2 x 12, 12 x 12, 1 x 24 Modes
 (2) 3pin DMX Out
 5pin MIDI In
 5pin MIDI Through
 Audio In
 DC 12V-20V Power In

 SIZE / WEIGHT
 8.75” (222.3mm) x 15.0” (381mm) x 3.25” (83mm)
 8.0 lbs. (3.6kg)

 ELECTRICAL
 AC 120V - 60Hz


 OPTIONAL ACCESSORIES:

 PRO CABLES (click for more info)


 DMX SOLUTIONS (click for more info)


 Specifications and documentation subject to change without notice.
