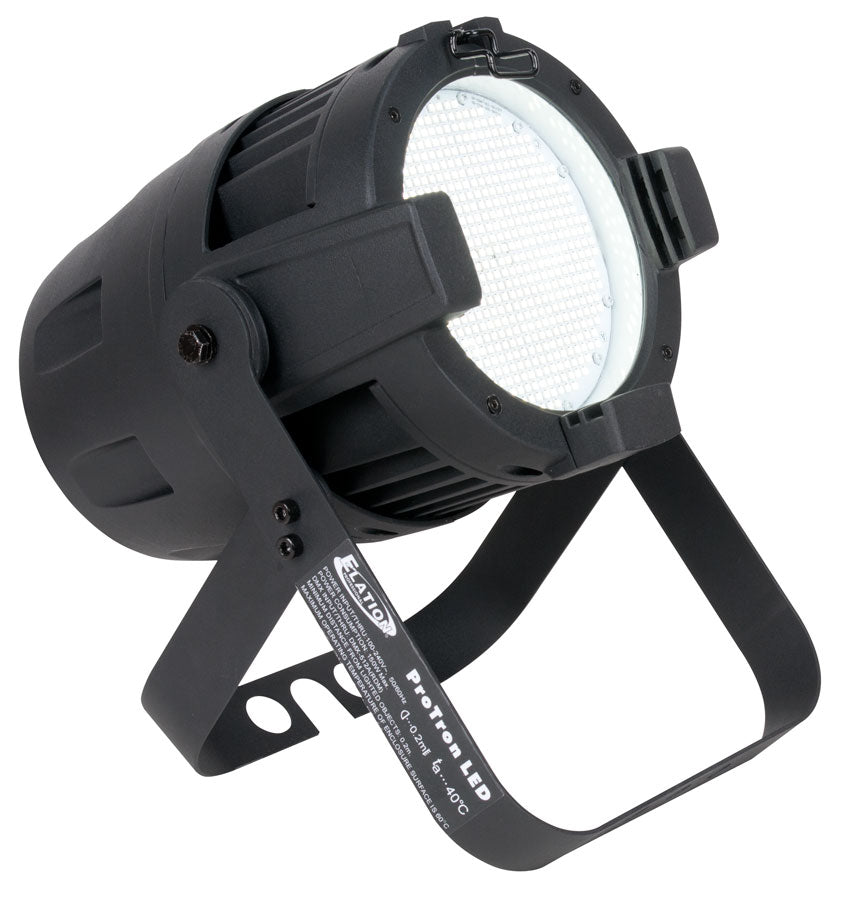

Protron LED Strobe
Discontinued
Protron LED Strobe is a professional-grade lighting solution.
Protron LED Strobe
Sale price$0.00
Protron LED Strobe
High Power 6,500K Surface Mount Cool White LEDs
Low 150W Power Consumption
IP65 Rated Rugged Die Cast Aluminum Case
Selectable Dimming Curves
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Integrated 6.25” Gel Frame Holder
Spilt Yoke Rigging Bracket
High Power 6,500K Surface Mount Cool White LEDs
Low 150W Power Consumption
IP65 Rated Rugged Die Cast Aluminum Case
Selectable Dimming Curves
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Integrated 6.25” Gel Frame Holder
Spilt Yoke Rigging Bracket
High Power 6,500K Surface Mount Cool White LEDs
Low 150W Power Consumption
IP65 Rated Rugged Die Cast Aluminum Case
Selectable Dimming Curves
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Integrated 6.25” Gel Frame Holder
Spilt Yoke Rigging Bracket
Specifications
SOURCE
(576) 6,500K Cool White Surface Mount LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
120° Beam Angle
28,000 Total Lumens
EFFECTS
Variable Strobe Intensity, Rate, and Duration Control
Multiple Zone Chase Effects

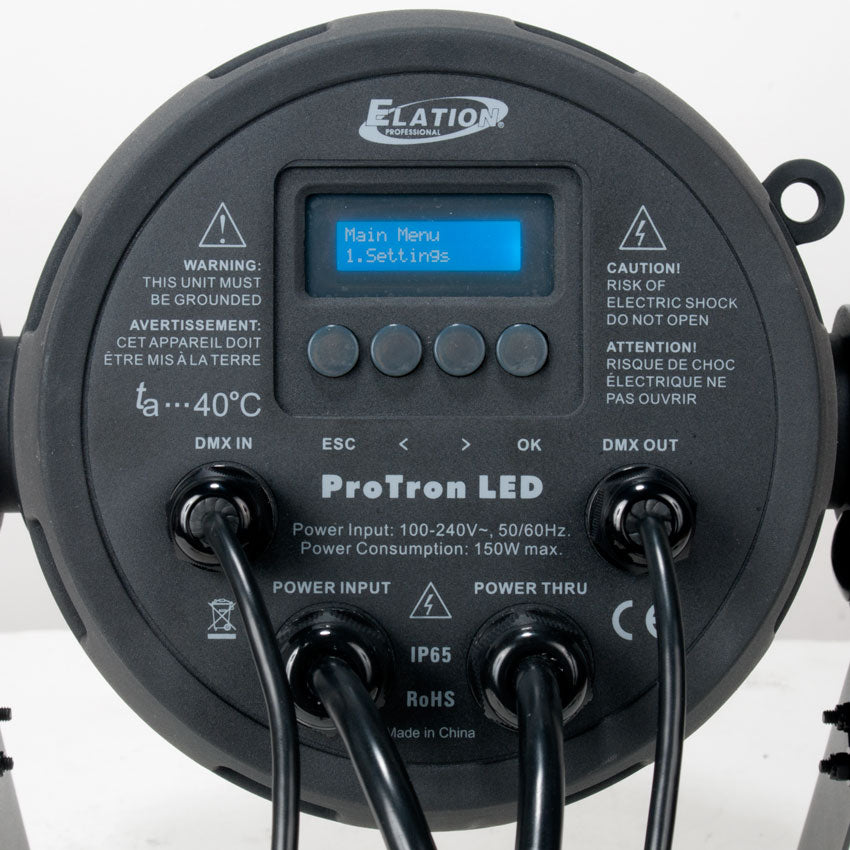

CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 3 / 4 / 6)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin DMX In/Out
Power In/Out
SIZE / WEIGHT
Length: 10.8&" (275.5 mm)
Width: 10.8&" (273.5 mm)
Vertical Height: 13.9&" (352 mm)
Weight: 11.7 lbs. (5.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
32°F to 104°F (-0°C to 40°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
(576) 6,500K Cool White Surface Mount LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
120° Beam Angle
28,000 Total Lumens
EFFECTS
Variable Strobe Intensity, Rate, and Duration Control
Multiple Zone Chase Effects
CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 3 / 4 / 6)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin DMX In/Out
Power In/Out
SIZE / WEIGHT
Length: 10.8&" (275.5 mm)
Width: 10.8&" (273.5 mm)
Vertical Height: 13.9&" (352 mm)
Weight: 11.7 lbs. (5.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
32°F to 104°F (-0°C to 40°C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
Downloads
Ies files
Photometrics
Specification sheet
User manual
Generic
Protron LED Strobe Parts & Service
Our Protron LED Strobe Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Protron LED Strobe. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
