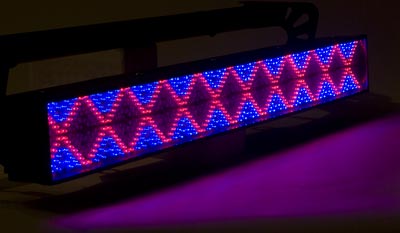

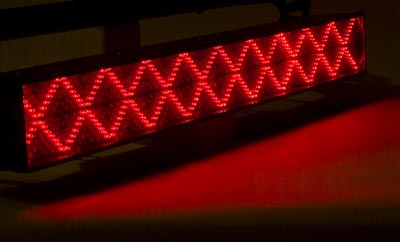

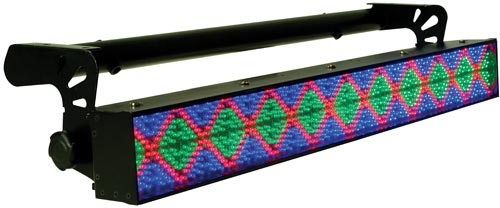

Trackpod 84

Features

FEATURES:

• 840 LEDs - (280 Red, 280 Green, 280 Blue)

• Seamless RGB color mixing

• Infinite Color possibilities

• 15-degree beam angle

• 2300 LUX @ 1M / 1000 LUX @ 2M

• Long Life L.E.D. (rated at 100,000 Hours)

• Low power consumption

• Low heat emissions

• Built-in Power Supply and DMX 512 Control

• Flicker free operation for television and film (520Hz)

• Electronic Switching Power Supply (90-260V, 50/60Hz)

• Full video pixel mapping control. LEDs are arranged in ten modules of 84, each of which can be divided into four individual sections. This provides a total of 40 pixels capable of running graphics or matrix when multiple units are used together.

Resources

User Manual

Specifications

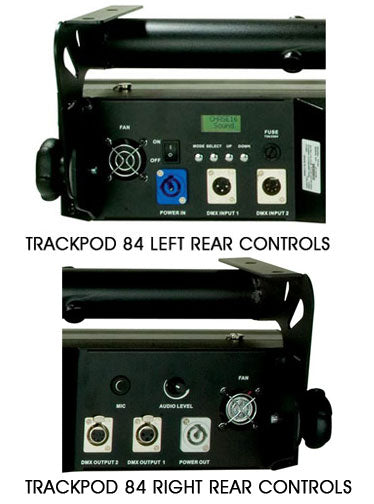

 CONTROL SPECIFICATIONS:

• USITT-DMX 512

• 4, 7, 8, 20, 40, 160 control channel modes

• LCD display with 4-button DMX control

• 3-pin and 5-pin XLR in/out

 CONTROL FEATURES:

• 4 control modes: DMX; Master/Slave; Manual Color Mix; Auto Chase

• 19 pre-programmed chases

• Strobe effect

• 7 static colors with intensity control

• 0-100% Dimming

 POWER SUPPLY:

• 100-240V AC, 50/60Hz (Multi-voltage)

• Neutrik Powercon for power connection

• Power Consumption: 120 watts

 RIGGING:

• Heavy duty mounting bracket

 DIMENSIONS & WEIGHT:

• (LxWxH): 40” x 10.25” x 9.75” / 1010x258x245mm

• 25 lbs. / 11.3 kgs.
