TVL F1WW
TVL F1WW

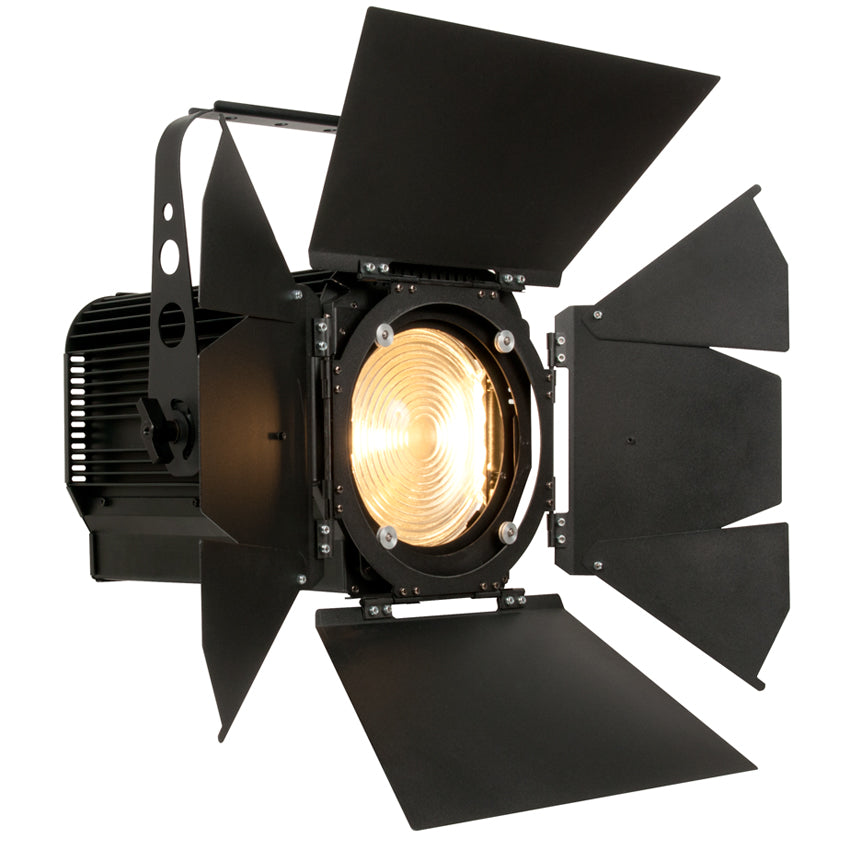

The new TVL F1CW™ features a 100W Warm White 3,200K LED engine, motorized 12°-40° zoom, no noise thermo-optical cooling, DMX controlled dimmer and zoom, flicker free operation for TV and FILM, 5pin DMX in/out, powerCon, 2 Ethernet (RJ45) connections, integrated yoke / handle, 141W max consumption, and a multi-voltage universal auto switching power supply (100-240v). FEATURES 12° - 40° Motorized Zoom DMX Controlled Dimmer/Zoom Flicker FREE Operation for TV and FILM No Noise Thermo-Optical Cooling Technology
Features
Resources
Guides/ Manuals
- TVL F1WW Specification Sheet
- TVL F1WW Photometric IES Files
- TVL F1WW Dimensional Drawings
- TVL F1WW Photometric Data
- TVL F1WW Manual 1.2
- TVL F1WW 2D CAD
- TVL F1WW 3D CAD
Related Categories
Specifications
SOURCE
(1) 100W Warm White LED Engine
50,000 Hour Average Life
PHOTOMETRIC DATA
High CRI = 95 / 24.3 Lm/W 3,200K ± 200K
2,192 Max LUX @5M (12° Full On 3,200K)
EFFECTS
Zoom: 12° - 40°
Dimming: 0% - 100%

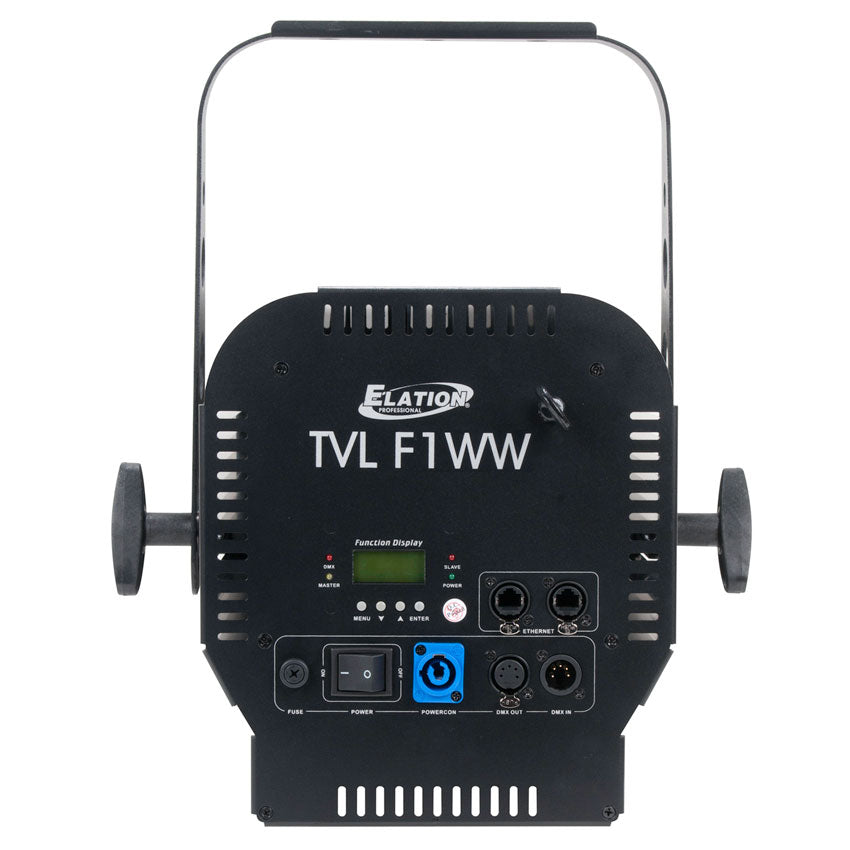

CONTROL / CONNECTIONS
4 Button Control LED Menu Display Panel
2 DMX Channels
5pin DMX In/Out
2 Ethernet (RJ45) Ports
powerCON Power In
SIZE / WEIGHT
Length: 20.4” (519 mm)
Width: 16” (407 mm)
Vertical Height: 17.4” (442 mm)
Weight: 35 lbs. (15.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
141W Max Power Consumption
40°C / 104°F Max Ambient Temperature
APPROVALS / RATINGS
CE | RoHs | IP20
INCLUDED ITEMS
Integrated Yoke/Handle
powerCON Cable

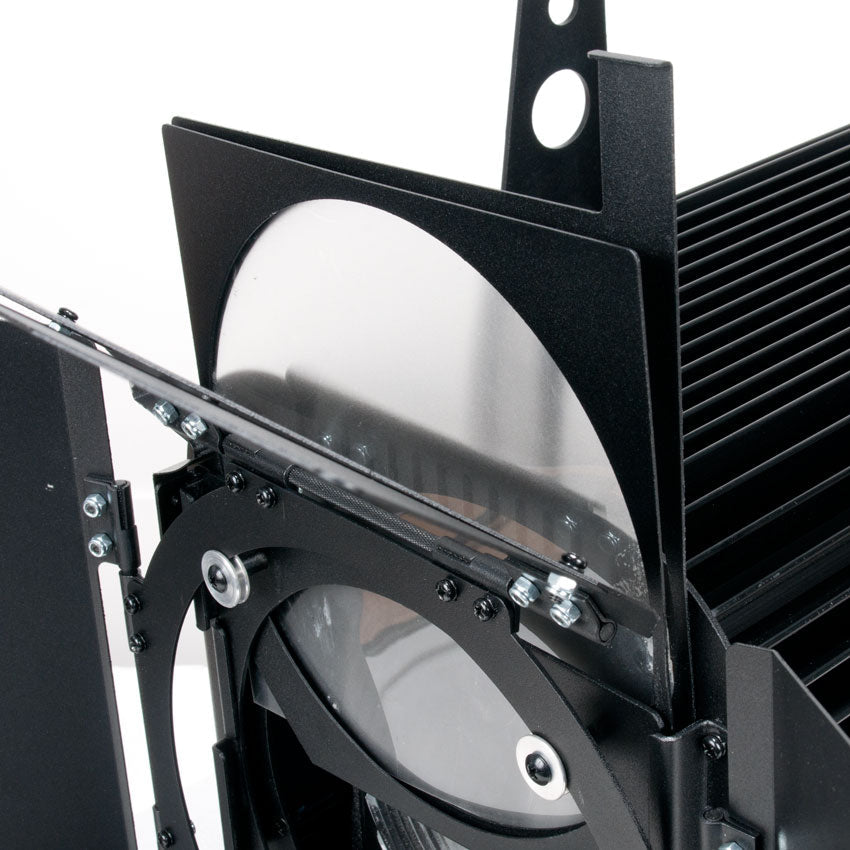

Rotating Barn Door
Gel Frame
OPTIONAL ACCESSORIES:
LSF FILTERS (click for more info)
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
