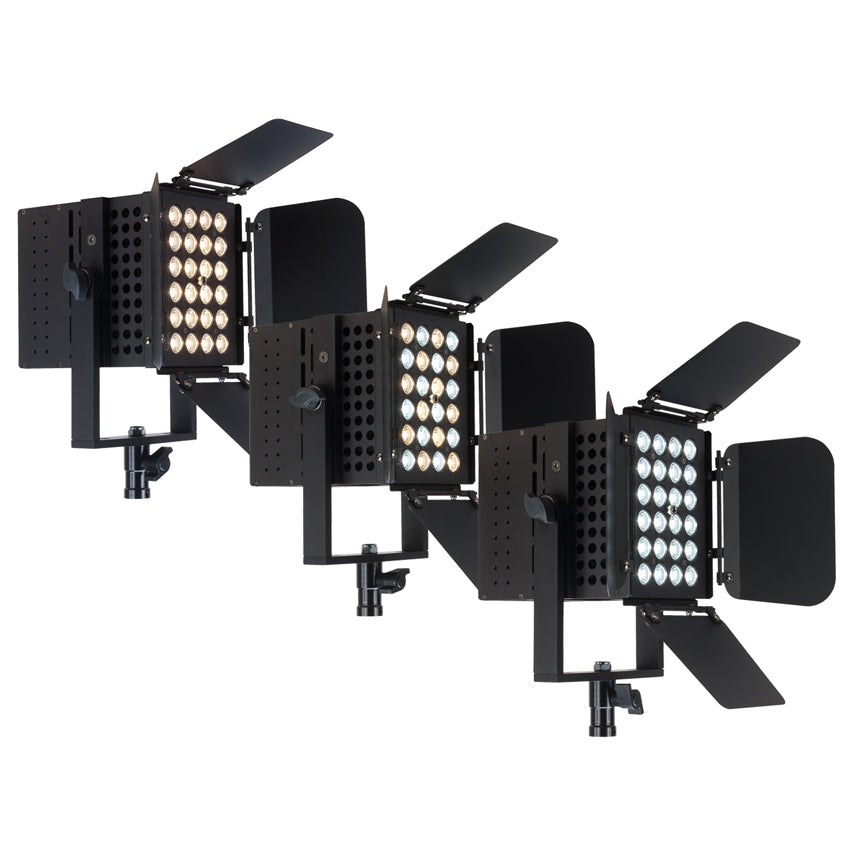

TVL3000 II

Features

 . 24 x 3W High Power 3,200k (WW) Or 5,000k (CW) White LED’s
 . Smooth Flicker Free Dimming
 . Convection Cooled - NO FANS -
 . powerCON IN
 . Optional Brackets For Array Mounting
 . Extreme Output - 3,300lux @ 5M (CW 10°)
 . Replaces Key- Or Headlights
 . 24v for battery pack option ( II DW/CW/WW )
 . 24 x 3W high power 3,200k or 5,000k white CREE LED'S
 . Superior color mixing
 . Gel Frame Included
 . Smooth flicker free dimming
 . 3,300lux @ 5M / 300fc at 16’ (CW 10°)
 . 24 x 3W high power 3,200k or 5,000k white LED’s

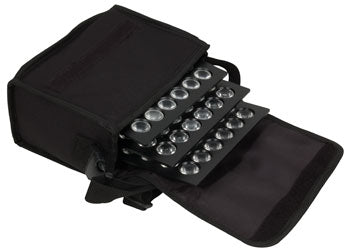

 . 10°, 25°, 40°, 60° beam angle lens kits included - 115° w/o lens kit attached
 . 2 Operation Modes - Manual and 1 channel DMX
 . Easy exchange replaceable lens kit design
 . Convection cooled - NO FANS - silent operation
 . Die cast aluminum case

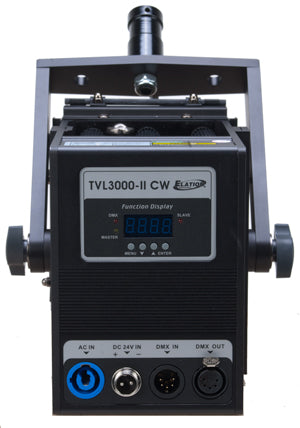

 . LED Menu Display on rear of unit
 . Adjustable Barn Doors included
 . 120v-240V 50/60hz
 . 24v for battery pack option ( II DW/CW/WW )
 . Power Consumption: 70W Max
 . Connectors: 5pin DMX in/out
 . Dimensions: (LxWxH) 8.7” L x 7.87” W x 12.4” H / 222 x 200 x 317mm
 . Weight: Shipping Weight 5.1kg / 11.25lbs

 APPROVALS / RATINGS
 CE | cETLus | IP20

Resources

User Manual

Photometric Data

CAD Drawing

Photometric Test Report

Photometric IES File

Specifications

OPTIONAL ACCESSORIES:

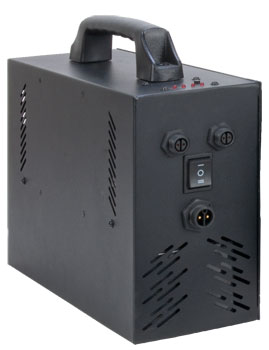

 TVL992 - Battery Pack for TVL3000 II Series
 Battery Life: 5 Hours (Full Charge) | 2.5 Hour (Charge Time)

 TVL3B21 - TVL3000 II Bracket To Join 2 Units Together

 TVL3B22 - TVL3000 II Bracket To Join 4 Units Together (2 x 2)

 TVL3B31 - TVL3000 II Bracket To Join 3 Units Together

 TVL3B32 - TVL3000 II Bracket To Join 6 Units Together (3 x 2)


 Specifications and documentation subject to change without notice.
