TVL4000 II

Features

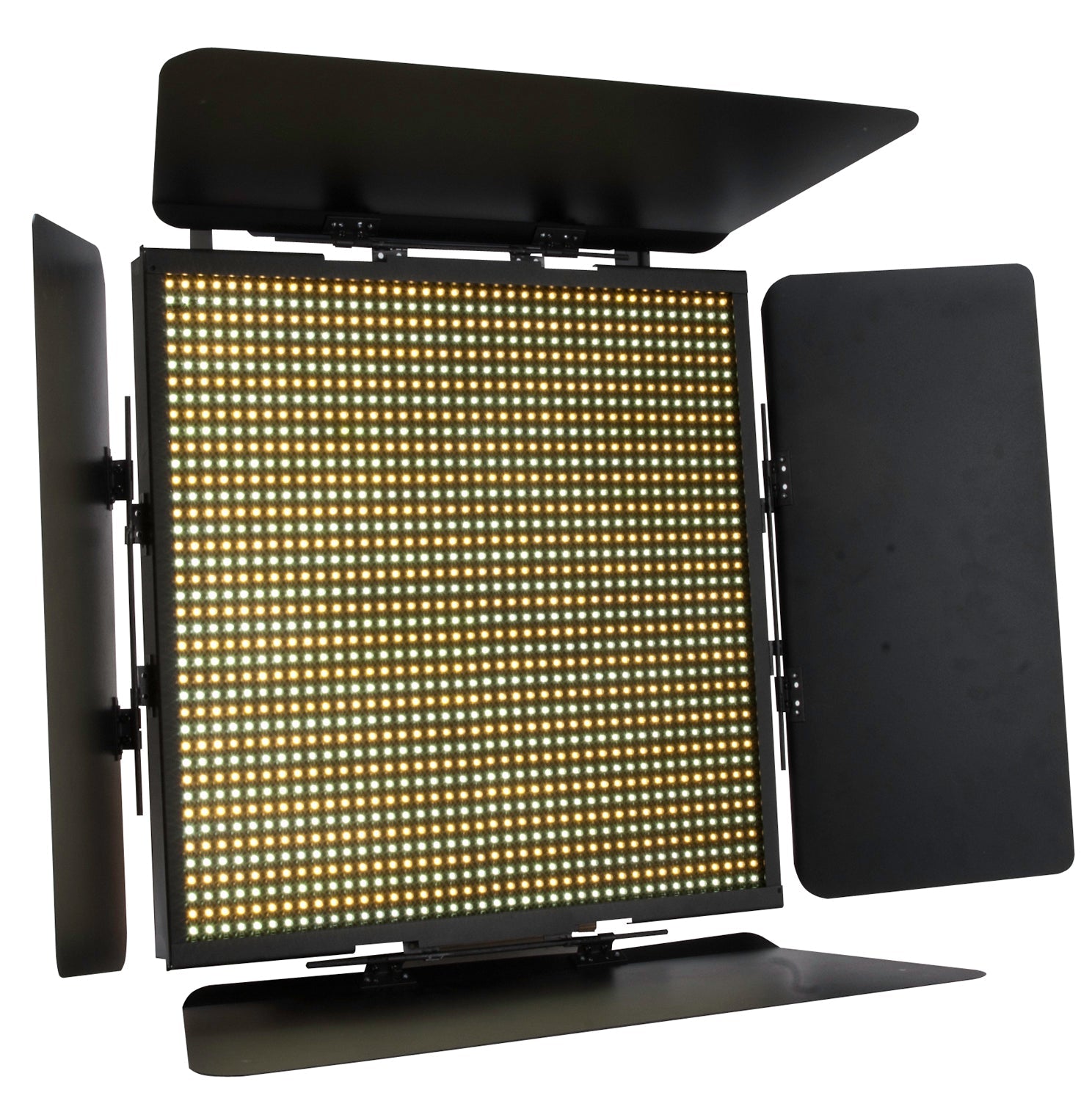

 Low Heat, >90CRI Dynamic LED Array Panel
 30° Beam Angle
 Variable Color Temperature Settings (3,200K - 6,500K)
 Adjustable Barn Doors

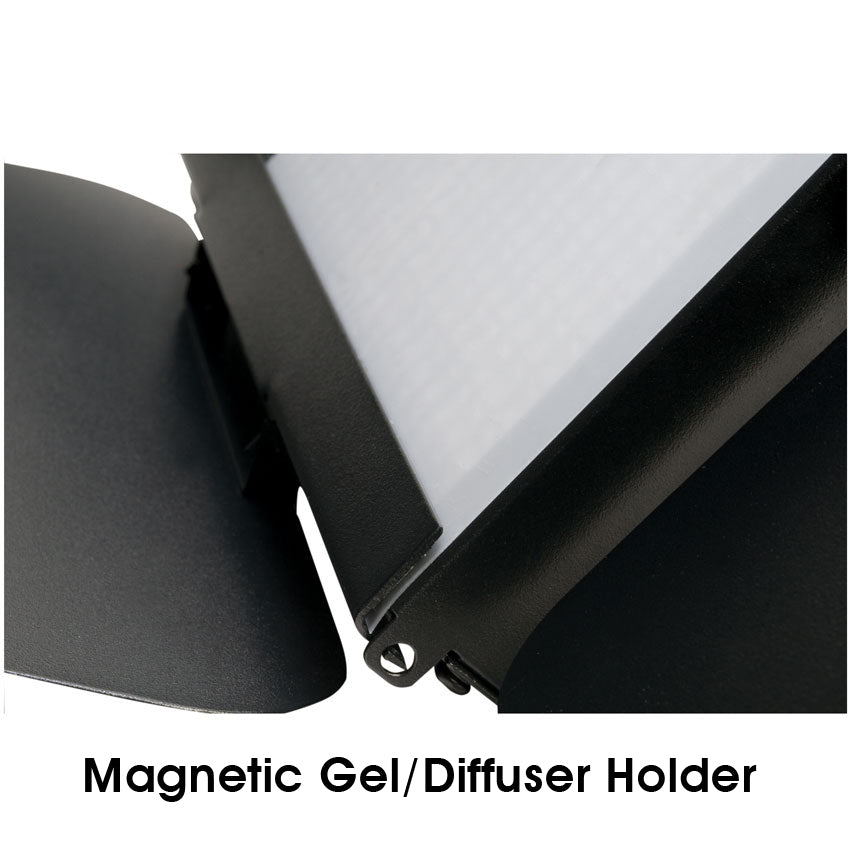

 Magnetic Gel/Diffuser Holder
 Manual and DMX Controlled Color Temp and Dimming
 Flicker Free Operation for Broadcast TV and FILM

Resources

Specifications Sheet

User Manual

Photometric Data

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

 SOURCE
 (800) Warm White + (800) Cool White LEDs

 PHOTOMETRIC DATA
 1500 LUX 139 FC @6.6’ (2M) (30° Warm White 3,200K)
 1900 LUX 177 FC @6.6’ (2M) (30° Cool White 6,500K)
 3400 LUX 316 FC @6.6’ (2M) (30° Full On 4,500-5,000K)

 EFFECTS
 Variable Color Temperature (3,200K - 6,500K)
 Electronic Dimming (0% - 100%)

 CONTROL / CONNECTIONS
 (3) DMX Channel Modes (2/2/3)
 Manual and DMX Color Temperature and Dimming

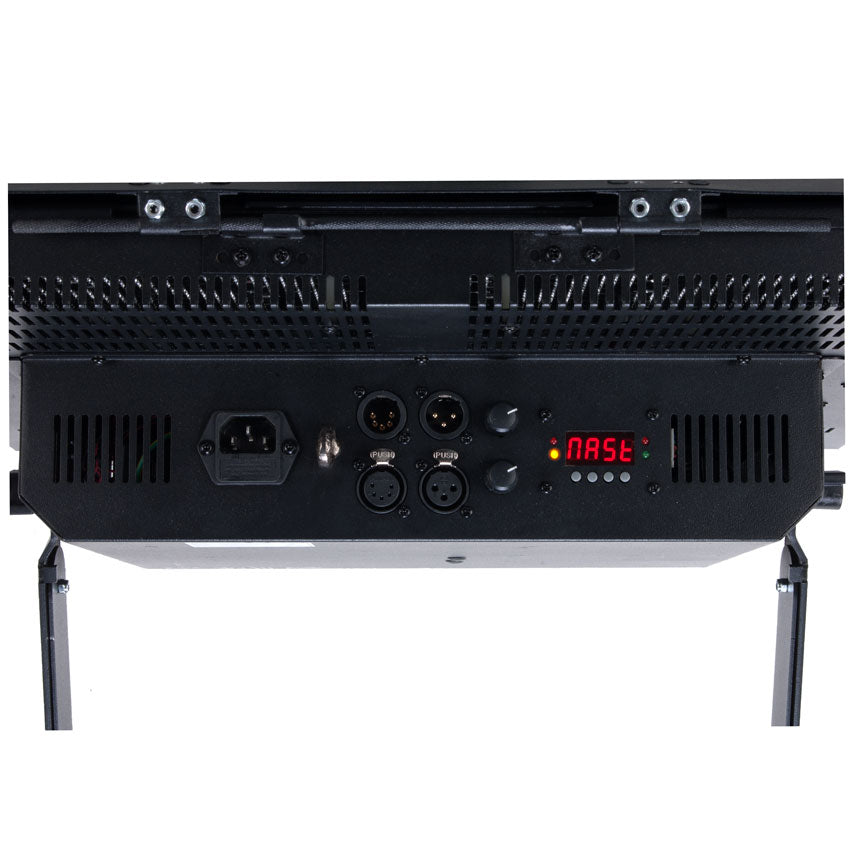

 (4) Button and (2) Dial Control Panel
 LCD Menu Display
 3pin and 5pin DMX In/Out
 Power In

 SIZE / WEIGHT
 Length: 25.9” (658mm)
 Width: 22.7” (576mm)
 Vertical Height: 5.1” (130mm)
 Weight: 27.0 lbs. (12 kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 160W Max Power Consumption
 TA: 40°C Max Ambient Temperature

 INCLUDED ITEMS

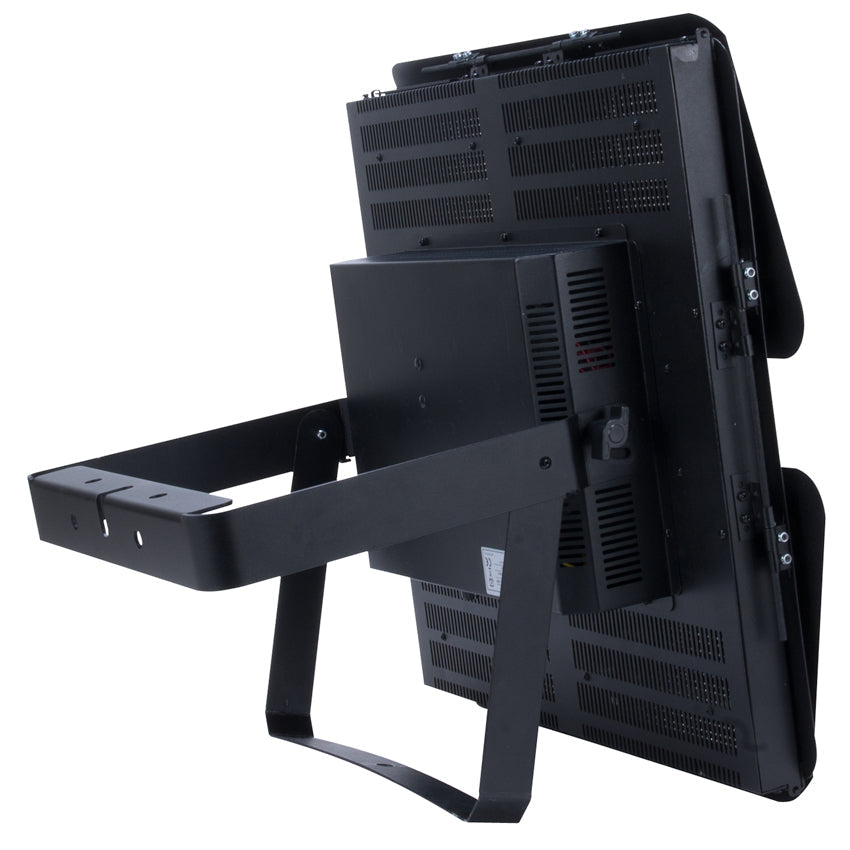

 180° Dual / Yoke Bracket
 Power Cable

 APPROVALS / RATINGS
 CE | cETLus | RoHs | IP20


 OPTIONAL ACCESSORIES:

 LSF FILTERS (click for more info)


 Specifications and documentation subject to change without notice.
