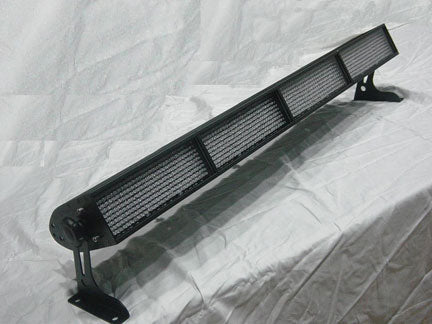

VBAR 270

Features

The Alkalite, VBAR 270 is a versatile, compact and light weight, LED color wash for any indoor application. This fixture features 270, 5mm LEDs with RGB color mixing allowing the user to achieve a vast array of colors. The VBAR 270 operates via DMX-512, Master/Slave or Auto Chase mode with 19 built-in color chase programs. The unit has a 15-degree beam angle, has a variable strobes function and may be electronically dimmed (0-100%). With lower power draw (30W), low heat emission and flicker-free operation the VBAR 270 is the perfect light tool to any stage setting.

FEATURES:

• 270 x 5mm LED’s - (90 Red, 90 Green, 90 Blue)

• Seamless RGB color mixing

• Infinite Color possibilities

• 15-degree beam angle

• 2024 LUX @ 1M / 570 LUX @ 2M

• Long Life L.E.D. (rated at 100,000 Hours)

• Low power consumption

• Low heat emissions

• Built-in Power Supply and DMX 512 Control

• Flicker-free operation for television and film (520Hz)

• Electronic Switching Power Supply (90-260V, 50/60Hz)

Resources

User Manual

Specifications

CONTROL SPECIFICATIONS:

• USITT-DMX 512

• 5, 8, 11, 14, 20, 23 control channel modes

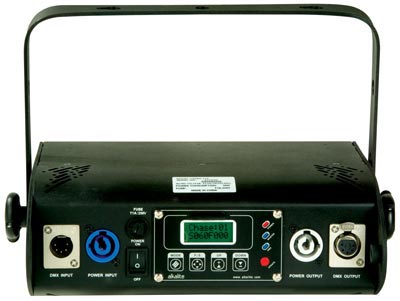

• LCD display with 4-button DMX control

• 5-pin XLR in/out


CONTROL FEATURES:

• 3 control modes: DMX (manual); Master/Slave; Auto Chase

• 19 pre-programmed chases

• Strobe effect

• 7 static colors with intensity control

• 0-100% Dimming


POWER SUPPLY:

• 100-240V AC, 50/60Hz (Multi-voltage)

• Neutrik Powercon for power connection

• Power Consumption: 30 watts


RIGGING:

• Mounting bracket

• Optional mounting bracket kits


DIMENSIONS & WEIGHT:

• (LxWxH): 10” x 3.75” x 8.5” / 250x93x212mm

• 8 lbs. / 3.3 kgs.
