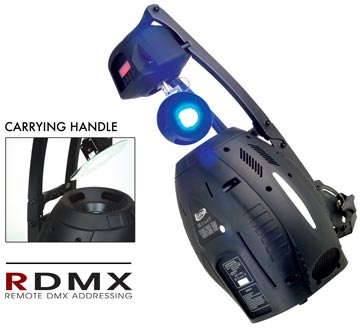

Vision Scan 250
Features
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 14 DMX channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
Resources
Guides/ Manuals
- Vision Scan 250 DMX Chart
- Vision Scan 250 Color Brochure
- Vision Scan 250 Dimensions Sheet
- Vision Scan 250 (CAD) Drawing
- Vision Scan 250 User Manual
Related Categories
Specifications
OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector

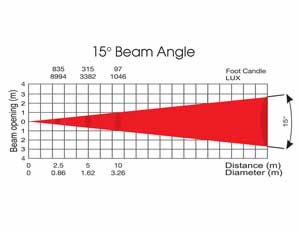

• 15° Beam Angle
• All lenses are anti-reflection coated
COLORS
• 8 dichroic filters, 7 Colors, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
• 2 gobo wheels, 13 total gobos, 10 metal, 3 glass with Slot-Lock gobo replacement system
• 6 interchangeable, indexable, rotating gobos plus open
• 7 interchangeable, static gobos plus open
• 26.9mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
• Variable speed strobe effect (1-10) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
PRISM
• 3 facet prism rotating in both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations
FOCUS
• Motor driven focus from near to far
LAMP
• Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)
PAN/TILT
• Maximum PAN-movement 170°
• Maximum TILT-movement 85°
• Vector Mode with blackout
RIGGING
• 1 x Heavy Duty yoke
• 1 x Safety cable hole
POWER SUPPLY
• 8A or 4A Fuse
• Magnetic Ballast
• Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
• Power Consumption 400W
DIMENSIONS & WEIGHT
• 15”L x 14”W x 29.25”H
48.5 lbs.
