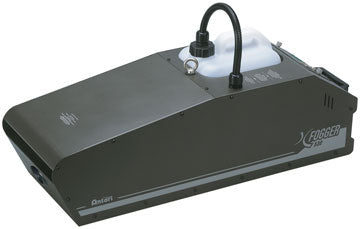

X-530

Features

 Boasting all of the features of the X-515, the X-530 has the added bonus of a massive 3000Watt heater and will produce double the fog output of any other model or make of fogger. With all the great features of the X-Range combined, you will get the highest quality fog continuously, instantly, whenever required. This gigantic fogger has the power to suit any venue or application where large volumes of dense airborne fog are required. It is particularly well suited to major outdoor events where conditions may be unpredictable and varied. DMX channel selection is as straightforward as plugging the X-20 DMX control module and selecting whatever channel is desired. The X-30 wireless remote is a control option for the X-530. This machine is available as a 220V version only, due to its high mains power consumption.

Resources

User Manual

Specifications

 Specifications

• Heater: 3,000W

• Output: 40,000 Cu.Ft/Min.

• Heat up Time: 12 Min.

• Liquid Consumption Rate: 6 Min. / Liter (100% Output)

• Tank Capacity: 6 Liter

• Low Fluid Indicator: Blue LED

• Control Module Included: X-10 Timer Control Module

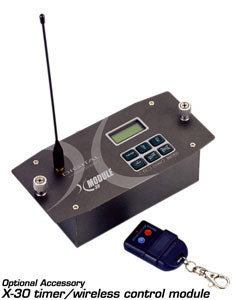

• Optional Control Module: X-20II DMX Control Module, X-30 Wireless Control Module

• Optional Accessories: HB-10 (Hanging Bracket and Drip Tray). Fog Hose Adaptor, Flight Case

• Weight: 49.5 / 22.5 kg

• Dimensions (LxWxH): 27.5” x 10” x 9” / 700 x 260 x 228mm
