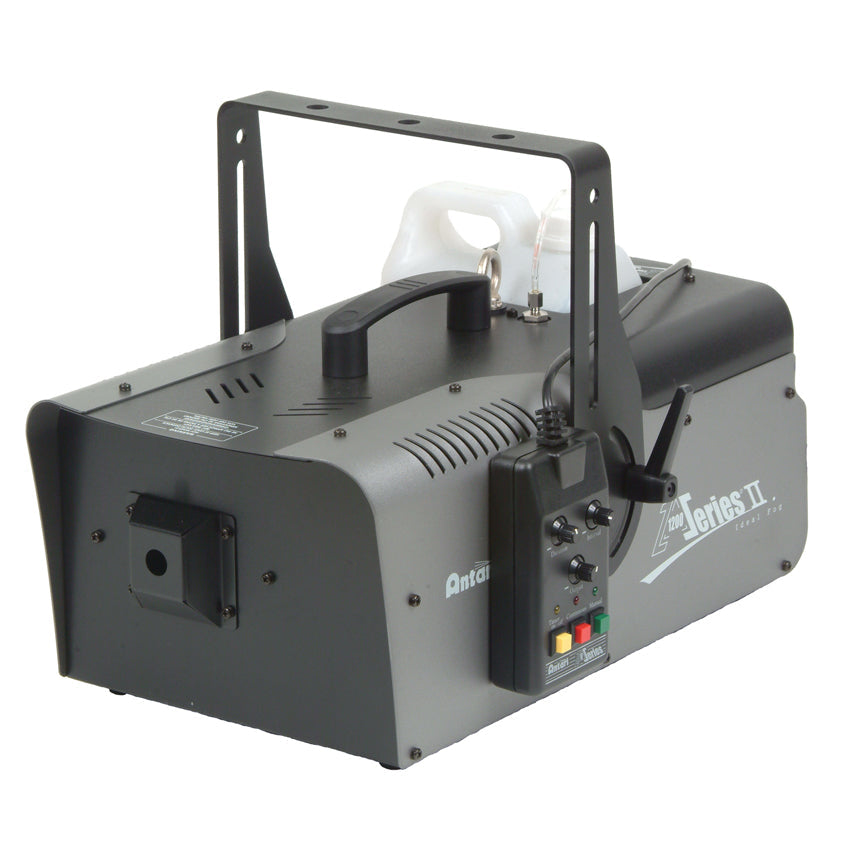

Z-1200 II

Features

 In addition, it is armed with on-board DMX-512 to work with club lighting directors, installers, designers, and DJs who need more fog control.

 The machines heater core can easily be taken out from the heater block for a quick and easy cleaning to prevent clogging and insure trouble-free performance. The heater element is like a powerful jet stream that can deliver large bursts of fog.

 The Z-1200II comes with a high quality pump and electronic low-fluid detector also known as Thermal Cut-Off (TCO)which automatically shuts off the pump when the fluid level is low, protecting the machine from damage.

Resources

Specifications Sheet

User Manual

Specifications

• Power: AC120 / 60Hz

• 1200-Watt Heater

• ECO advanced thermal control system

• Unicore technology

• On board DMX

• Output: 18,000 cu.ft/min

• Tank Capacity: 2.5 Liter

• Fluid Consumption Rate: 44 Min. / Liter

• Remote Included: Z-8 (Timer Remote)

• Optional Remotes: Z-9 (Wireless Remote)

• Includes hanging bracket

• Weight: 24 lbs. / 10.9 Kg

• Dimensions (LxWxH): 18” x 9.75” x 7” / 458x243x177mm

 APPROVALS / RATINGS
 CE | RoHs | cETLus


 RECOMMENDED ANTARI™ FOG FLUID

 FLR (click for more info)

 FLG (click for more info)


 OPTIONAL ACCESSORIES

 LCU-1 (click for more info)

 Specifications and documentation subject to change without notice.
