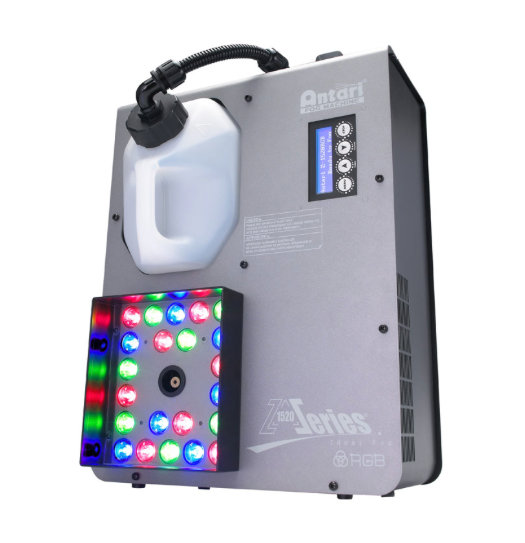

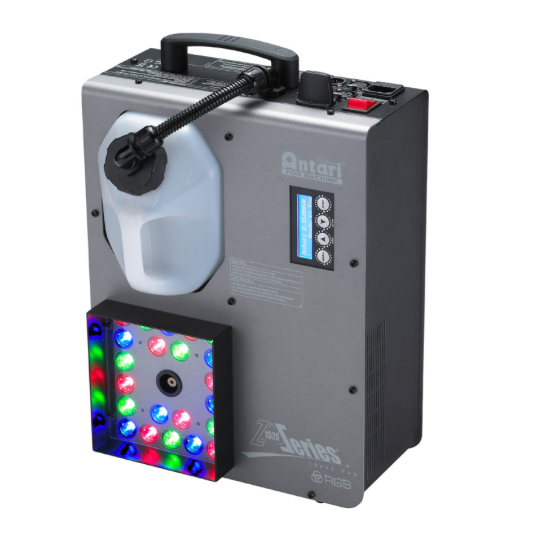

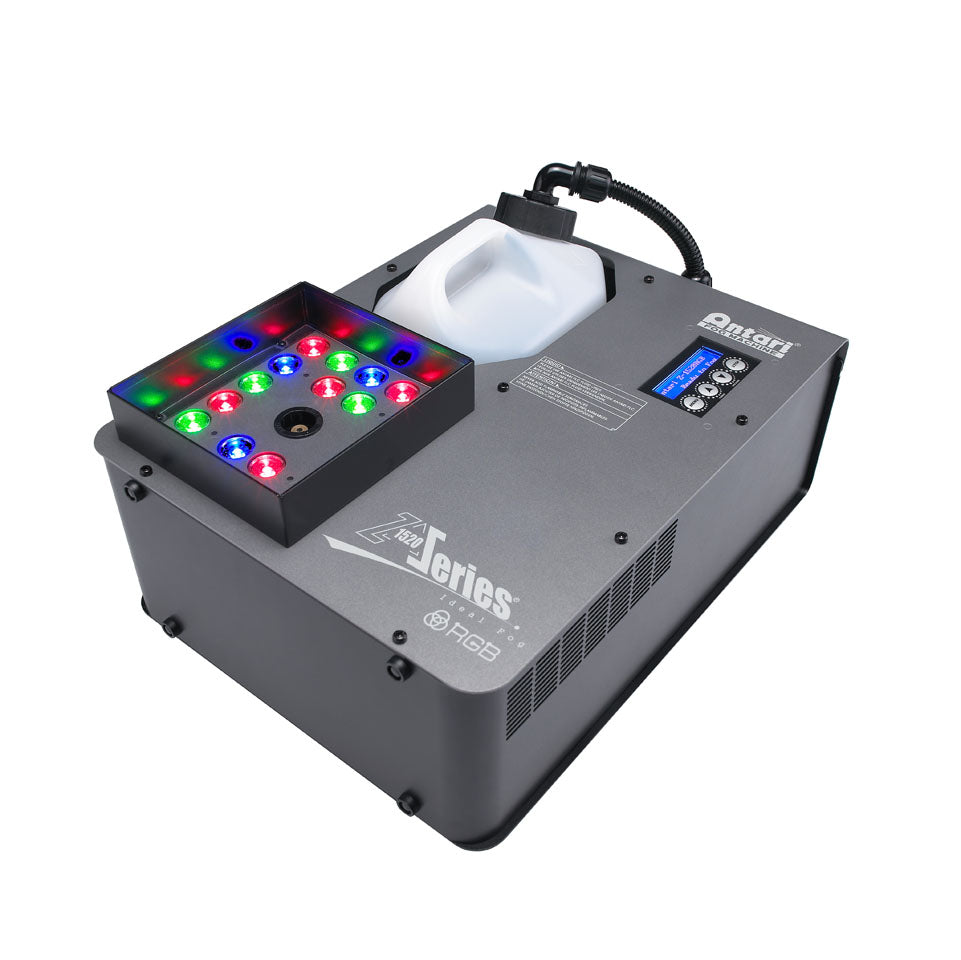

Z-1520 RGB

Features

 Power : AC120V / 60Hz
 Heater : 1,500 W
 Output : Height 5 Meter , Width 1 Meter
 First Heat-up Time : 5 min
 Tank Capacity : 2.5 liter
 Fluid Consumption Rate : 168 ml/min (100 % output)

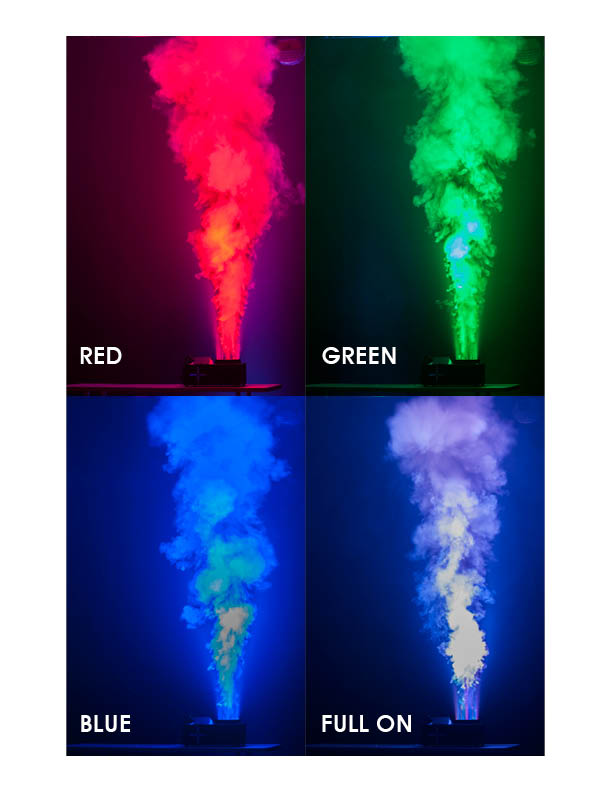

 Light Source : 22 x 3W LED (8 Red, 7 Green, 7 Blue)
 Remote Included : W-2 Wireless Transmitter
 Weight : 10.4 Kg
 Dimensions (mm) : L 418 W 295 H 136
 DMX : On board
 Recommended Fluid: Antari FLC, FLR, or FLG Water-based Fluid

Resources

Specifications Sheet

CAD Drawing

User Manual

Dimensional Drawing

Specifications

RECOMMENDED ANTARI™ FOG FLUID

 FLC (click for more info)

 FLR (click for more info)

 FLG (click for more info)

 OPTIONAL ACCESSORIES:

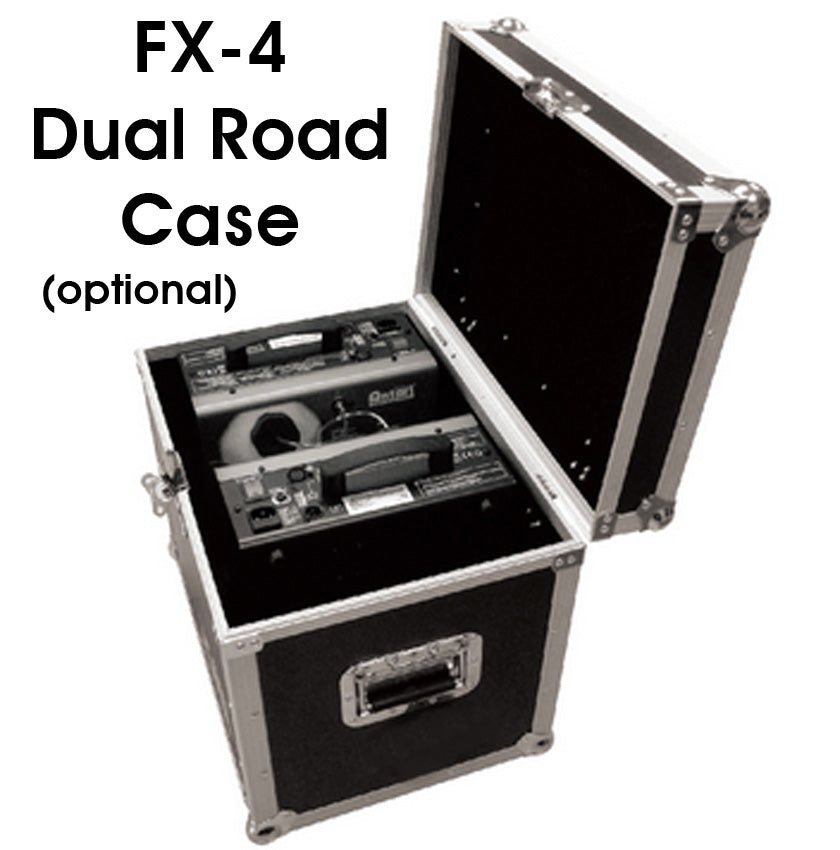

 FX-4 Road Case


 Specifications and documentation subject to change without notice.
