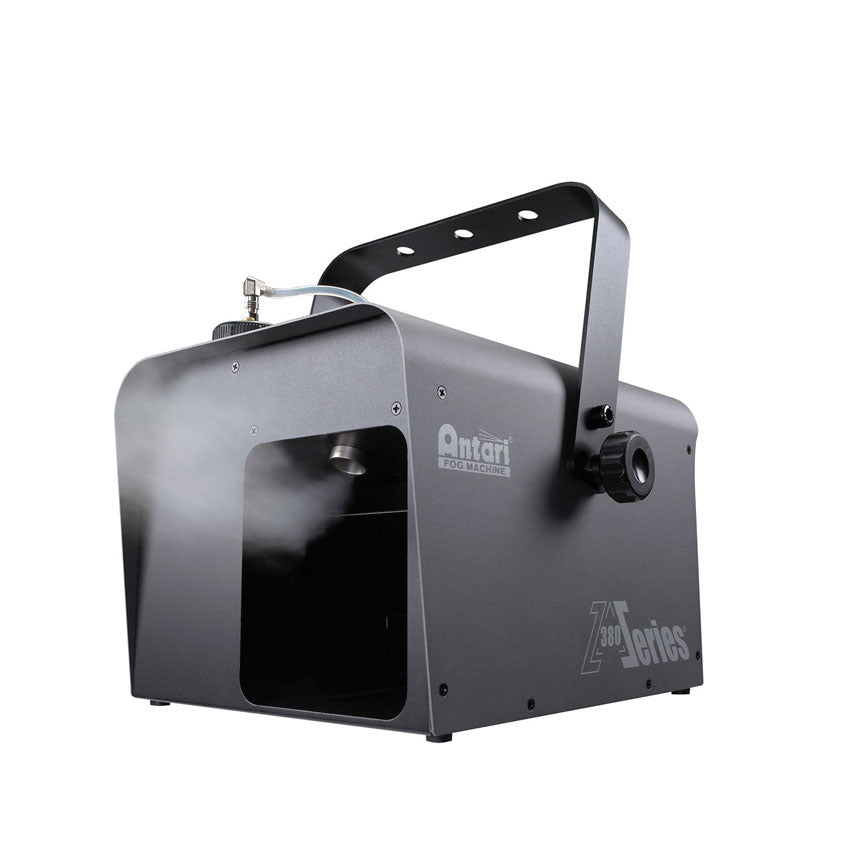

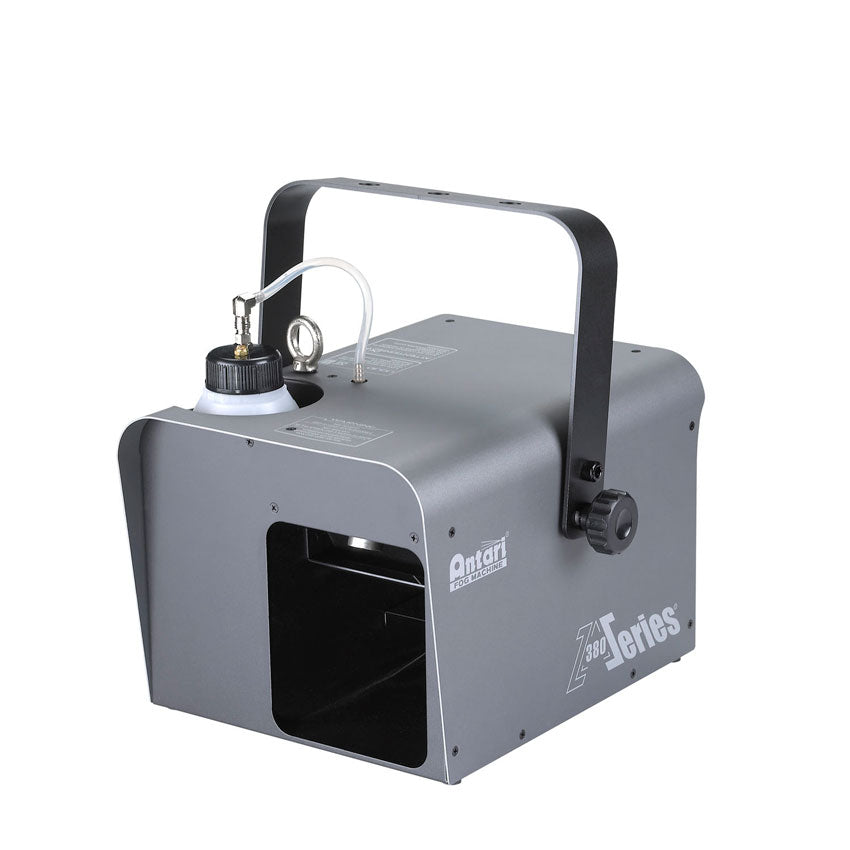

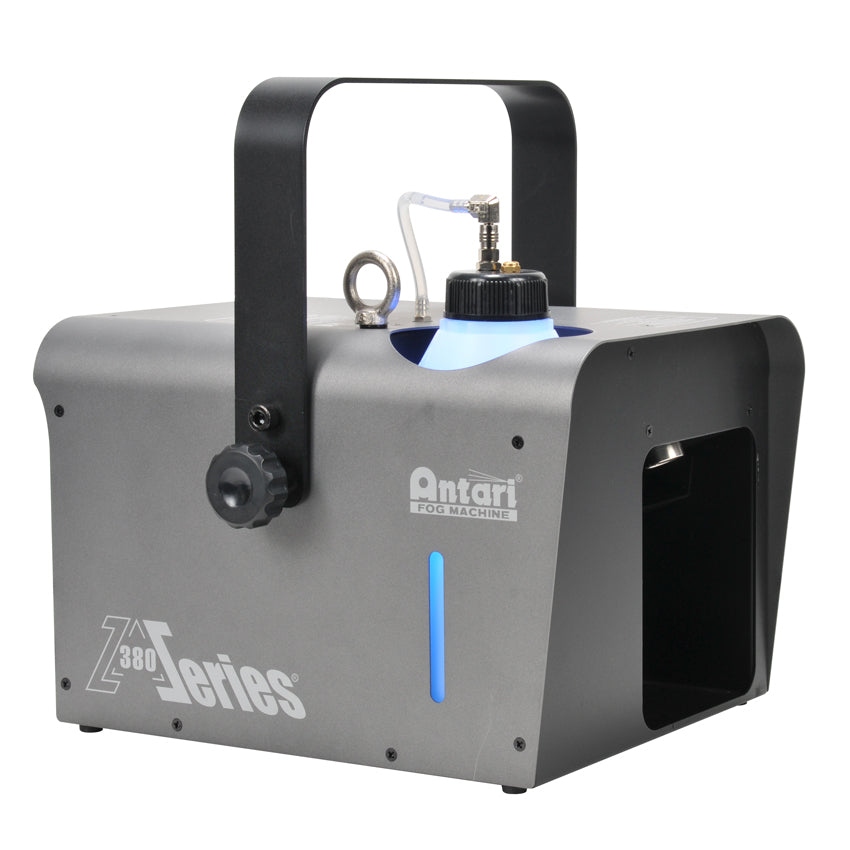

Z-380 Fazer

Features

Actors' Equity Approved when used with Antari FLG Fog Fluid
Click Here For More Details

Compact Design
Powerful Output of 6,000 Cubic Foot Per Minute
Large Size Tubing to Reduce Clogging Issues with Antari FLG Fog Fluid
Auto Cleaning Function
User Friendly LCD Control Display
DMX and Manual Control
Mounting Bracket Included
Optional Wired and Wireless Remotes Available

Resources

Specification information

Guides/ Manuals

Related Categories

Specifications

FIRST HEAT-UP TIME: 1.5 minute

OUTPUT: 6,000 Cu.Ft/min

TANK CAPACITY: 1.2 L

FLUID CONSUMPTION: 6 ml/min (100% output)

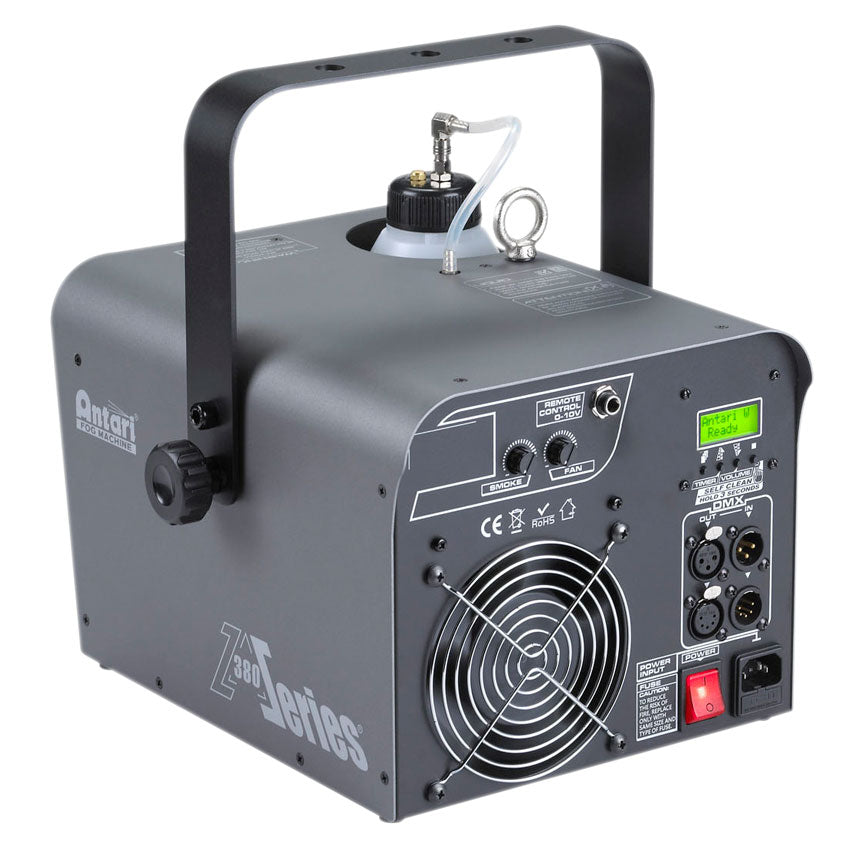

CONTROL / CONNECTIONS
LCD Display, 4 Buttons, 2 Rotary Knobs
DMX, Timer, or Manual
3pin and 5 pin DMX In/Out
IEC Power In

SIZE / WEIGHT
Length: 12.9” (328mm)
Width: 9.8” (248mm)
Vertical Height: 10.4” (265) | 12.8" (324mm) with hanging bracket
Weight: 18.7 lbs. (8.5 kg)

ELECTRICAL / THERMAL
AC 120V / 60Hz
1500W Max Power Consumption

APPROVALS / RATINGS
CE | cETLus | RoHs


OPTIONAL ACCESSORIES

Wireless Remote Control Add On Kit - SKU# W-2TRA
Wired Remote - SKU# Z-3



Specifications and documentation subject to change without notice.
