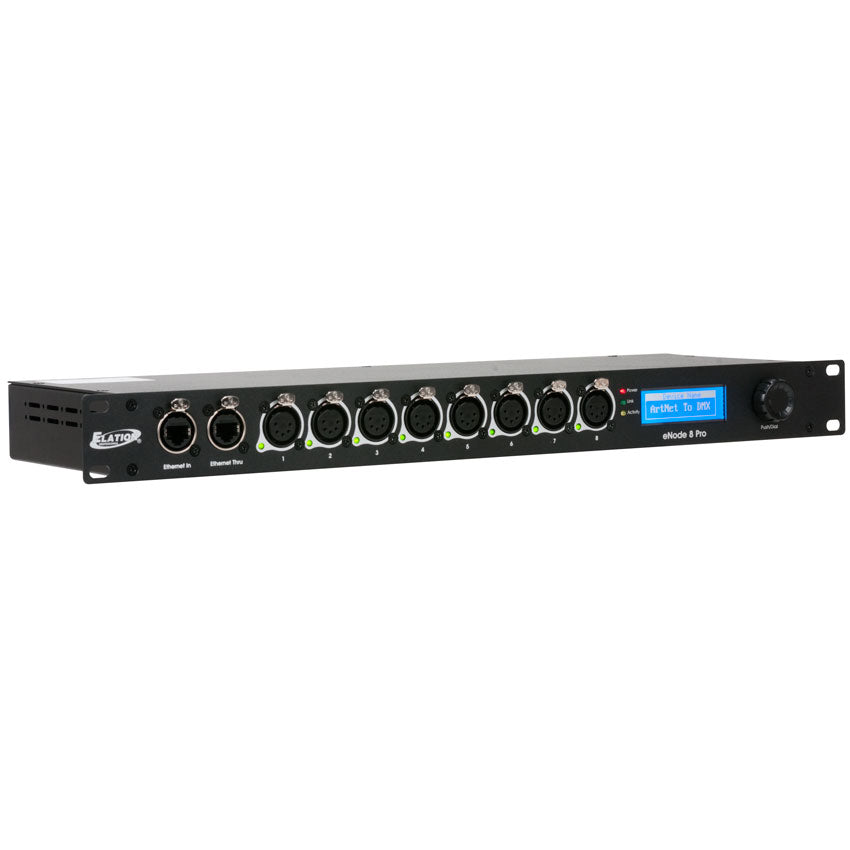

eNode8 Pro

Features

 (8) Universal DMX Ports (can be set as Input or Output)
 (2) RJ45 TCP/IP 10/100M Ethernet Connections
 Rotary Menu Wheel / Function Selection Button
 LCD Menu / Function Display
 PowerCON Power In
 Auto MDI/MDIX, DMX-512, and ArtNet Support
 ArtNet - DMX Bilateral Signal Conversion
 DMX Splitter Function (1Input / 3 Outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs)
 LCD Display & LED Indicators
 Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
 Backup Mode

Resources

Specifications Sheet

Dimensional Drawing

CAD Drawing

Specifications

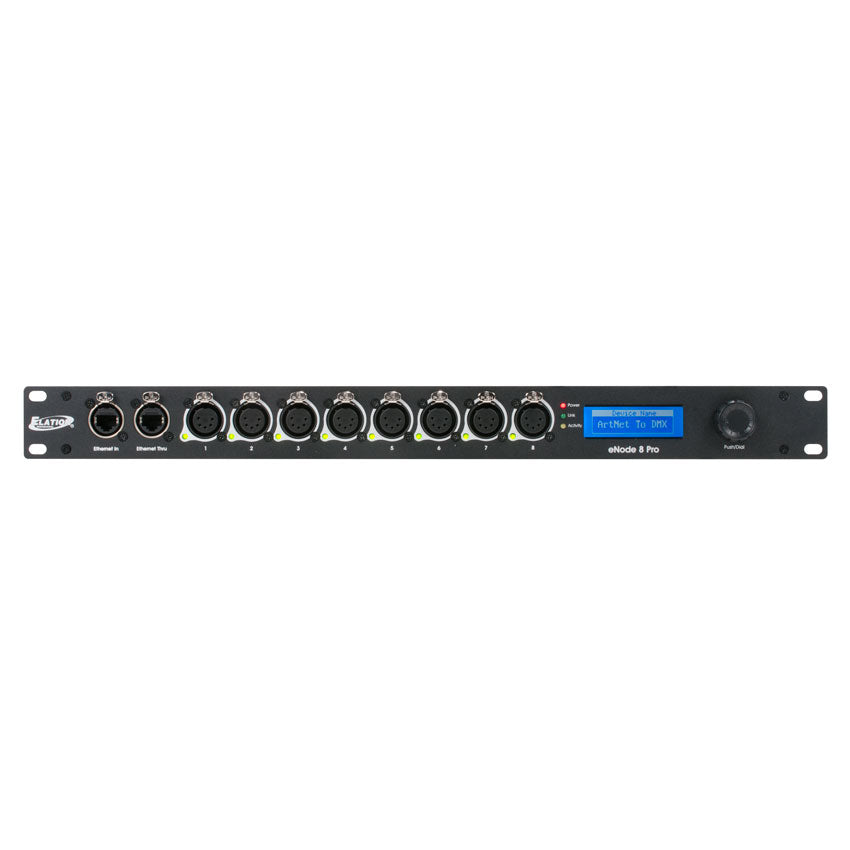

CONTROL / CONNECTIONS
 (8) 5pin DMX Ports
 (2) RJ45 TCP/IP 10/100M Ethernet Connections
 Rotary Menu Wheel / Function Selection Button
 LCD Menu / Function Display

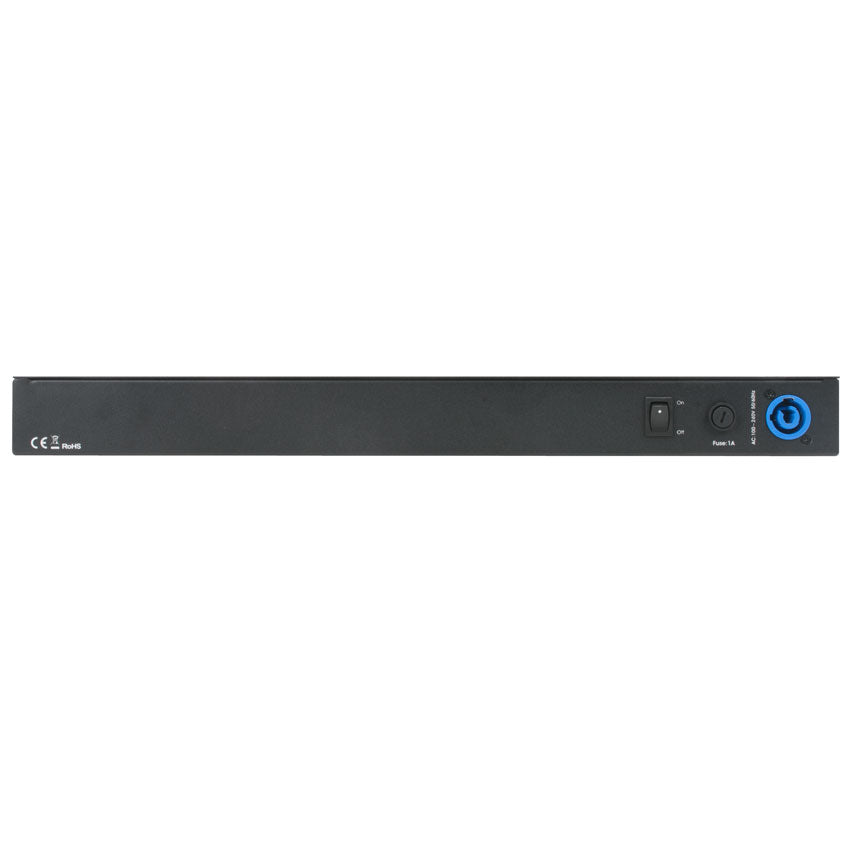

 PowerCON Power In

 SIZE / WEIGHT
 Length: 19.0” (482mm)
 Width: 6.3” (160mm)
 Vertical Height: 1.7” (44mm)
 Weight: 4.6 lbs. (2.1kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 7W Max Power Consumption
 35.6°F (2°C) to 113°F (45°C)

 APPROVALS / RATINGS
 CE | cETLus | IP20

 INSTALLATION
 Any Flat Surface Or Standard 19” (482mm) Rack Mount

 INCLUDED ITEMS
 (1) 5 ft (1.5m) powerCON Cable
 (2) EtherCON Cable Connector Carrier



 Specifications and documentation subject to change without notice.
