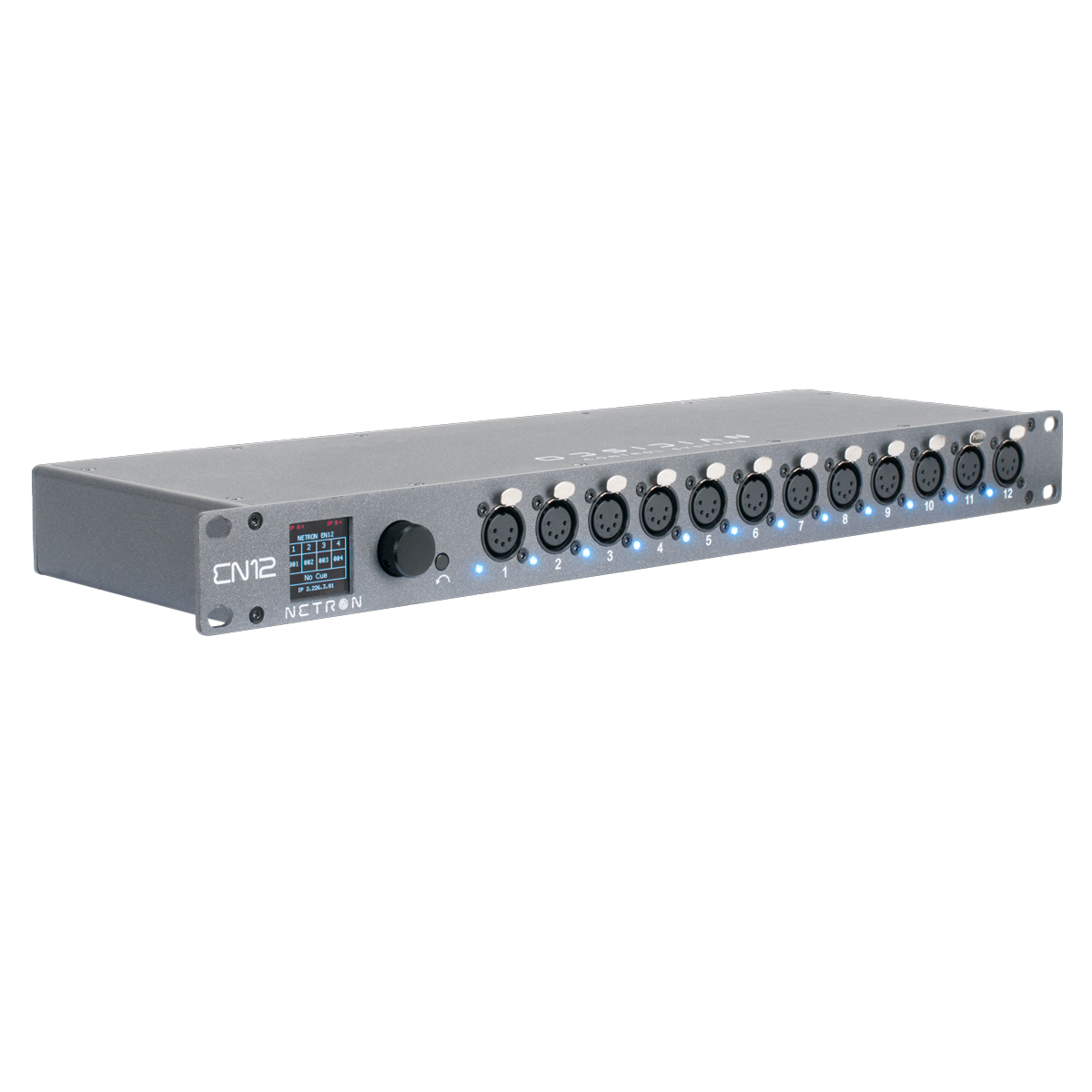

12-Port XLR Ethernet DMX Gateway
SKU# NRE001
The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
Features
Key Features
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
Related Categories
Specifications
Mounting
Rackmount
(2) Locking RJ45 Ethernet network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Connections

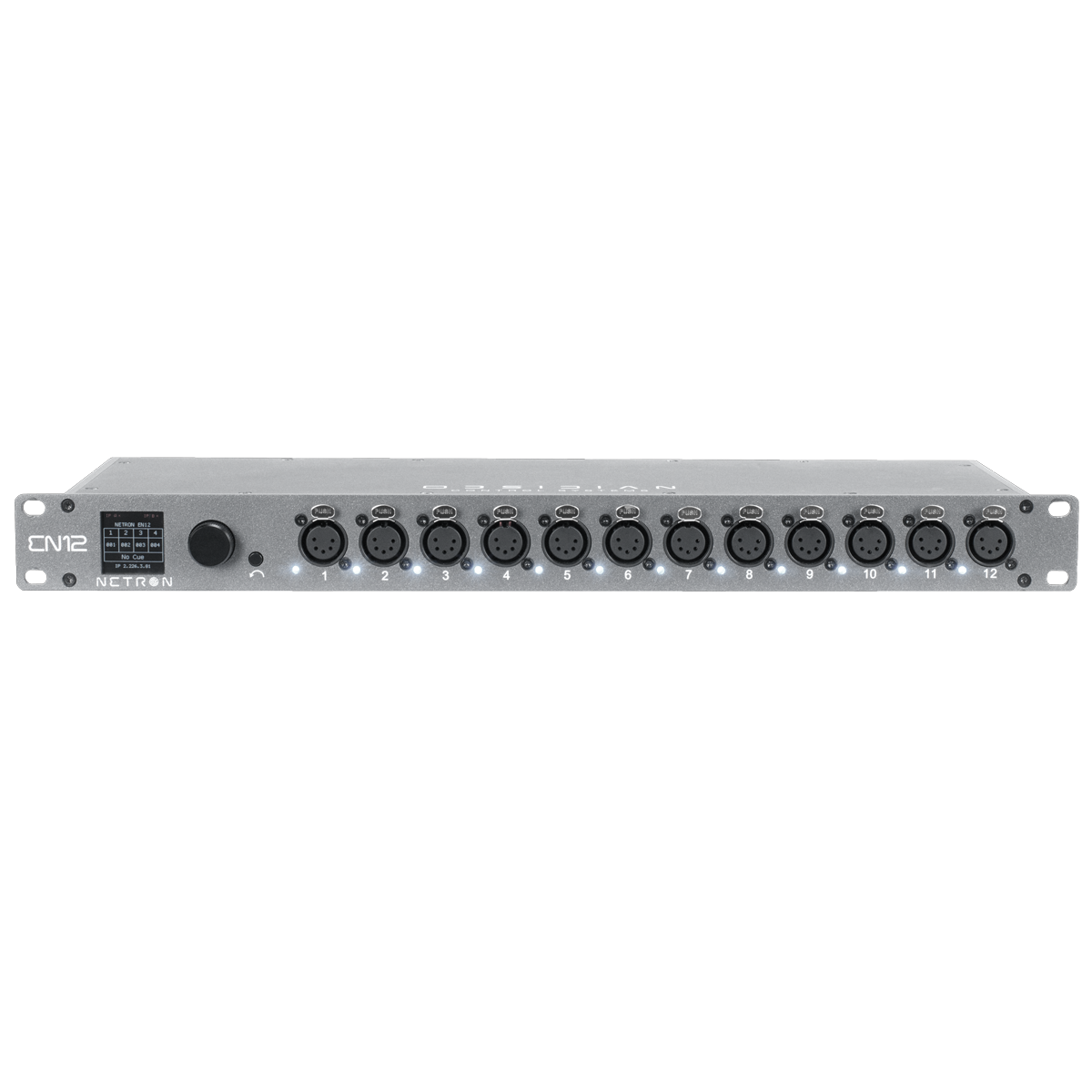

Front
(12) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

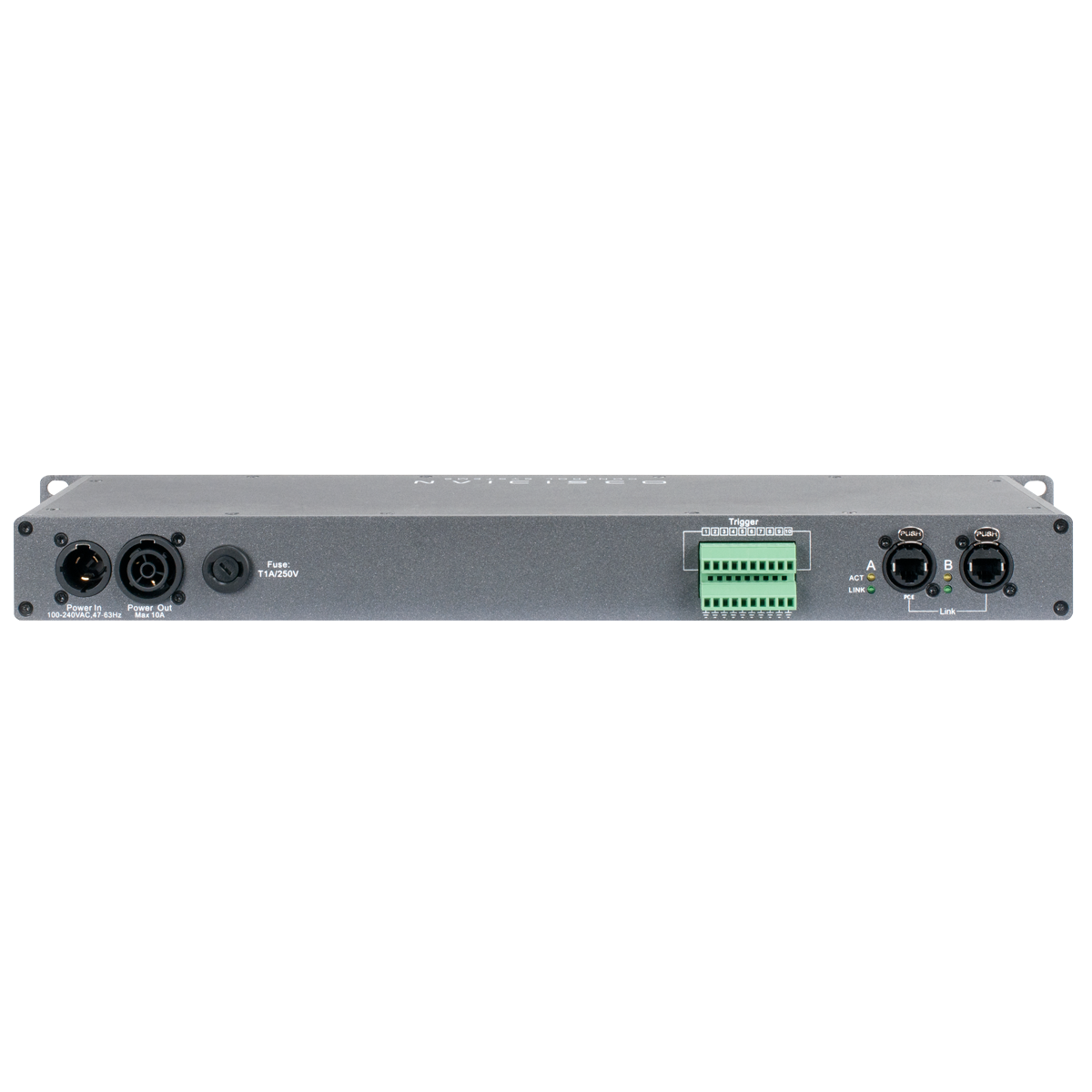

Back(12) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button
(2) Locking RJ45 Ethernet network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Physical
Length: 482.5 mm (19 in.)
Width: 146 (5.7mm)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs.)
Width: 146 (5.7mm)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs.)
Electrical
100-240 V nominal, 50/60 Hz
POE 802.3af
POE 802.3af
Power Consumption 9W
APPROVALS / RATINGS
CE | cETLus | FCC | IP20
Specifications and documentation subject to change without notice.
