SIXPAR 300
SIXPAR 300
18x 12W RGBAW+UV LED Par
SKU# SIX062

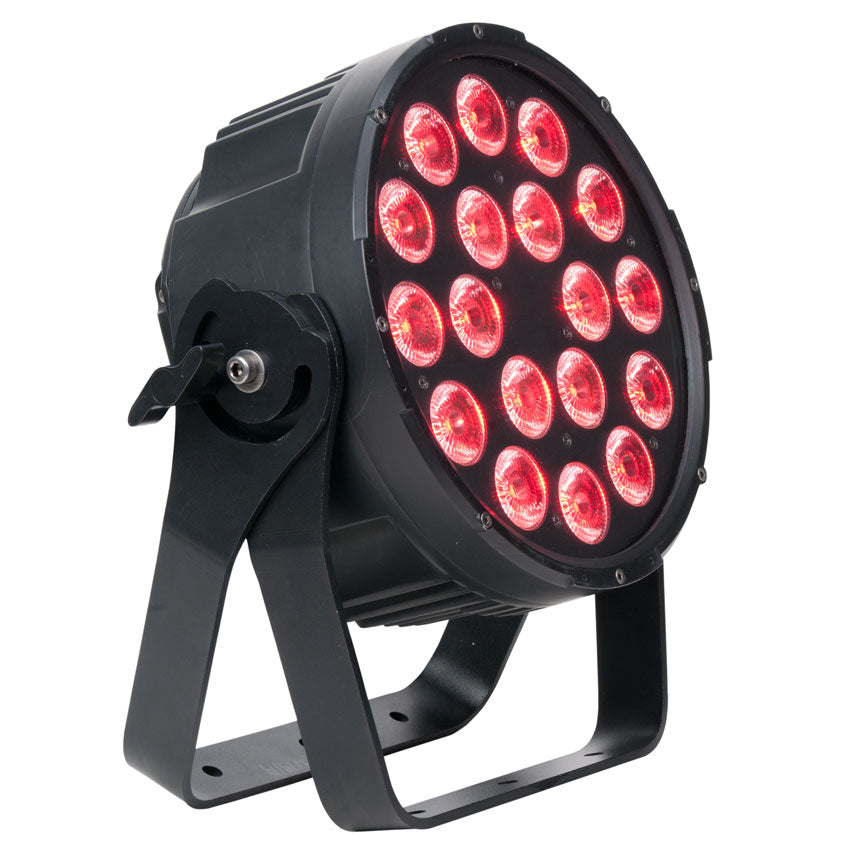

The indoor version SIXPAR 300™ features (18) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features
15° Beam 25° Field Angles
5 Variable Dimming Curve Modes

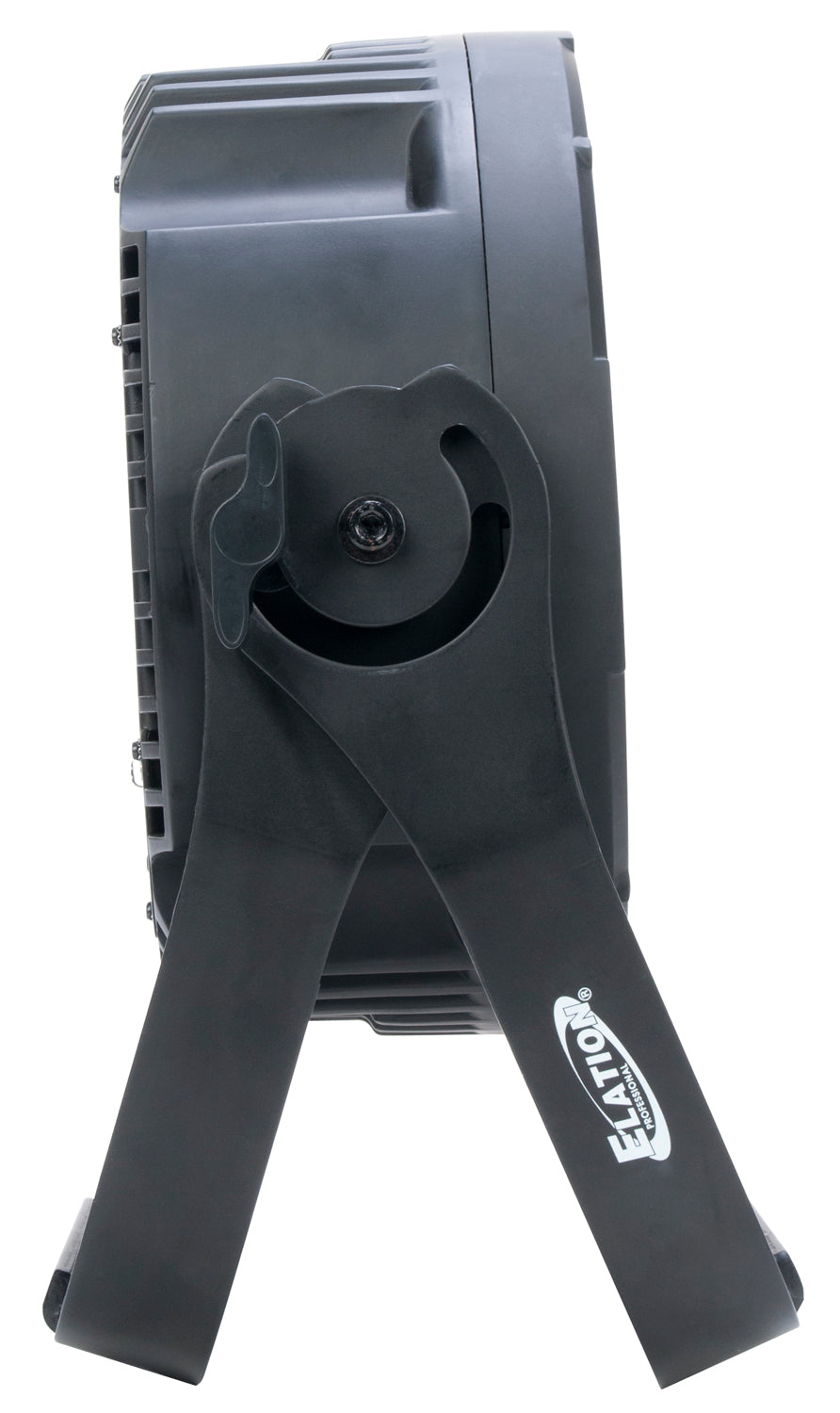

Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
- Sixpar 300 - Photometric Data
- Sixpar 300 - Photometric Test Report
- Sixpar 300 - Photometrics IES Files
Drawings
CAD File
- Sixpar 300 - Vectorworks Symbol - 2016
- Sixpar 300 - 2D Cad Drawing
- Sixpar 300 - Vectorworks Symbol - 2014
- Sixpar 300 - Vectorworks Symbol - 2015
- Sixpar 300 - 3D Cad Drawing
Related Categories
Specifications
SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes

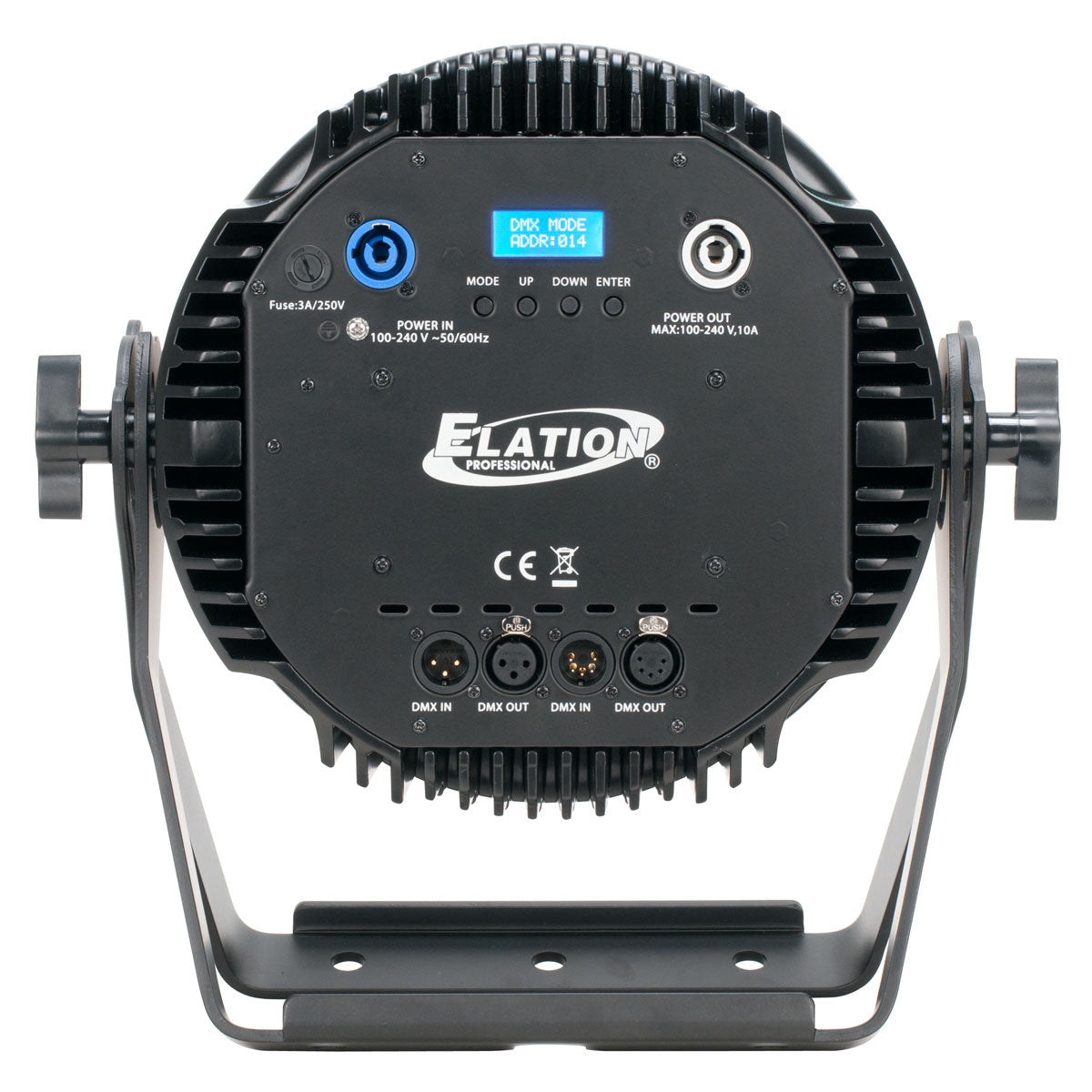

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
3/5pin DMX
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
3/5pin DMX
Twist Locking Power Cable
SIZE / WEIGHT
Length:14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 18.0 lbs. (8.1 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20

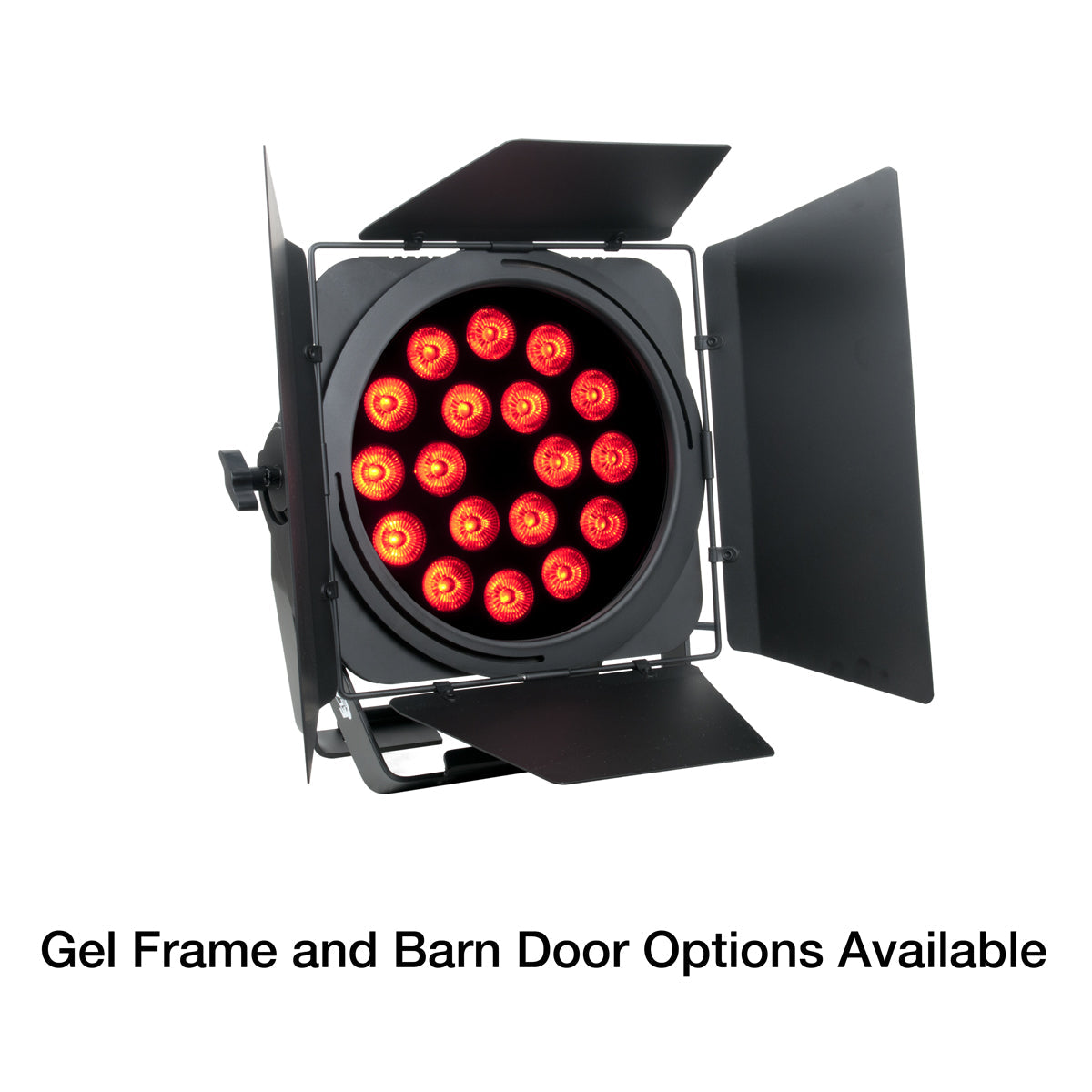

OPTIONAL ACCESSORIES:

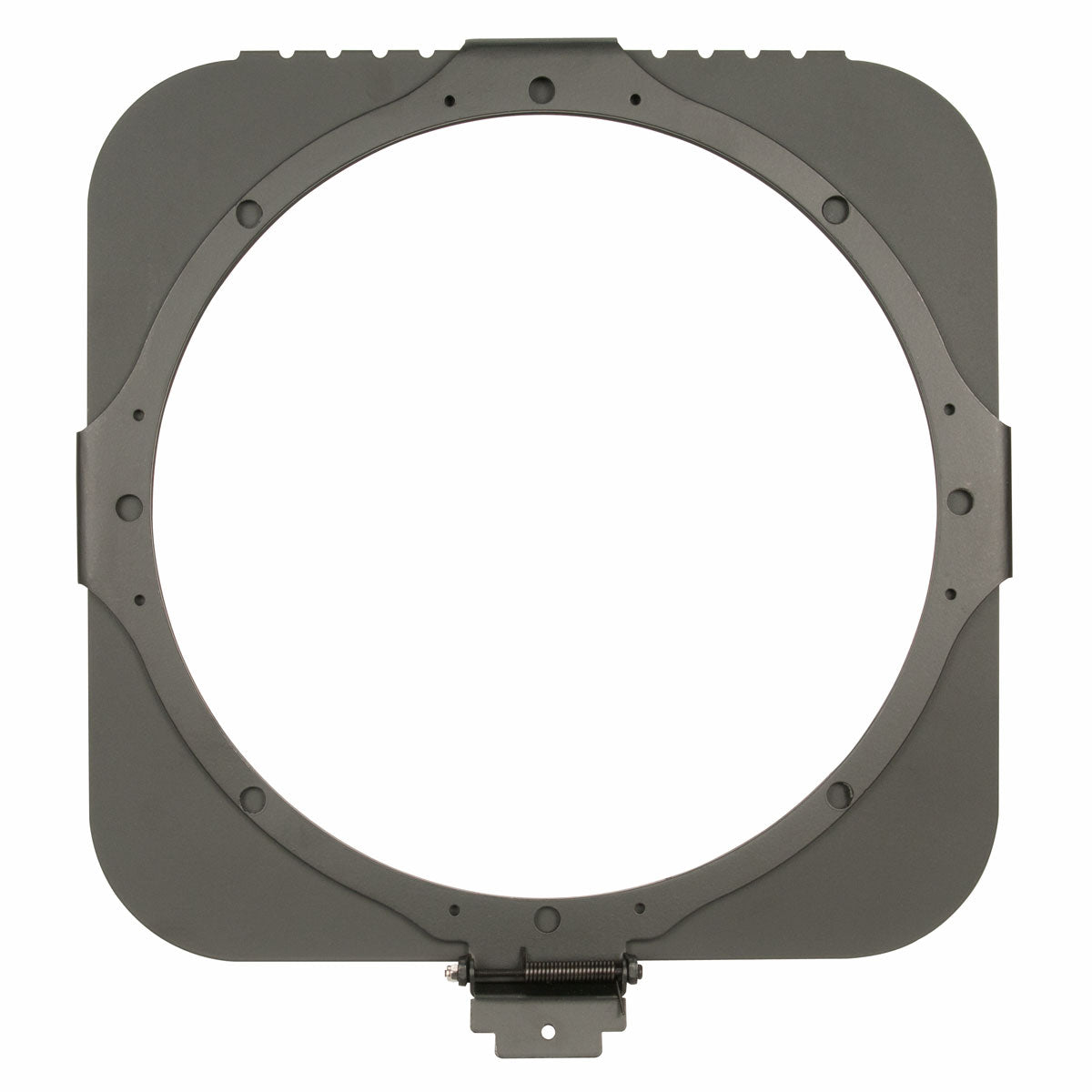

SIXPAR300/GFH - Gel Frame Holder Kit

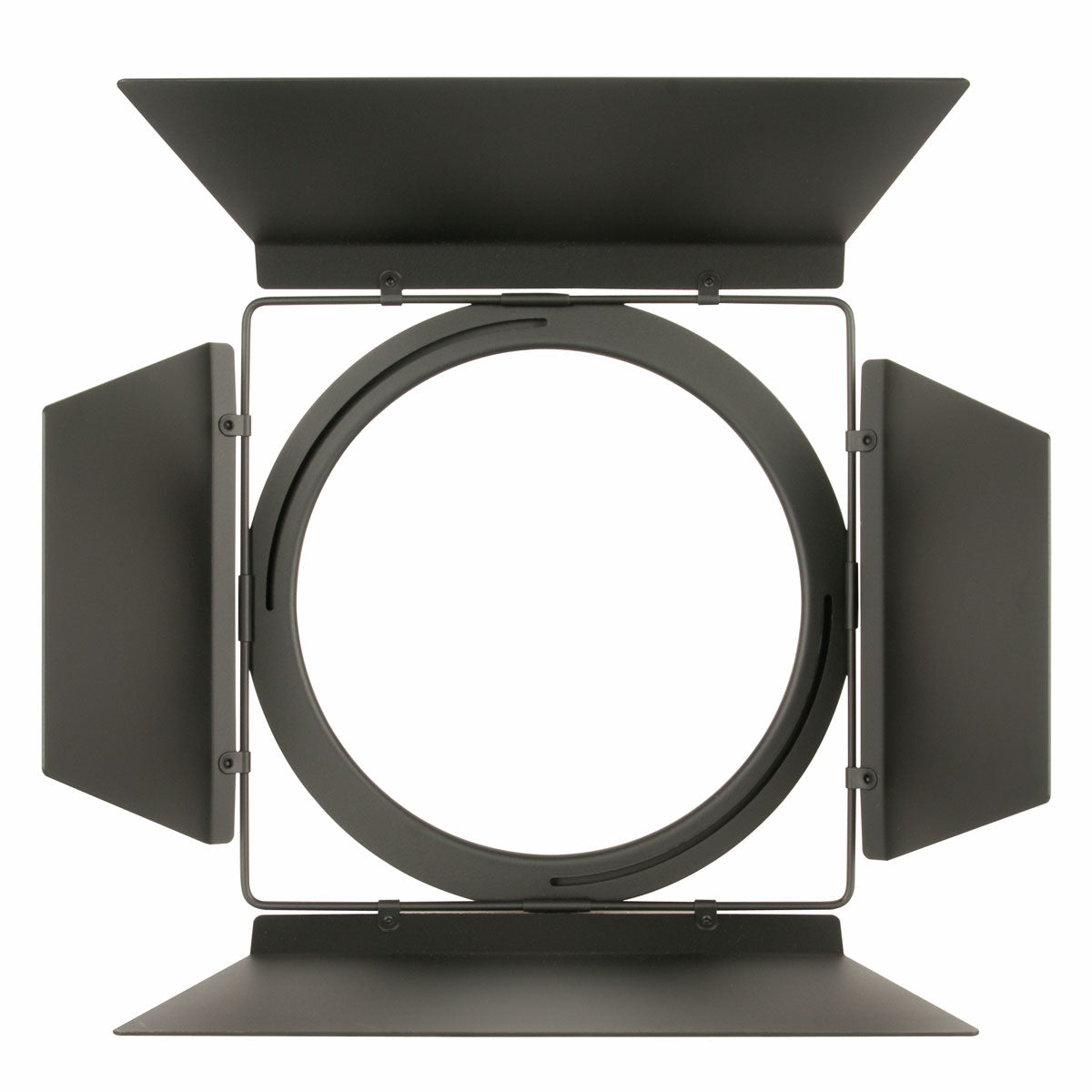

SIXPAR/BD300 - Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)
With Wired Digital Communication Network
SIZE / WEIGHT
Length:14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 18.0 lbs. (8.1 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:
SIXPAR300/GFH - Gel Frame Holder Kit
SIXPAR/BD300 - Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)
FIRMWARE UPDATES
Current Version: V1.14
