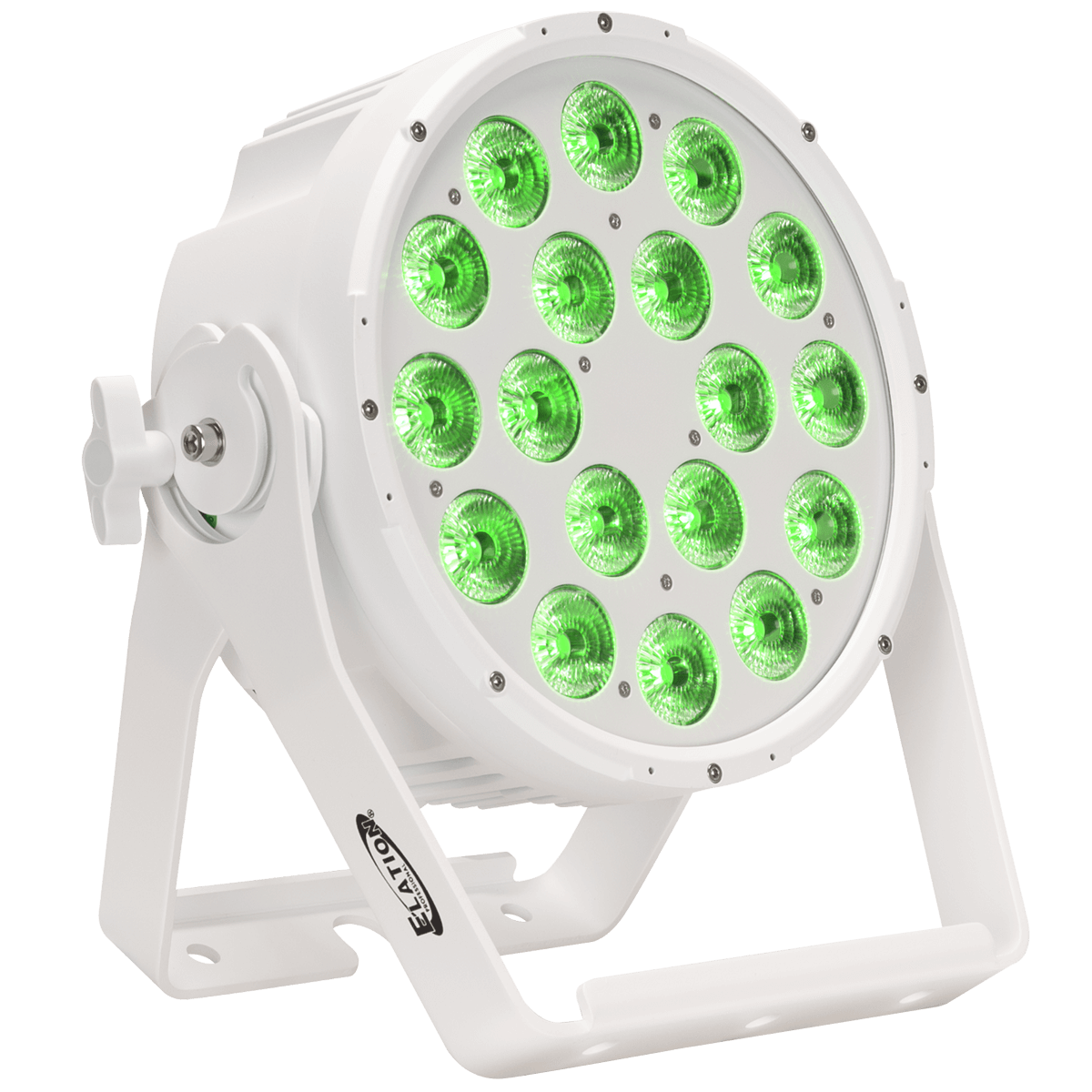

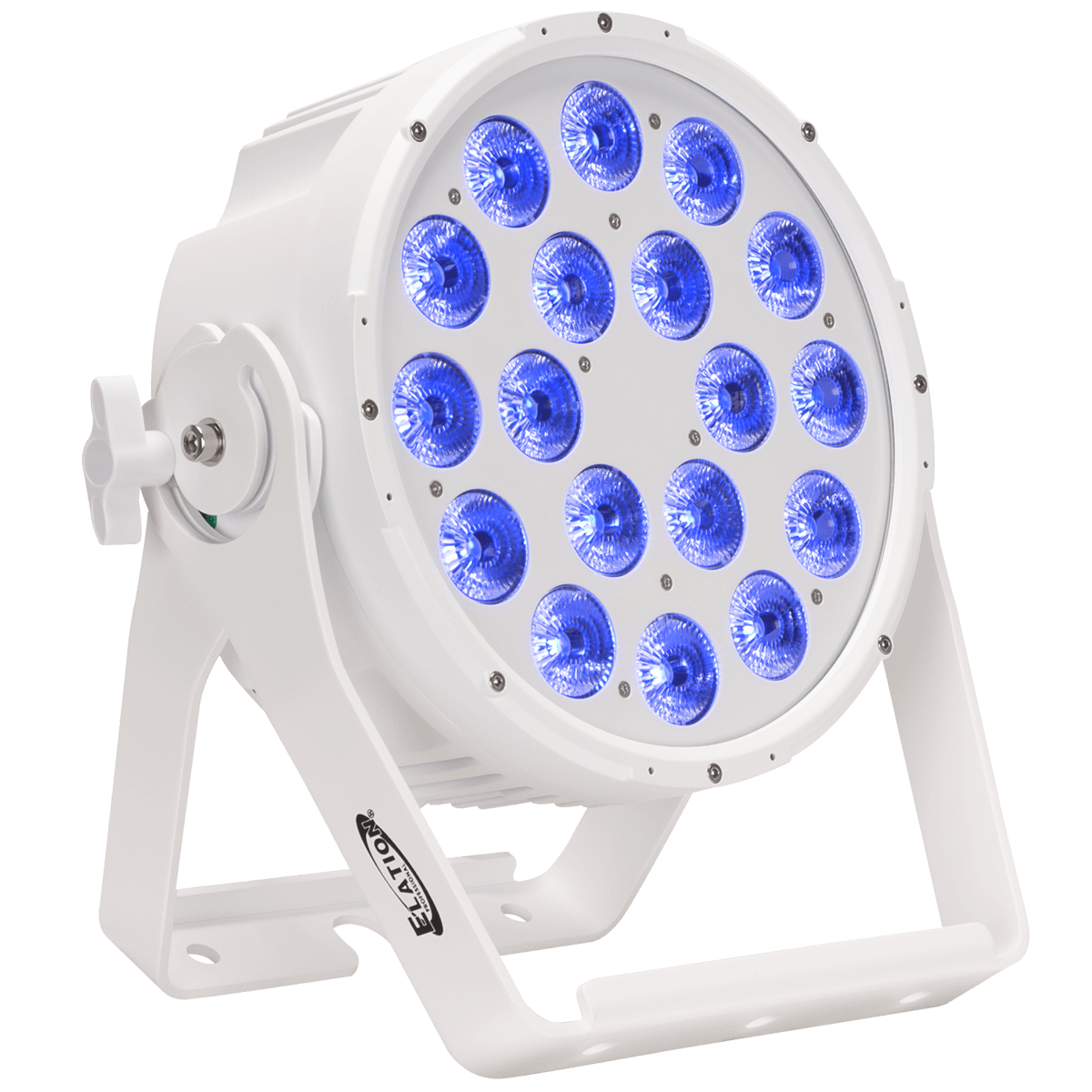

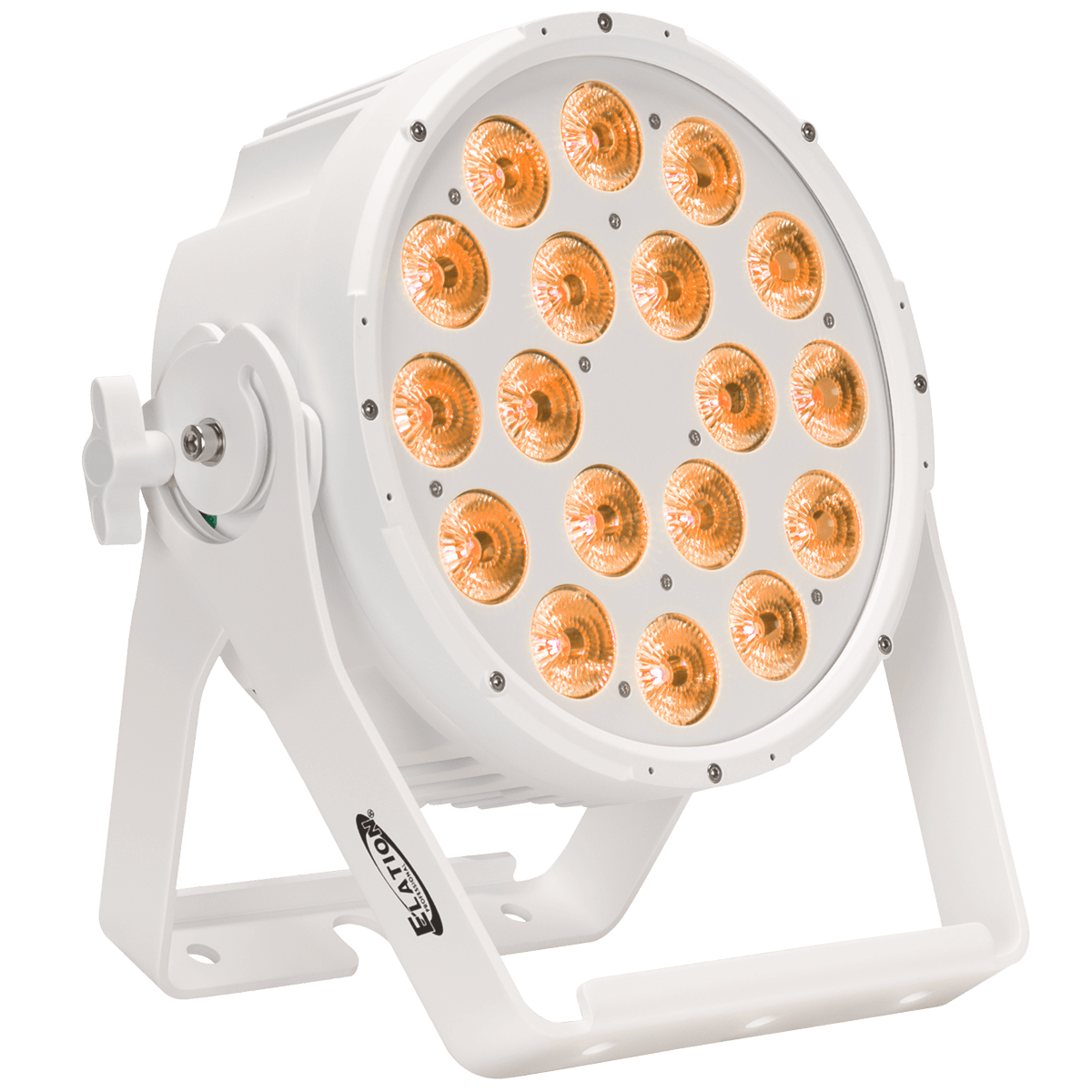

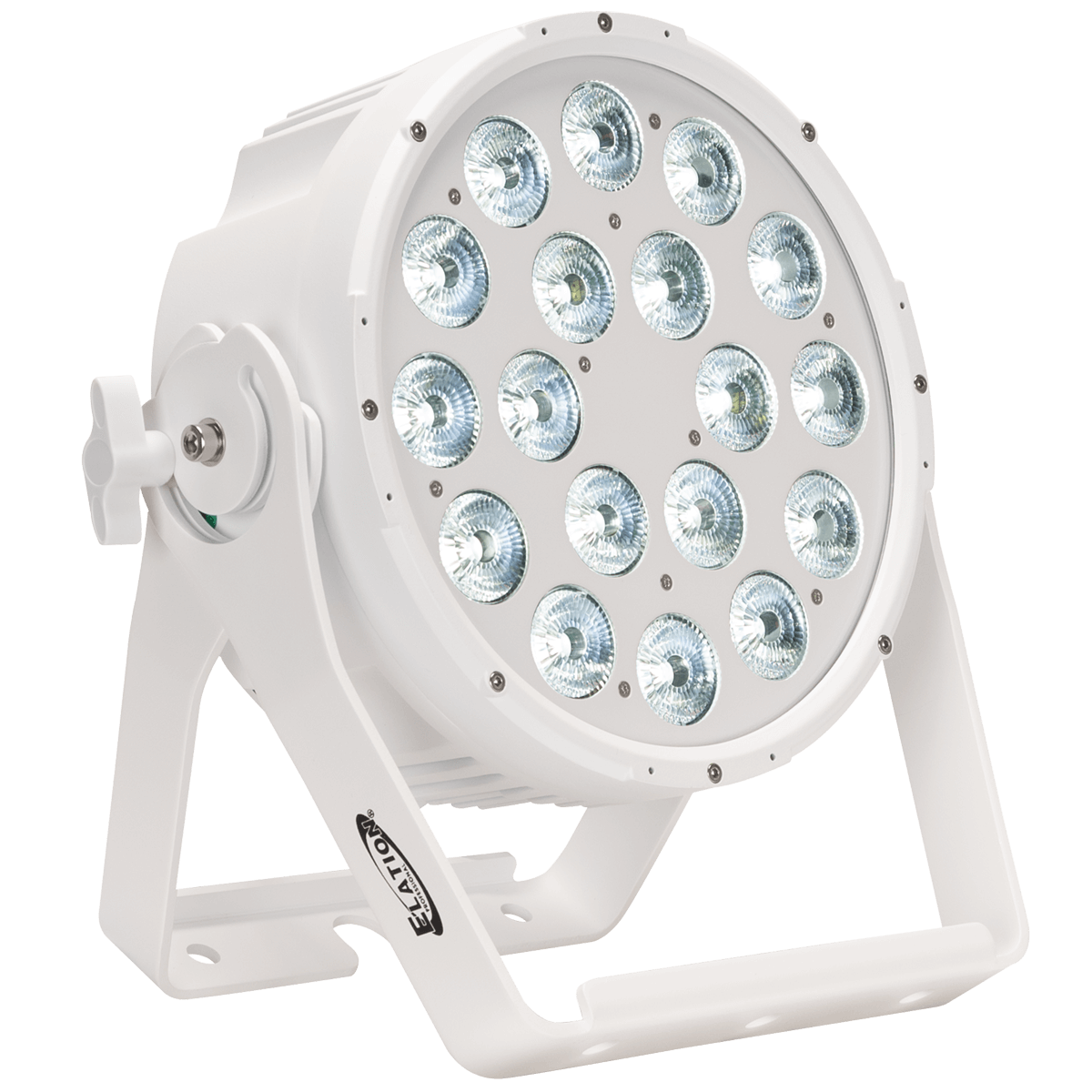

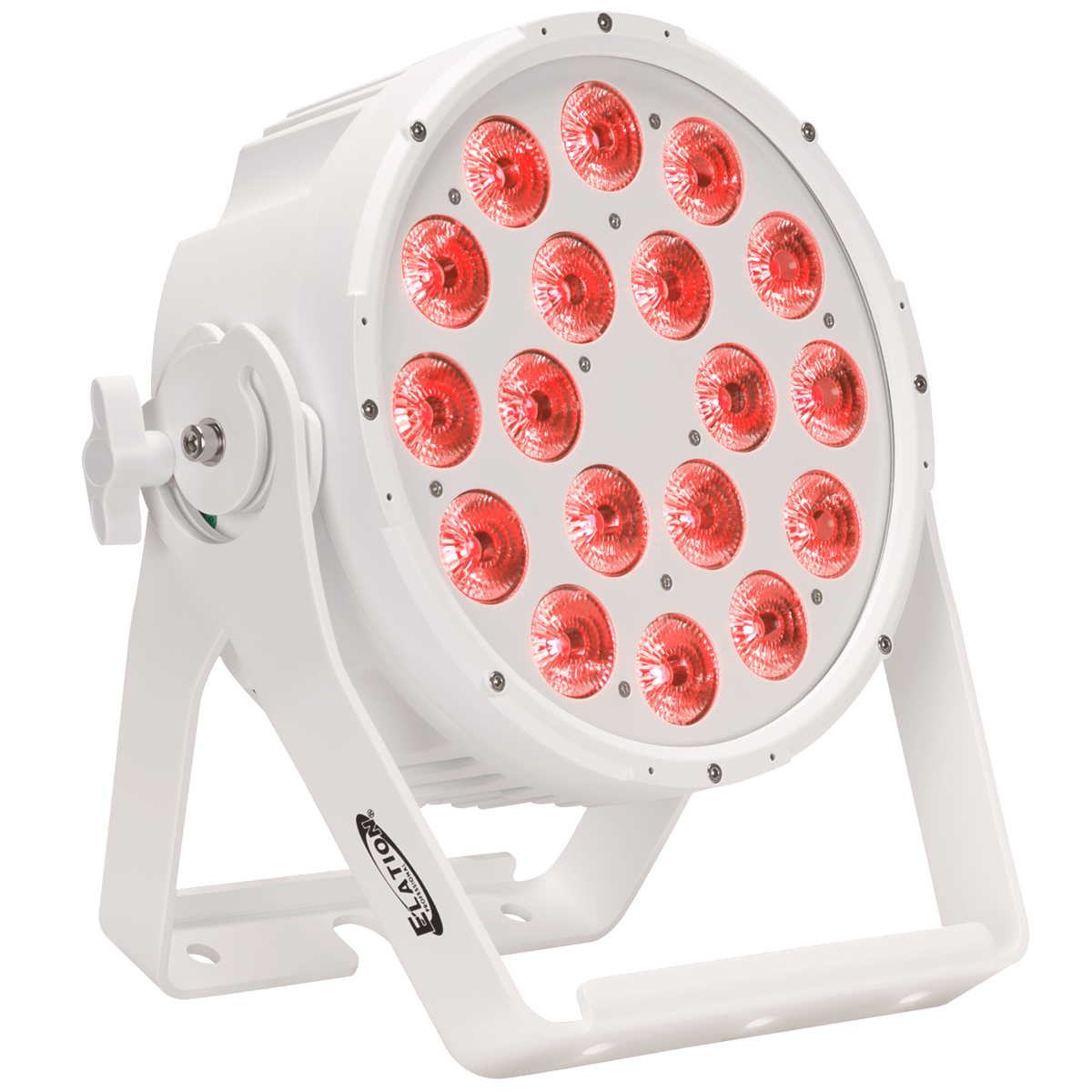

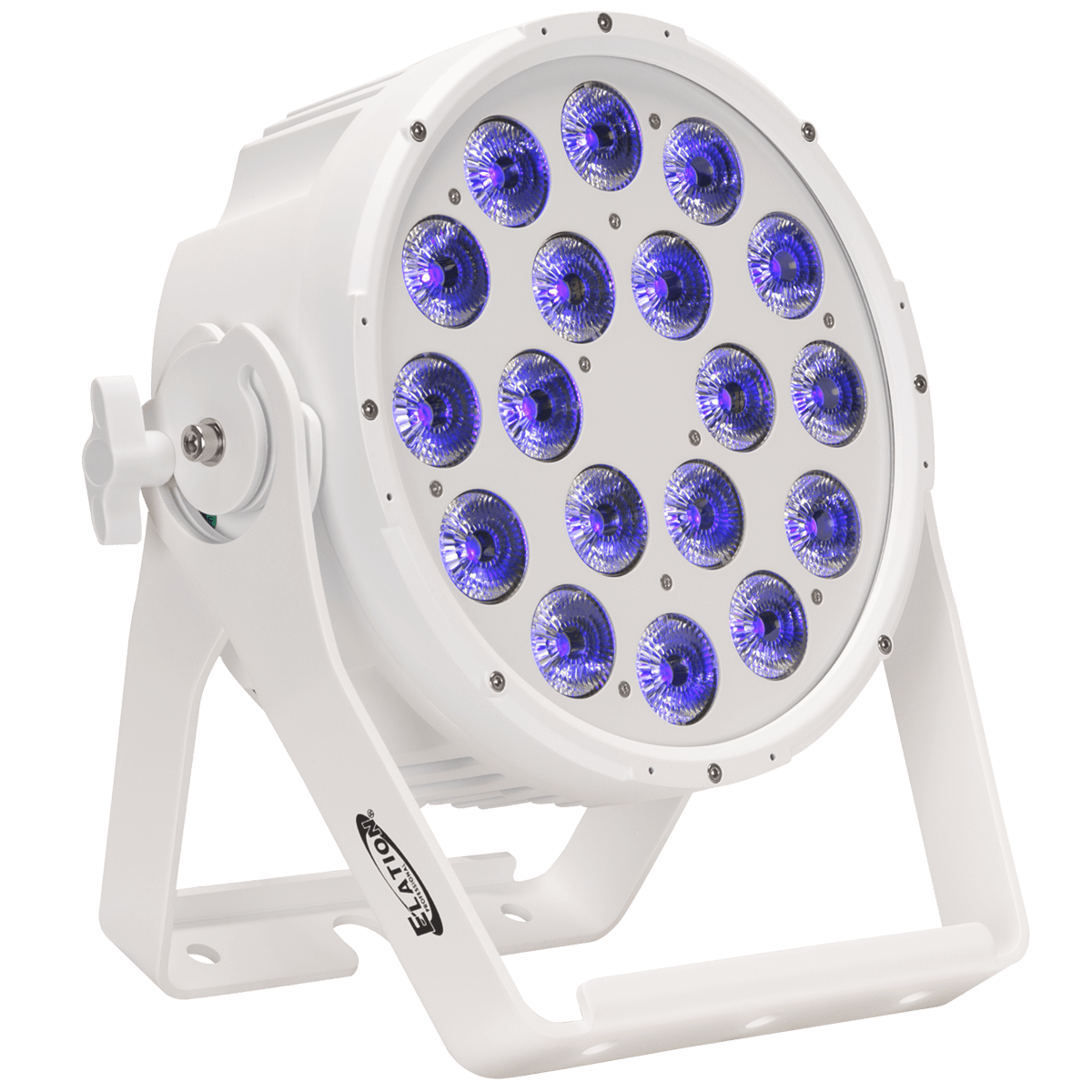

SIXPAR 300WMG HW

Features

IP65 Outdoor Rated Par Luminaire
Special White Marine Grade Exterior Coating

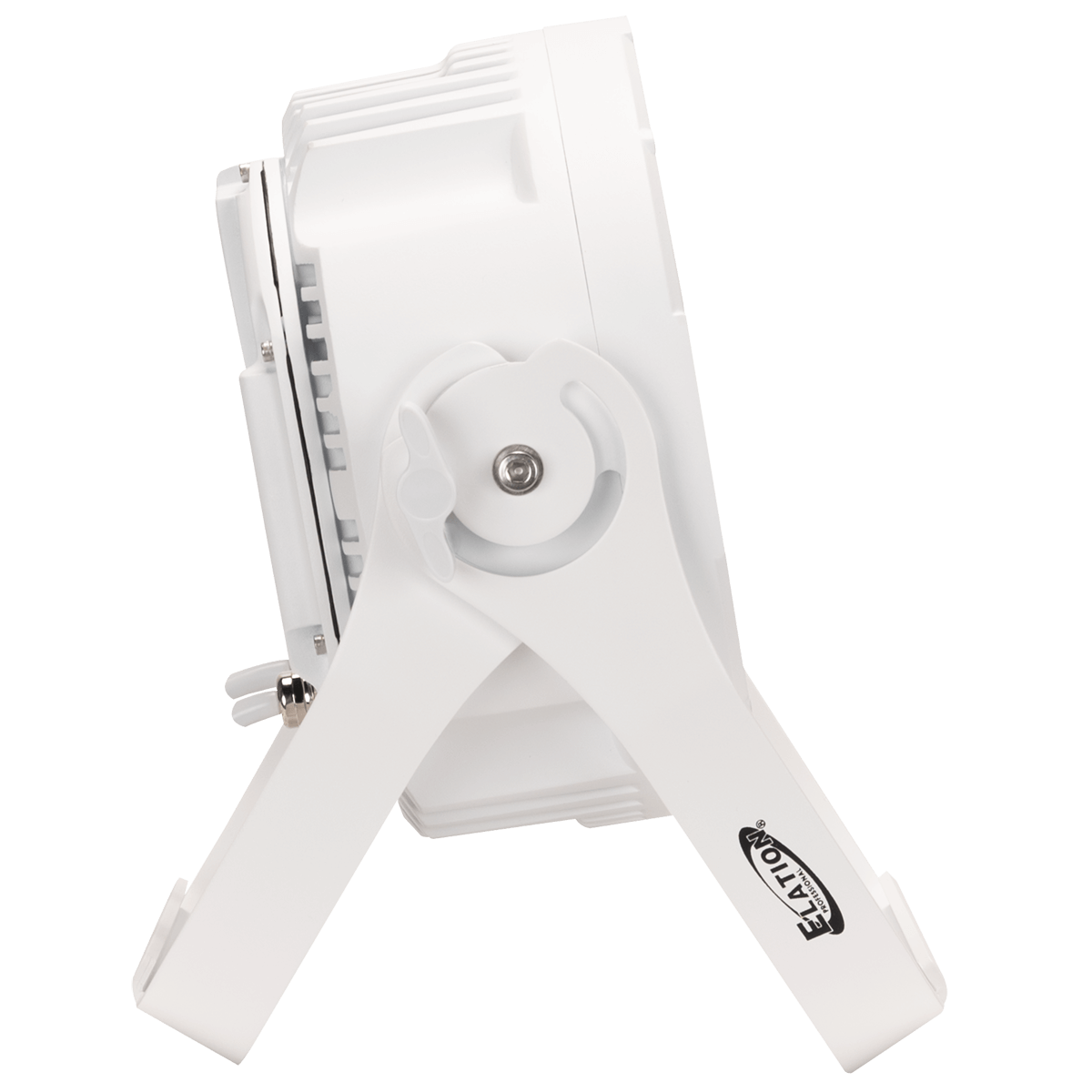

Rugged Die-Cast Aluminum Exterior with Dual Yoke / Floor Stand
(18) 12W 6-in-1 RGBAW+UV LEDs
15° Beam Angle
395nm UV Wavelength
Electronic Strobe and Variable Dimming Curve Modes
Manual and DMX-512 Control
RDM (Remote Device Management) Support
Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached

Resources

DMX/ RDM Traits

Drawings

Related Categories

Specifications

SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
coming soon

EFFECTS
Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros

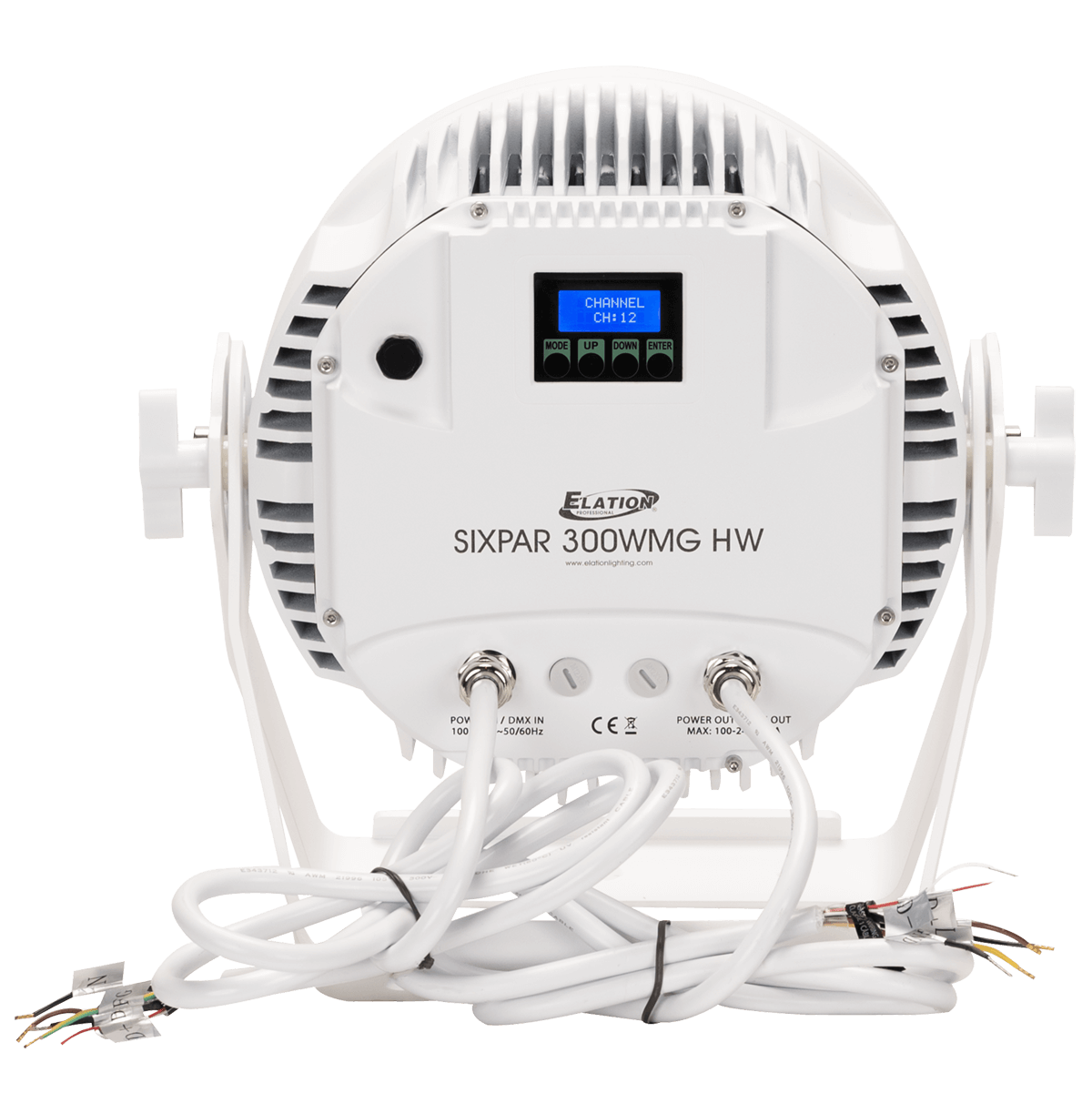

CONTROL / CONNECTIONS
Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch LCD Menu Display
Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 21.0 lbs. (9.5 kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP65




Specifications and documentation subject to change without notice.
