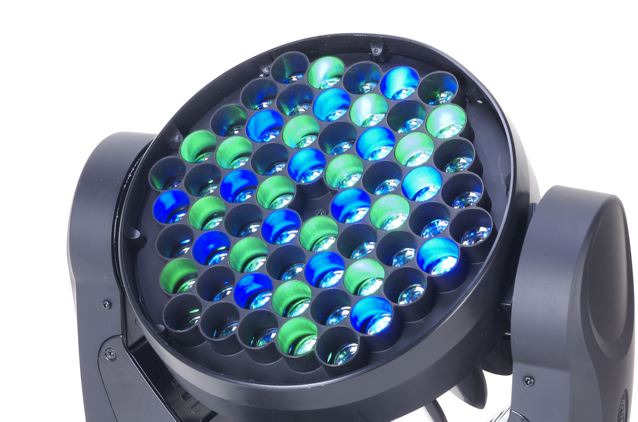

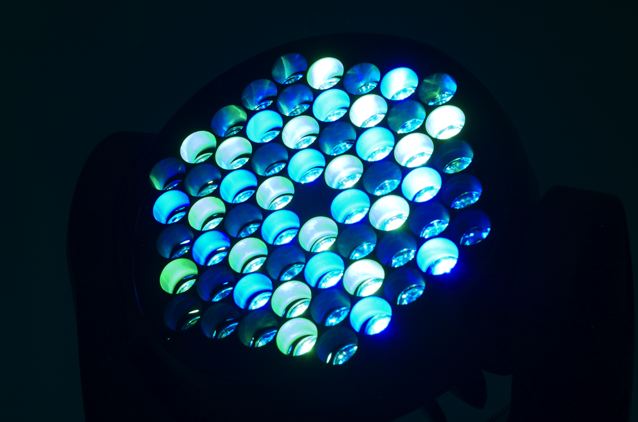

Design Wash LED 60
Specifications
60 x 3W RGB+W
• 180W total light output (~5820 LUX @3m)
• Red, Green, Blue and White LEDs
• Optimized color mixing
• 630° PAN, 265° TILT
• Very fast movement
• Auto Switching Power Supply
• 100~240VAC 50/60Hz)
- Beam Angle: 15º Lens = 9º
- Macros: 8
- Dimmer: 0-100%
- Strobe: 25FPS
- Lux @ 3M: R 1924, G 3825, B 582, W 921, F 5820
- DMX Channels: 13
- DMX Modes: Primary/Secondary/SOUND ACTIVE
- DMX Connectors: 3 PINS /5 PINS
- Primary/Secondary Operation
- On Board Control
- Stand Alone
- Pan: 630°/540° (16BIT)
- Tilt: 265° (16BIT)
- LCD Display
- Flicker Free
- RDMX
- Input: 100V-240V
- Hz: 50/60HZ
- Amp: 1.9A
- Consumption: 220W
- Fuse: 3A/3.15A
- Cable / Plug Type: EDISON
- IP Rating: IP20
- Cooling: FANS
- Max Ambient Temp: 45°C
- Rated Avg. Life: 100,000 hours
- Dimensions (LxWxH): 16.5“ x 12.5“ x 19“ / 420 x 320 x 480 mm.
- Weight: 16.75 lbs. 7.6 kg.
- Optional Honeycomb Lens filter available
- cETLus Approved
