DW Fresnel
DW Fresnel

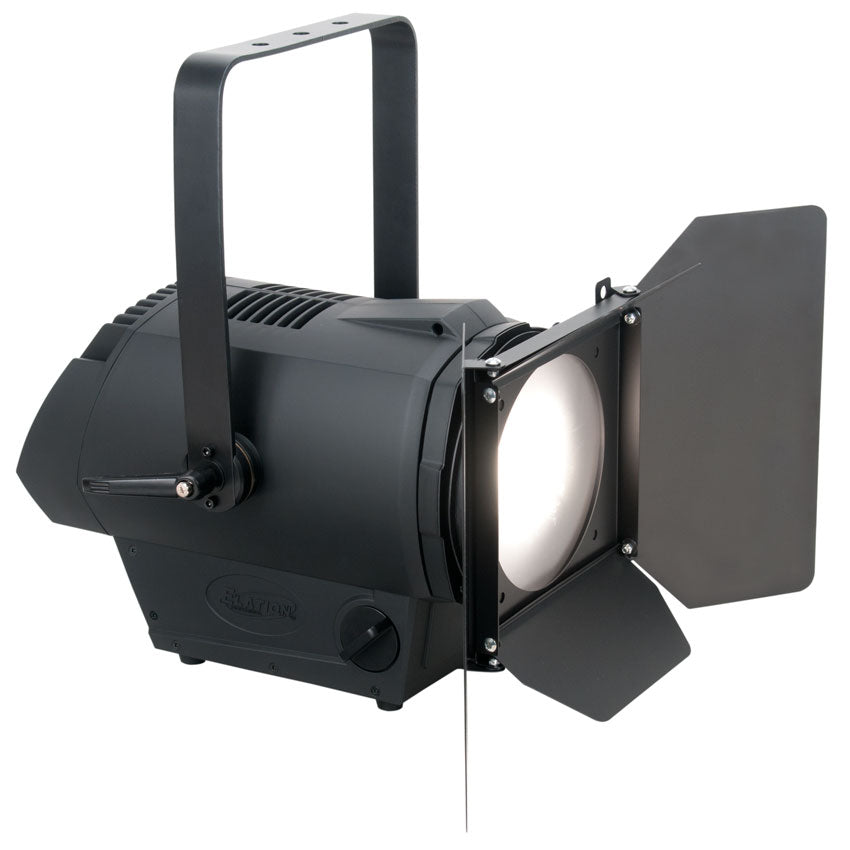

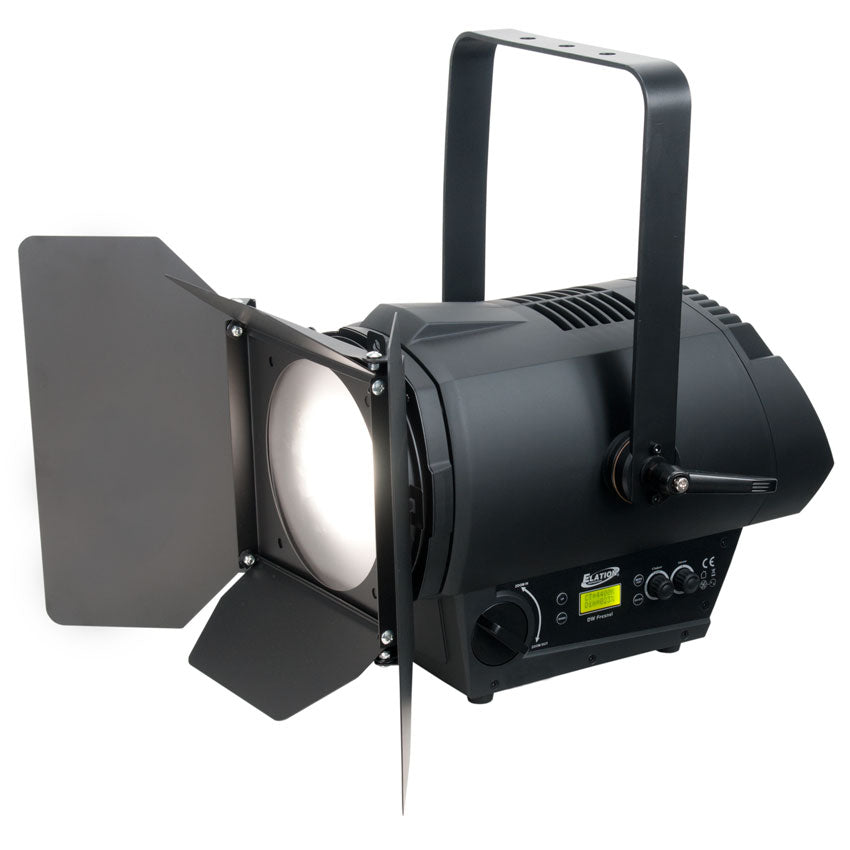

The DW Fresnel™ features a 250W 100,000 hour average life dynamic LED engine, 13° to 41° manual zoom, variable color temperature settings (3,200K - 6,000K), no noise thermo-optical cooling, manual and DMX controlled strobe and dimmer, variable dimming curves, flicker free operation for TV and FILM, rotating barn door and gel frame with frost filter, 3 and 5 pin in/out DMX and powerCON in connections, (4) button (3) dial control panel, 320W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features

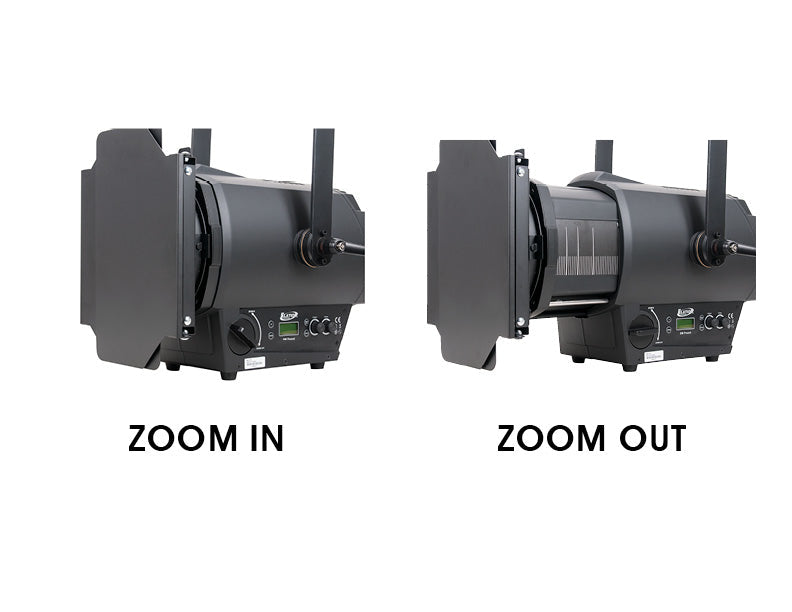

13° - 41° Manual Zoom
Variable Color Temperature (3,200 - 6,000K)
No Noise Thermo-Optical Cooling Technology
Manual and DMX Controlled Color Temp and Dimming
Flicker FREE Operation for TV and FILM
Rotating Barn Door, Gel Frame and Frost Filter
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- DW FRESNEL Vectorworks 2014 Symbol
- DW FRESNEL Vectorworks 2015 Symbol
- DW FRESNEL Vectorworks 2016 Symbol
Related Categories
Specifications
250W Dynamic White LED Engine
100,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Lens Dia: 7” (175mm) HIGH CRI = >90 / up to 8,716 lm
28,520 LUX 2650 FC @8.2’ (2.5M) (13° Full On 4,800K)
2,742 LUX 255 FC @8.2’ (2.5M) (41° Full On 4,800K)
EFFECTS
Variable Strobe Settings (1-18 fps)
Electronic Dimming (0% - 100%)
Variable Dimming Curves
CONTROL / CONNECTIONS

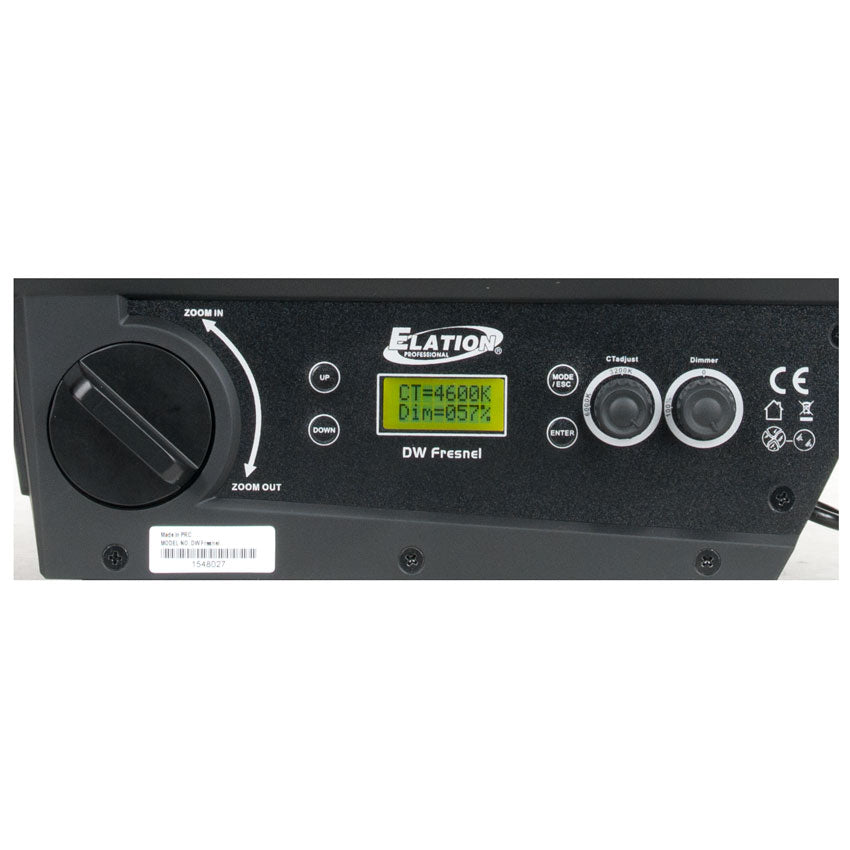

(4) Button and (3) Dial Control Panel LCD Menu Display
Manual or DMX Controlled Color Temp and Dimming
3 DMX Channels Modes (2 / 3 / 8)

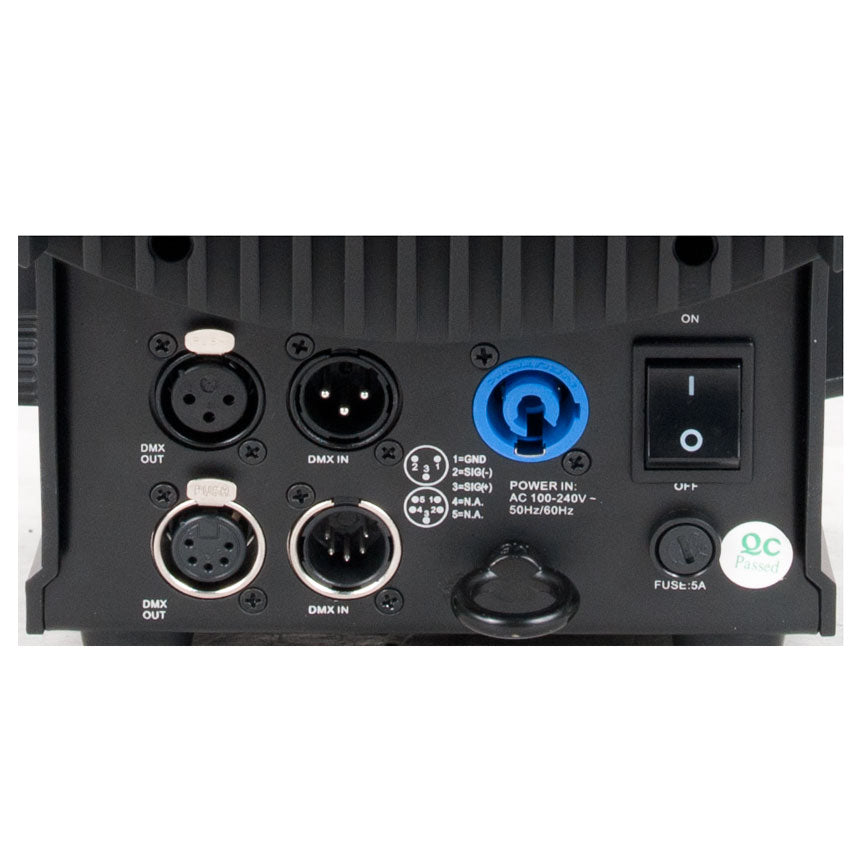

3 and 5 pin DMX In/Out
powerCON Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 23.4” (595 mm)
Width: 10.4” (264 mm)
Height: 17.8” (453 mm)
Weight: 24.0 lbs. (10.9 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
320W Max Power Consumption
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
