EPV VSC

Features

The EPV VSC is a 19” rack mount, full-color, synchronous video controller for all EPV series video screens. Control is via standard Windows PC with DVI output connection. It includes two RJ45 signal output ports on the rear, which allows connection for up to two LED video displays. Using a standard CAT6E ethernet cable, the EPV VSC transmits 1920 X 1080 pixel resolution within a max distance of 100m. The VSC software includes a management software, which allows for all configuration, sizing, mapping and color calibration of EPV panels.

Resources

Guides/ Manuals

Related Categories

Specifications

 Composition: Powder coated steel
 Dimensions: 19.2”x7.25”x1.8”
 Weight: 10lbs / 4.5kg
 Dot Correction: Colorbrate system
 Max Resolution: 1920 x 1080 pixels
 Grey Level: 0-665336 levels
 High Frequency Refresh Rate: = 4000hz
 Mounting: Free standing on rubber feet or 19” rackmount
 Front Panel Controls: n/a

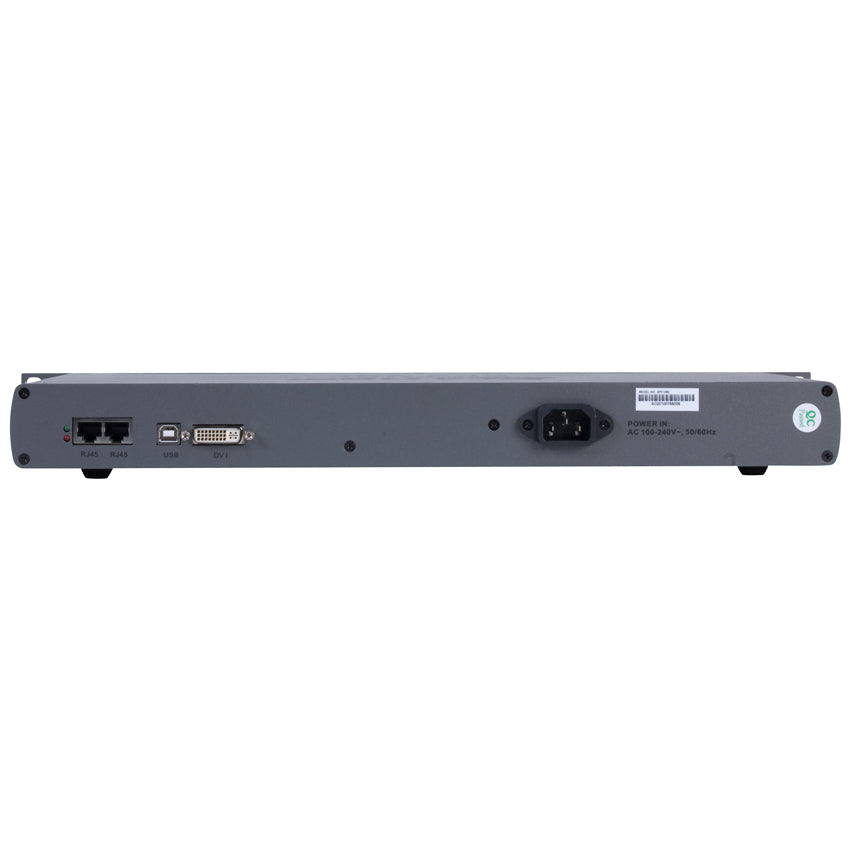

 Rear Panel Connections: AC input, LAN output, USB and DVI input
 Command Communication: USB
 Signal Input: DVI
 Signal Output: LAN, CAT5
