Light Copilot II


This product is distributed by authorized American DJ Dealers only – Click here for details System Includes

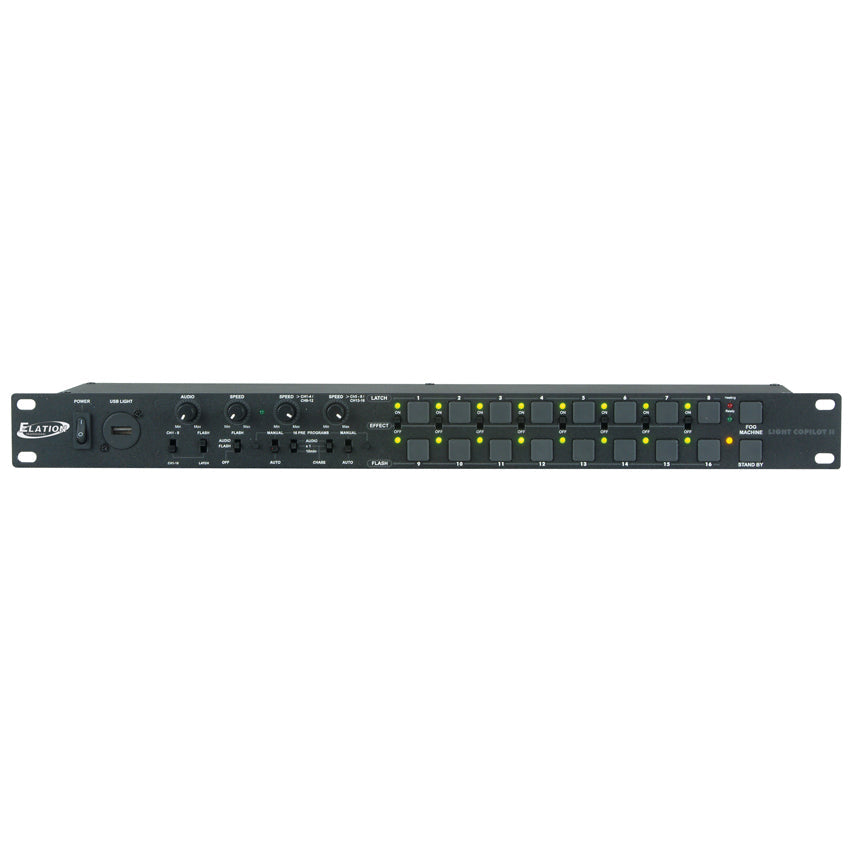

• 1 x Light Copilot II, controller

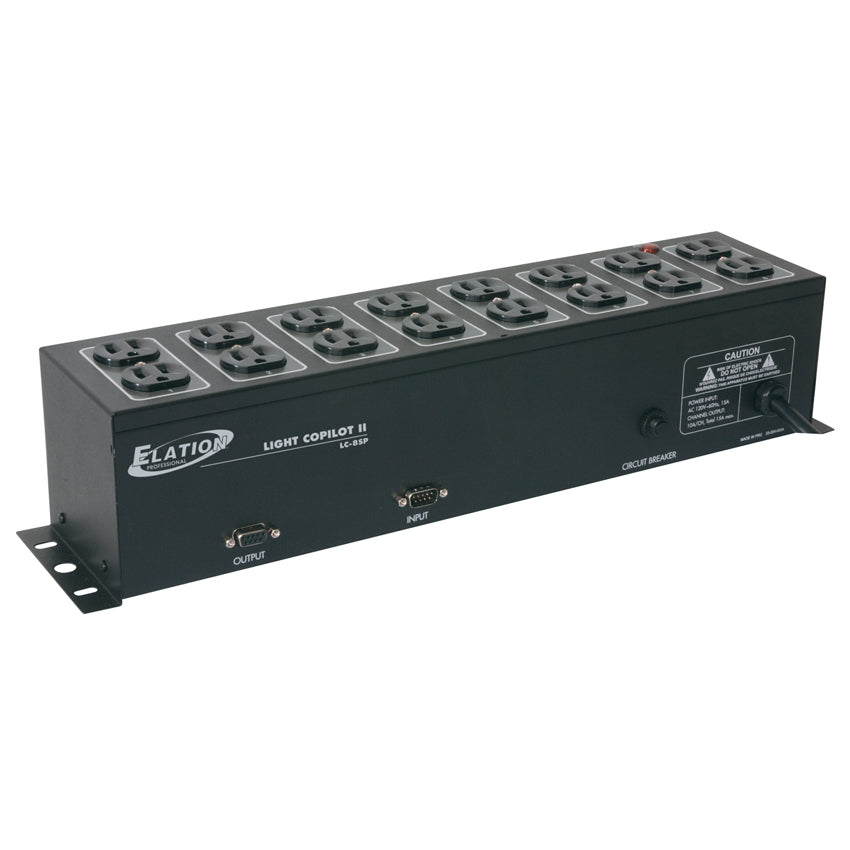

• 1 x LC-8SP, switch pack

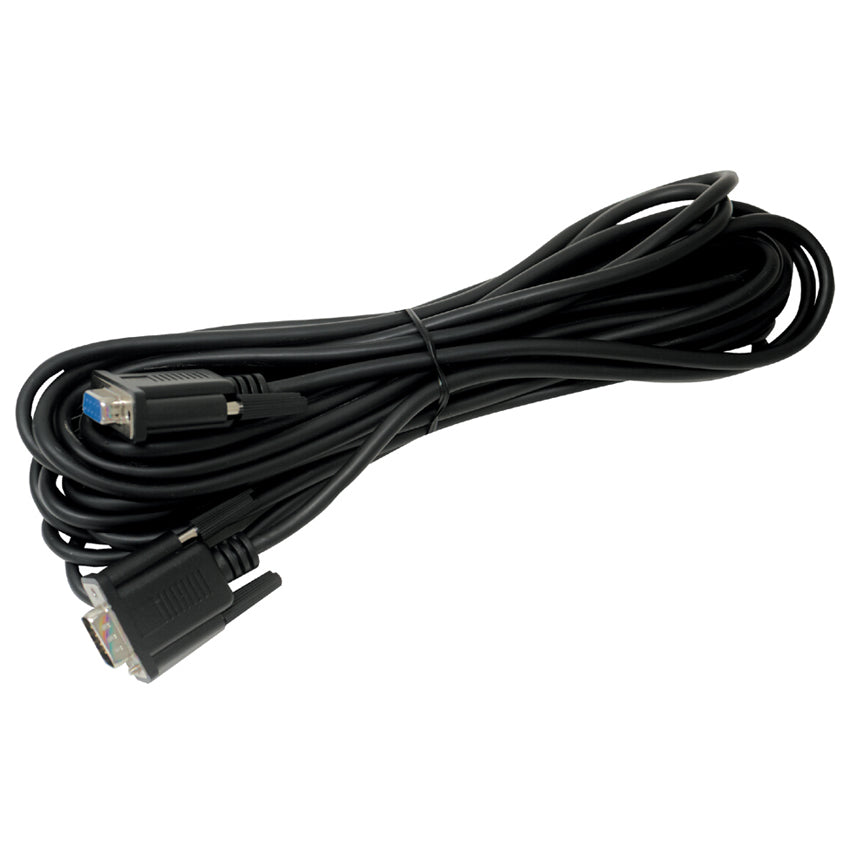

• 1 x 25ft connector cable Main Features
• 16 channel analog chase controller
• Control panel has two 8-channel zones
• Fog Machine trigger button with LED function indicators (compatible with specific American DJ fog machines)


User Manual


• USB gooseneck light input
• 16 built-in programs
• Each zone is switchable from audio (sound activated) to standard to timed chase (Fast Chase to 10 minute intervals)
• Internal Microphone or line input for music control
• Audio sensitivity control knob
• Offers option to turn desired light ON with the rest of lights maintaining chase sequence
• Daisy chain up to 3 switch packs for easy installation and enhanced expendability
• Flash button override
• Black out (Stand by)
• Switch packs use triacs rather than mechanical relays for faster, more reliable chase functions and longer life
• Maximum Load: 15A per channel
