ZCL 360 BAR
ZCL 360 BAR

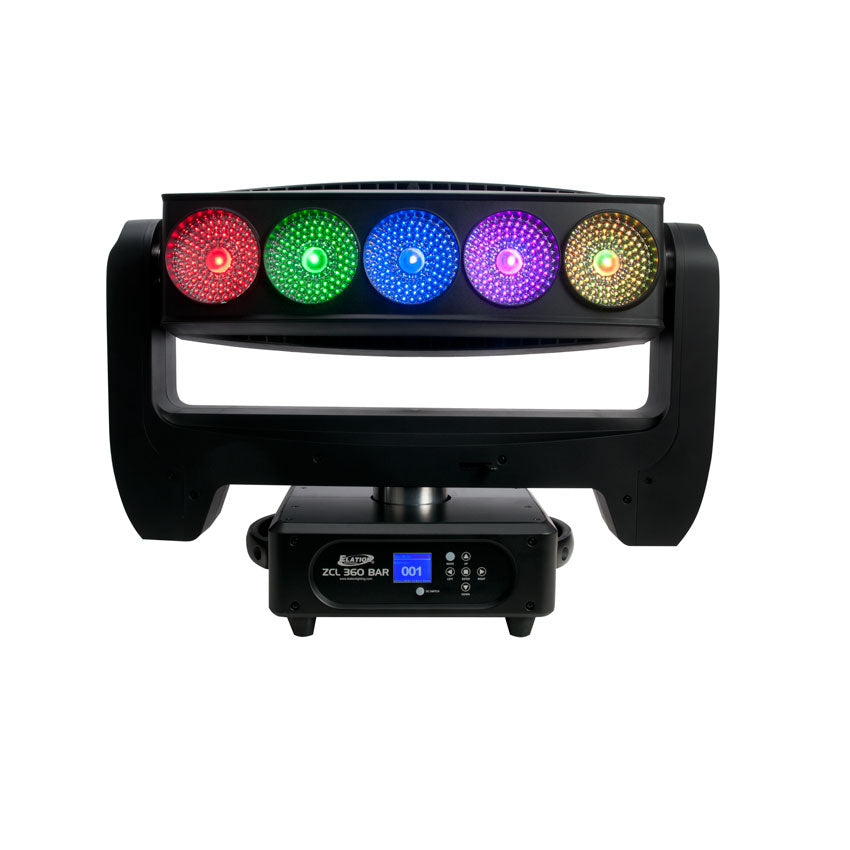

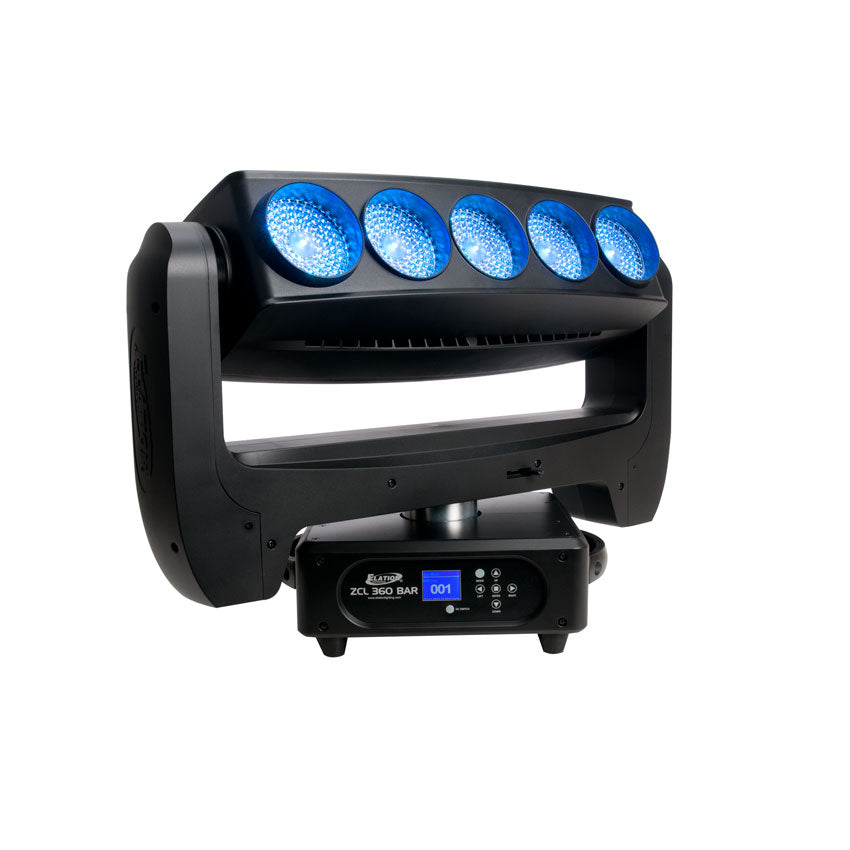

The ZCL 360 BAR™ is a versatile moving bar effect luminaire with zoom featuring (5) individual 60W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam from each lens. Features 4° to 44° motorized zoom, pixel control, fast and precise 16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support 3/5pin XLR, RJ45 etherCON, and powerCON in/out connections, (7) button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Features
Versatile Multiple Beam Moving Bar Effect Luminaire with Zoom
New Advanced Collimator Lens
4° to 44° Motorized Zoom and Pixel Control
(5) Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Flicker Free Operation for TV and FILM
Resources
Specification information
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- ZCL 360 BAR Vectorworks 2014 Symbol
- ZCL 360 BAR Vectorworks 2015 Symbol
- ZCL 360 BAR Vectorworks 2016 Symbol
Related Categories
Specifications
SOURCE
(5) 60W RGBW 4-in-1 LED
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
25,230 LUX 2,344 FC @9.8’ (3m) (4° Min Zoom) Full ON
819 LUX 76 FC @9.8’ (3m) (44° Max Zoom) Full ON
COLOR
RGBW
EFFECTS
RGBW Color Mixing
Pixel Control
4° - 44° Beam Zoom
Electronic Strobe and Dimming
Variable Dimming Curves
64 Color Presets and 14 Unique Program Macros
CONTROL / CONNECTIONS
(3) DMX Channel Modes (37 Total Channels)
RDM (Remote Device Management)
(7) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

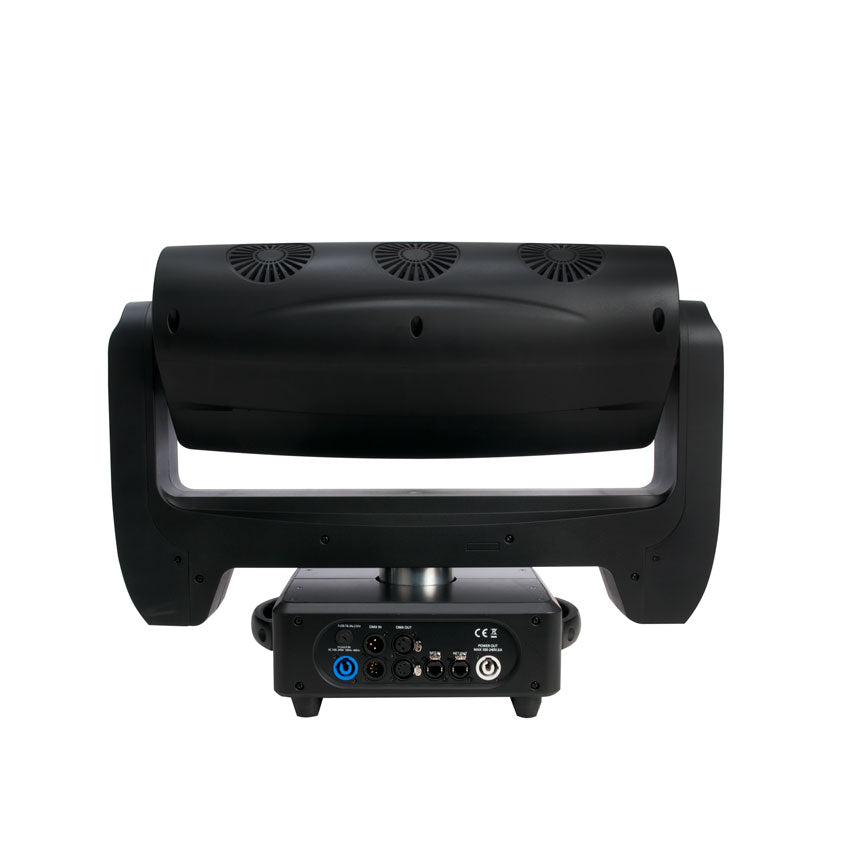

3pin/5pin XLR DMX In/Out
RJ45 etherCON In/Out (KlingNET™ / Art-NET)
Locking Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 25.11” (637.8mm)
Width: 10.24” (260mm)
Vertical Height: 18.07” (459mm)
Weight: 53.0 lbs. (24.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
530W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP30
Specifications and documentation subject to change without notice.
