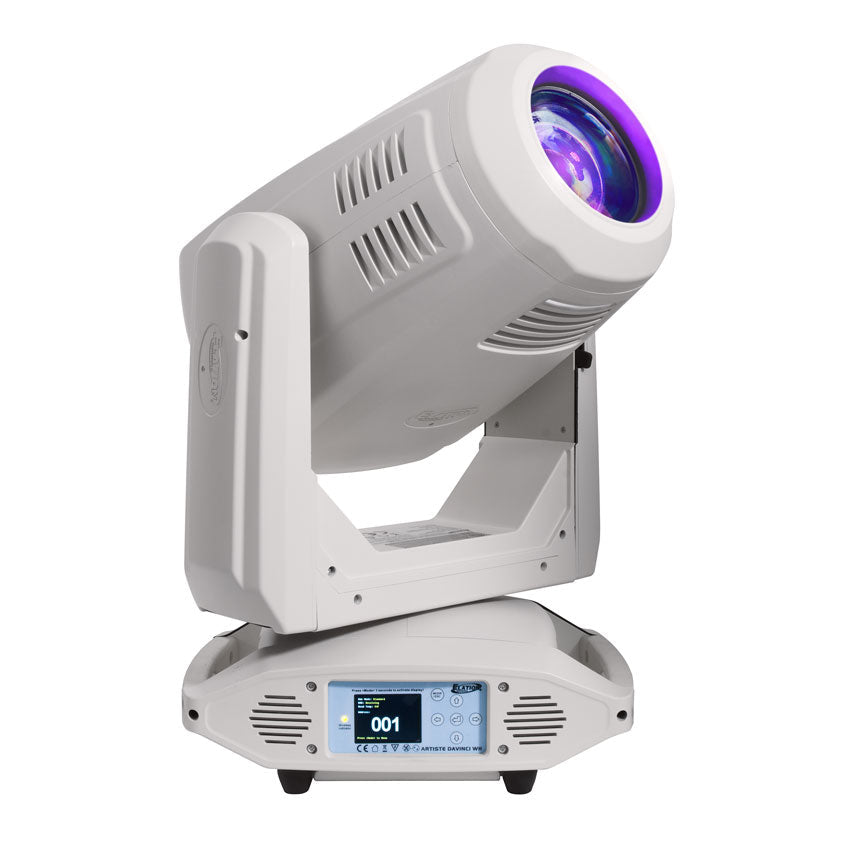

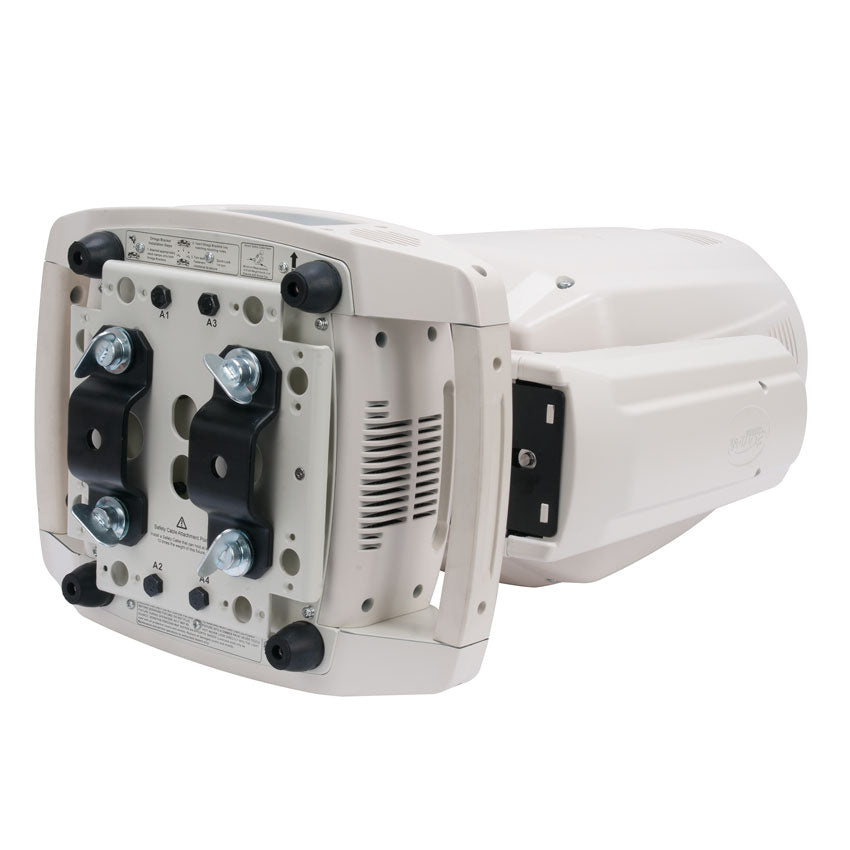

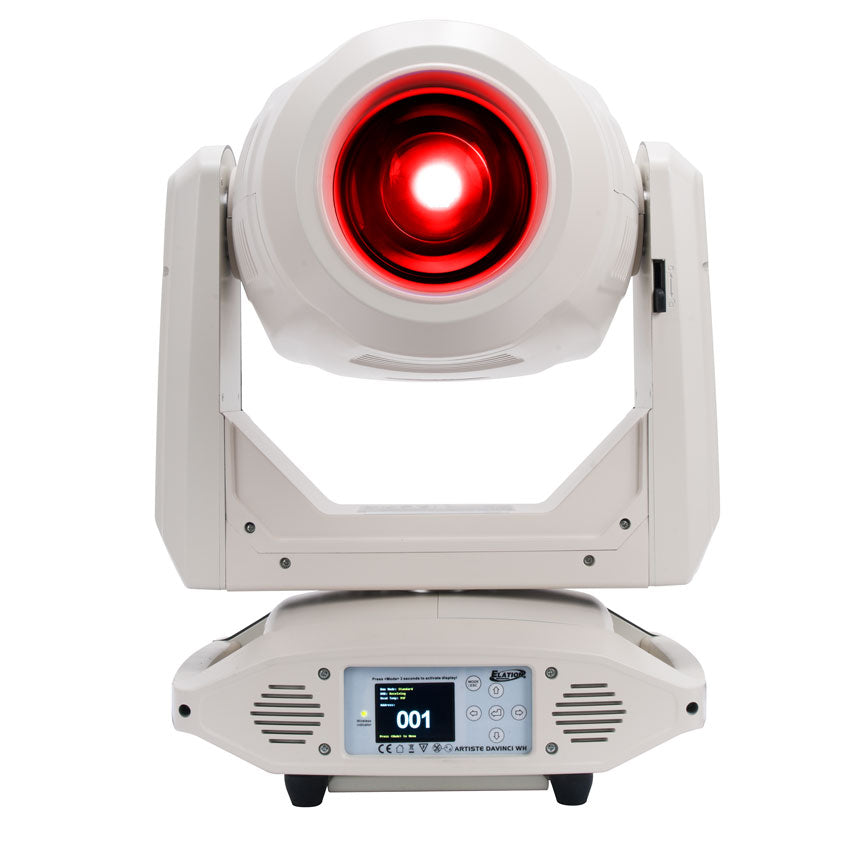

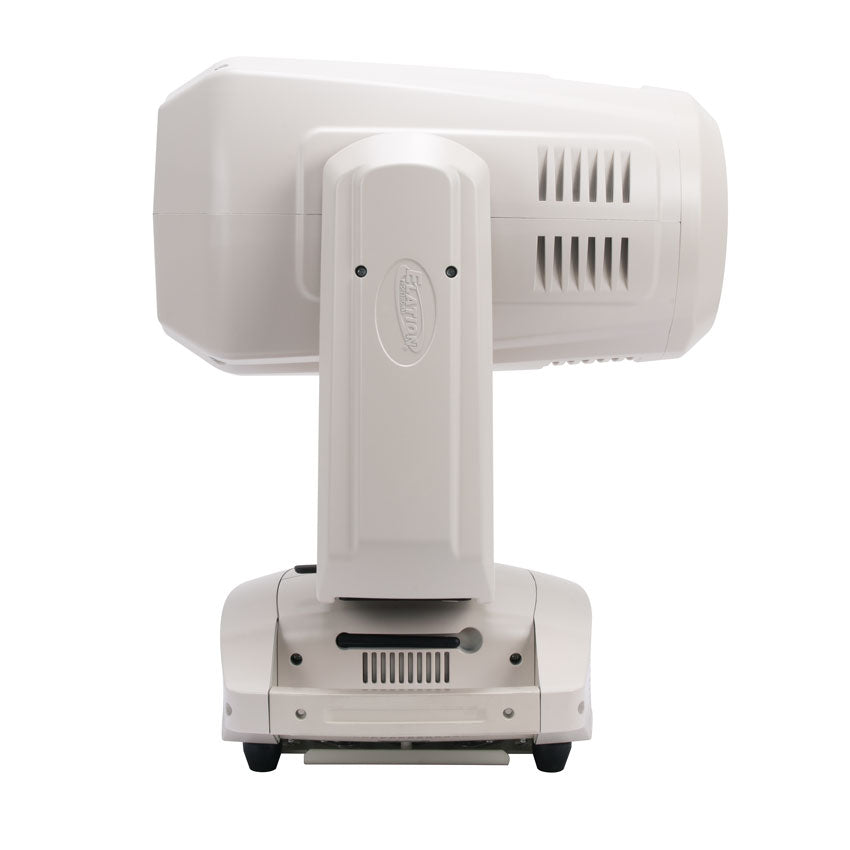

Artiste DaVinci WH

Features

All White Exterior Housing
270W Cool White 12,000 Lumen LED Spot Luminaire
6° to 48° Motorized Zoom
Full CMY Color Mixing and Linear CTO Color Correction
7 Dichroic Colors including CTB and Violet
6 Rotating and 9 Static-Stamped Interchangeable Gobos
3-Facet and Linear Rotating Prisms and Frost Filter
Full 360° Bi-Directional Animation Wheel
High Speed Electronic Shutter and Strobe
Motorized Iris, Focus, and Auto-Focus
Variable Dimming Curve Modes
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver
Low Heat, Quiet Operation, Hibernation Mode
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation For Broadcast TV and FILM

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

SOURCE
270W Cool White LED Engine
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
12,000 Total Lumen Output
CRI 72+

EFFECTS
6° - 48° Motorized Zoom
3-Facet and Linear Rotating Prisms and Prism Macros
Full 360° Bi-Directional Rotating Animation Wheel
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris, Focus and Auto-Focus
High Speed Electronic Shutter and Strobe
Variable 16-Bit Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness


COLOR
7 Dichroic Colors + CTB
Full CMY Color Mixing
Linear CTO Color Correction


GOBOS
2 Gobo Wheels
6 Interchangeable Rotating / Indexing Gobos
9 Interchangeable Static-Stamped Metal Gobos


CONTROL / CONNECTIONS
(3) DMX Channel Modes (40 total channels)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-Net, sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver

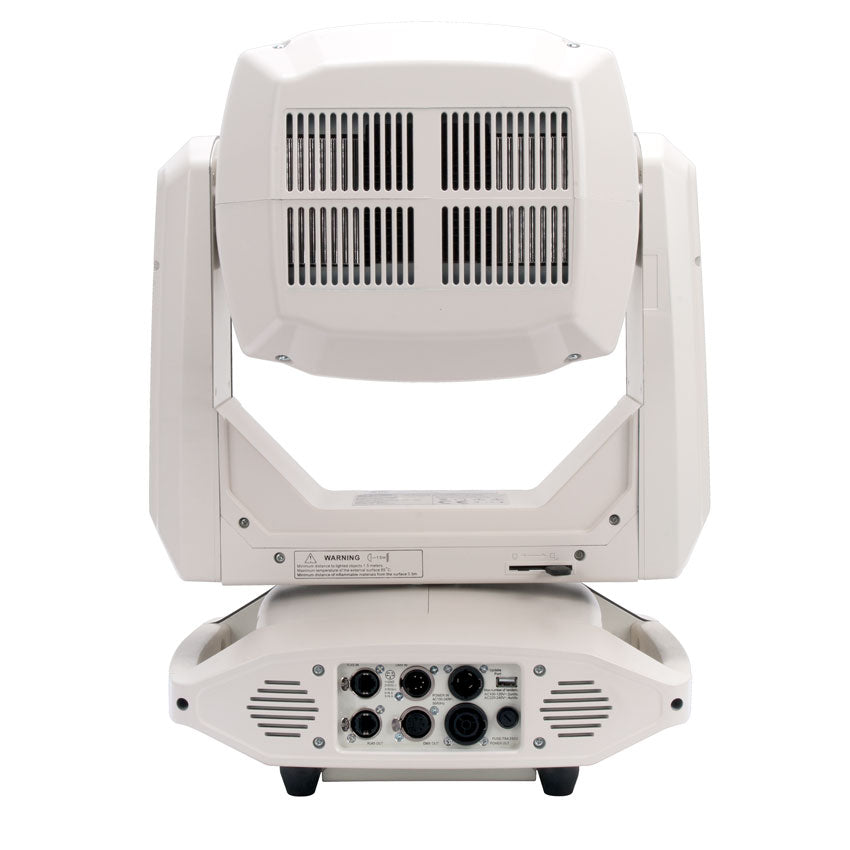

Locking 5pin XLR DMX, RJ45 Ethernet, and Power
With Wired Digital Communication Network


SIZE / WEIGHT
Length: 16.4" (416mm)
Width: 11..2" (284mm)
Vertical Height: 25.4" (645mm)
Weight: 56.0 lbs. (25.4kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
470W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


FIRMWARE UPDATES

Current Version: V1.2.8

Click HERE for software updates



Specifications and documentation subject to change without notice.
