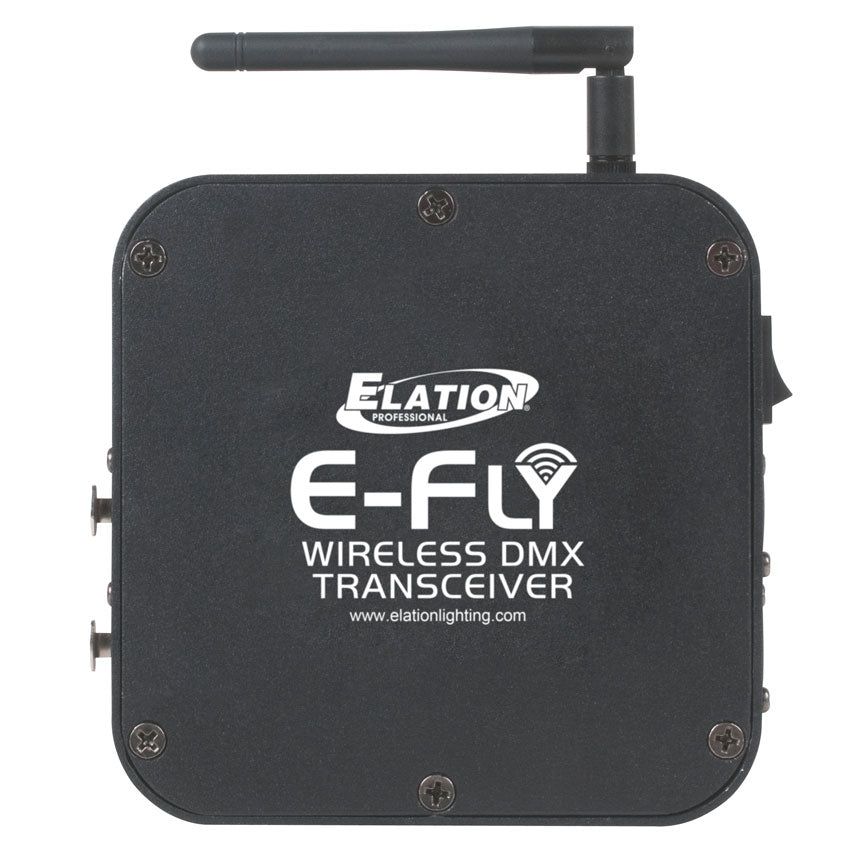

E-FLY WIRELESS DMX TRANSCEIVER
E-FLY Wireless DMX Transceiver is a professional-grade lighting solution. The E-FLY™ Transceiver is a high-powered wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY™ and products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge.
Replaced by
E-FLY WIRELESS DMX TRANSCEIVER
The E-FLY™ Transceiver is a high-powered wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY™ and products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge. Connected to a DMX Controller, the E-FLY™ Transceiver will provide a constant and reliable wireless DMX signal up to 2,500 feet (762m) to other Elation E-FLY™ products. The 2.4 GHz wireless frequency will coexist in busy RF environments alongside technologies like BLUETOOTH® and Wi-Fi.
- Wireless DMX Transceiver (Transmitter/Receiver In One)
- Rechargeable Battery Life - Up To 20-25 Hours From a 4 Hour Charge

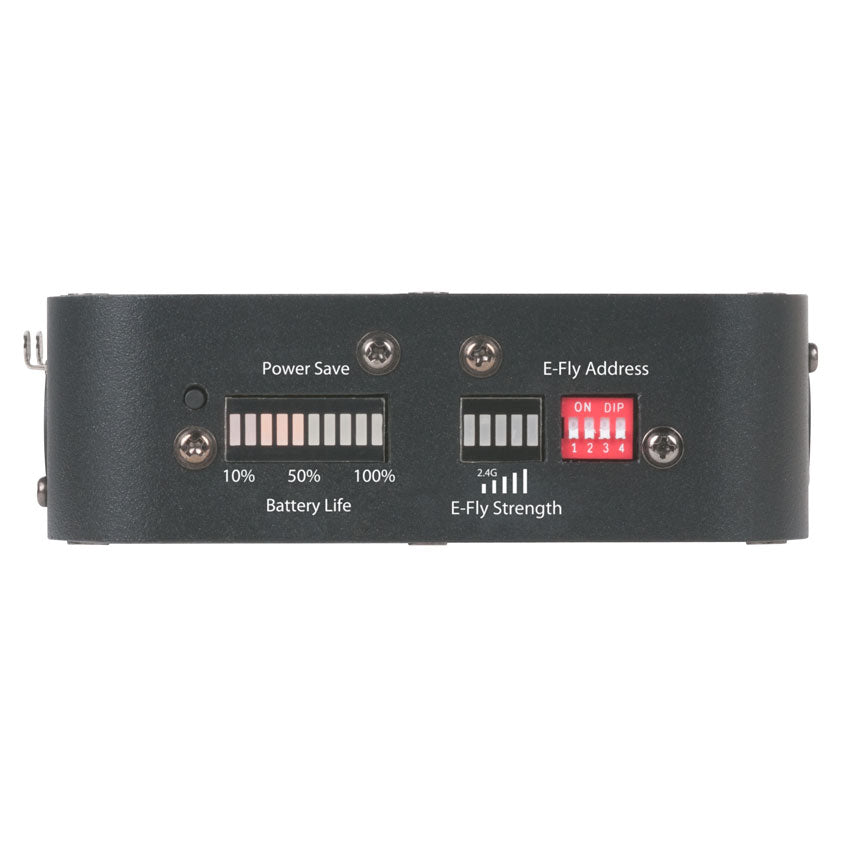

- Battery Life and Signal Strength Indicator Display
- Wireless Range Up to 2,500 ft (762m) Open Line of Sight
- Transmit To Multiple Receivers On Same Radio Channel
- Supports Up To (15) DMX-512 Universes
- (15) Radio Channels (1 DMX universe per channel)
- Auto Pairing Feature
- 3pin & 5pin DMX In/Out
- Wireless Frequency: 2.4 GHz ISM
Specifications
Battery Switch
Power Save Button

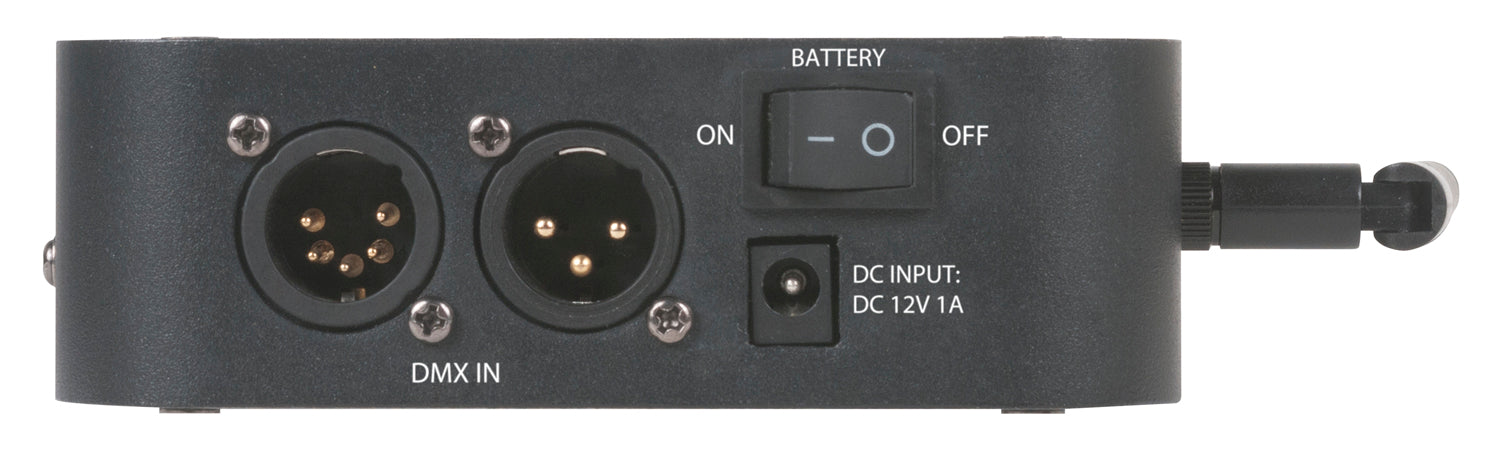

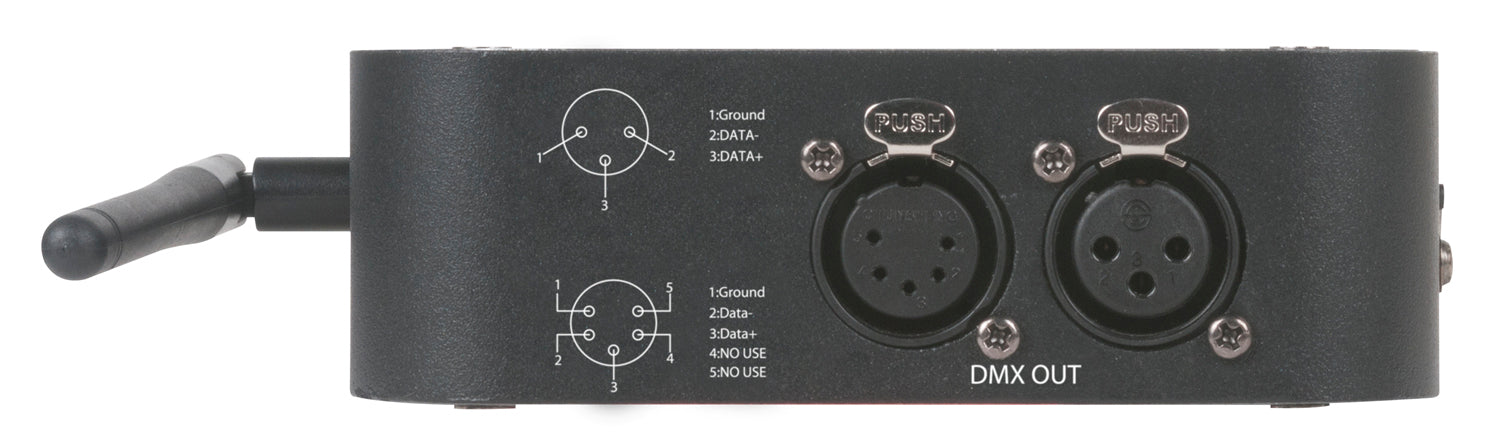

3pin and 5pin DMX In/Out
12VDC Power Supply Input
SIZE / WEIGHT
Length: 6.0” (152.7mm)
Width: 5.3” (134.4mm)
Vertical Height: 1.6” (62mm)
Weight: 1.3 lbs. (0.6kg)
ELECTRICAL / THERMAL
12VDC, 1A (AC or DC powered)
INCLUDED ITEMS
12VDC Power Supply
Back Panel Magnet for Easy Metal Surface Mounting

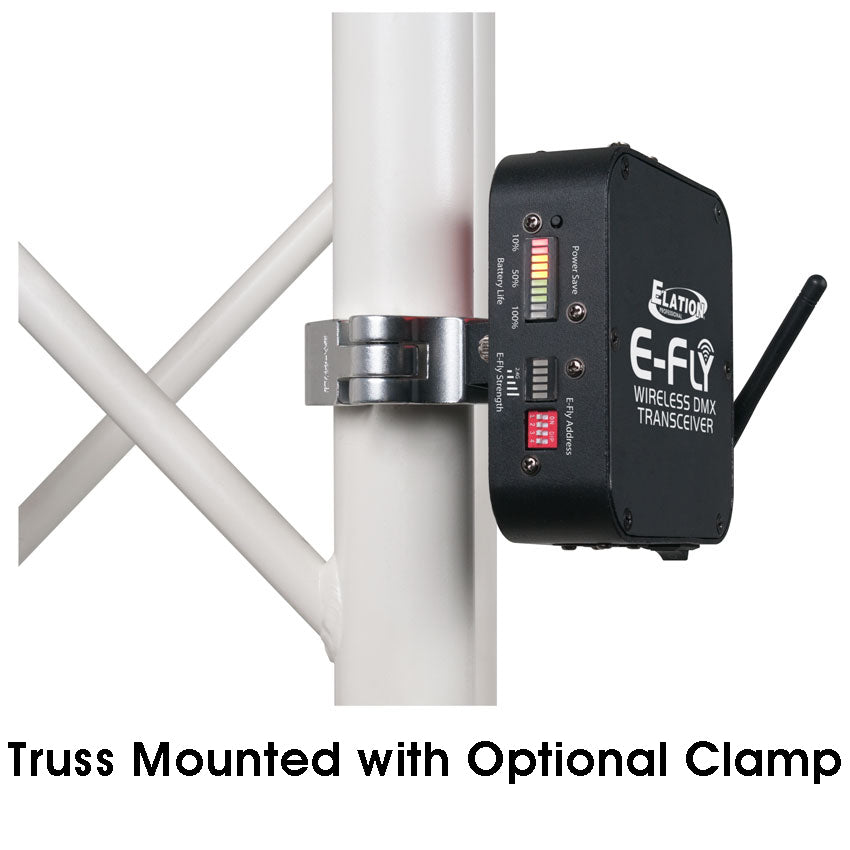

Mini Omega Bracket For Clamp/Truss Mounting (Clamp not included)
Specifications and documentation subject to change without notice.
Downloads
Dimensional drawings
Specification sheet
User manual
