ACL 360 BAR Service, Support & Parts Page
* * * SPECIAL ORDER ITEM * * *

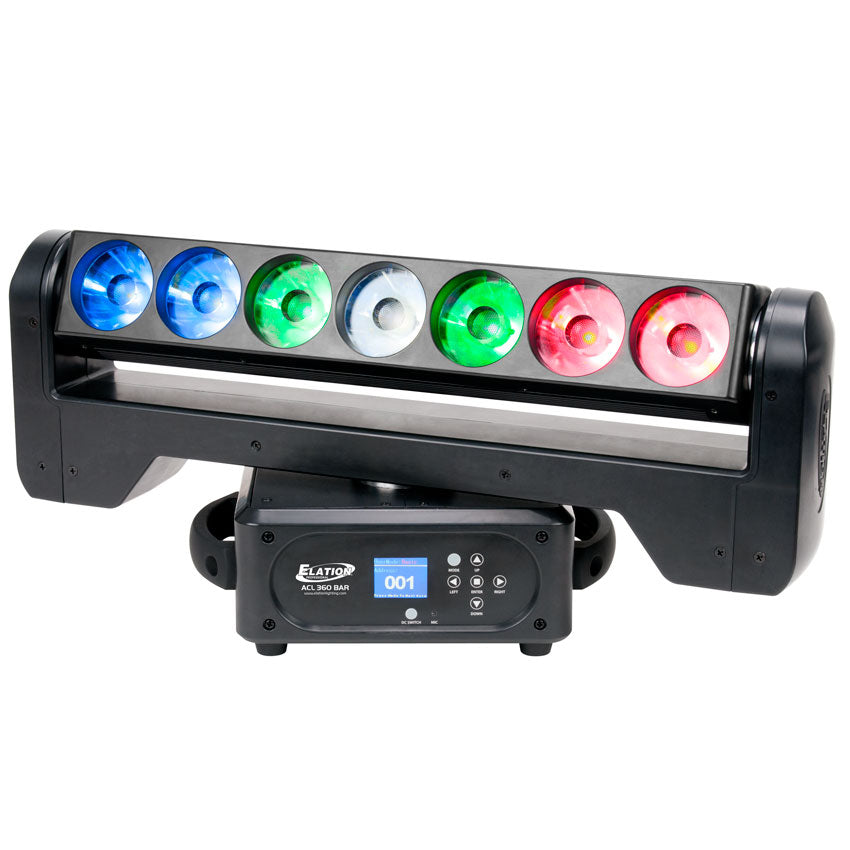

The ACL 360 BAR™ is a versatile moving bar effect luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, Locking Power Cable, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
ACL 360 BAR Service, Support & Parts Page
* * * SPECIAL ORDER ITEM * * *
The ACL 360 BAR™ is a versatile moving bar effect luminaire featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens which combined produce a 31° beam angle. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, Locking Power Cable, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 135W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Downloads
| Filename | Document type | File type |
|---|---|---|
| ACL 360 BAR Photometric Data | Photometrics | |
| ACL 360 BAR 2D CAD | CAD Drawing | DWG |
| ACL 360 BAR 3D CAD | CAD Drawing | DWG |
| ACL 360 BAR Dimensional Drawings | Dimensional Drawings | |
| ACL 360 BAR DMX Traits | DMX Traits | |
| ACL 360 BAR Specification Sheet | Specification Sheet | |
| ACL 360 BAR User Manual | User Manual | |
| ACL BAR Vectorworks 2014 Symbol | Vectorworks Symbol | VWX |
| ACL 360 BAR Vectorworks 2015 Symbol | Vectorworks Symbol | VWX |
| ACL 360 BAR Vectorworks 2016 Symbol | Vectorworks Symbol | VWX |
Filters
39 products
