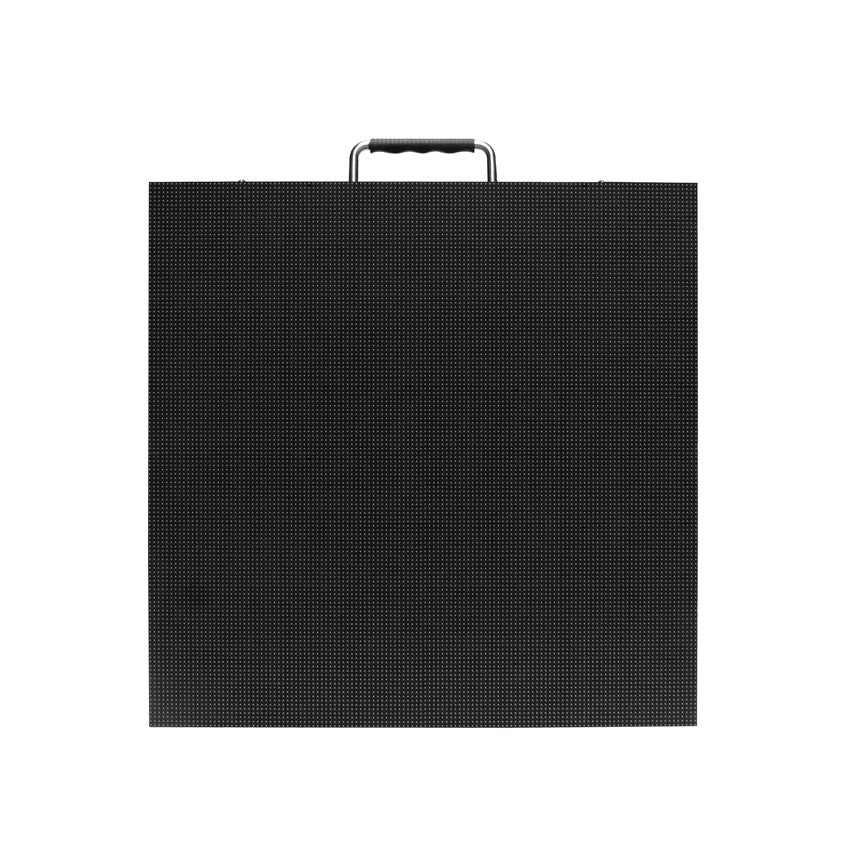

EVHD3 Service, Support & Parts Page
EVHD3 is a professional-grade lighting solution. It’s light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. The EVHD3™ is ideal for any broadcast installations. Easy To Install 100% Serviceable From Front or Backsides Broadcast Quality 3840Hz EMC Certification Convex or Concave Design Capable MOM - Memory-on-Module (Saved#160;Pixel By Pixel Calibration).
EVHD3 Service, Support & Parts Page
EVHD3 is a professional-grade lighting solution. It’s light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. The EVHD3™ is ideal for any broadcast installations. Easy To Install 100% Serviceable From Front or Backsides Broadcast Quality 3840Hz EMC Certification Convex or Concave Design Capable MOM - Memory-on-Module (Saved#160;Pixel By Pixel Calibration).
Downloads
| Filename | Document type | File type |
|---|---|---|
| EVHD Series Panel 2D CAD | CAD Drawing | DWG |
| EVHD Series Panel 3D CAD | CAD Drawing | ZIP |
| EVHD Series Panel Dimensional Drawings | Dimensional Drawings | |
| EVHD Series Rear Support Bracket 2D CAD | CAD Drawing | DWG |
| EVHD Series Rear Support Bracket Dimensional Drawings | Dimensional Drawings | |
| EVHD Series Rigging Bar 2D CAD | CAD Drawing | DWG |
| EVHD Series Rigging Bar 3D CAD | CAD Drawing | DWG |
| EVHD Series Rigging Bar Dimensional Drawings | Dimensional Drawings | |
| EVHD Series Vectorworks Symbol | Vectorworks Symbol | ZIP |
| EVHD3 Specification Sheet | Specification Sheet | |
| EVHD Series Rear Support Bracket 3D CAD | CAD Drawing | DWG |
