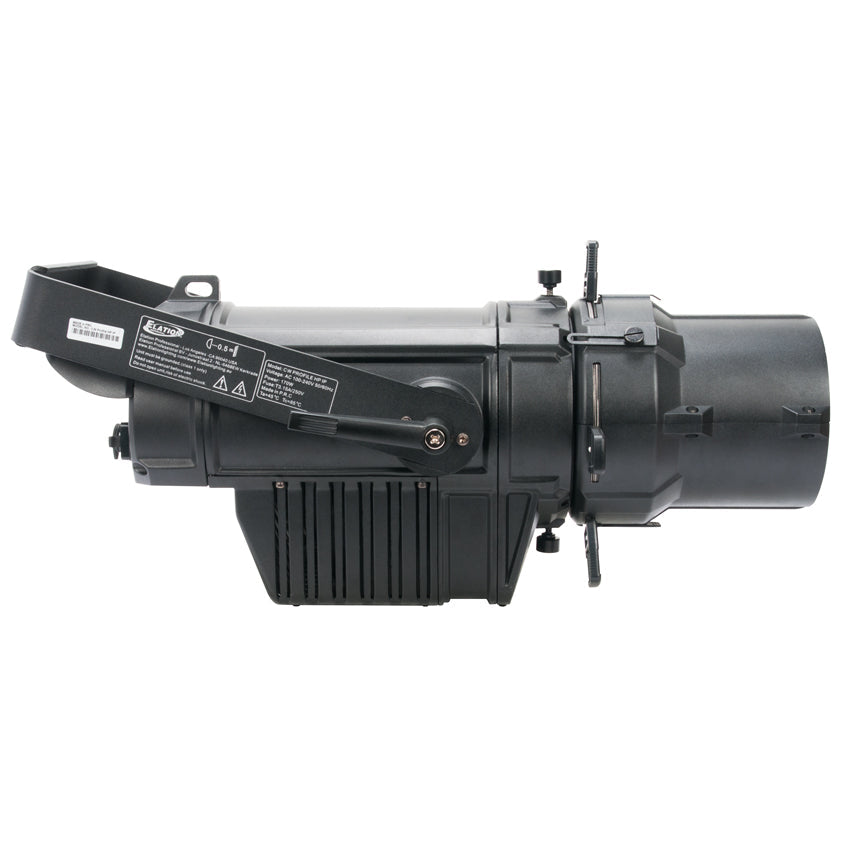

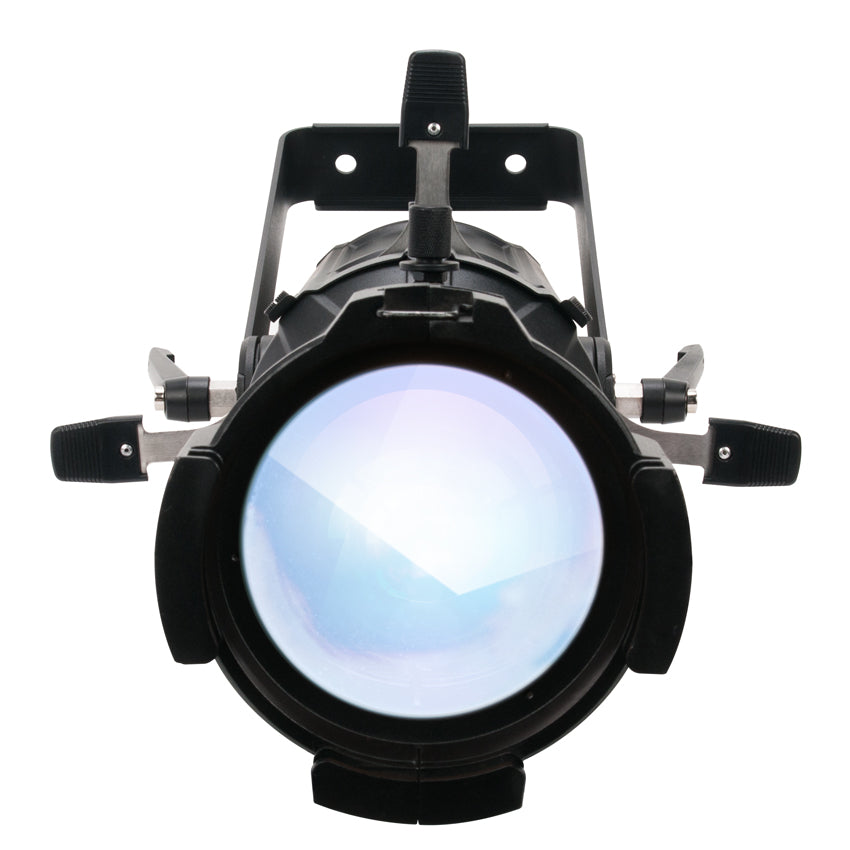

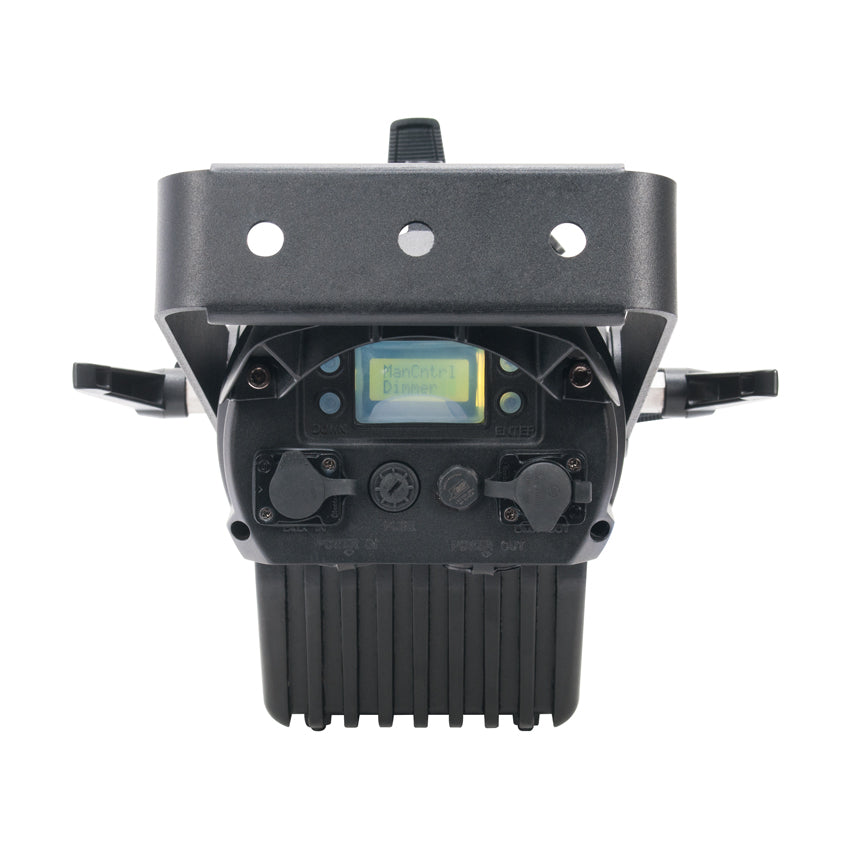

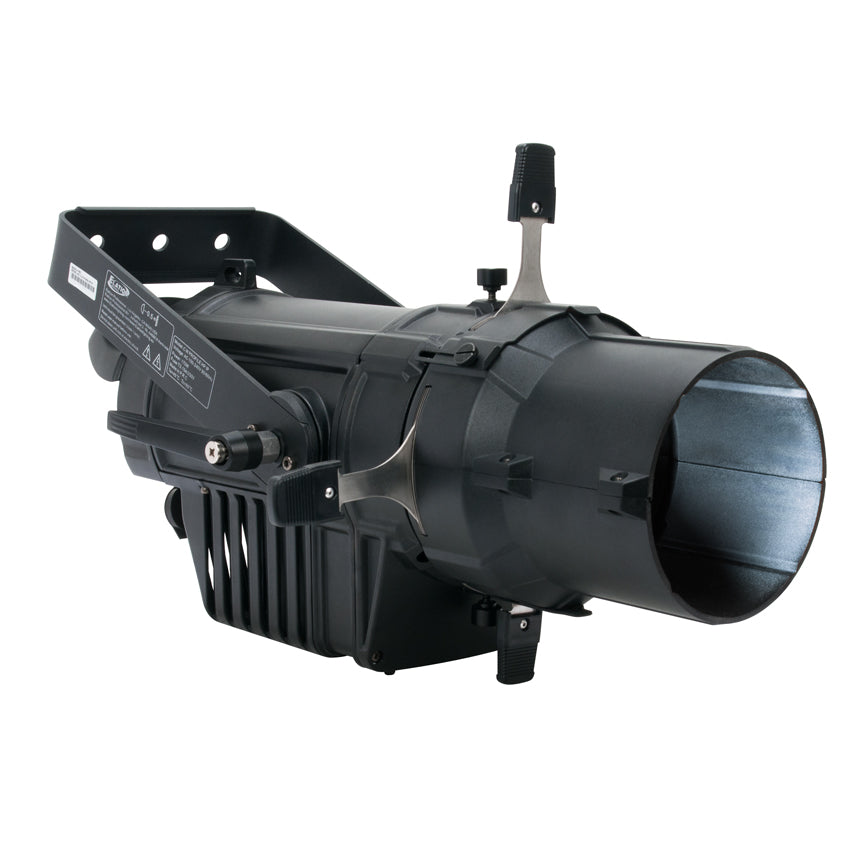

CW Profile HP IP

Features

IP65 Rated High Power 130W Cool White 5,600K LED Engine
>90CRI and 12,000+ Total Lumens Output
Interchangeable Lens Options* 19°, 26°, 36°, 50°
Supports B Size Metal Gobos**
IP65 DMX Controlled Dual Gobo Rotator*
(4) Blade Manual Framing Shutters
DMX Controlled Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
(*sold separately) (**2 sample gobos included, holder not included)

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

DMX Traits

Related Categories

Specifications

SOURCE

High Power 130W Cool White LED Engine

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

>90CRI | 12,000+ Total Lumens


EFFECTS

Electronic Strobe and 16bit Dimming

Selectable Dimming Curve Modes


GOBOS

Supports “B” Size Metal Gobos**

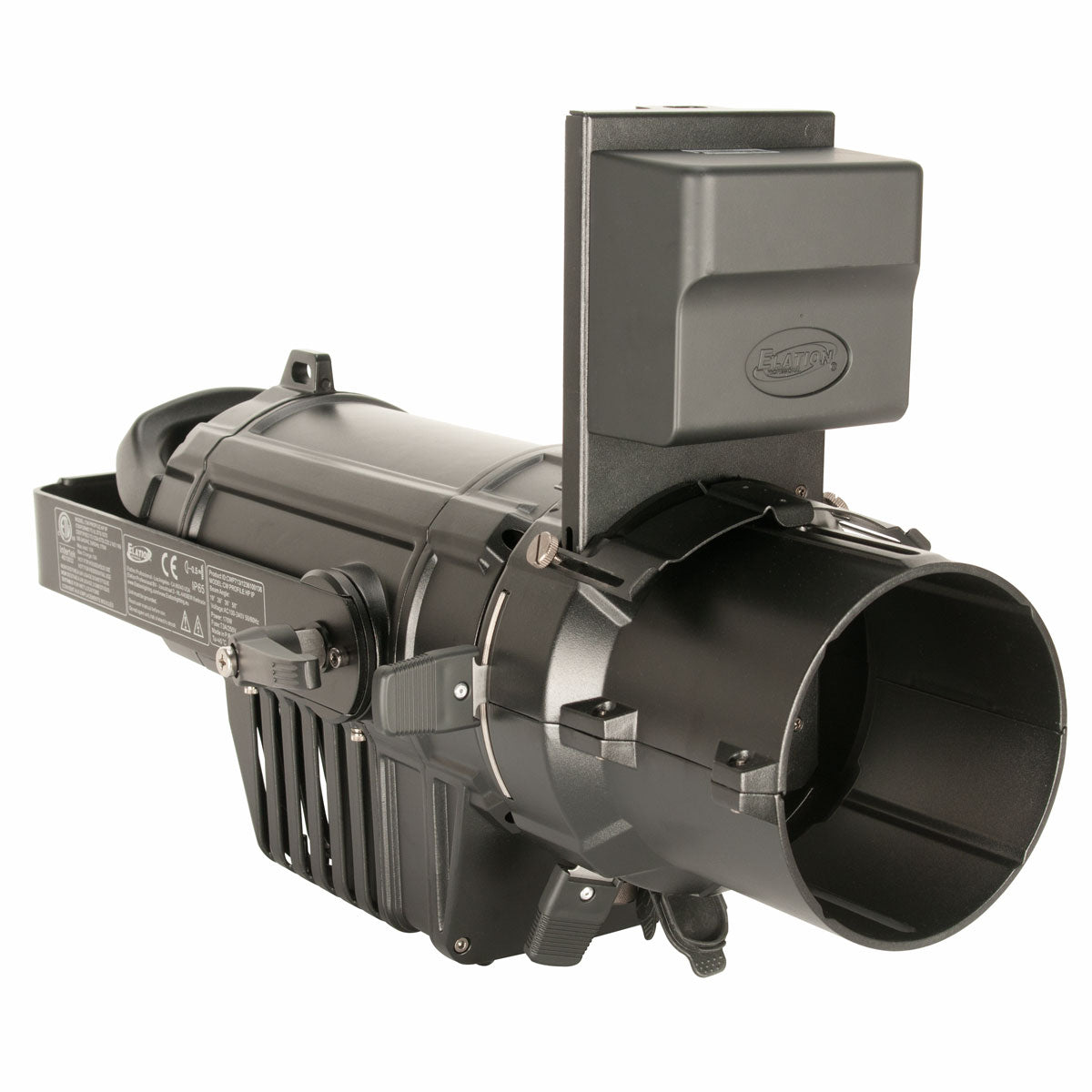

IP65 Rated DMX Controlled Dual Gobo Rotator***

**Gobos and Holder not included.  ***Rotator Sold Separately


CONTROL / CONNECTIONS

4 DMX Channel Modes (1 / 3 / 6 / 8)

Adjustable Refresh Rates

Adjustable Gamma Brightness

4 Button Control Panel / LED Menu Display

IP Rated 5pin DMX In/Out / powerCON TRUE1 In/Out

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 29.6” (753mm)

Width: 13.9” (353mm)

Vertical Height: 18.9” (480mm)

Weight: 24 lbs. (11kg)


ELECTRICAL / THERMAL

Quiet Fan Cooling

AC 100-240V - 50/60Hz

170W Max Power Consumption

14° to 113°F (-10° to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP65


FIRMWARE UPDATES

Current Version: V1.0.9

Click HERE for software updates



Specifications and documentation subject to change without notice.
