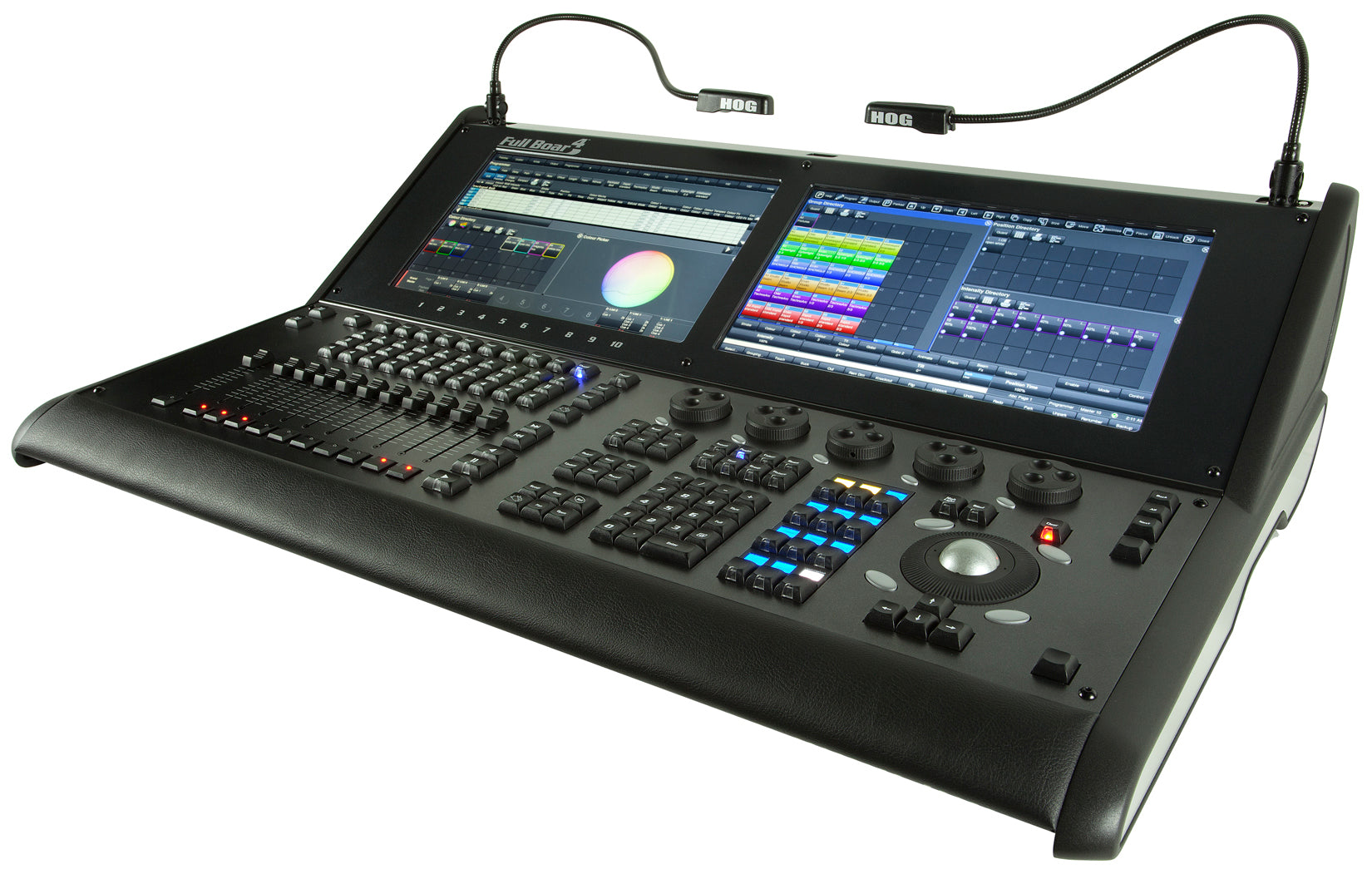

Full Boar 4 in Road Case


Robust Hog 4 Operating Software
Unlimited Number of Simultaneous Crossfades
(2) Internal 15.6” Wide Touchscreens with 10 Point Multi Touch
(2) External Monitors or Touchscreens Supported*
(5) Encoders for an Expanded Wheelset
(12) LCD User Keys
Tri Axis Backlit Trackball, w/Rotary Encoder for the Third Axis and (4) Configurable Buttons for Cursor and Position Control
(10) Motorized Playback Faders
(1) Motorized Grand Master
(4) Fixed Universes of DMX 512 and
Up to (12) Universes of DMX 512 over ArtNet or sACN
Hog-Net Ethernet Connector
Fixture-Net Ethernet Connector
Internal Solid State Hard Disk Drive
(5) USB Ports for Wholehog Wings and External Touchscreens
Desklights, Feedback LEDs, and Integrated Worklight (dimmable)
Auto-Ranging Mains Input (90-250VAC)
Light Converse Visualizer Dongle Included
Dust Cover Included
Custom Road Case Included

* Note: The Full Boar 4's DVI-D monitor connections do not support analog output to VGA displays such as those featured on the older Full Boar 3 playback and programming wings. A DVI-D to VGA adaptor will be needed in these cases.


Specifications Sheet

User Manual

Related Categories


Unlimited DMX Channels, Art-Net and E1.3.1 (sACN) Universes via Ethernet DPs

Onboard MIDI Input/Output, MIDI Show Control and MIDI Time Code and LTC Input

Multiple LTC inputs via optional multiple SMPTE/ LTC USB Widget

Connectivity with Many Visualizers via Ethernet

Wired and Wireless Networking with Multiple Wholehog Console Systems

Remote Focus Capabilities w/Networked Tablet PC Running Hog 4PC Software

Supports USB Playback and Expansion Wings

Length: 35.49” (901.19mm)
Width: 22.65” (575.36mm)
Vertical Height: 9.62” (244.34mm)

Weight: 45.0 lbs (20.41 kg)

Specifications and documentation subject to change without notice.
