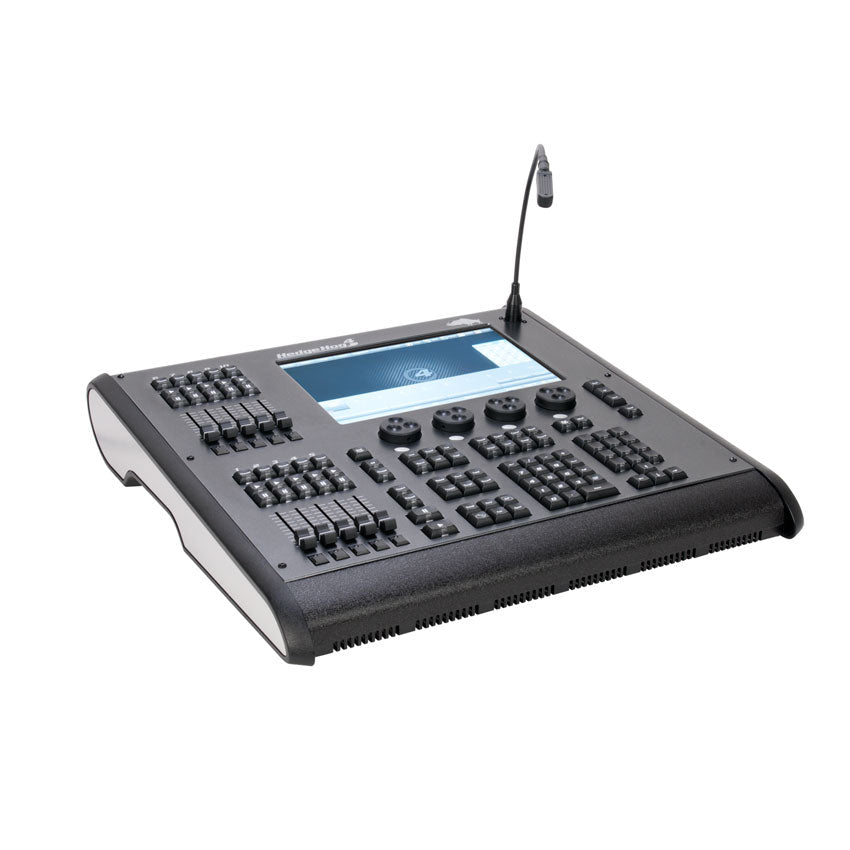

Hedge Hog 4 Series
Hedge Hog 4 Series
1 Chassis, 2 Options- offering Hog customers and the market in general the ultimate flexibility with the feature sets they need. High End Systems presents a new array of HedgeHog 4’s; HedgeHog 4 II and HedgeHog 4X. All sharing the same chassis but providing 2 levels of feature sets.
For the first time, customers will be able to buy the platform which is right for their current application, but now will be able to unlock additional features as and when necessary without the need to invest in new hardware. Users will be able to, with the use of a software code purchased separately, move from any version to a higher model.
This array of HedgeHog 4’s are the littlest of the range and still pack quite a punch, running the same software as all the other Hogs. All models include ArtNet and CITP capabilities and are designed for small to mid level shows. They are compact, lightweight and easy to take on a plane! Running on Linux, they are fast, stable and ready to Hog.
Perfect consoles for use in school theaters, nightclubs, corporate events, medium scale rental jobs or churches. Retaining the same programming layout as their larger brother, the Road Hog 4, as well as being able to load show files from any of the range (and vice versa) means that this compact console range is extremely flexible and easy to use.

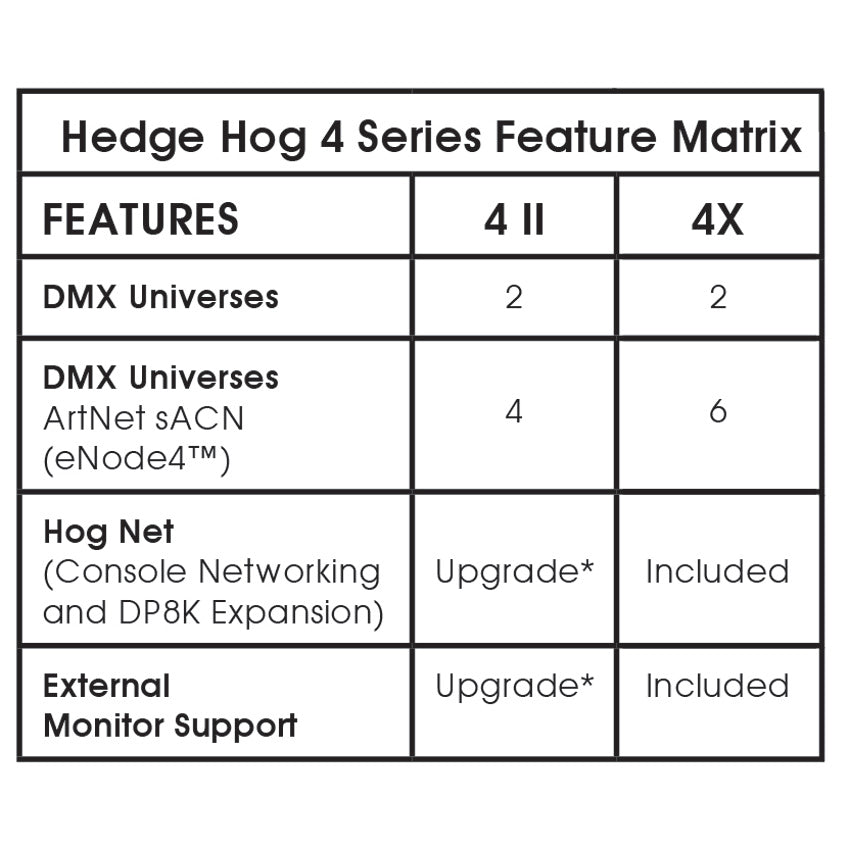

Features
(2) DMX Universes
(4) DMX Universes - ArtNet sACN (eNode4™)
Hog Net Upgradable*
External Monitor Support Upgradable*
Hedge Hog 4X
(2) DMX Universes
(6) DMX Universes - ArtNet sACN (eNode4™)
Hog Net (Console Networking/DP8K Expansion)
External Monitor Support
*Contact Elation Sales for Upgrade Pricing Info
Resources
Specification information
Guides/ Manuals
- Hog 4 OS v3.3.0 User Manual - English
- Hedge Hog 4 Upgrade FAQ
- Hog 4 Tech Bulletin 081215 - Front Panel Key Mismapping
- Hog 4 Tech Bulletin 072415 - 12VDC Power Input Connector
- Hog 4 OS v3.3.0 b1175 Release Notes
- Hog 4 OS Console Full Install Quick Guide
- Hog 4 OS v3.3.0 User Manual - French
- Hog4 User Manual ver 3.5.0
Drawings
CAD File
Software Downloads
Related Categories
Specifications
12-Inch Multi-Touch LCD Display
(10) Playback Faders
(12) User Keys (Non-LCD)
(4) Encoder Wheels
Dual Purpose Grand Master Fader
Grand Master Controller Keys (DBO & Flash)
Hog 4 Programming Surface
Softkeys for Quick Toolbar Selection
256GB Internal Solid State Hard Disk Drive

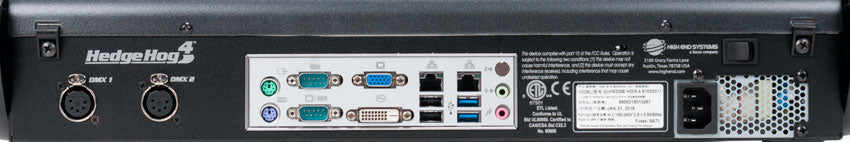

(2) Gigabit Base-TX Ethernet Ports
(2) USB 2.0 Ports + (2) USB 3.0 Ports
(2) 5pin Female DMX Outputs
MIDI Show Control / Time Code via External Widget
SIZE / WEIGHT
Length: 20.74” (526.8mm)
Width: 21.83” (554.37mm)
Vertical Height: 3.97” (100.78mm)
Weight: 17 lbs. (7.7kg)
ELECTRICAL / THERMAL
AC 90-240V - 50/60Hz
250W Max Power Consumption
APPROVALS
CE | cETLus
INCLUDED ITEMS
(1) 5 ft (1.5m) IEC Power Cable
(1) Dimmable LED Desklight (3pin XLR)
(2) USB Thumb Drives (Storage & Recovery)
(1) Dust Cover
CLICK HERE TO REQUEST A FIXTURE LIBRARY
https://www.highend.com/hes-support/common-forms/fixture-libs
Requests may take up to 14 days to complete
Specifications and documentation subject to change without notice.
