IP GOBO ROTATOR
IP GOBO ROTATOR

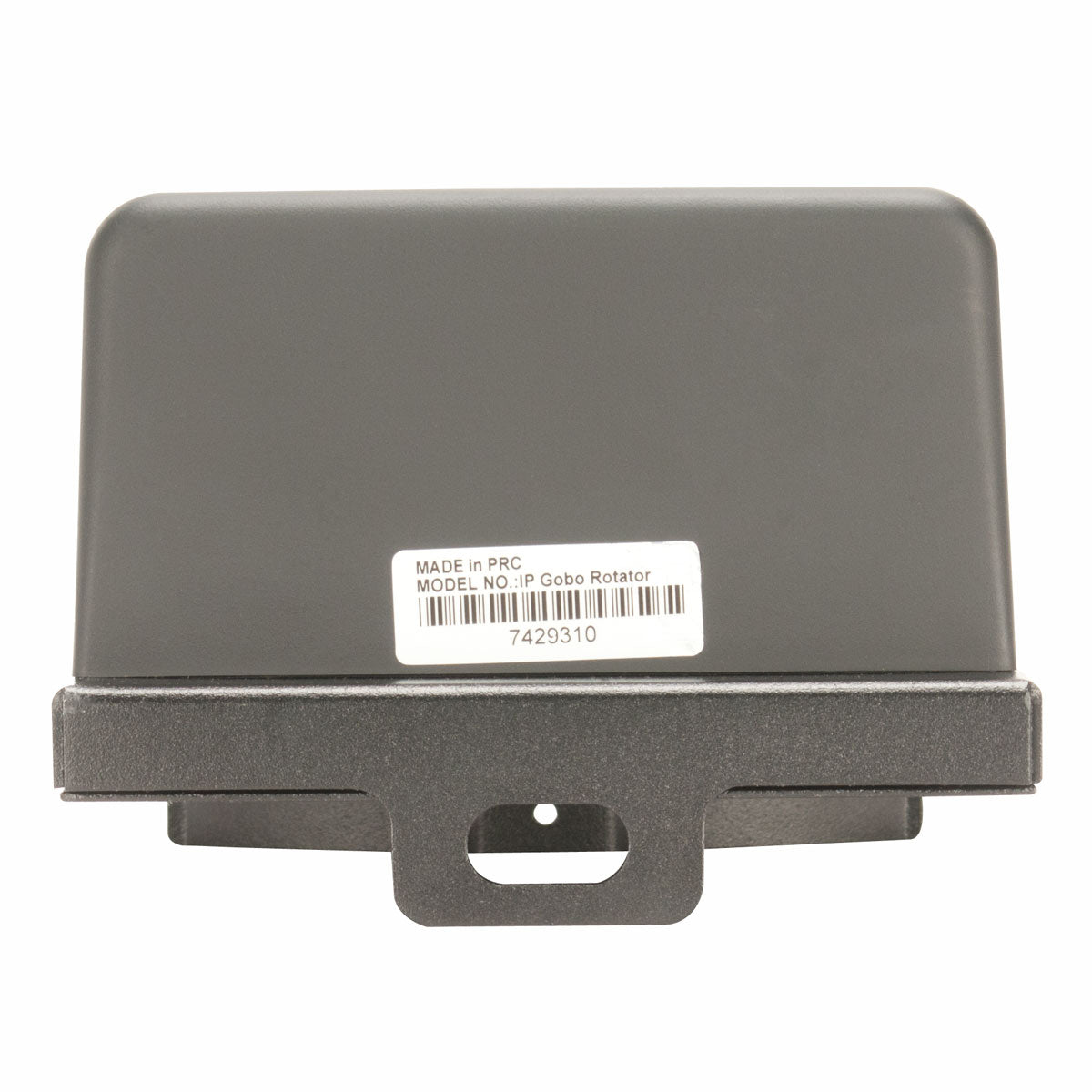

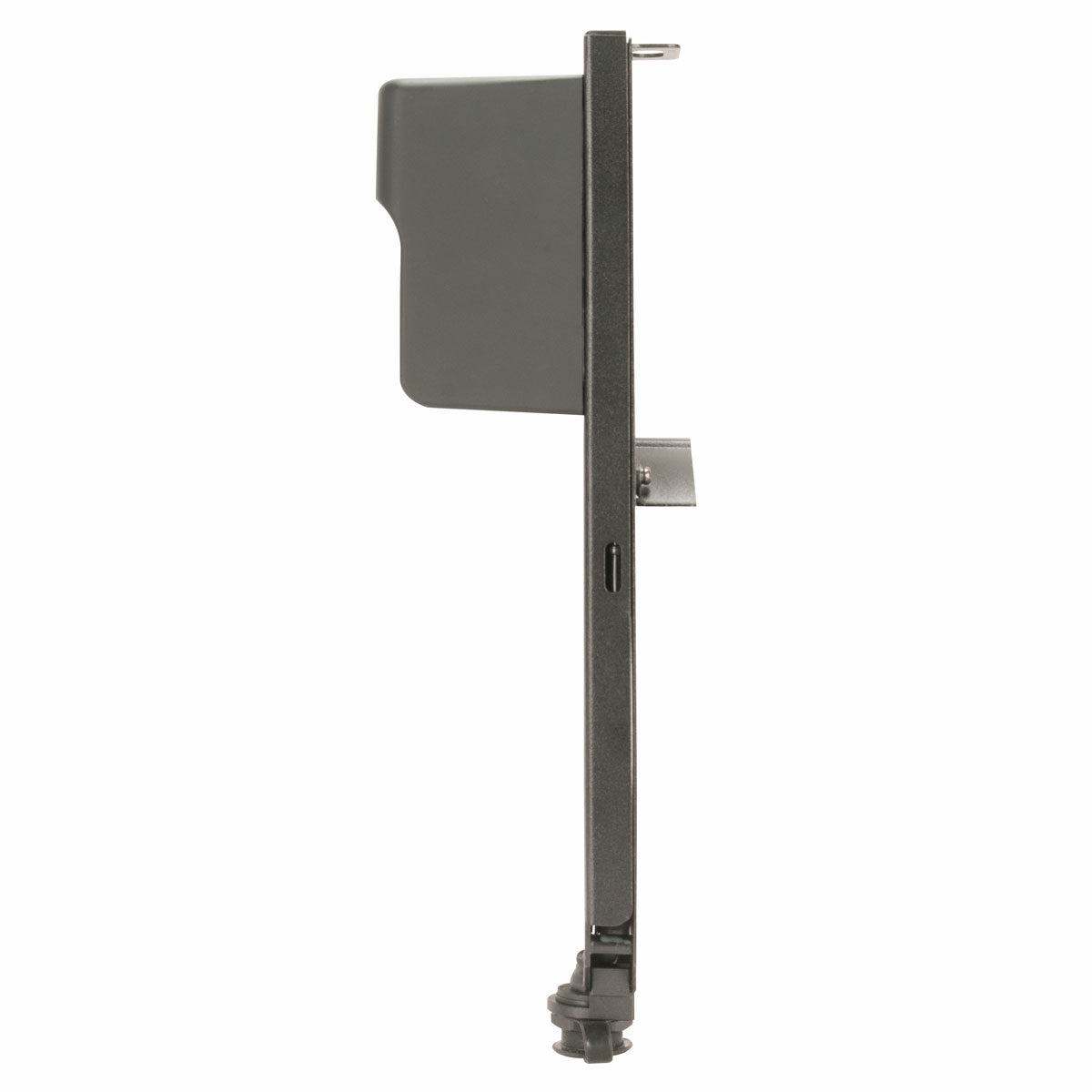

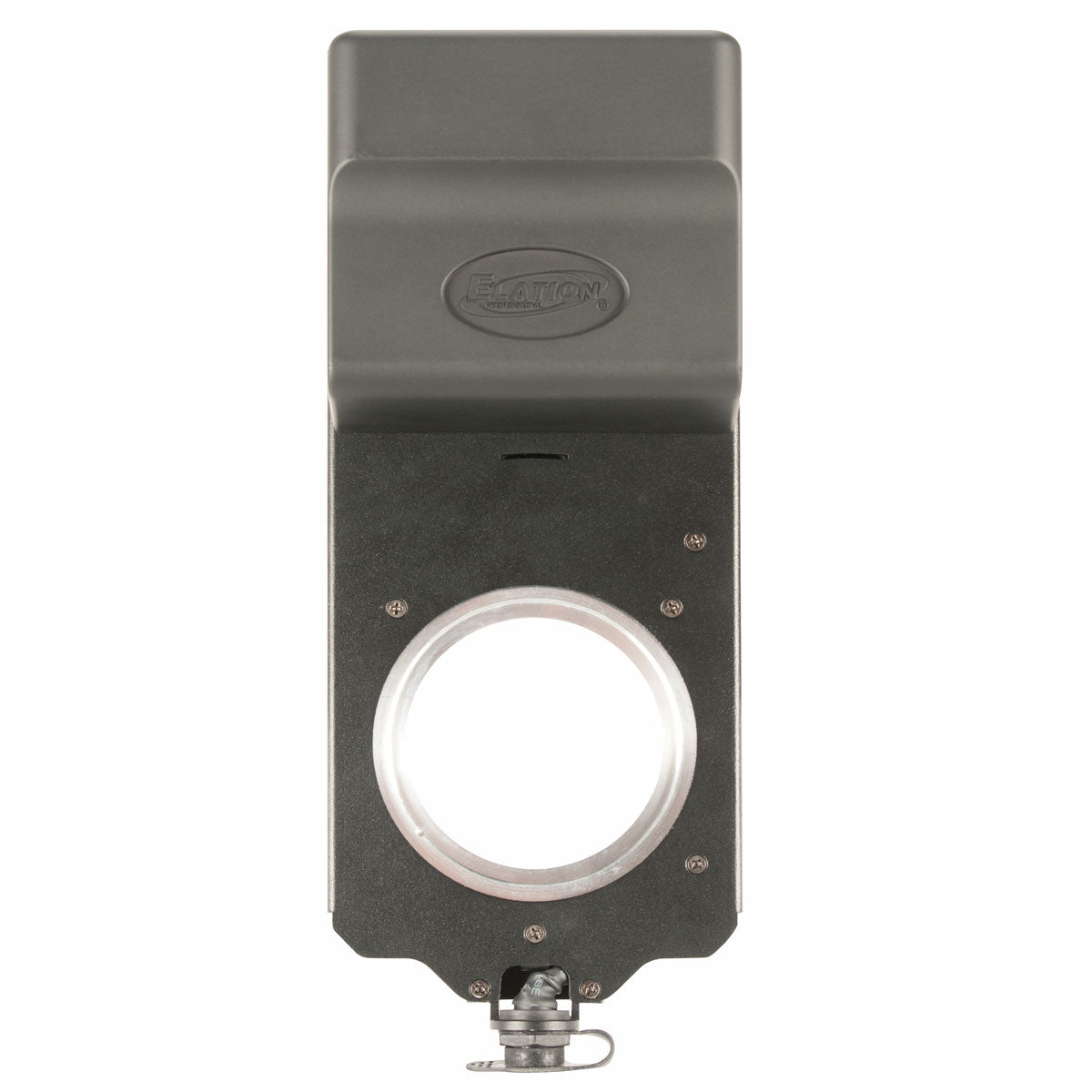

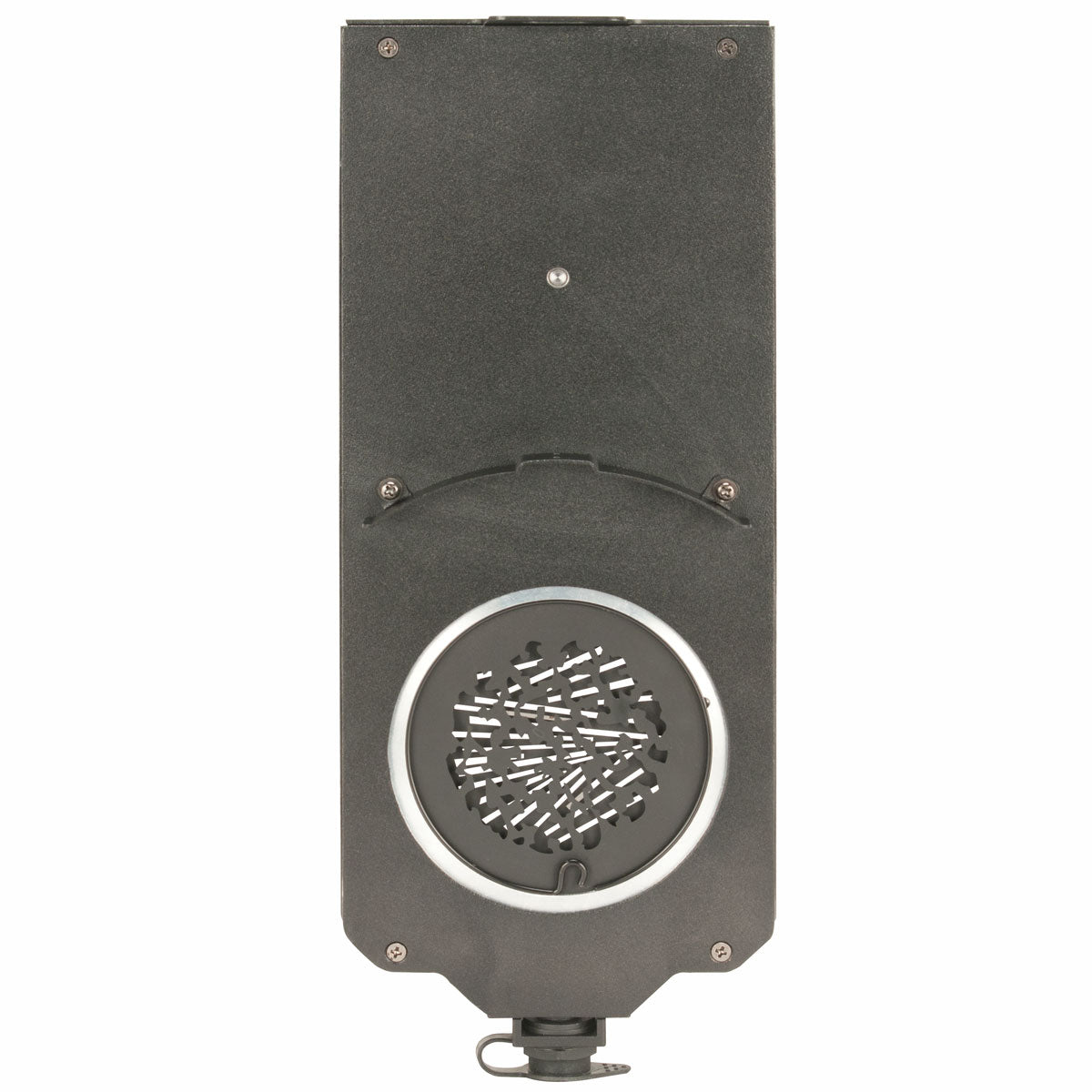

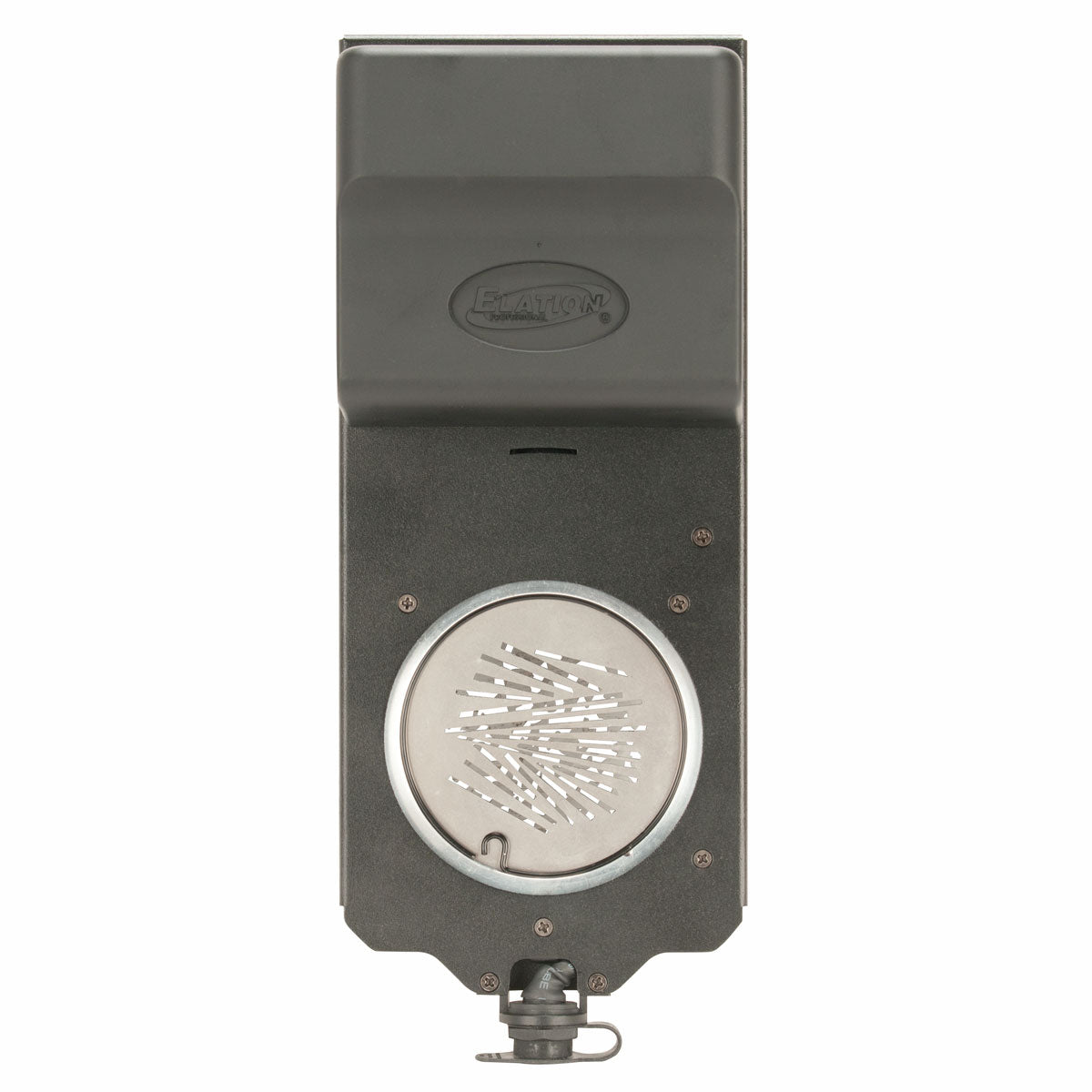

The IP GOBO ROTATOR is an IP65 rated B-Size gobo rotator designed exclusively for the Elation WW /CW Profile HP IP ellipsoidal series. Easily installed into the profile fixture, the rotator features bi-directional variable speed counter-rotation, full indexable and slow to fast continuous gobo rotation control via DMX, holds 2 separate gobos for eye catching animation effects, and includes 2 sample gobos.
Features

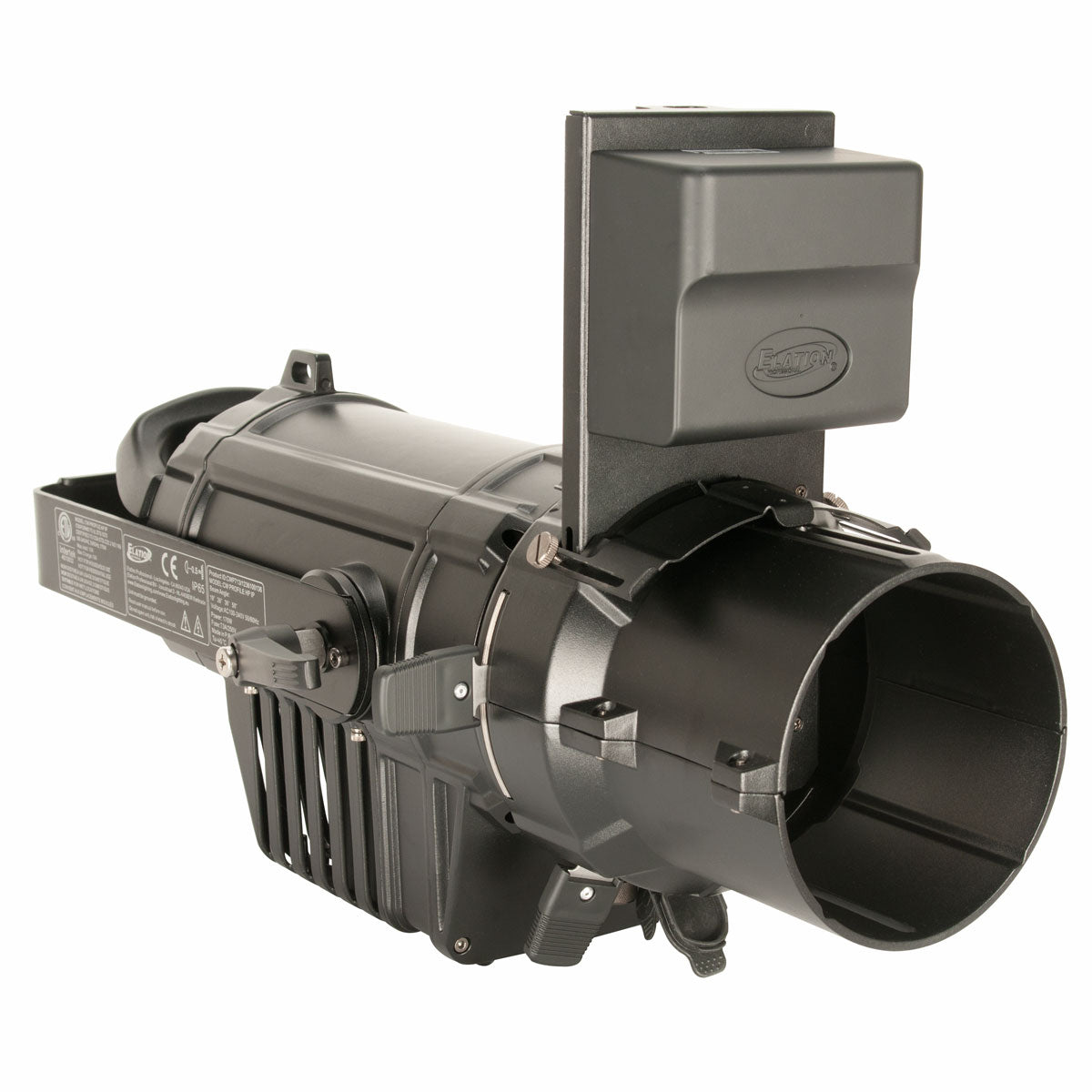

Designed for Elation WW / CW PROFILE HP IP Ellipsoidal Series
Bi-Directional Variable Speed Counter-Rotation
Full Indexable and Slow to Fast Continuous Rotation
DMX Controlled
Supports B-Size (86mm) Gobos
Holds (2) Gobos for Animation Effects
(2) Sample Metal Gobos Included
IP65 Rated
Resources
Specification information
Guides/ Manuals
Drawings
Related Categories
Specifications
GOBO SIZE
B-Size OD 86mm | 64.5mm ID
Holds (2) Gobos for Animation Effects (2 sample metal gobos included)
CONTROL / CONNECTION
DMX Control (Indexing and Slow to Fast Gobo Rotation)

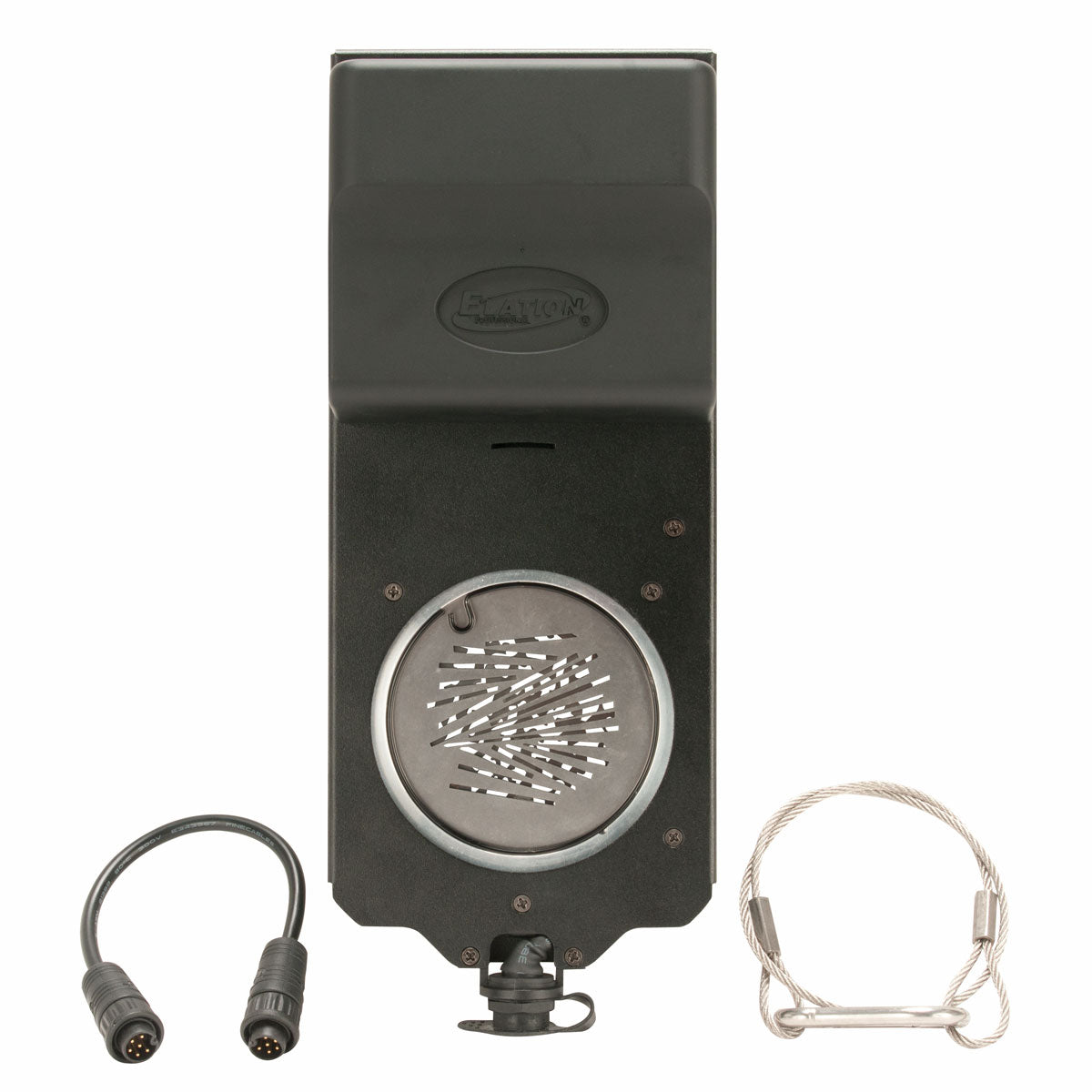

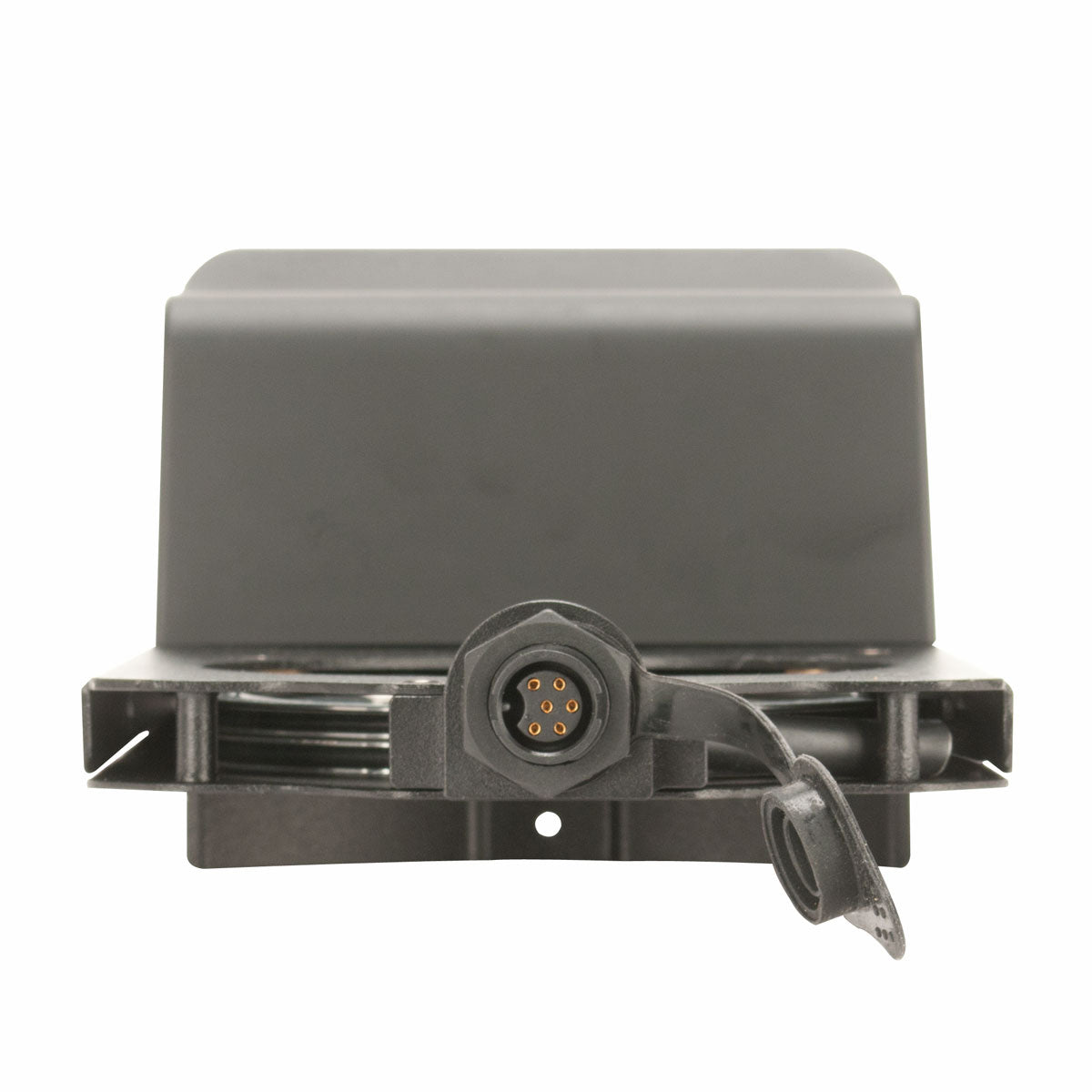

5pin Power/Data (rotator to fixture linking cable included)
SIZE / WEIGHT
Length: 4.8” (121mm)
Width: 3.5” (89.7mm)
Vertical Height: 12.0” (306mm)
Weight: 2.0 lbs. (0.9 kg)
RATING
CE | IP65
Specifications and documentation subject to change without notice.
