KL FRESNEL 8 CW
KL FRESNEL 8 CW
Features
5,600K Cool White LED Fresnel Luminaire
RDM (Remote Device Management)

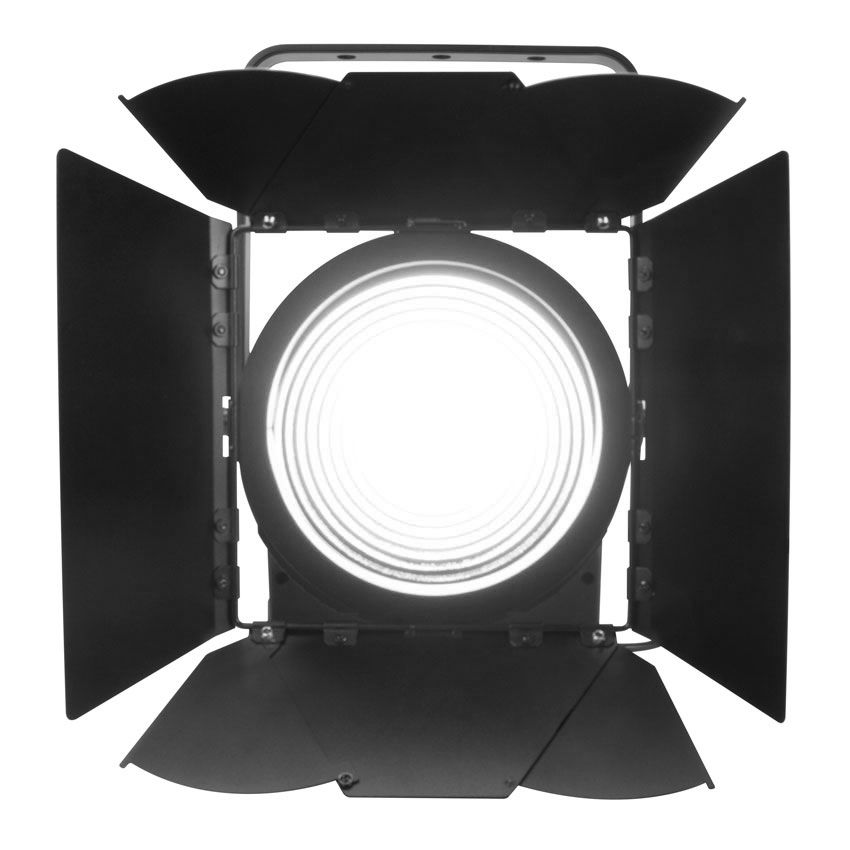

Gel Frame and Rotating Barn Doors (included)
3 Clamp Position Adjustable Mounting Yoke
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
- KL Fresnel 8 CW - Vectorworks Symbol
- KL Fresnel 8 CW - 2D Cad Drawing
- KL Fresnel 8 CW - 3D Cad Drawing
Related Categories
Specifications
350W Cool White LED Engine, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 9.8’ (3m) (Min. Zoom)
1462 LUX 136 FC @ 9.8’ (3m) (Max. Zoom)
Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

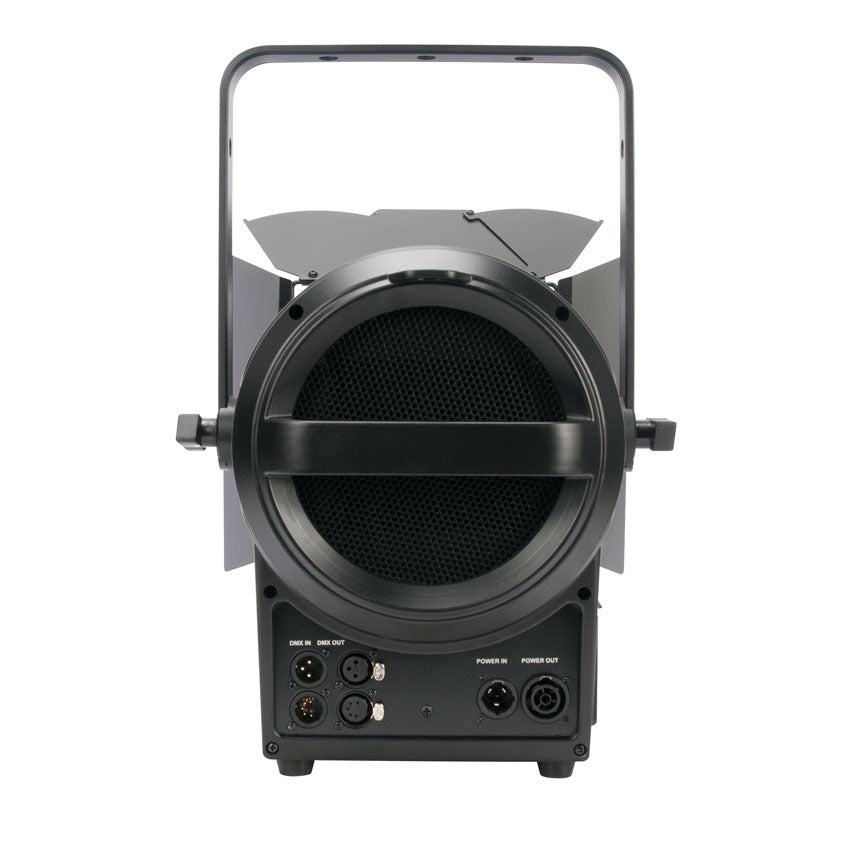

3/5pin DMX and IP65 Locking Power In/Out Connection
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 12.89” (327.5mm)
Vertical Height: 17.95” (456mm)
Weight: 28.0 lbs. (12.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATE
Current Version: V1.0.7
Click HERE for software update
Specifications and documentation subject to change without notice.
