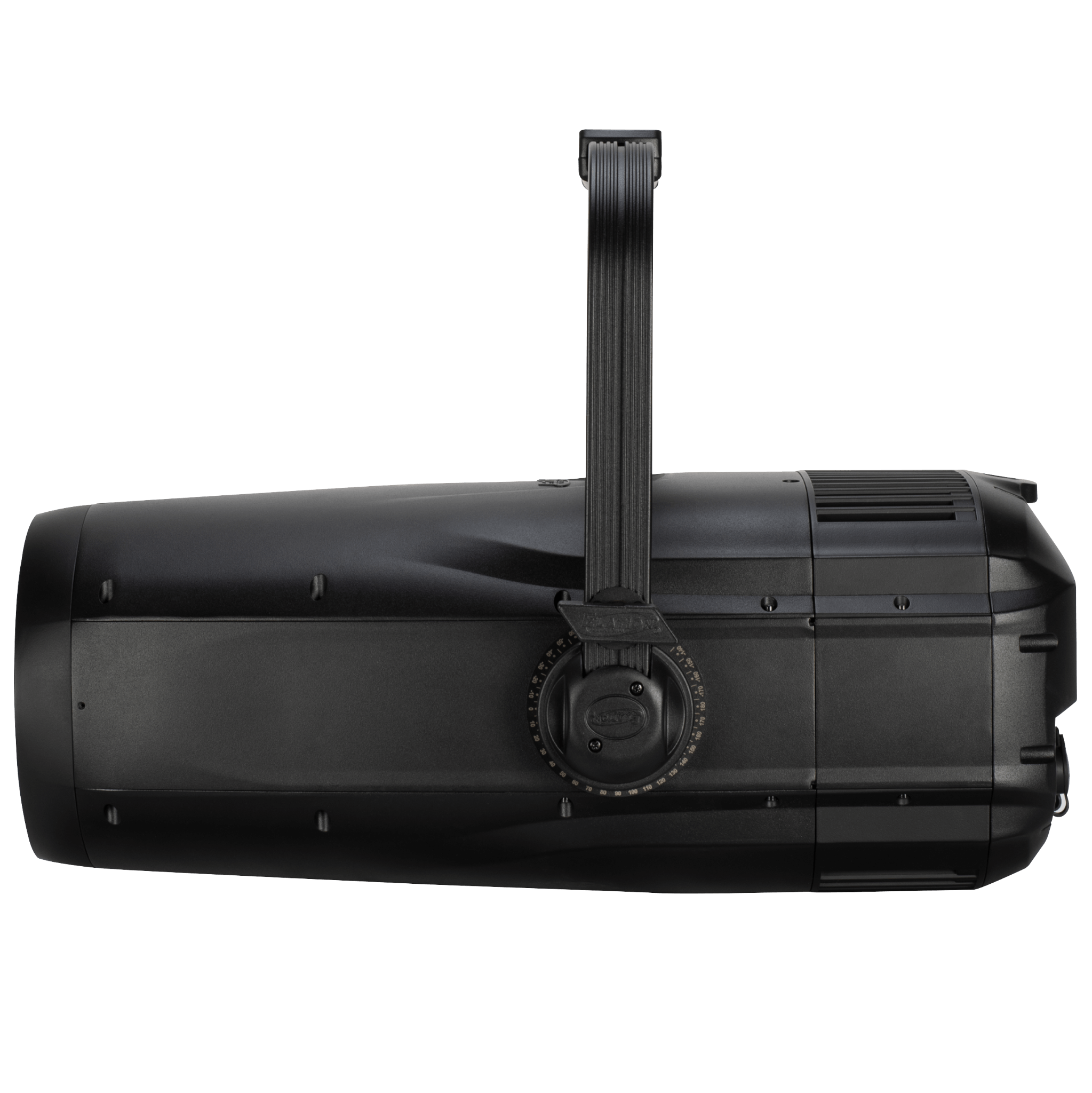

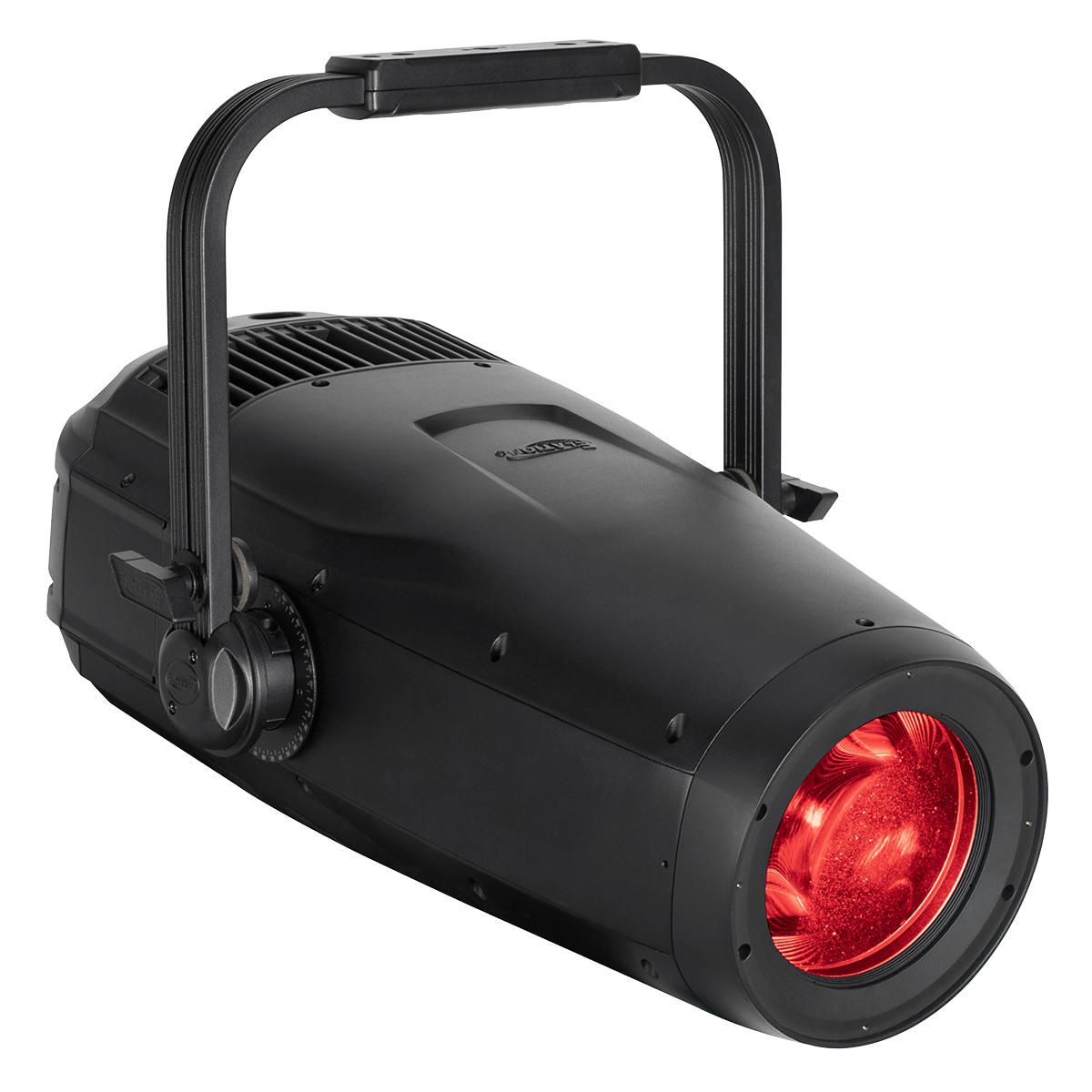

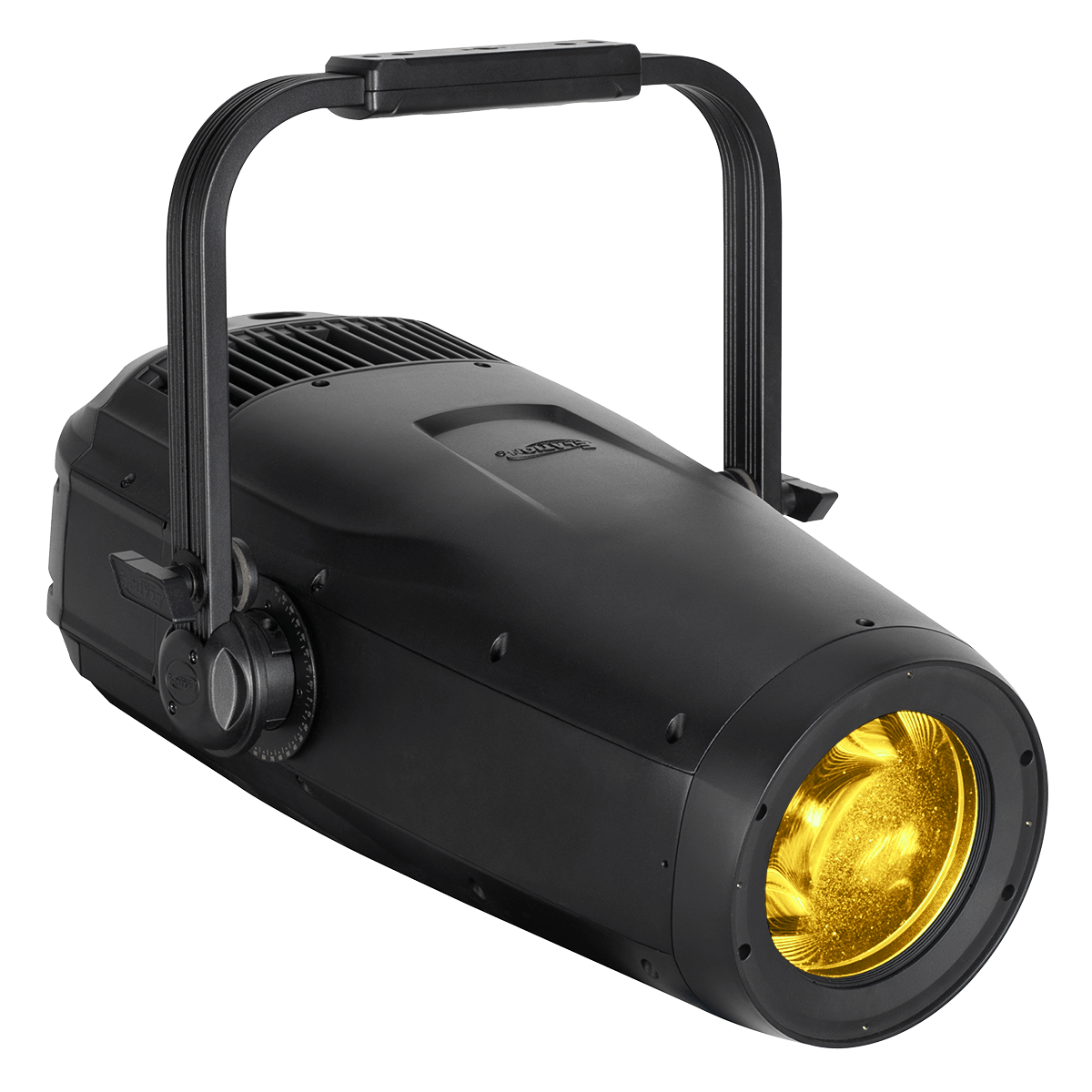

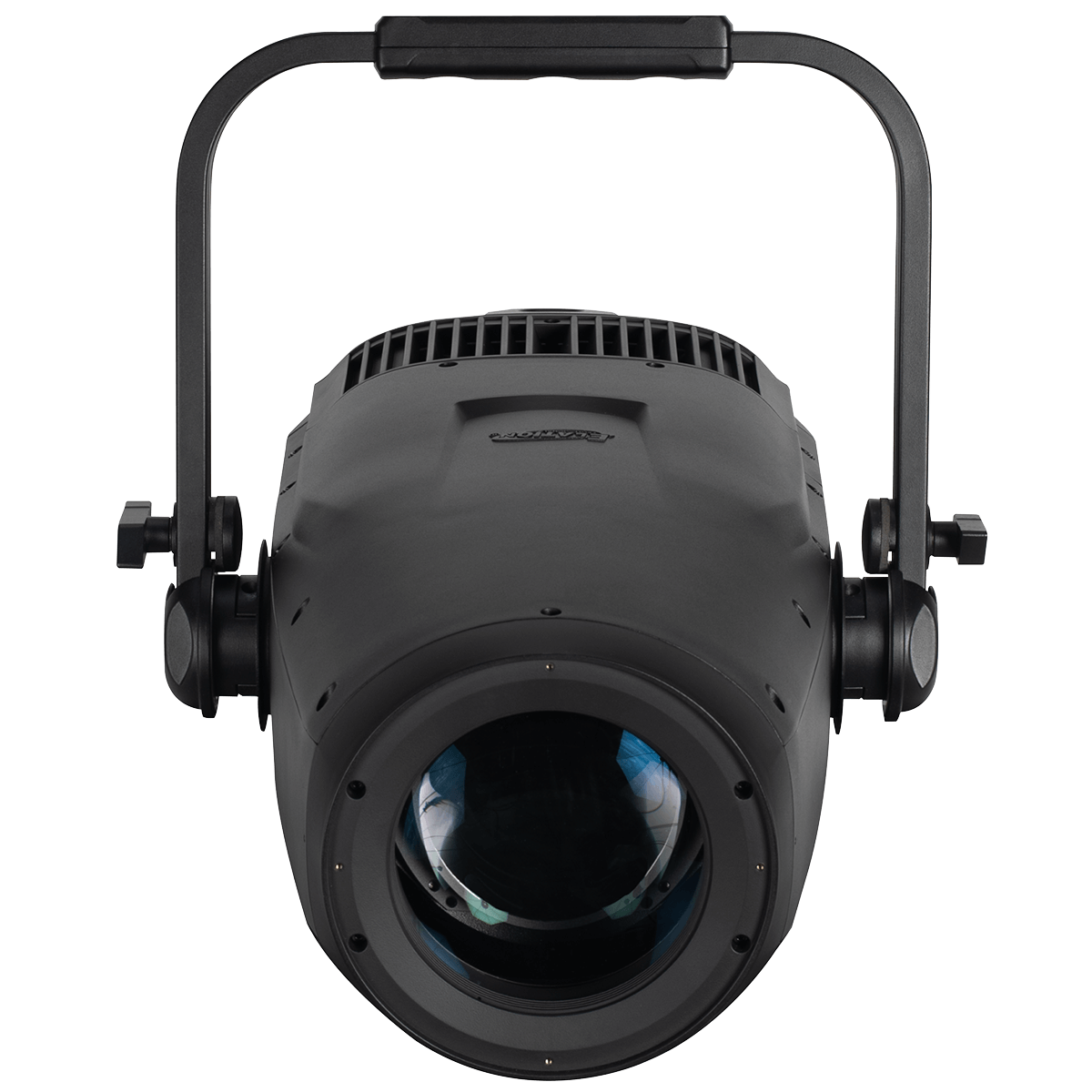

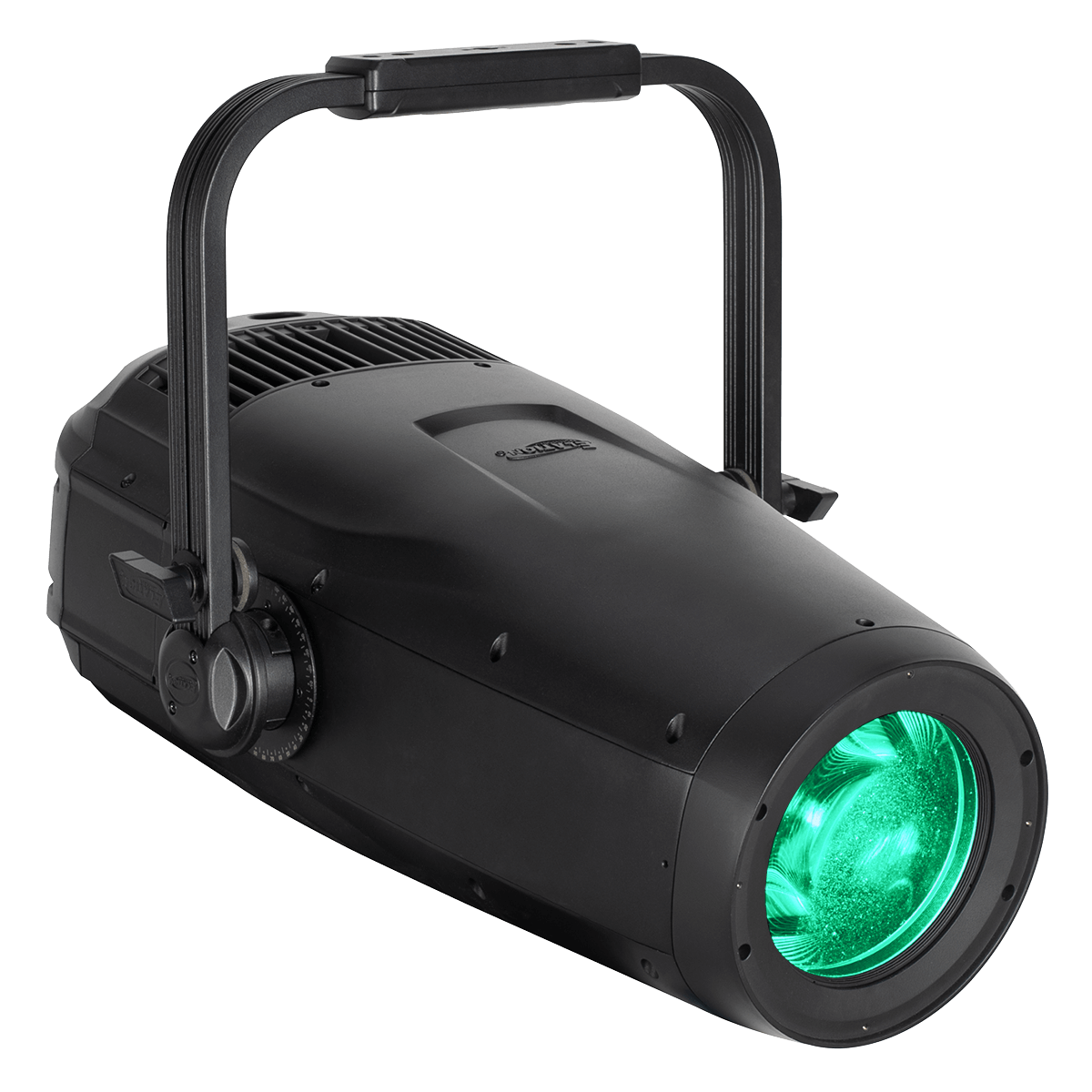

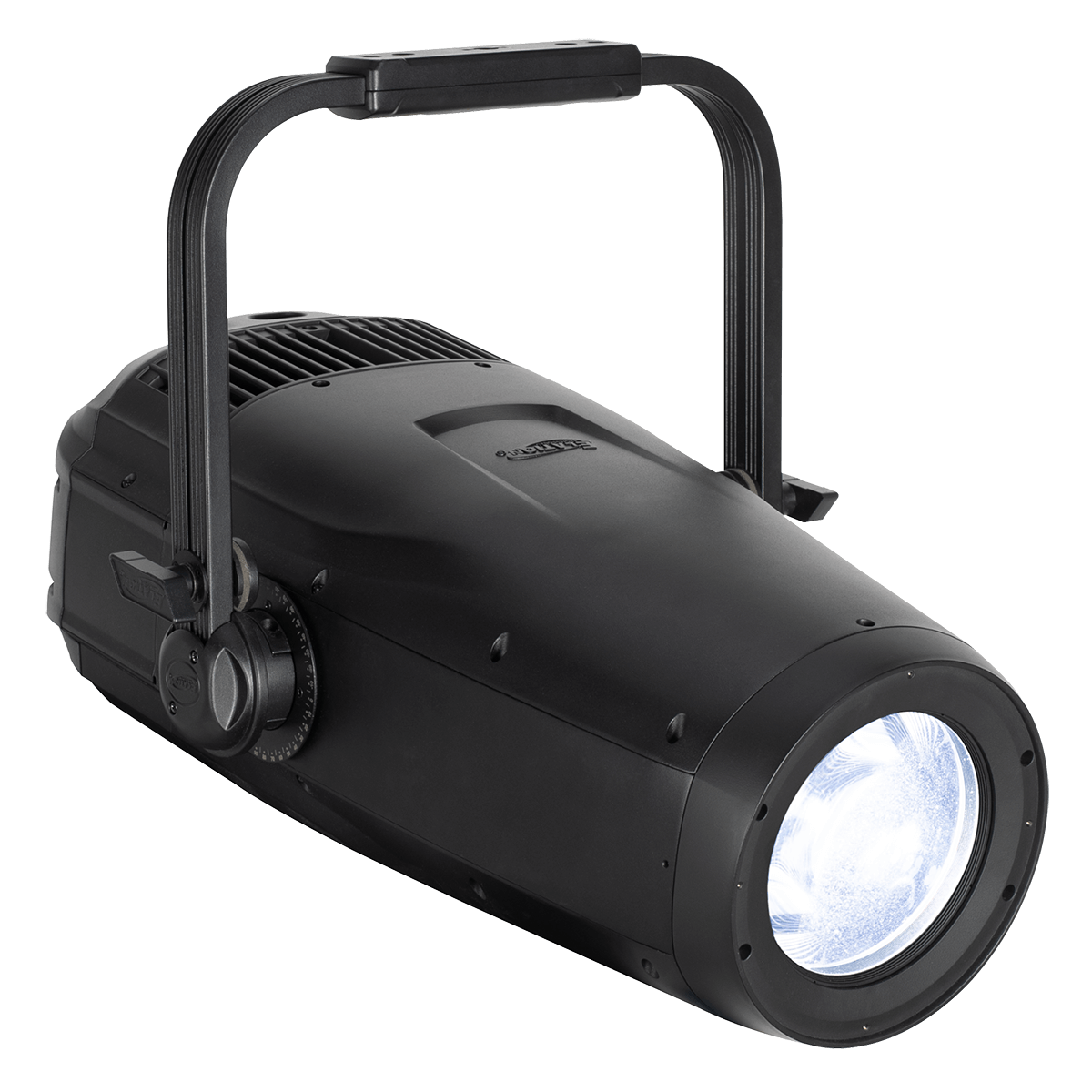

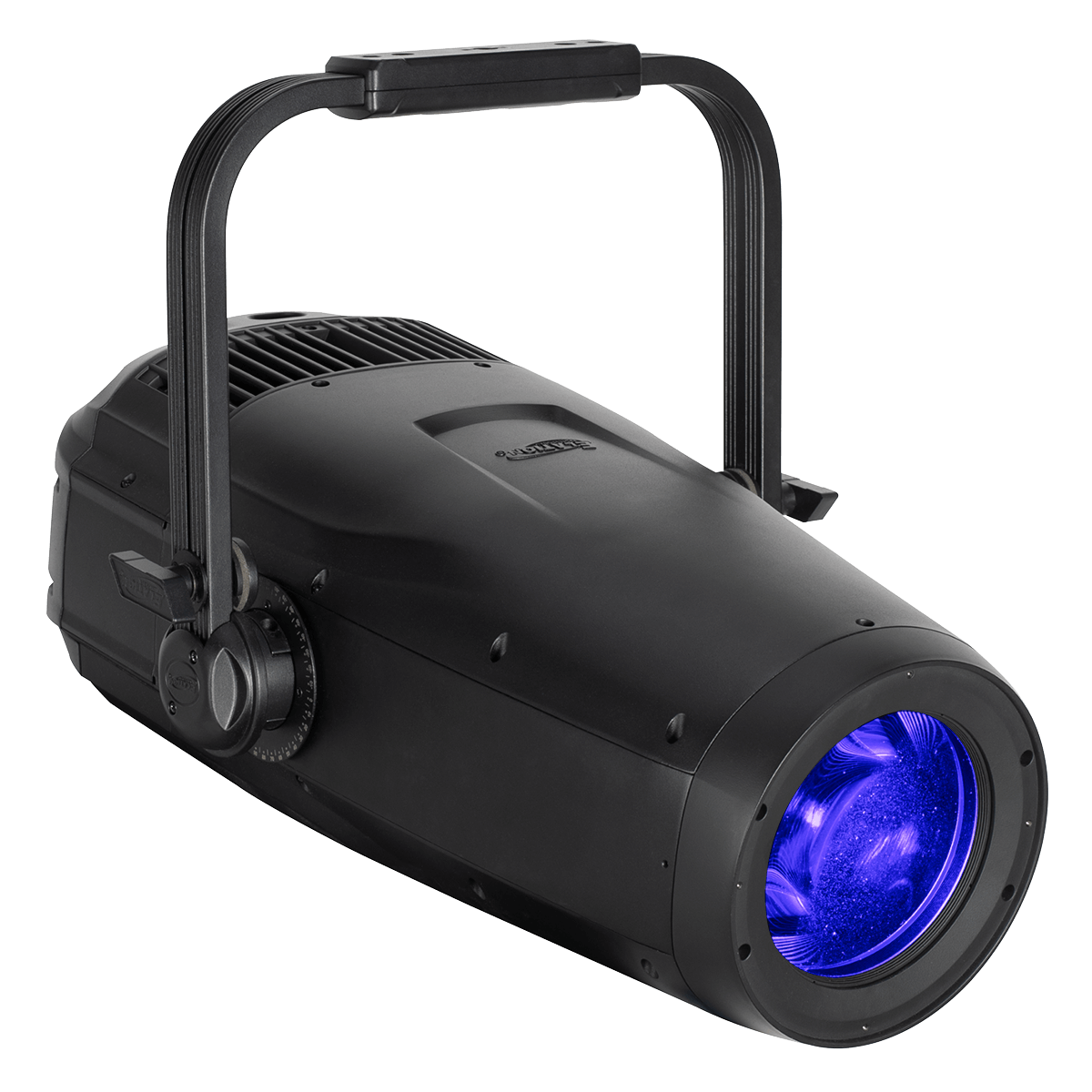

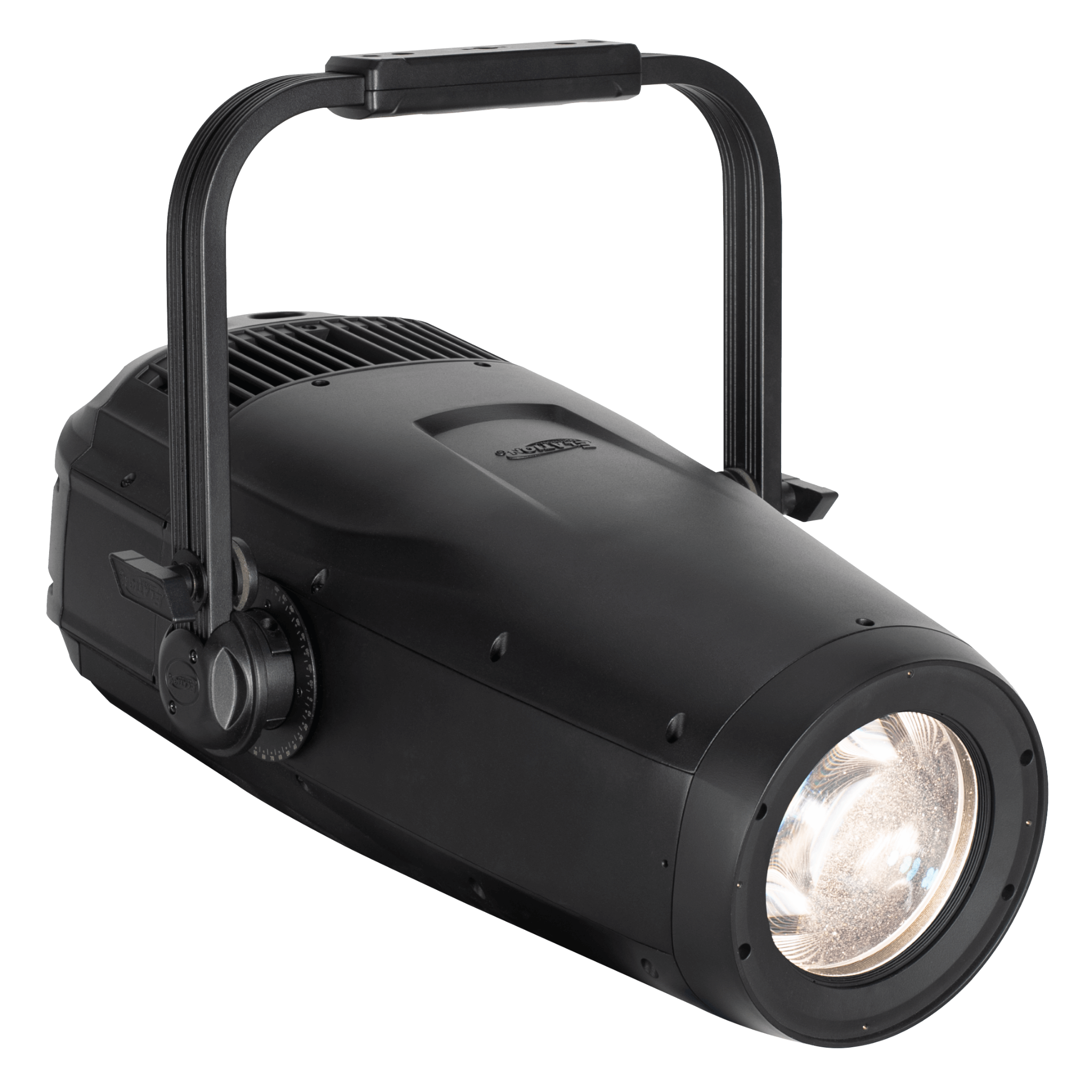

The KL SPOT IP™ is an IP65 static LED spot fixture designed for a wide array of precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array.
The KL SPOT IP is designed for any application where fully automated static ellipsoidal fixture with outstanding and impactful color range and a flexible zoom range is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.
A rotating gobo wheel, fixed gobo wheel, animation wheel, frost and dual prism round out its comprehensive feature set in a compact IP65 rated fixture.

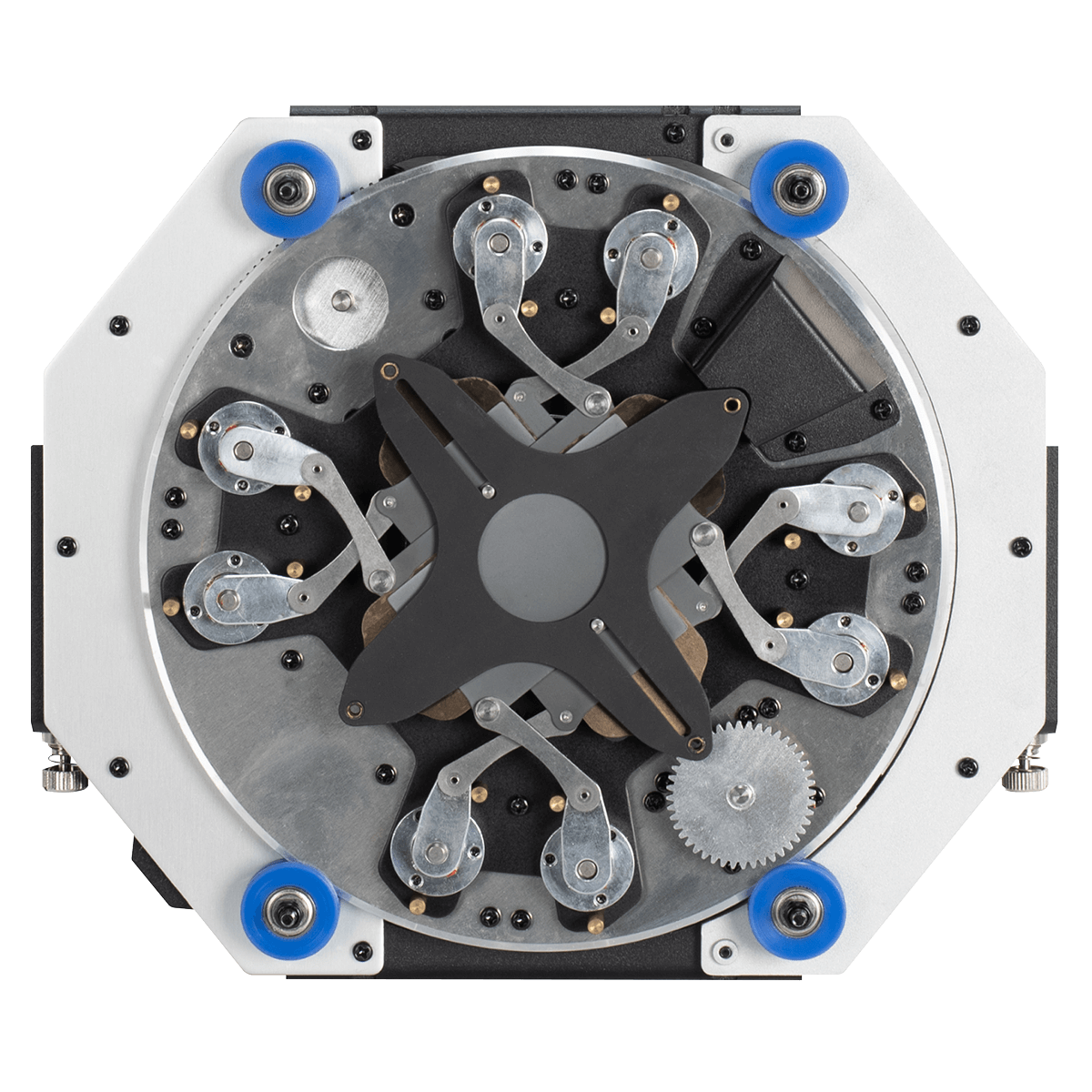

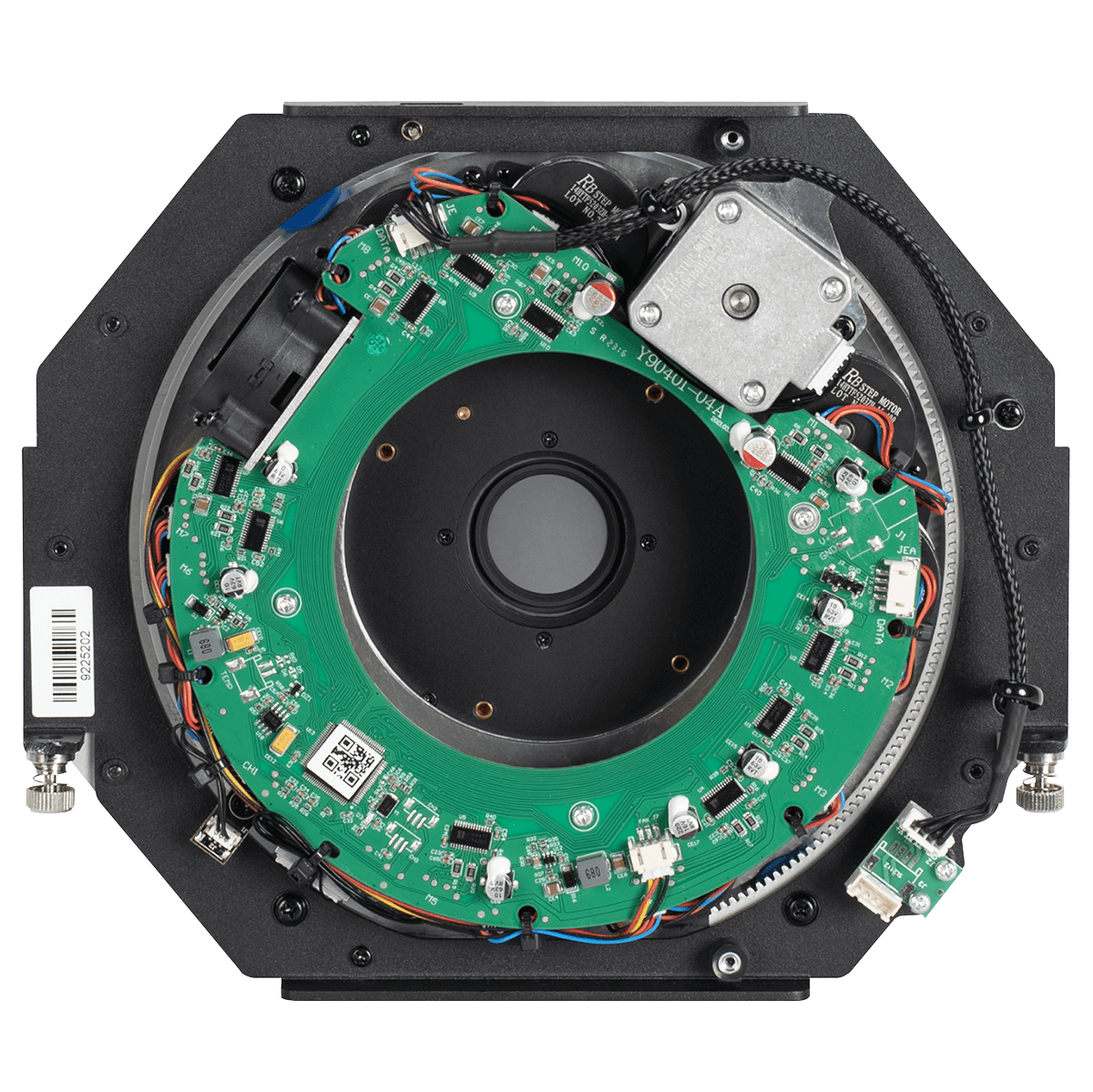

The optional framing module enhances the fixtures capabilities further with full blackout framing shutters, framing indexing and a motorized iris.
Features
Extended color RGBMA LED Engine, 92 CRI
Rotating and Fixed Gobos plus Animation Wheel
Dual Prisms and Frost
Wide Zoom Range from 7° to 50°
Optional Motorized Framing/Iris Module
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Test Results
Related Categories
Specifications
SOURCE
305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
10,600 Total Lumen Output
CRI 92
Zoom Range 7° - 50°
EFFECTS
Motorized Zoom
Variable Frost Filter
4 Facet Round, 4 Facet Linear Prism
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
Optional Framing/Iris Module
COLOR
RGBMA Color Array
CMY and RGB Emulation Modes
Variable CCT 2400-8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel
CONTROL / CONNECTIONS
6 DMX Channel Modes (24/32) RGB or CMY (22/28)
6 DMX Channel Modes (Framing) (34/50) RGB or CMY (32/46)
16-bit Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support

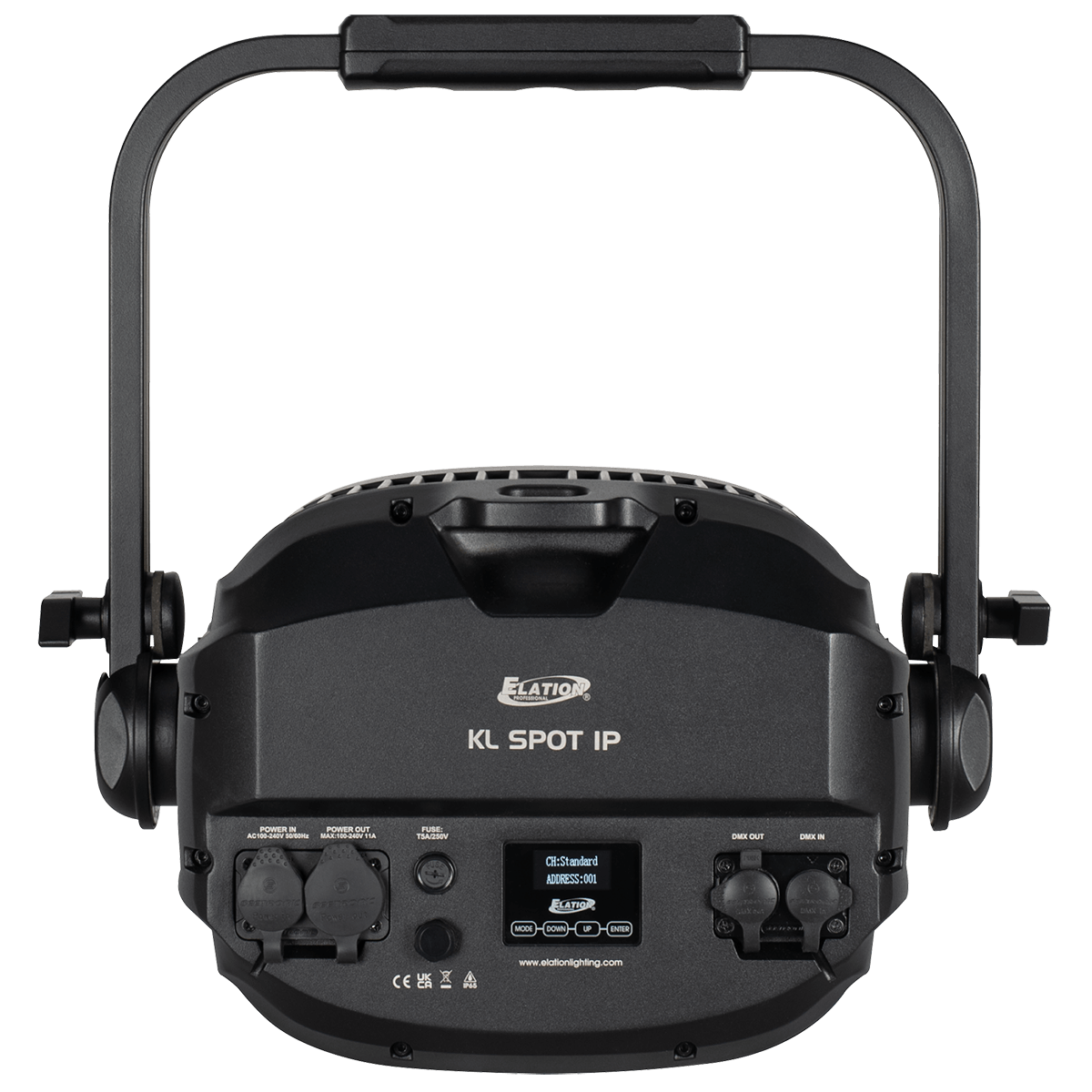

4 Button Touch Control Panel
IP65 5pin DMX In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length (Fixture Body): 9.5" (242.0mm)
Length (Yoke 90°): 17.4" (442.5mm)
Width: 17.5” (445.5mm)
Height: 23.6" (559.2mm)
Height (Yoke 0°): 26.1” (662.9mm)
Weight: 51.1 lbs (23.2kg)
Weight (with Framing Module) 55.1lbs (25kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
448W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 1406.7
INCLUDED ITEMS
IP65 Locking Power Cable
OPTIONAL ITEMS
Motorized Framing and Iris Module
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATES
Current Version: V1.02
Click HERE for software update
Specifications and documentation subject to change without notice.
