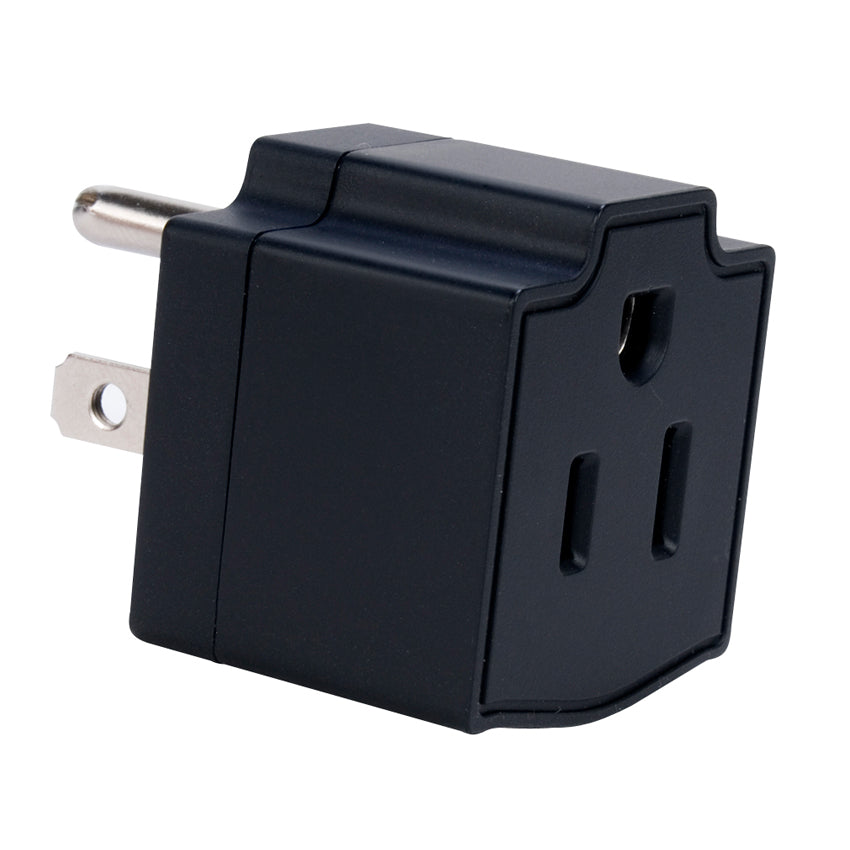

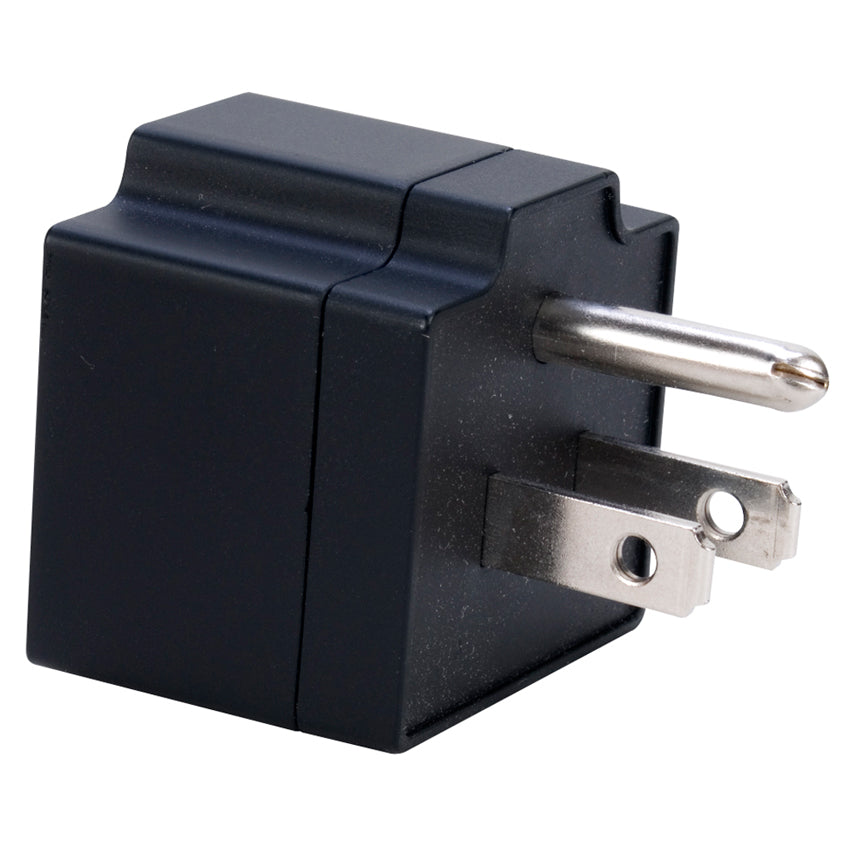

LED DUMMY

Features

High performance load device designed for LED fixtures
Designed for TRIAC control circuits

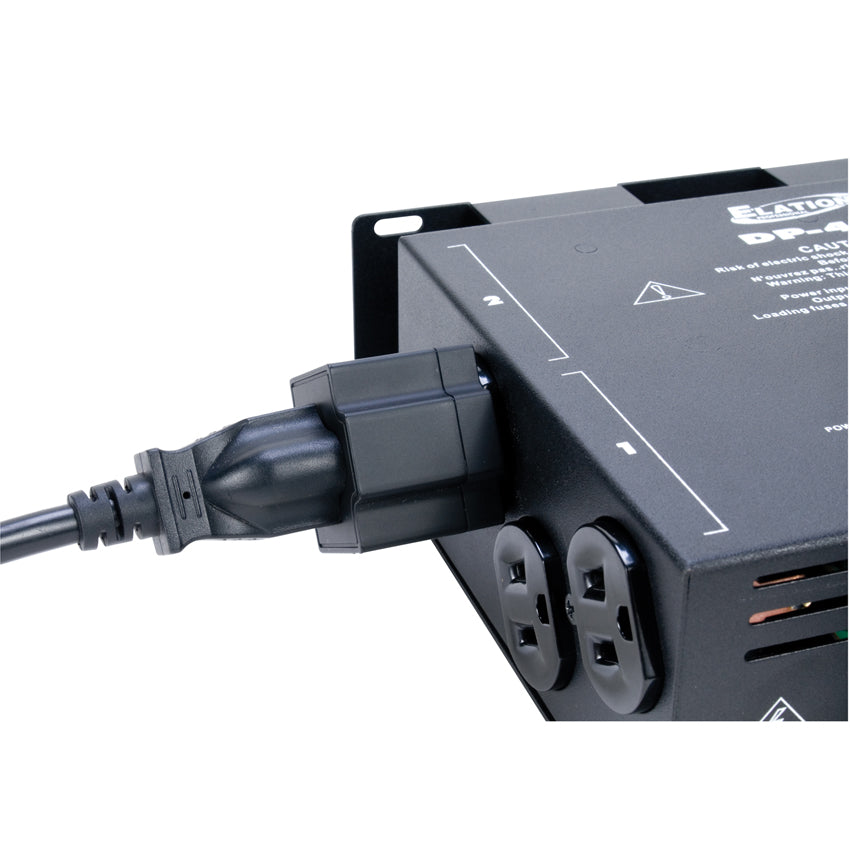

Plugs inline to the output of power and dimmer packs
Standard Edison socket and plug for power transmission
Low power consumption

Related Categories

Specifications

Connection: Edison socket and plug

Housing: PC + UV resistant


SIZE / WEIGHT

Length: 2.0” (50.5mm)

Width: 1.4” (36mm)

Vertical Height: 1.5” (38mm)

Weight: 0.06 lbs. (27.5g)


ELECTRICAL / THERMAL

Operating Voltage: AC90V-260V

Resistance: 2000 ohm impedance | 5% tolerance

Operating Temperature: -10°C to +50°C

Storage Temperature: -20°C to +70°C

Max Power Consumption: 0.5W


RATINGS

IP20




Specifications and documentation subject to change without notice.
