Features
Control of up to 100 Fixtures, 2048 DMX Channels
Large Fixture Library and User-Configurable Editor
Graphical Representation of all Fixture Functions
LED-Trix Plug-In included for Programming Color-Mixing Fixtures
Supports MP3, Audio CD, SMPTE and MIDI Timecode
Related Categories
Specifications
Click here to download LIGHTJOCKEY Fixture Profiles
New fixture profiles can be created using the integrated library editor. Please follow the instructions on the pdf guide, starting on page 225. Please be aware that LJ is limited to a maximum of 32channels per fixture and has many other restrictions due to its age.
LJ User Guide
PHYSICAL
NX DMX USB-DMX Interface
Length: 92 mm (3.6 in.)
Width: 82 mm (3.2 in.)
Height: 41 mm (1.6 in.)
Weight: 245 g (0.54 lbs.)
Ambient temperature: 0° – 50° C (32° – 122° F)
Protection rating: IP20
CONTROL AND PROGRAMMING
Trig sources: Manual, auto, audio input with FFT analyzer, DMX in, MIDI
Cue list time code synchronization (CLTCS) options
Internal timer, including 24-hour clock
Audio CD time code from CD-ROM drive
Digital Audio (MP3, WAV, etc.) time code using built-in media player
MIDI Time code, SMPTE with suitable SMPTE/MTC interface
PROGRAMMING
Number of fixtures: Up to 100, or 680 RGB fixtures (32 ch. max)
Number of DMX Universes: 4
Fixture library: All (DMX) fixtures, user-definable profiles, generic DMX profiles

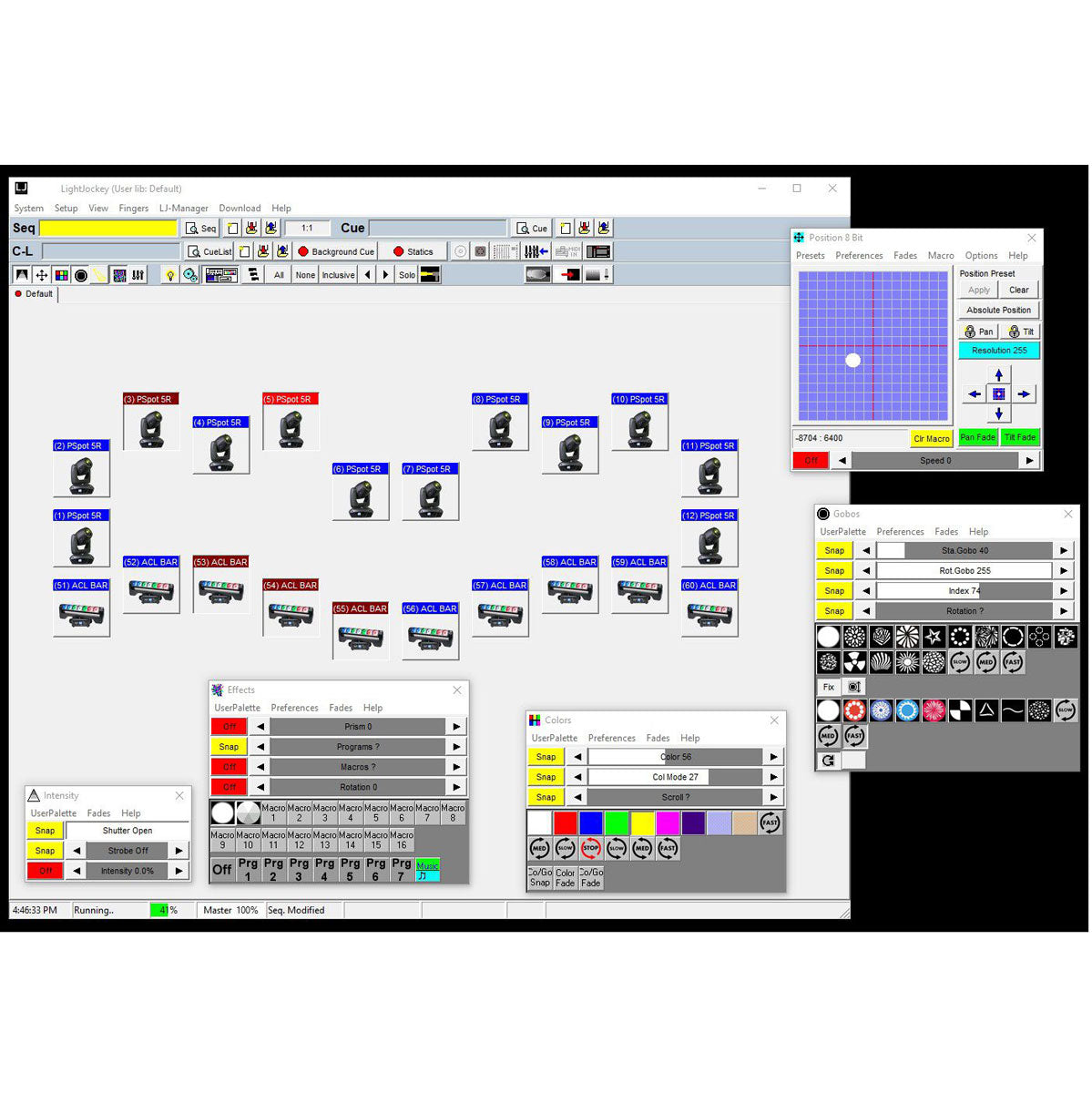

Control: Graphical control of all fixture parameters
Macros: Pan and tilt, relative or absolute movement, shape generator with different shapes and delay styles
PLAYBACK
Cue contains 12 sequences with global or individual fade time adjustment
Master intensity control + 8 configurable intensity groups
Manual override with direct access to all functions
Independent background cue with 5 parallel sequences
Blackout and fade out function
Go button for manual cue lists
Assignable keyboard hotkeys for faster access

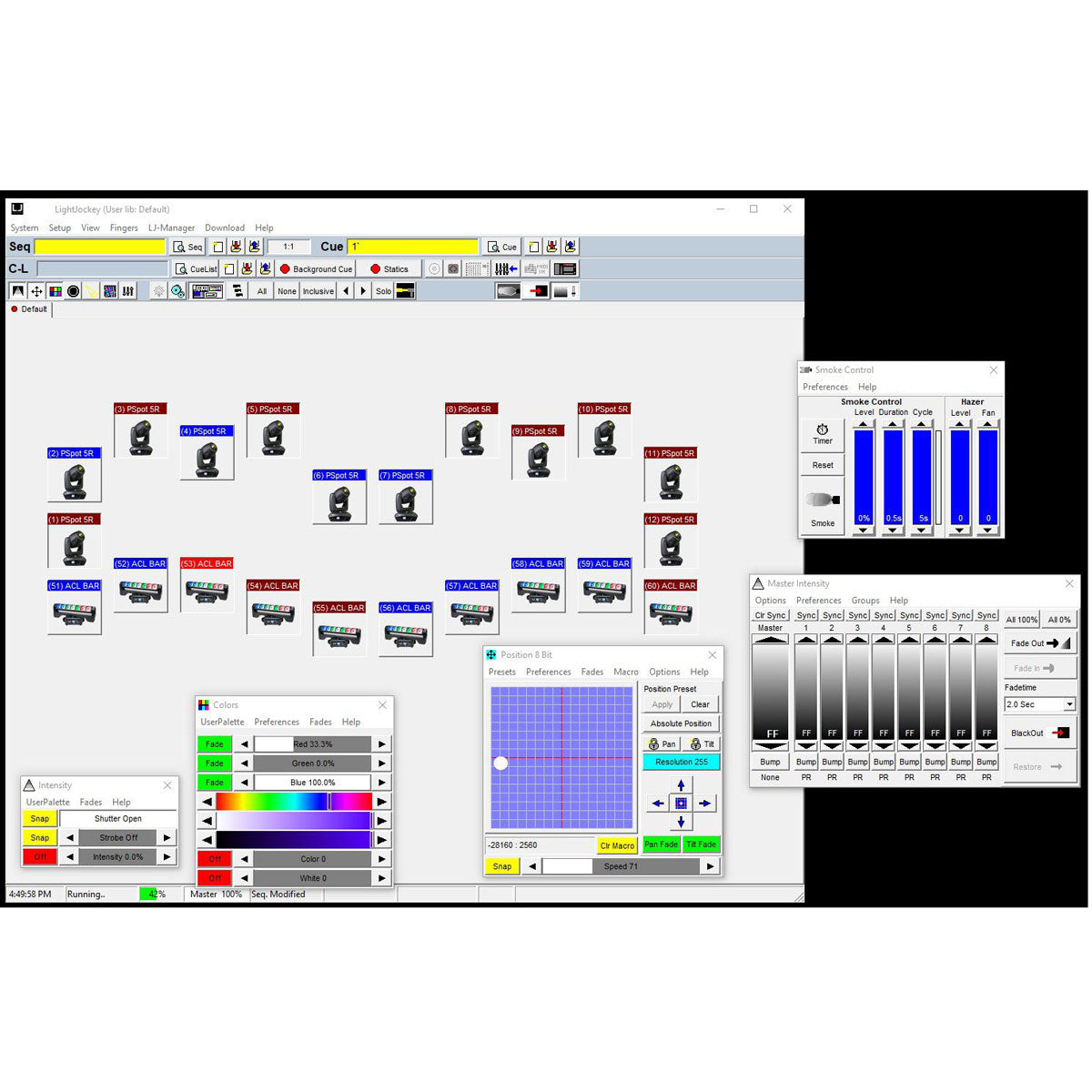

Smoke control independent from programming
Follow spot function
Cue list for synchronization with timer, digital audio or Audio CD-ROM timecode
Audio analyzer for triggering sequences by audio
Function and DMX channel override via DMX IN (NX DMX output can be converted to input in software)
SYSTEM REQUIREMENTS (PC not included)
1 GB RAM
Intel Core i3 or better
Monitor resolution of 1024x768
USB 2.0 port for DMX interface hardware and License key
500 MB drive space available
Windows 7, 8, 10 (11 not supported)

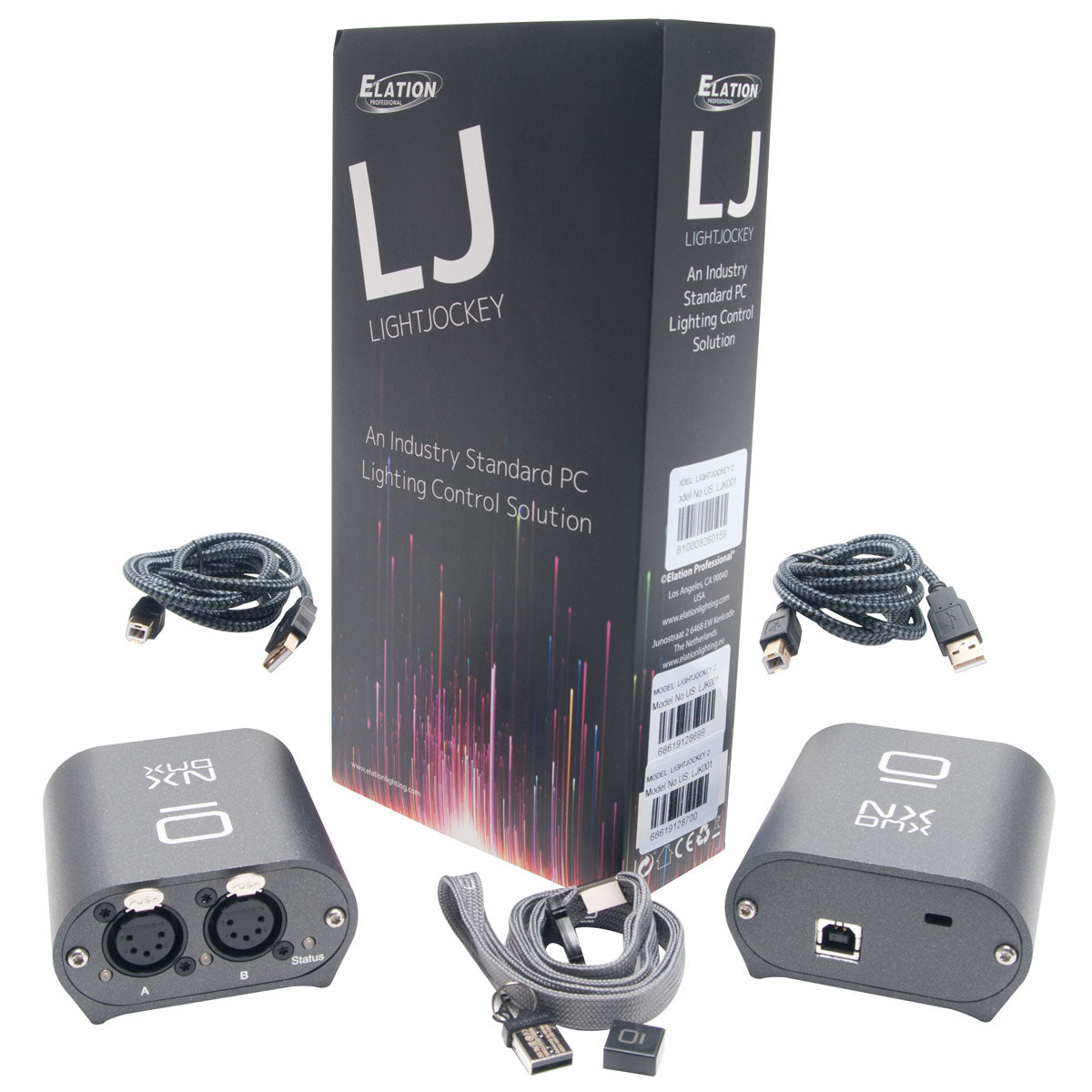

INCLUDED ITEMS
1x Obsidian Key with LightJockey License
2x NX DMX USB-DMX Interface
2x USB cable
Specifications and documentation subject to change without notice.
