PLATINUM FLX
Platinum FLX is a professional-grade lighting solution.
PLATINUM FLX

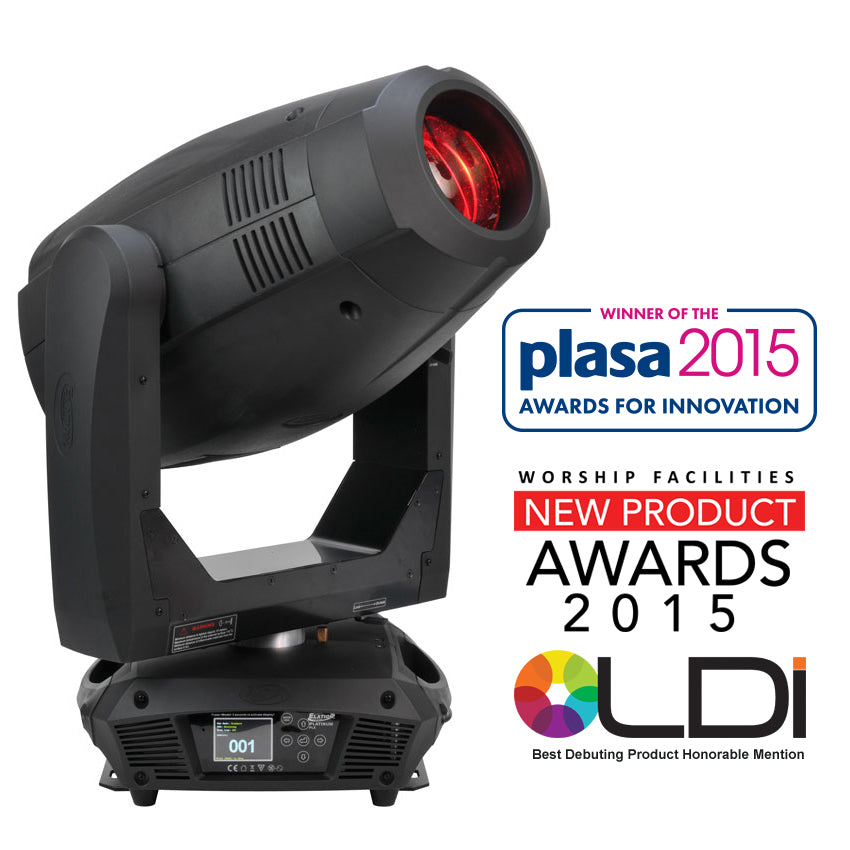

The award winning Platinum FLX™ is an innovative full featured patent pending design 3-in-1 luminaire which can be utilized as a beam, spot, or wash fixture, featuring the brand new Philips™ MSD Platinum 20R 470W 80CRI lamp, 7,800K, 23,000 total lumens delivering comparable output to 1,200W fixtures, 1.8° to 18° zoom in beam mode and 2.9° to 25° zoom in spot mode, 6° - 42° zoomable wash / frost effect, full CMY color mixing plus linear CTO color correction, 10 dichroic colors including UV, CTB, plus white (open), 8 rotating-interchangeable and 6 static-stamped gobos, 6-way linear and 8-facet rotating prisms, bi-directional animation wash frost effects, DMX, RDM (Remote Device Management), Art-NET and sACN support, 5pin DMX, RJ45 Ethernet, and power connections, (6) button control full color 180° reversible menu display, 740W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Patent Pending 3-in-1 Beam, Spot, and Wash Luminare
- Comparable Output to 700-1,200W Fixtures
- Minimal Lux Loss in Spot Mode
- 1.8° - 18° Beam and 2.9° - 25° Spot Zoom
- 6° - 42° Zoomable Wash / Frost Filter
- 6-Way Linear and 8-Facet Rotating Prisms
- Bi-Directional Animation and Zoomable Wash / Frost Effects
- Full CMY Color Mixing and Linear CTO Color Correction
- RDM, Art-NET and sACN (DMX Over Ethernet)
Specifications
Philips™ MSD Platinum 20R 470W Lamp
23,000 Total Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
19,133 Lumens Beam Mode / 11,262 Lumens Spot Mode
360,000 LUX 33,444 FC @32.8’ (10m) (1.8° Beam)
165,500 LUX 15,375 FC @32.8’ (10m) (2.9° Spot)
EFFECTS
6-Way Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effect
6° - 42° Zoomable Wash / Frost Filter
Strobe and Dimming
COLOR
Full CMY Color Mixing
Linear CTO Color Correction
10 Dichroic Colors Including UV and CTB
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(6) Static-Stamped Gobos (Indexing Wheel)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)
RDM (Remote Device Management)

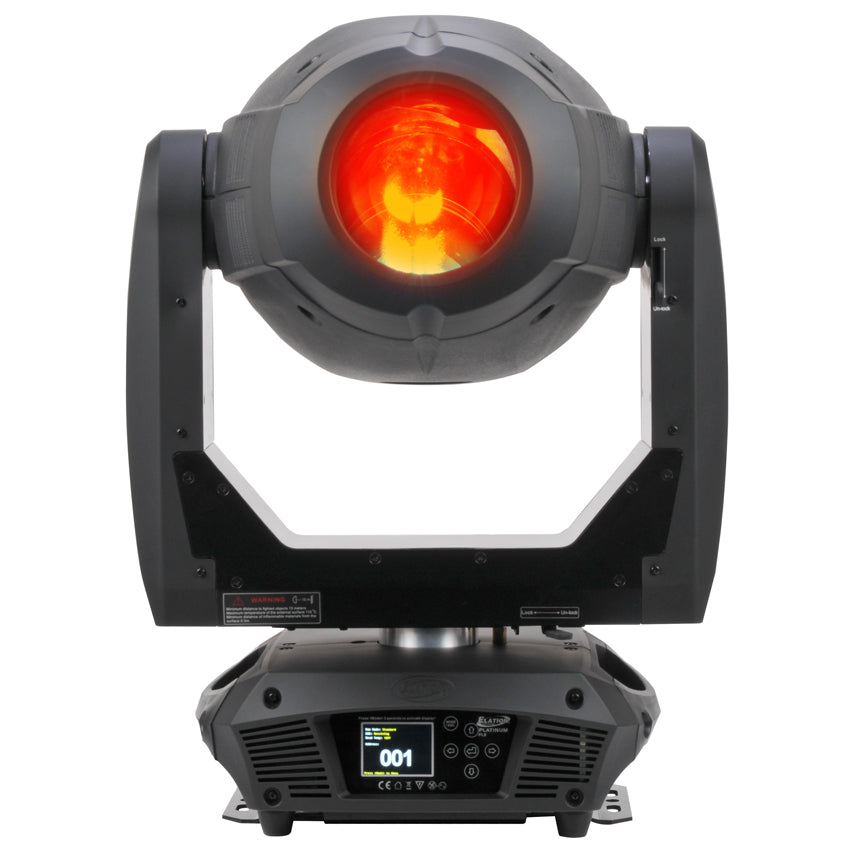

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

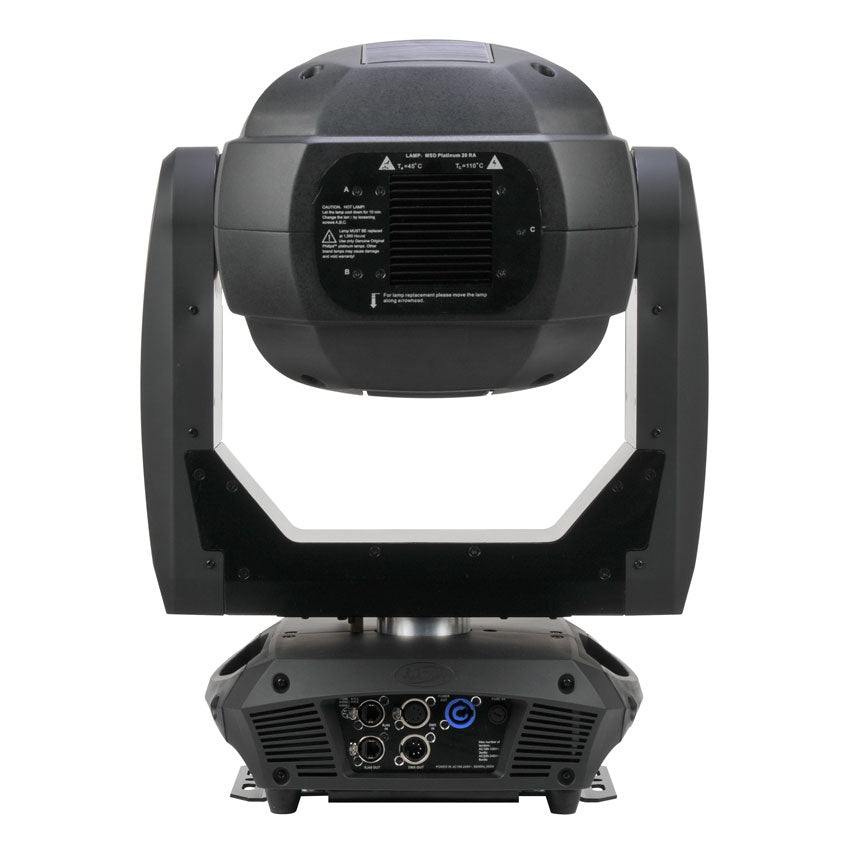

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.3” (466mm)
Width: 20.9” (532mm)
Vertical Height: 30.0” (762mm)
Weight: 75.0 lbs. (34.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
