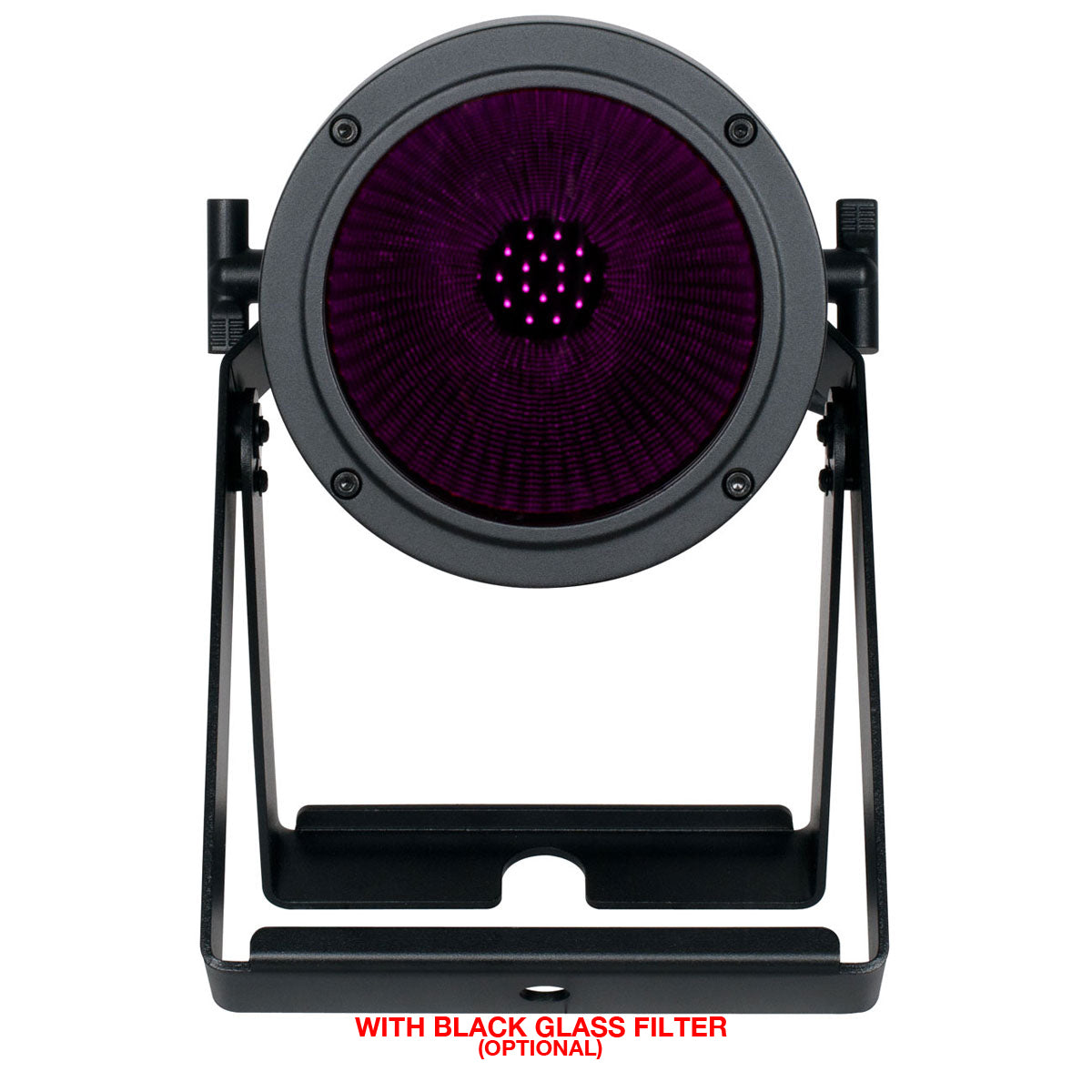

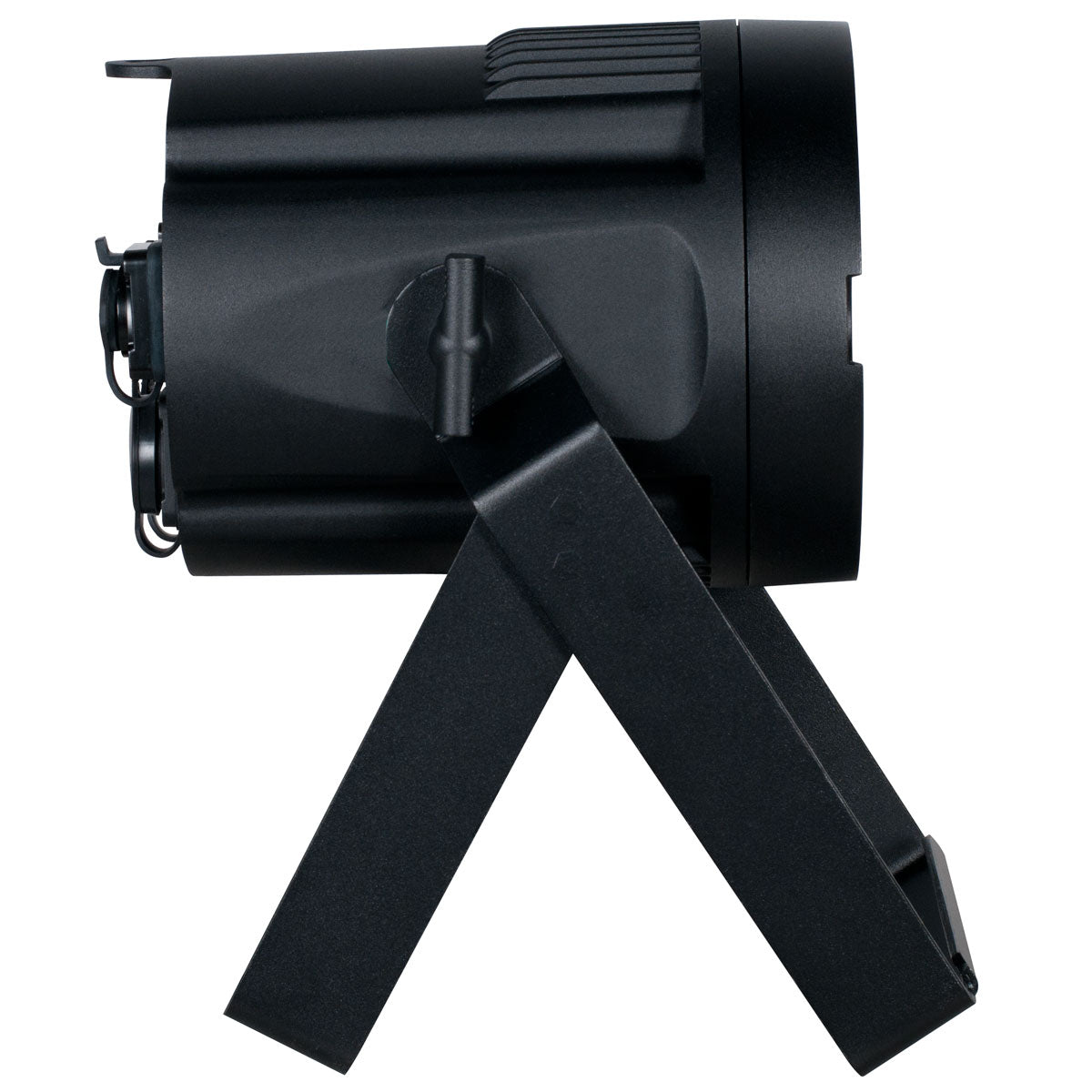

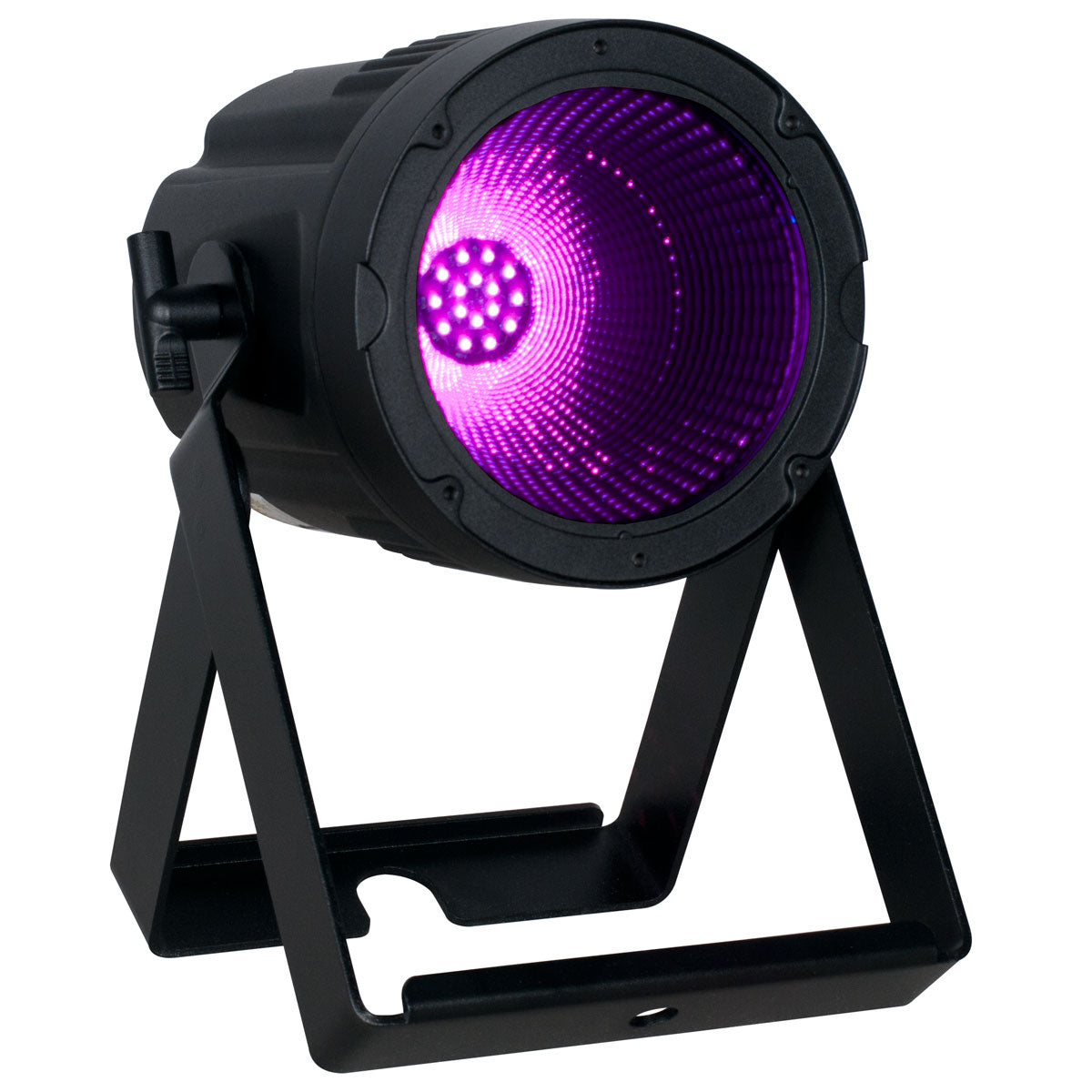

PRISMA PAR 50

Features

* * * P R E L I M I N A R Y * * *
IP65 Rated Exterior High-Power UV Wash Par Luminaire
50 Degree Wide Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light Output

Related Categories

Specifications

* * * P R E L I M I N A R Y * * *
SOURCE
(16) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
50 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Dual Adjustable Mounting Yokes

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

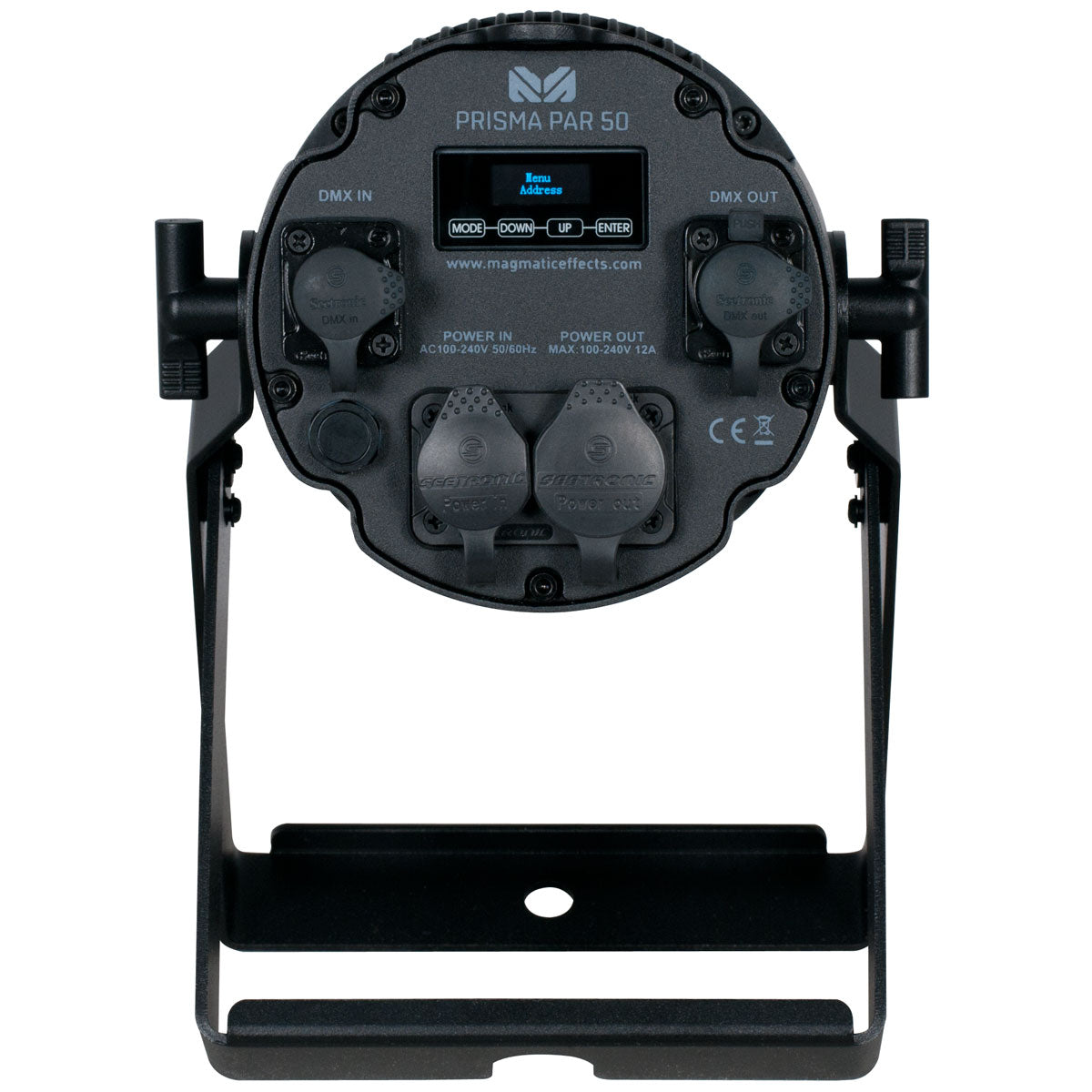

CONNECTIONS
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 7.7 in. (196mm)
Width: 7.7 in. (196mm)
Vertical Height: 11.4 in. (290mm)
Weight: 8.2 lbs. (3.7kg)

ELECTRICAL
AC100-240V 50-60Hz
37W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | IP65


Specifications and documentation subject to change without notice.
