RDM 10
RDM 10
The NETRON RDM 10 is a first of its kind hybrid splitter. A dual-DMX Input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
Features
Key Features
- 10 assignable DMX outputs
- Integrated 2 Universe Artnet/sACN node
- Configurable DMX refresh rate
- Dual DMX Inputs for backup and signal loss options
- Remote configuration via internal webpage
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
For all technical details and documentation for NETRON devices please visit
Related Categories
Specifications
Mounting
Rackmount
Connections

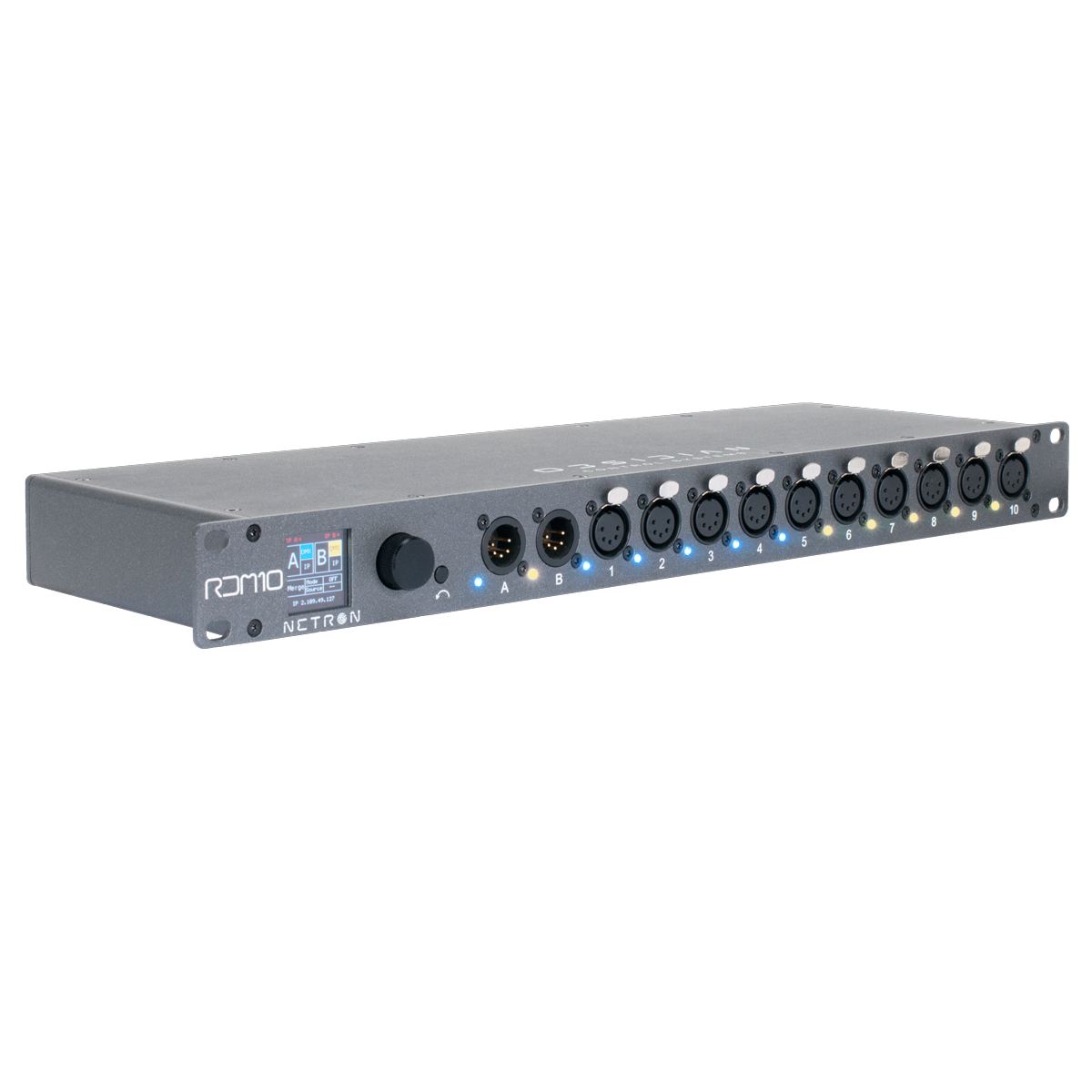

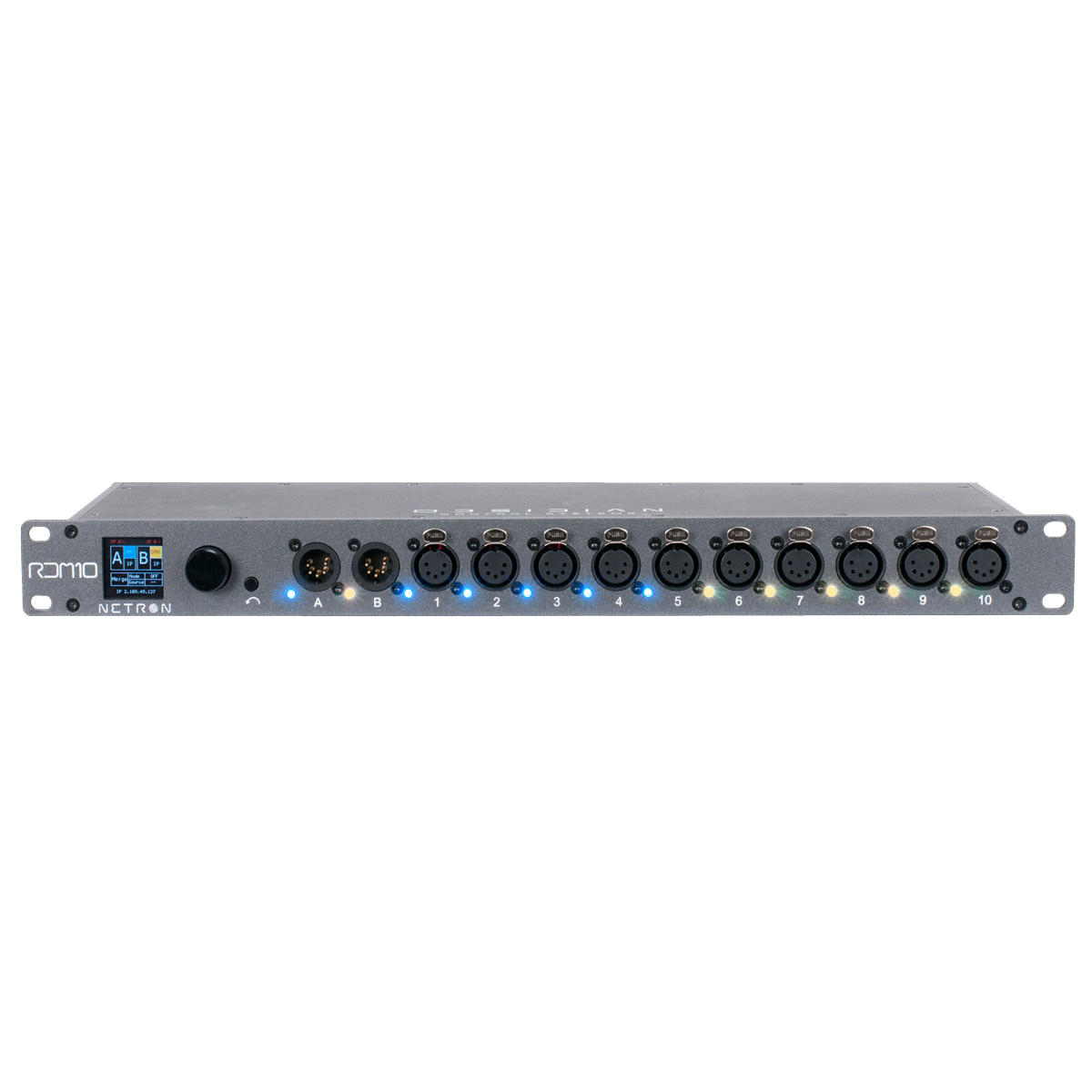

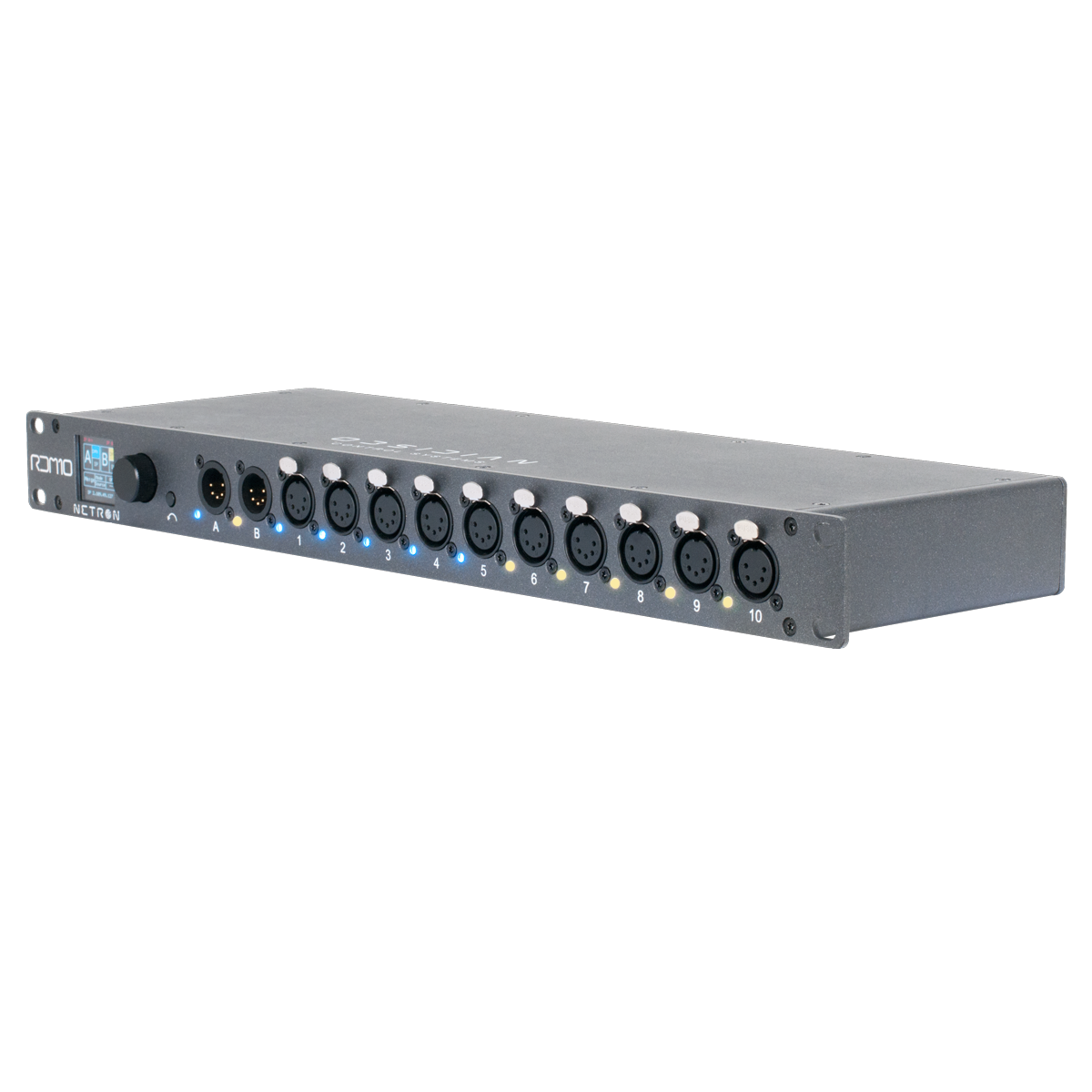

Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

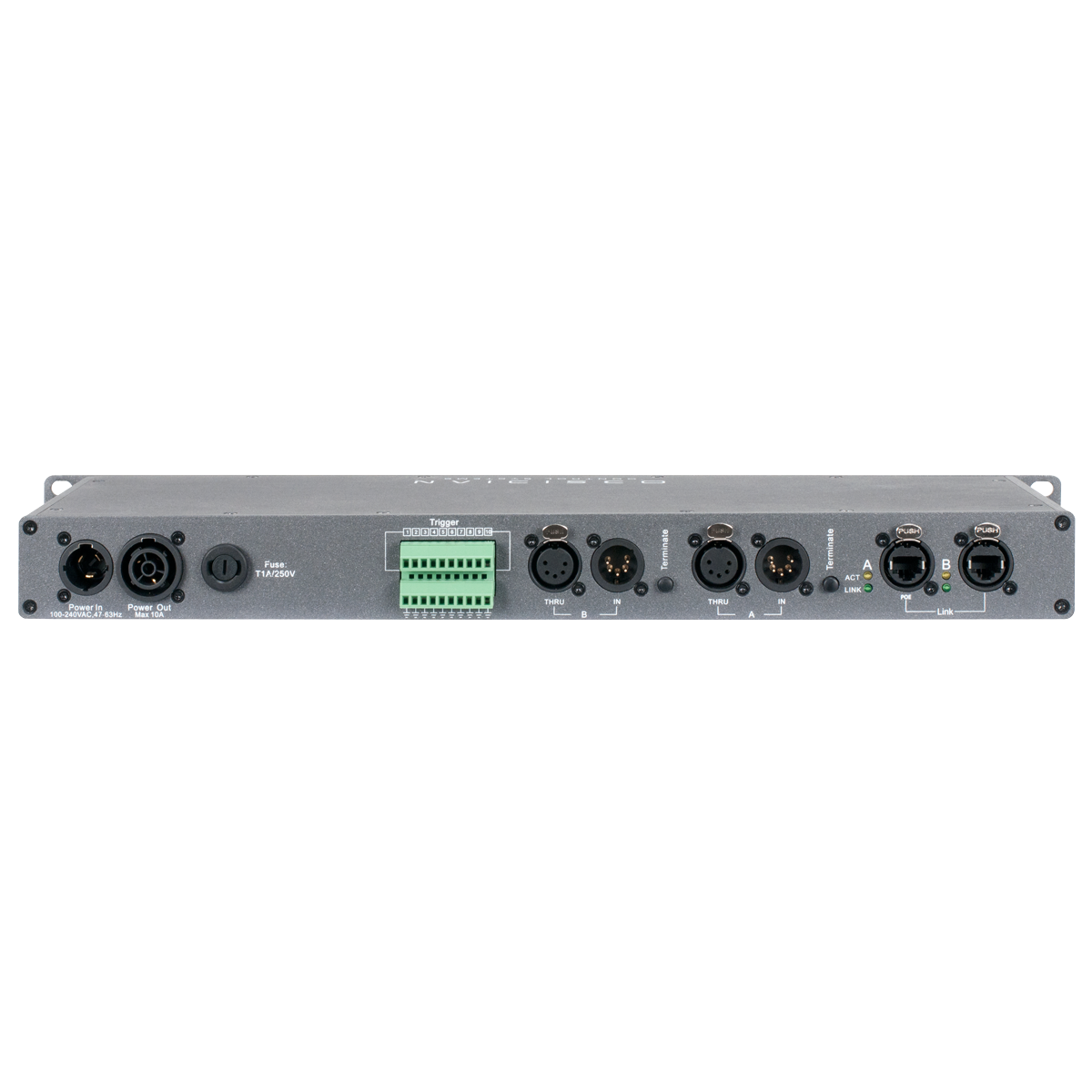

Back
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block) \
Locking Power In/Thru
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block) \
Locking Power In/Thru
Physical
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
Electrical
100-240 V nominal, 50/60 Hz
POE 802.3af
POE 802.3af
Power Consumption 10W
APPROVALS / RATINGS
CE | cETLus | FCC | IP20
Specifications and documentation subject to change without notice.
