SŌL I BLINDER

Name: SŌL I BLINDER
Brand: Elation
SKU: SOL001
Availability: InStock

250W RGBLAW LED Modular Blinder, IP65

SŌL I BLINDER is a professional-grade lighting solution. With its sleek and modern aesthetic, SŌL I BLINDER seamlessly integrates into any stage or event setting, offering limitless creative potential. Use it as a single-cell, 2- or 4-cell blinder or connect even more fixtures together for a versatile effects panel that is perfect for eye-candy looks. Add to that a variety of mounting options and designers are empowered with the flexibility to craft unique visual experiences tailored to each performance or event.

UPC: 810008264478

SKU: SOL001

Related Products

PDJ112

SŌL I Interconnect Pack

SŌL I M10 Connect

SŌL I Rear Mount Bracket

SŌL I Heavy Duty Yoke

SŌL Bowens Adapter

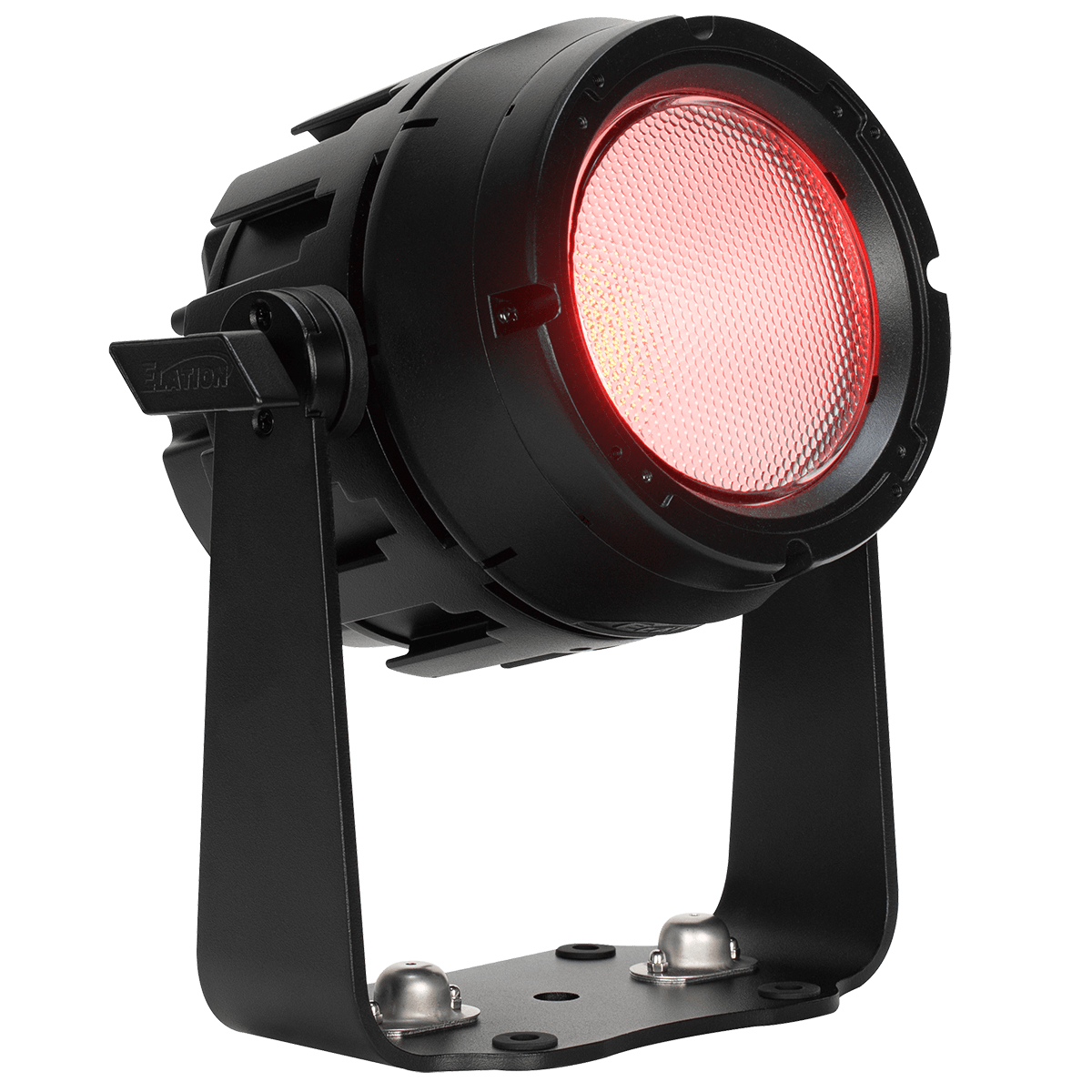

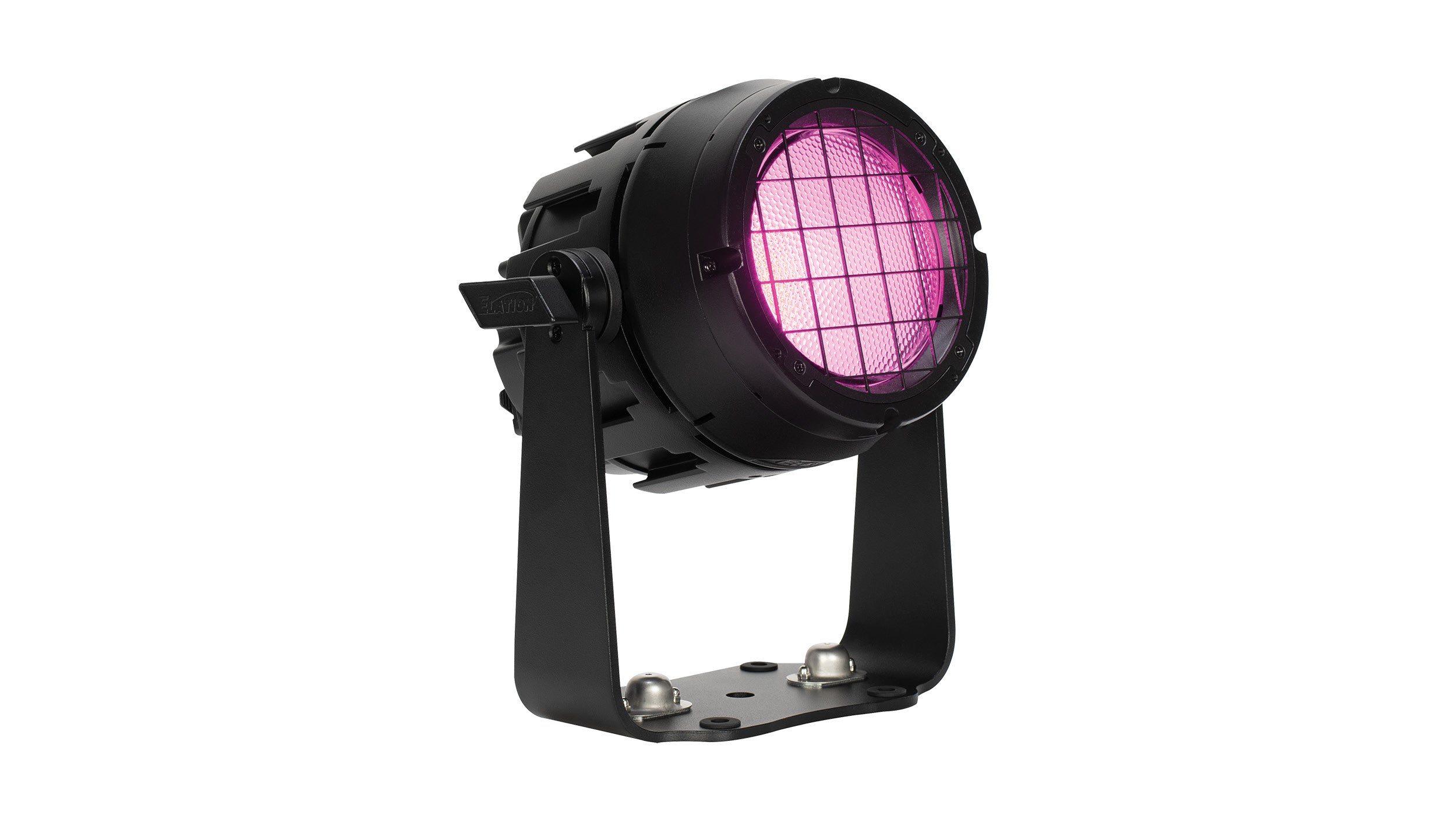

SŌL I BLINDER

Inspired by the radiant sun, the SŌL I BLINDER is the first in a new groundbreaking series of creative LED blinder and effects solutions that seamlessly marries cutting-edge technology with artistic ingenuity.

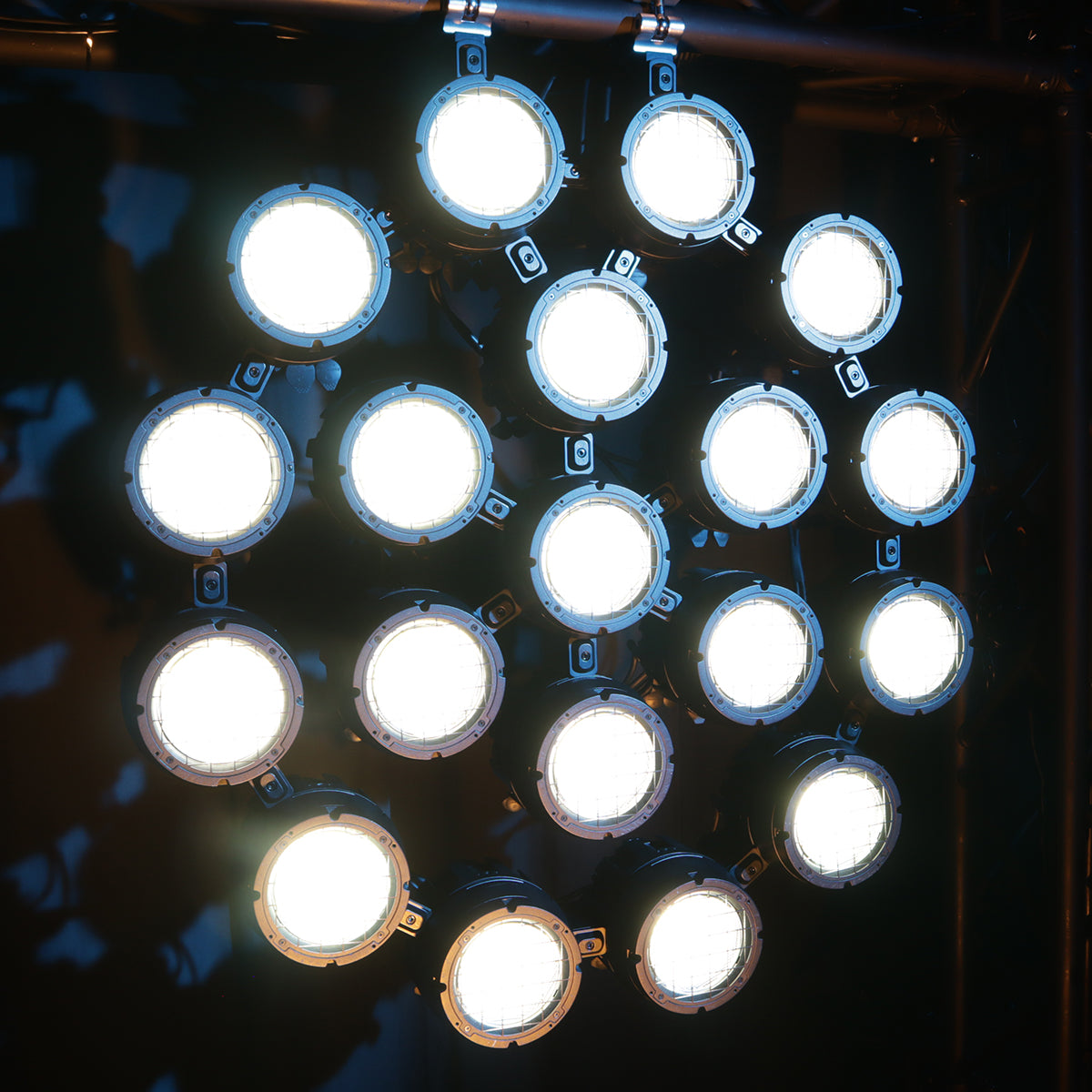

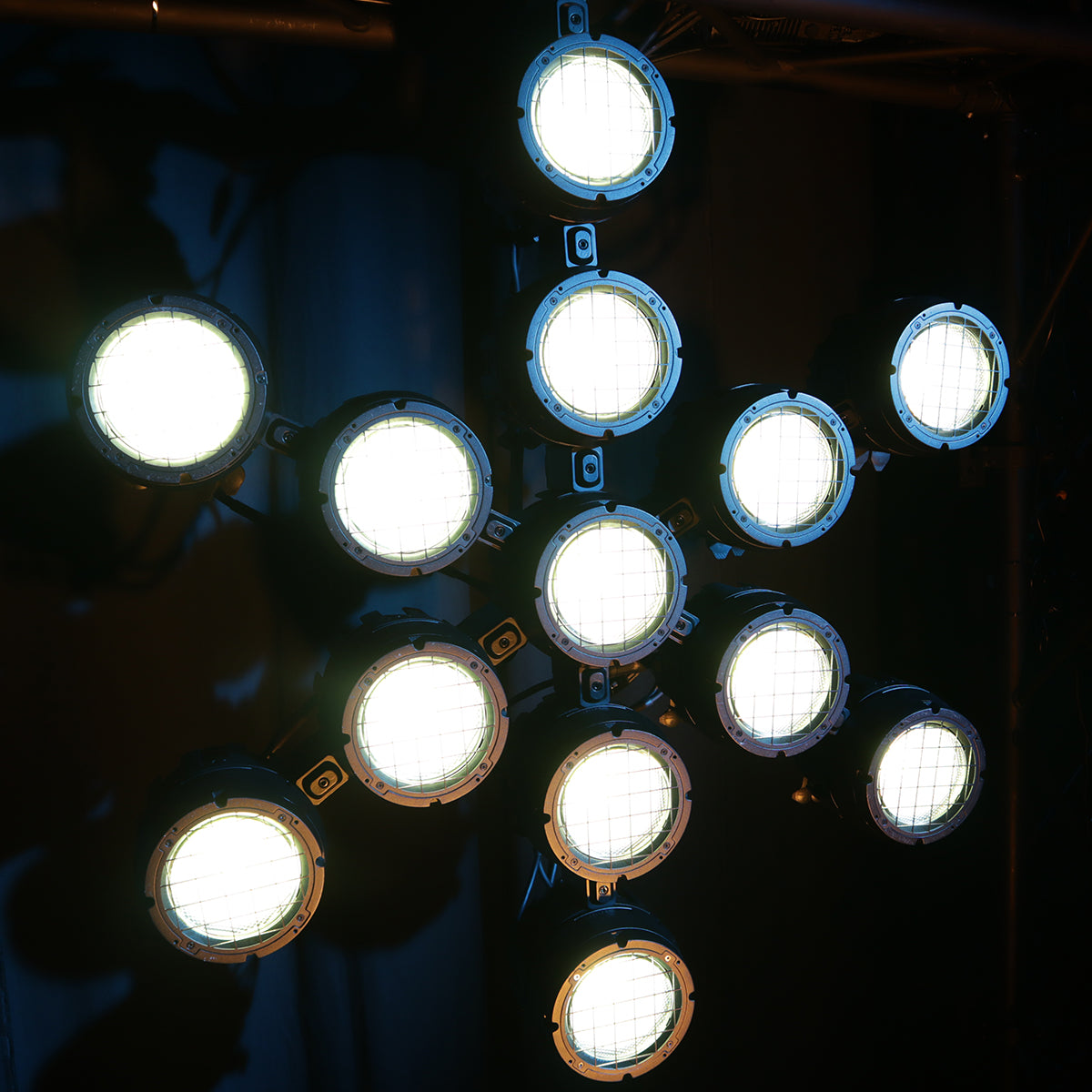

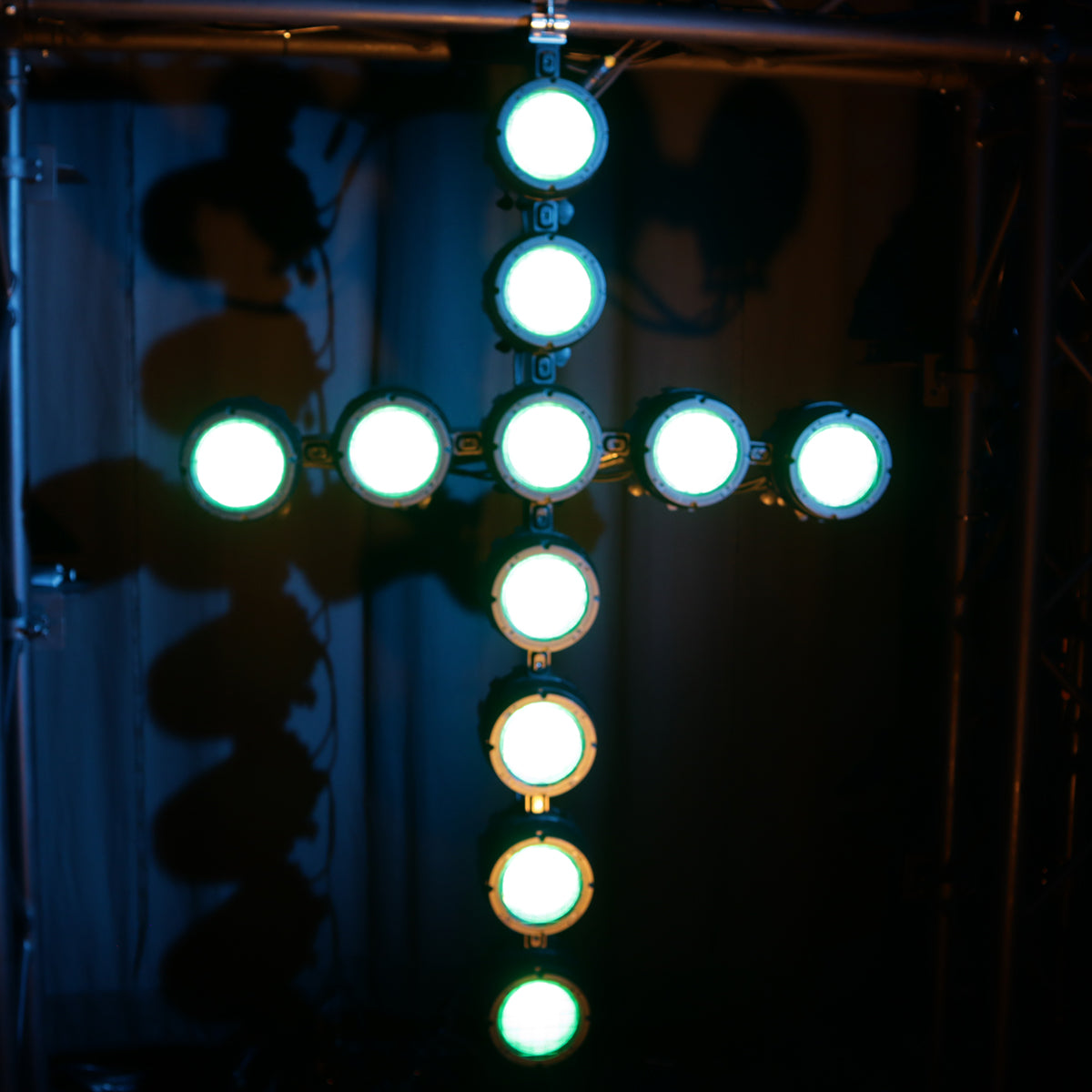

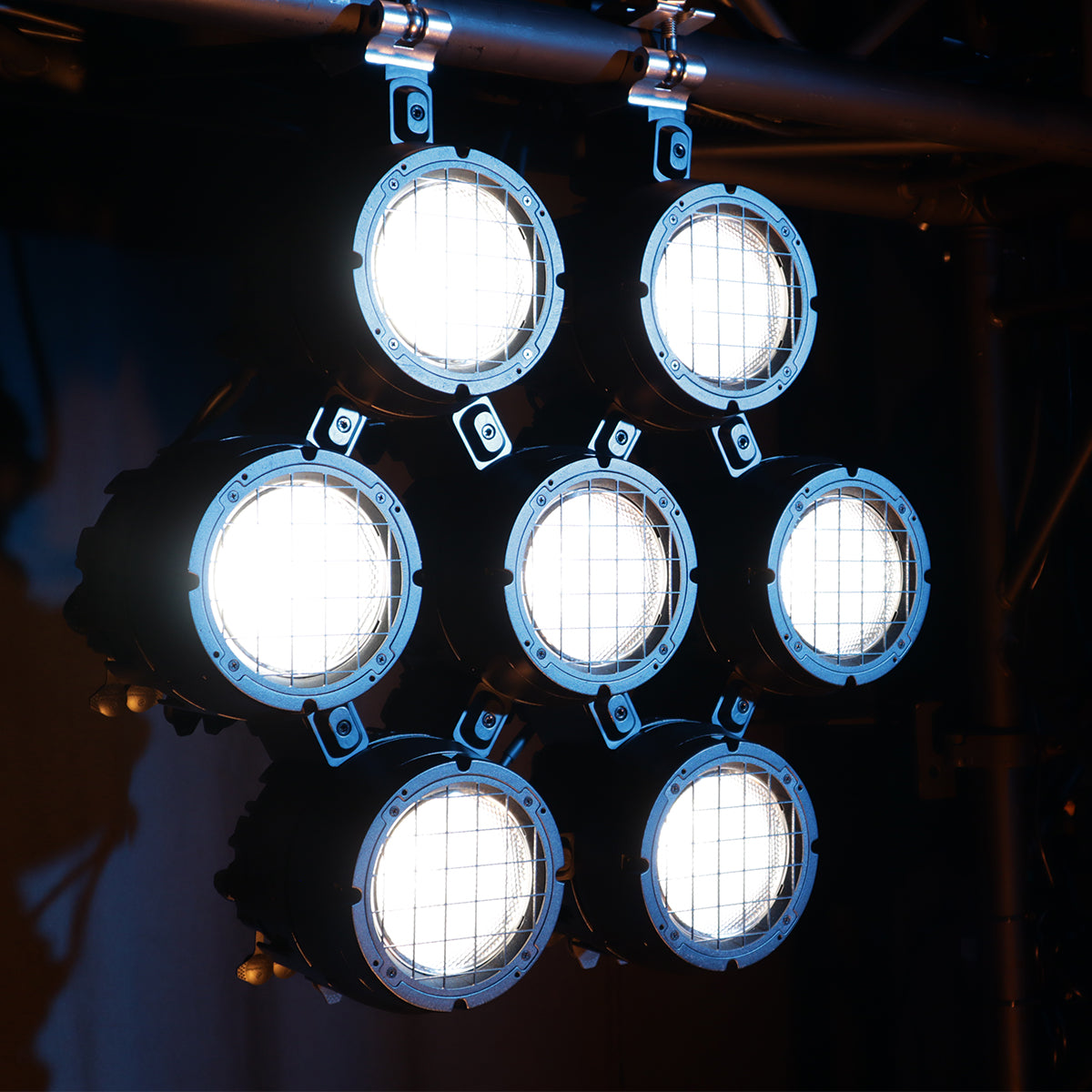

With its sleek and modern aesthetic, SŌL I BLINDER seamlessly integrates into any stage or event setting, offering limitless creative potential. What sets SŌL apart is its ingenious modular design, offering endless possibilities for configuration and arrangement. Using simple fixture interconnects, threaded adapters, mounts and yoke accessories, designers can effortlessly link SŌL I Blinder to other fixtures or devices, exponentially expanding creative options for unique shapes and arrays. Use it as a single-cell, 2- or 4-cell blinder or connect even more fixtures together for a versatile effects panel that is perfect for eye-candy looks. Create linear blinder arrays, single or multi-unit pendants, custom shapes, and more. The possibilities are endless!

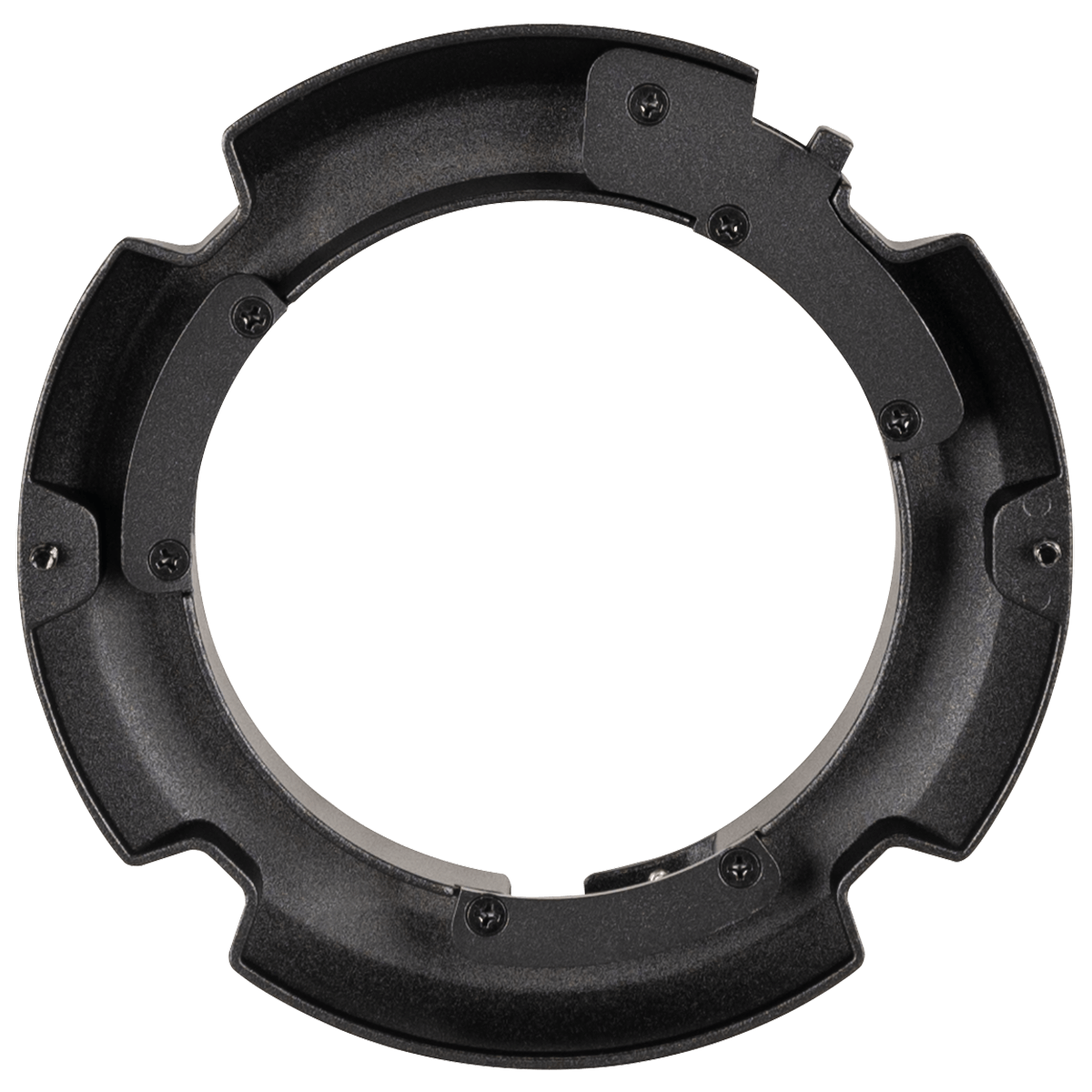

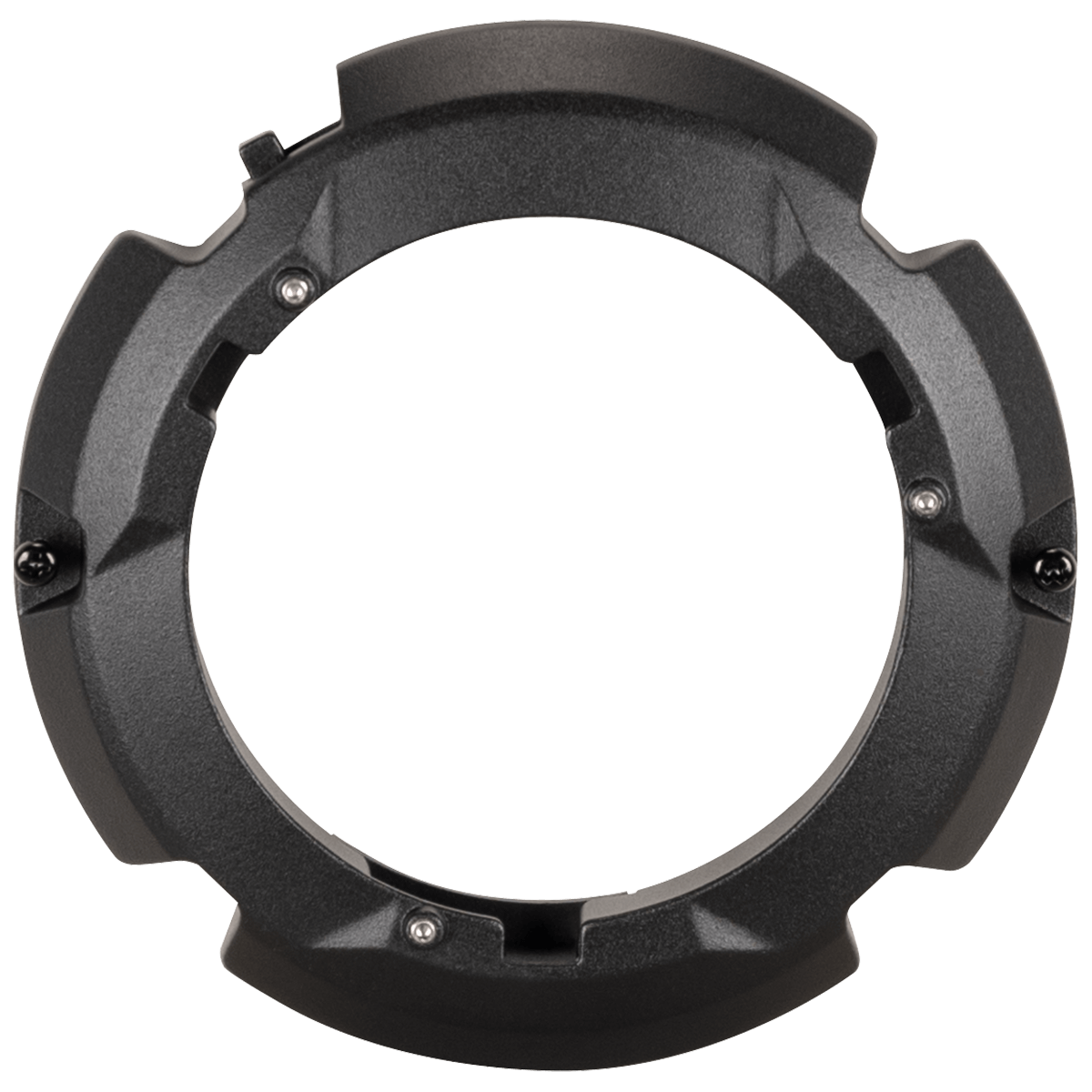

Multiple lens options, coupled with a host of accessories, enhance the fixture's potential even further. An optional Bowens mount adaptor ring allows for a number of Bowens mount accessories to be attached to the front of the fixture for even more aesthetic options and creative impact. Add to that a variety of mounting options and designers are empowered with the flexibility to craft unique visual experiences tailored to each performance or event.

The SŌL I BLINDER boasts a remarkable spectrum of colors from a 250W RGB+Lime+Amber+White LED engine with 93+ CRI for high-quality color reproduction. The proprietary RGBLAW engine delivers exceptionally bright, high-fidelity whites while offering a full color range that takes LED blinder color to the next level.

Despite its compact form, the SŌL I BLINDER packs a punch at over 8000 lumens! Fully variable 16-bit color temperature adjustment from 1800K - 8500K is achievable and a dim to warm or red shift emulation function has been included to allow you to match the warm glow of an incandescent blinder. CMY emulation provides the designer with immediate access to the impressive LED color array including beautiful mixed whites while a virtual gel library allows for easy recall of a variety of premixed shades.

Controllable via DMX or RDM protocols, SŌL I BLINDER offers a unique 'Array Mode' addressing system and our proprietary Aria x2 wireless device management for simpler system setup and maintenance. You can also choose between high-output blinder mode or constant output mode when even light level is required for long periods of time.

IP65 rated and convection cooled for use in harsh environments, the SŌL I BLINDER is wrapped in a lightweight yet durable compact housing.

Unleash your creativity and redefine the limits of live entertainment lighting with SŌL - illuminating the path to limitless creativity!

250W RGBLAW LED

9128 Total Fixture Lumen Output (Sphere)

46° Beam Angle

Simple 'Array Mode' Addressing System

Dim-to-Warm/ Red Shift Emulation

High Output Blinder Mode or Constant Output Mode Options

Nearly Endless Mounting and Configuration Options

IP65 Rated

Specifications

SOURCE

250W RGBLAW LED

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output

9128 (Integrating Sphere)

CRI TBA

Compound Lens

Beam Angle: 46°

Field Angle: 85°

No Lens

Beam Angle: 52°

Field Angle: 95°

EFFECTS

Variable Strobe Rate: 1- 20Hz

Dim-to-Warm/ Red Shift Emulation

Variable 16-bit Dimming Modes and Curves

High Output Blinder Mode or Constant Output Mode Options

COLOR

RGBLAW Color Array

CMY Emulation

Variable CCT 1800K - 8500K

Virtual Gel Swatch Book

CONTROL / CONNECTIONS

12 DMX Channel Modes (1ch, 2ch, 3ch, 4ch, 6ch, 7ch, 13ch, 21ch, 10ch, 15ch, 10ch 15ch)

Simple 'Array Mode' Addressing System

Manual and DMX Controlled Dimmer and Color

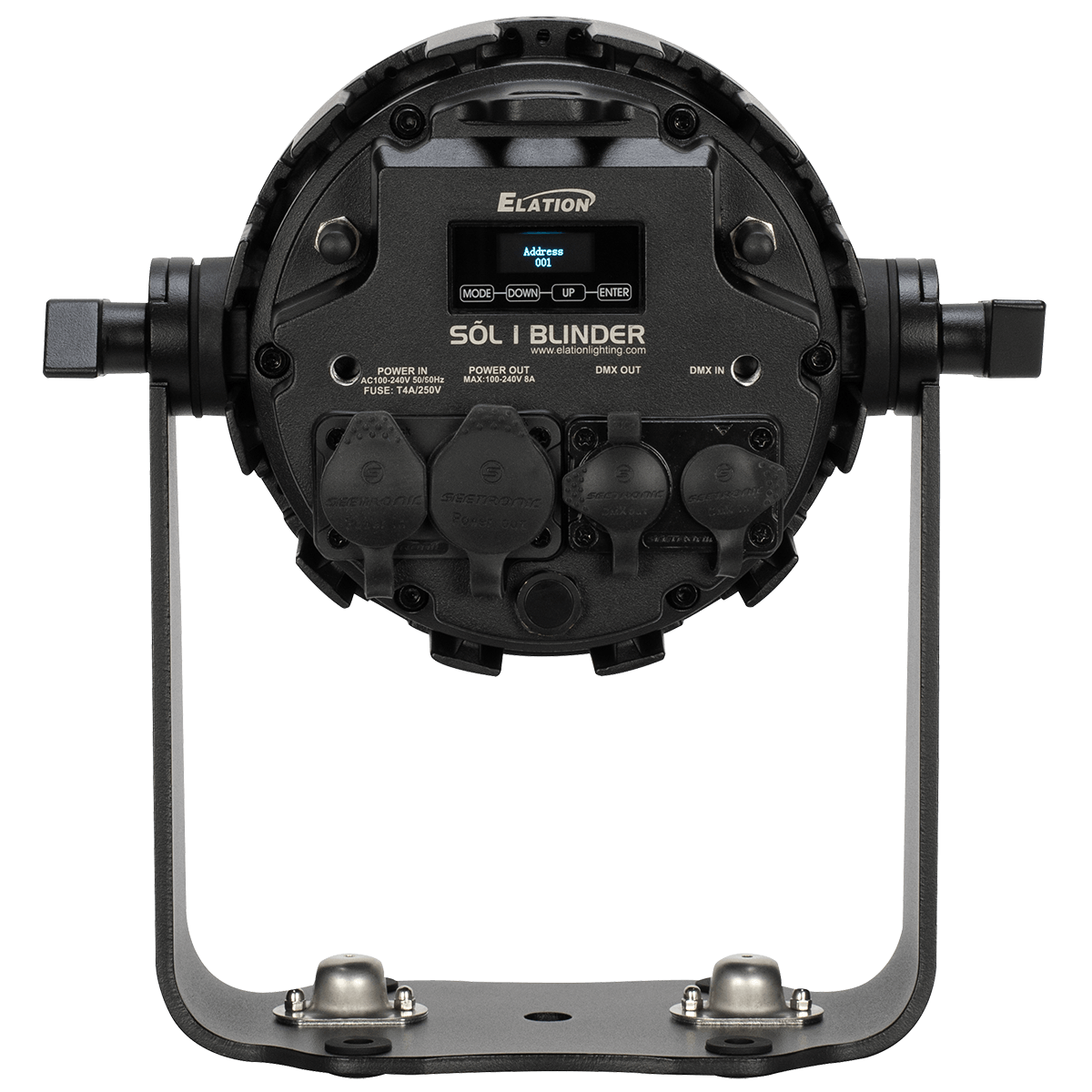

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT (Without Accessories)

Length: 7.28" (185mm)

Width: 4.48” (114mm)

Vertical Height: 4.48” (114mm)

Weight (Fixture Only): 5.5 lbs (2.9 kg)

Weight (With Floor Stand/Yoke): 9.25 lbs (4.2 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

285W Max Power Consumption

Power Thru Capacity: 8A (3 units @115V, 6 units @240V)

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 972

INCLUDED ITEMS

Fixture Yoke / Floor Stand

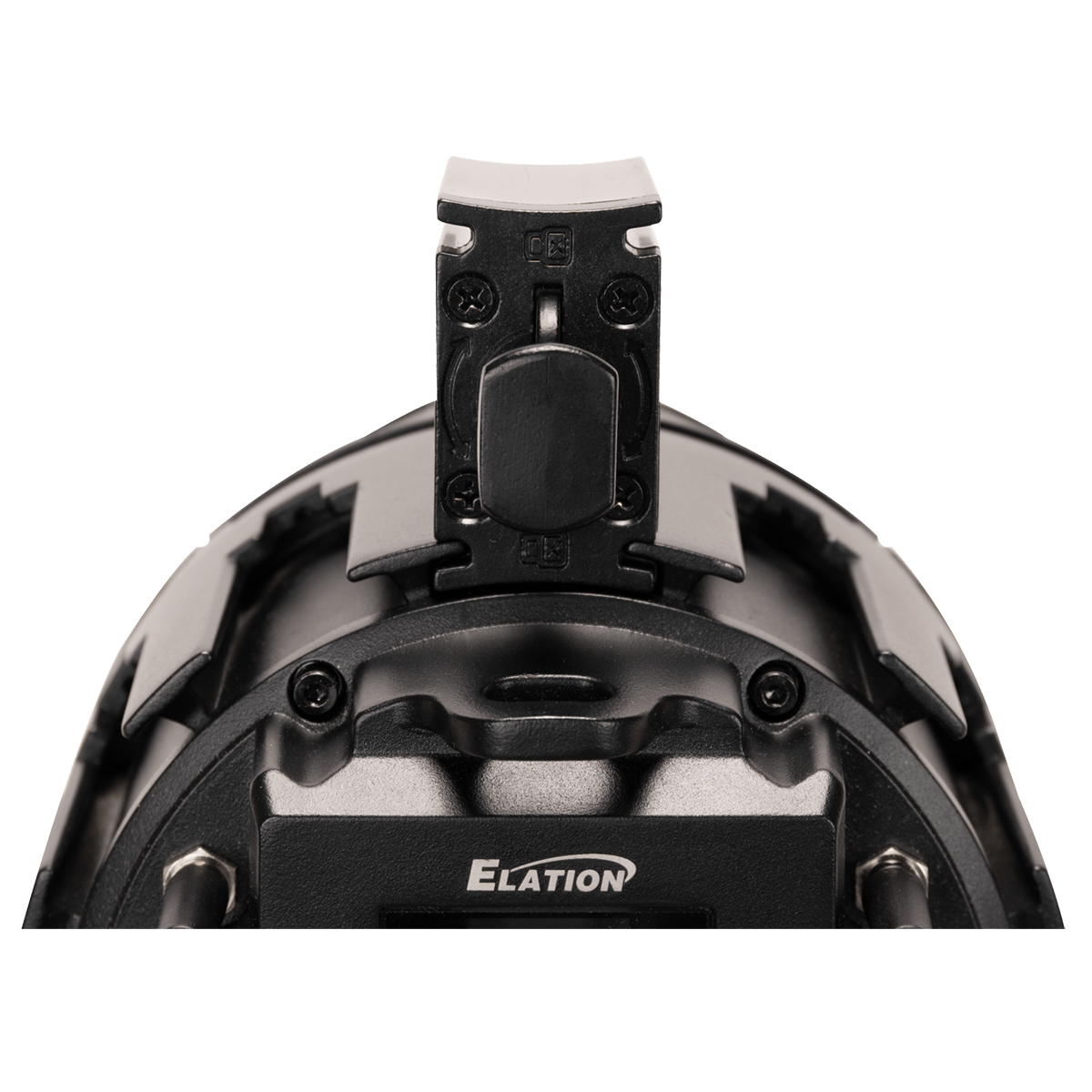

Fixture Interconnect Adapter

Safety Cable

IP65 Locking Power Cable

OPTIONAL ITEMS

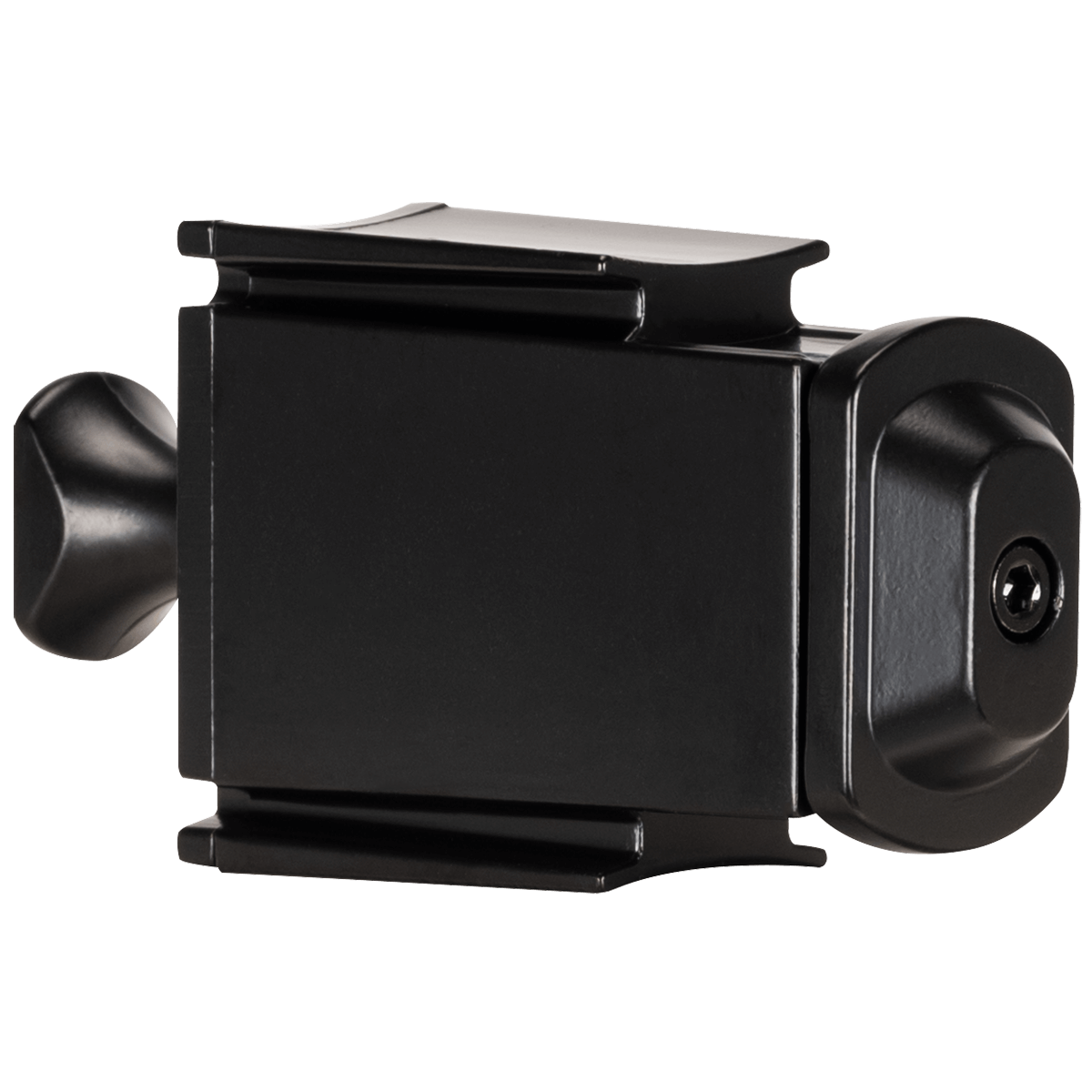

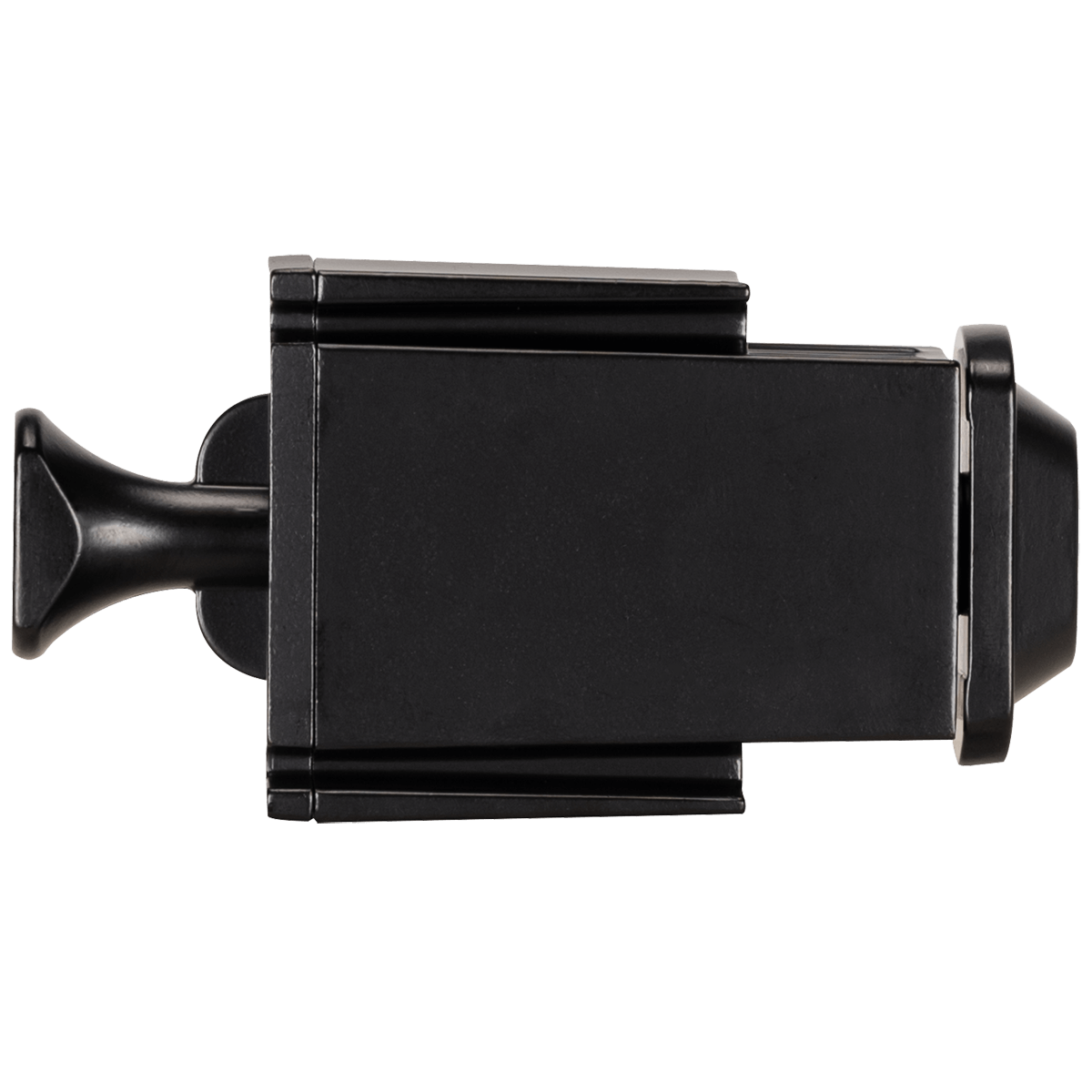

SŌL I Interconnect (SOL1IC)

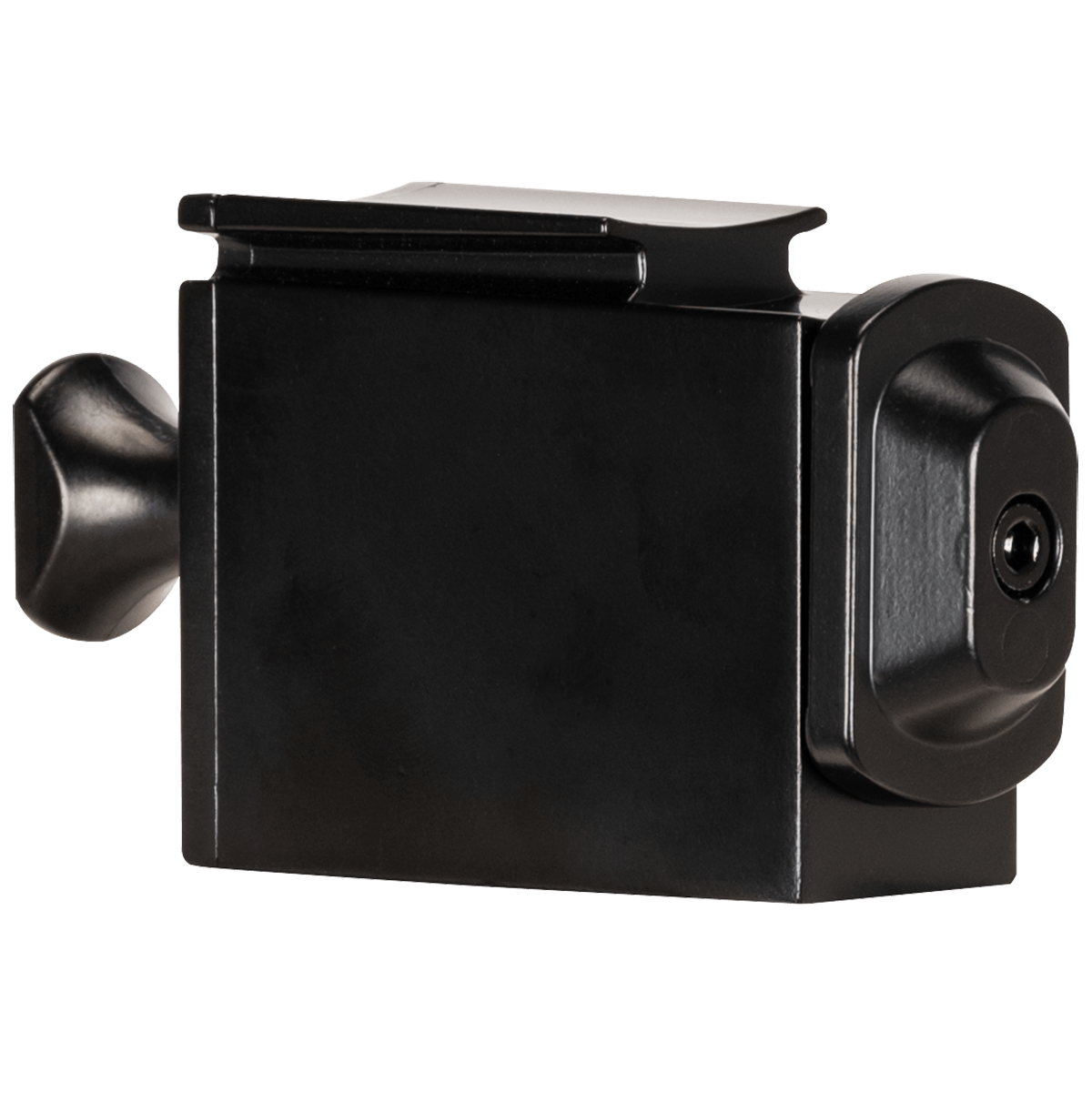

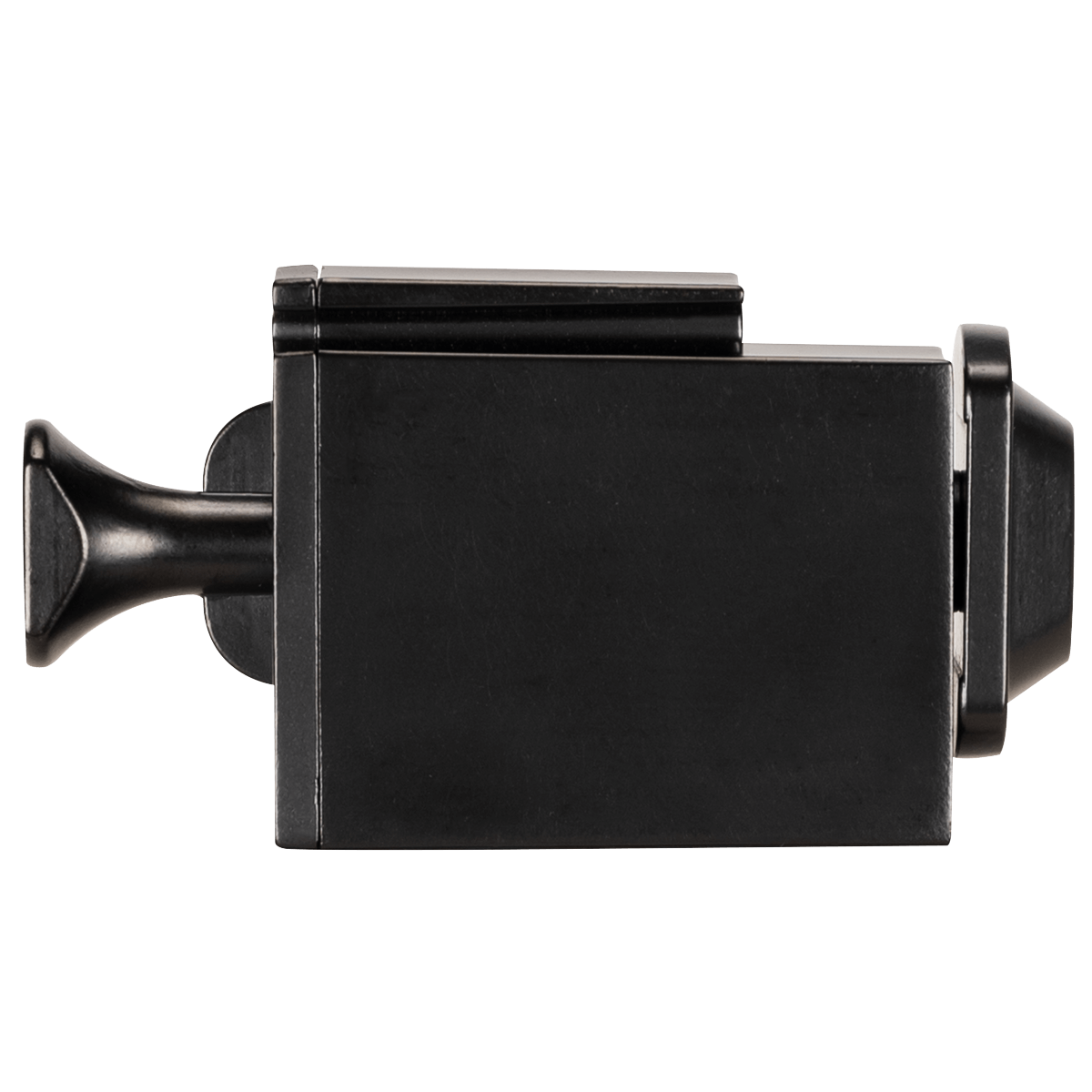

SŌL I M10 Connect (SOL1M10C)

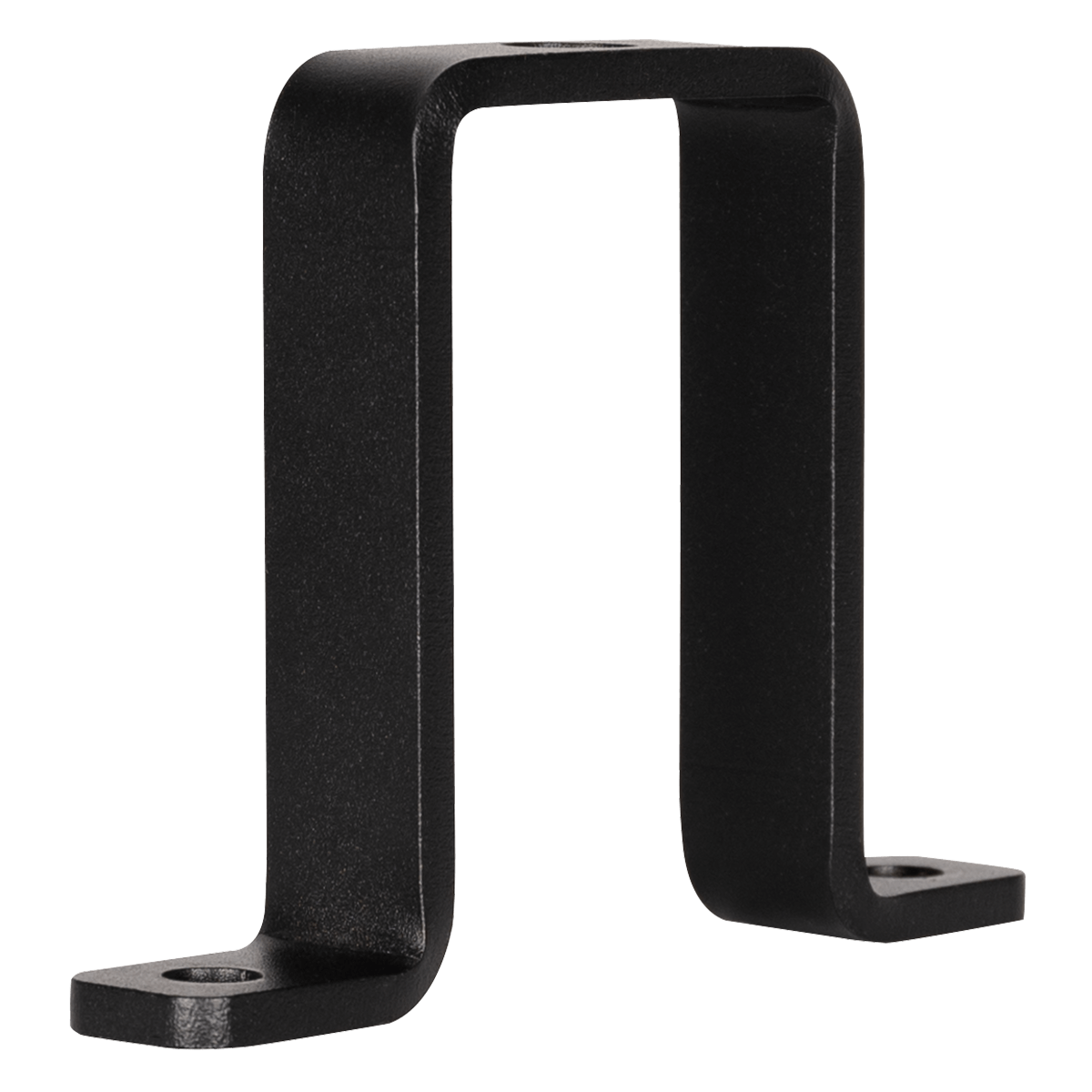

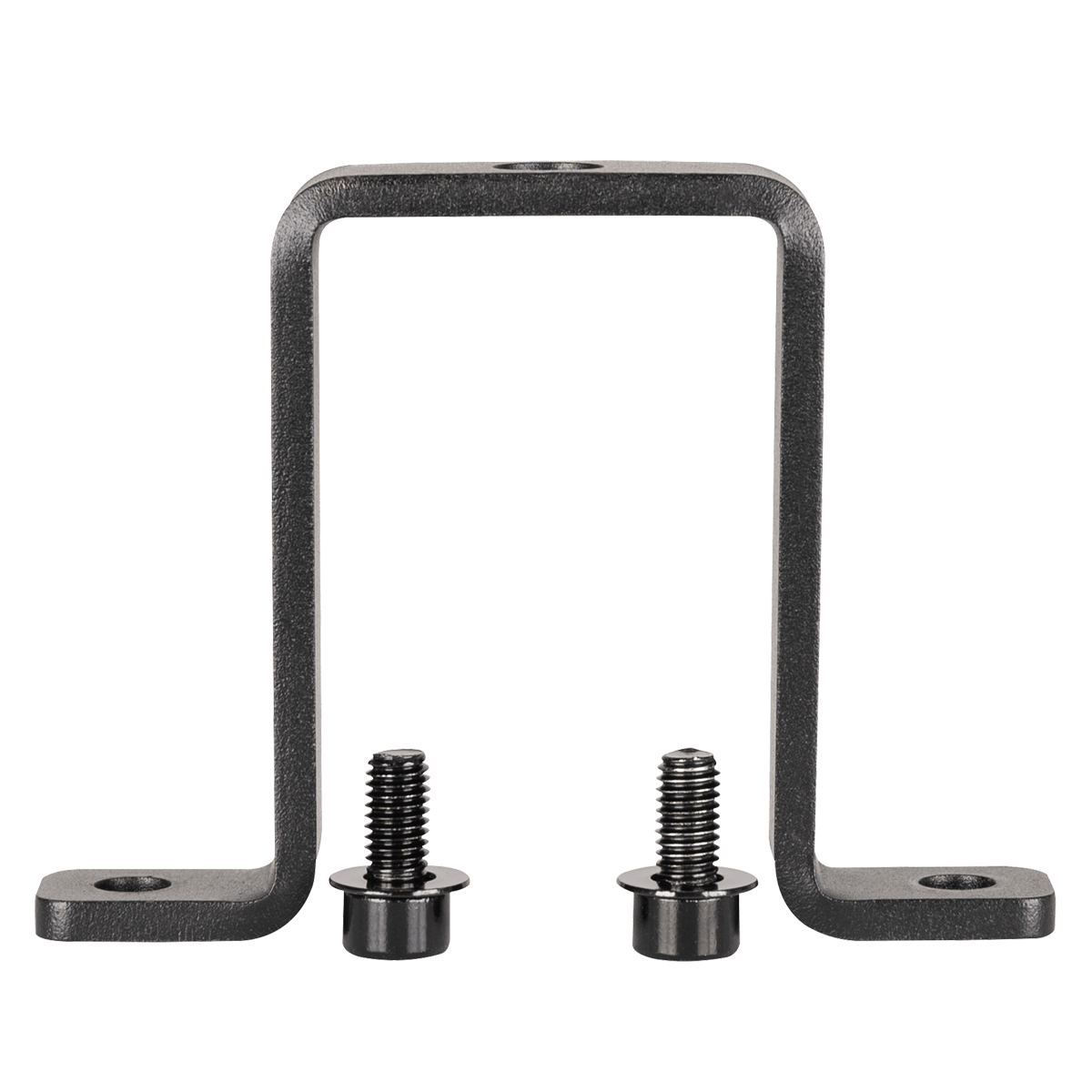

SŌL I Rear Mount Bracket (SOL1RMB)

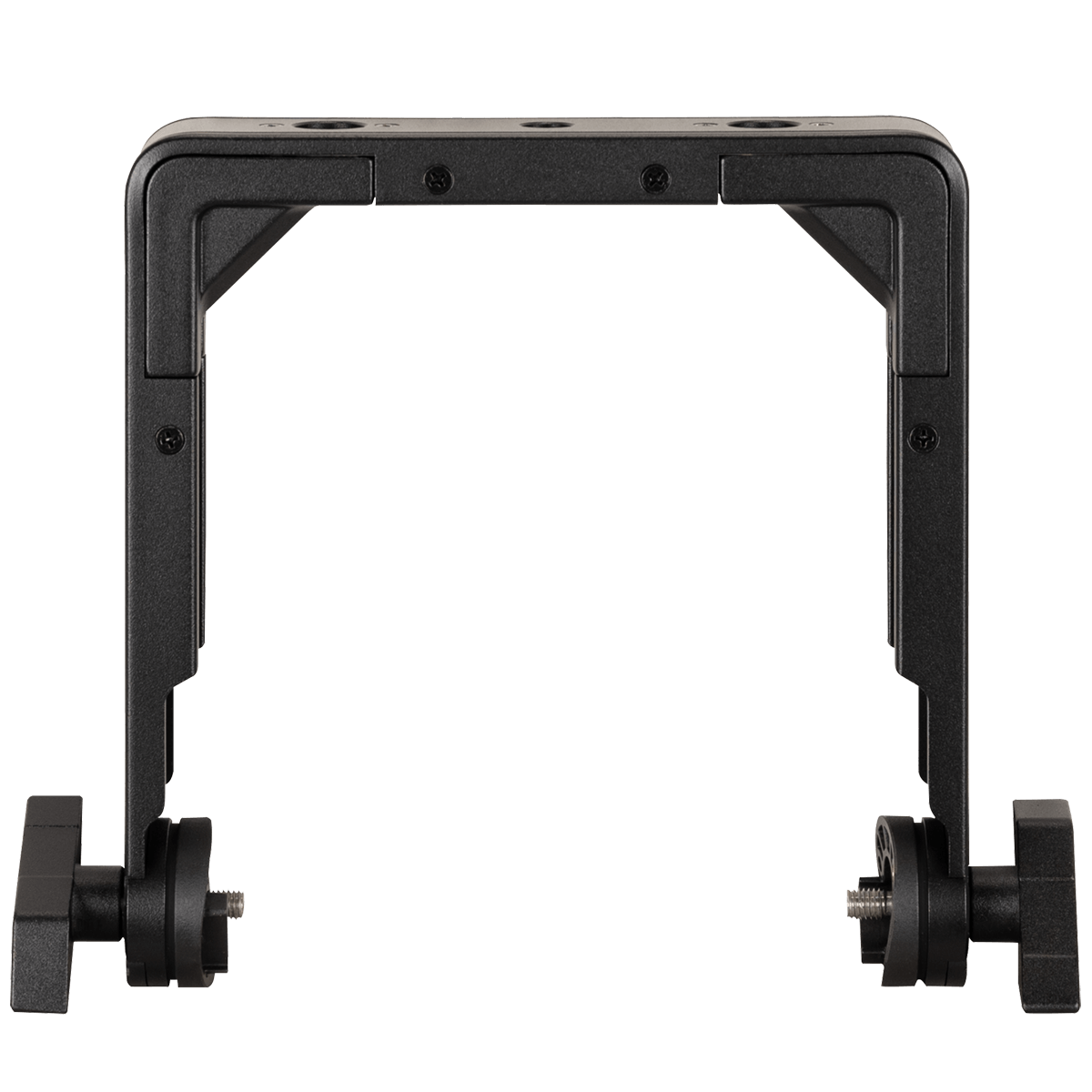

SŌL I Heavy Duty Yoke (SOL1Y)

SŌL I Blinder Frame Kit (SOL1BFK)

SŌL Fresnel Lens (SOLFL)

SŌL Frosted Lens (SOLFRO)

SŌL Bowens Adapter (SOLBA)

SŌL Dome Lens (SOLDL)

SŌL Blackout Lens (SOLBL)

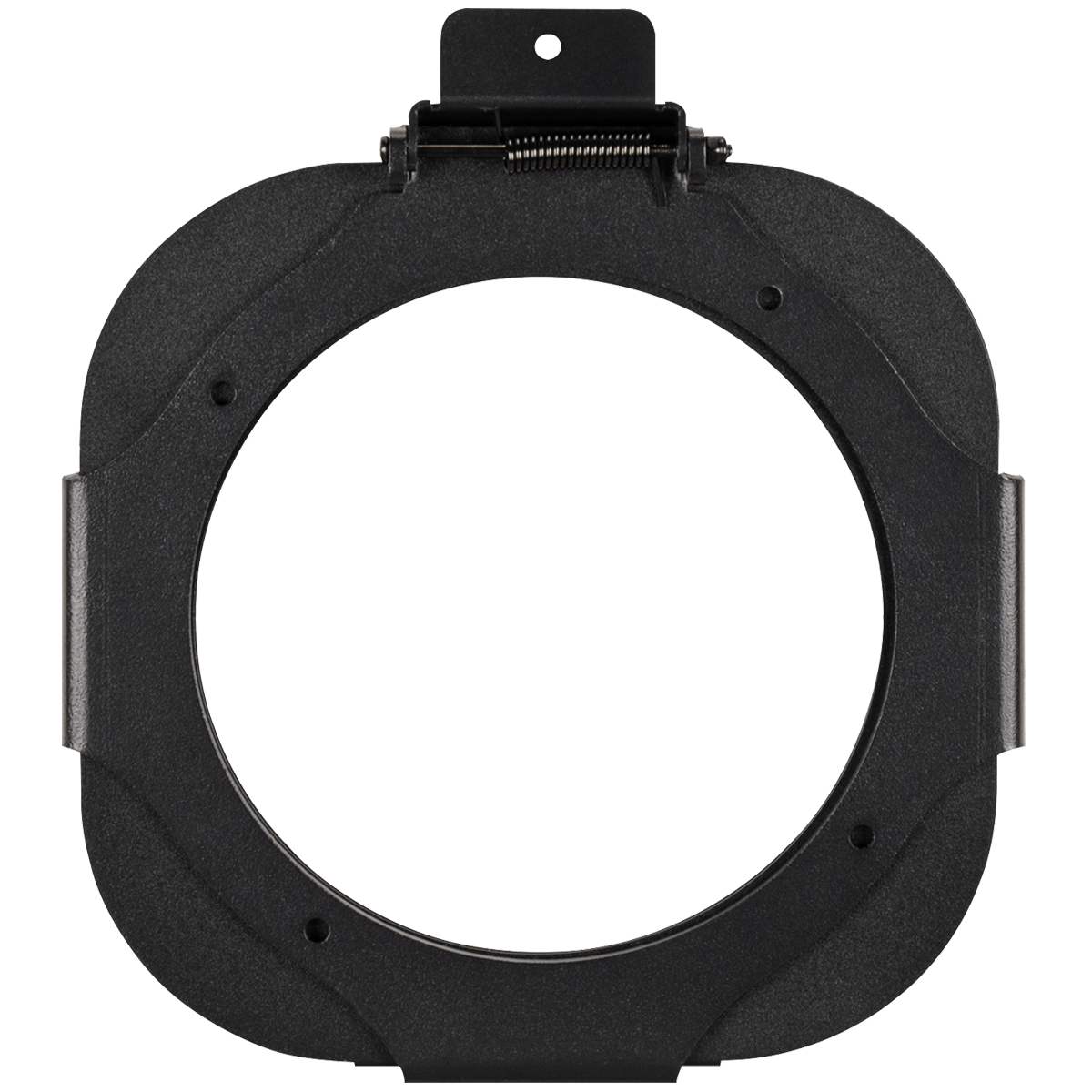

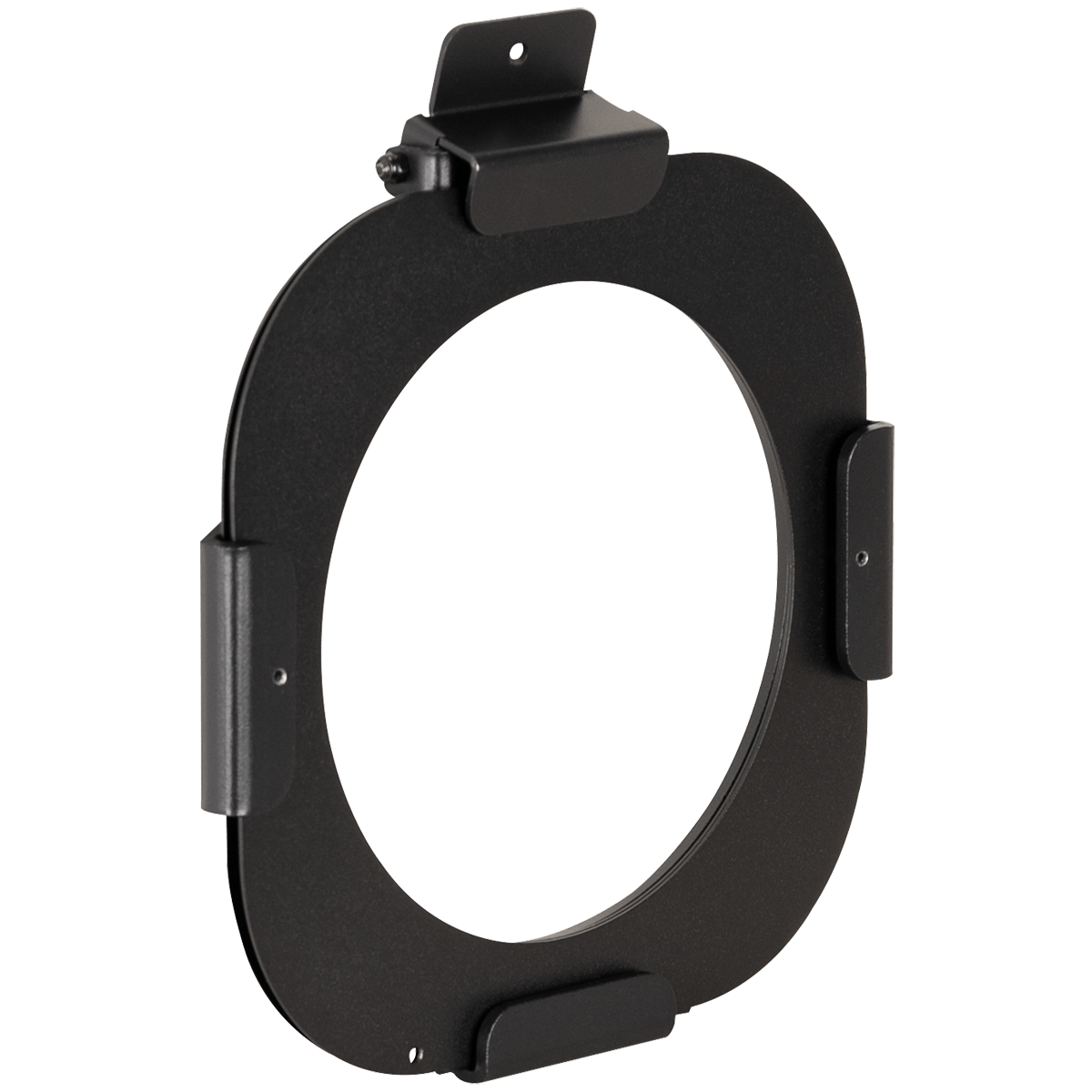

SŌL Gel Frame Holder Kit (SOLGFHK)

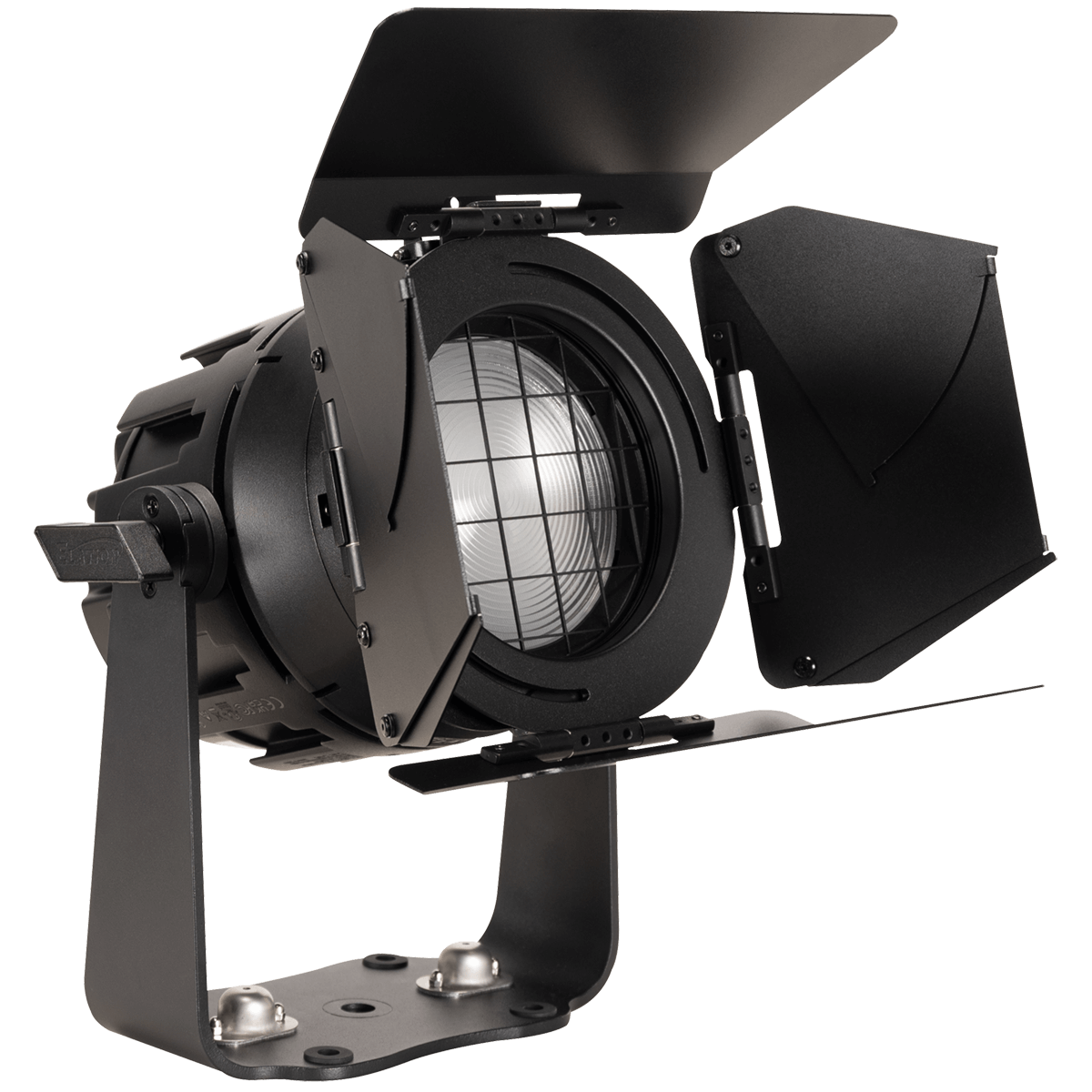

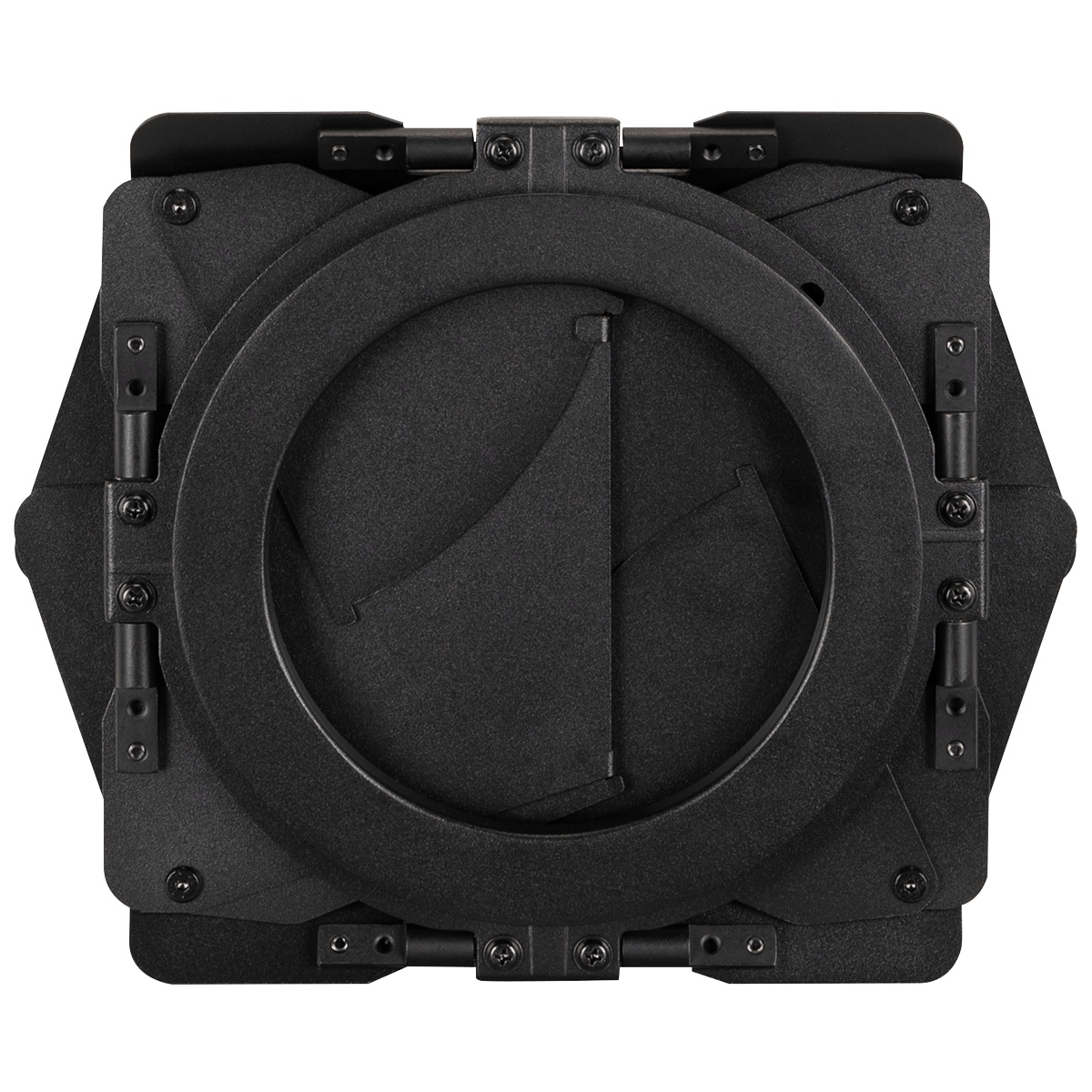

SŌL Barndoor (SOLBD)

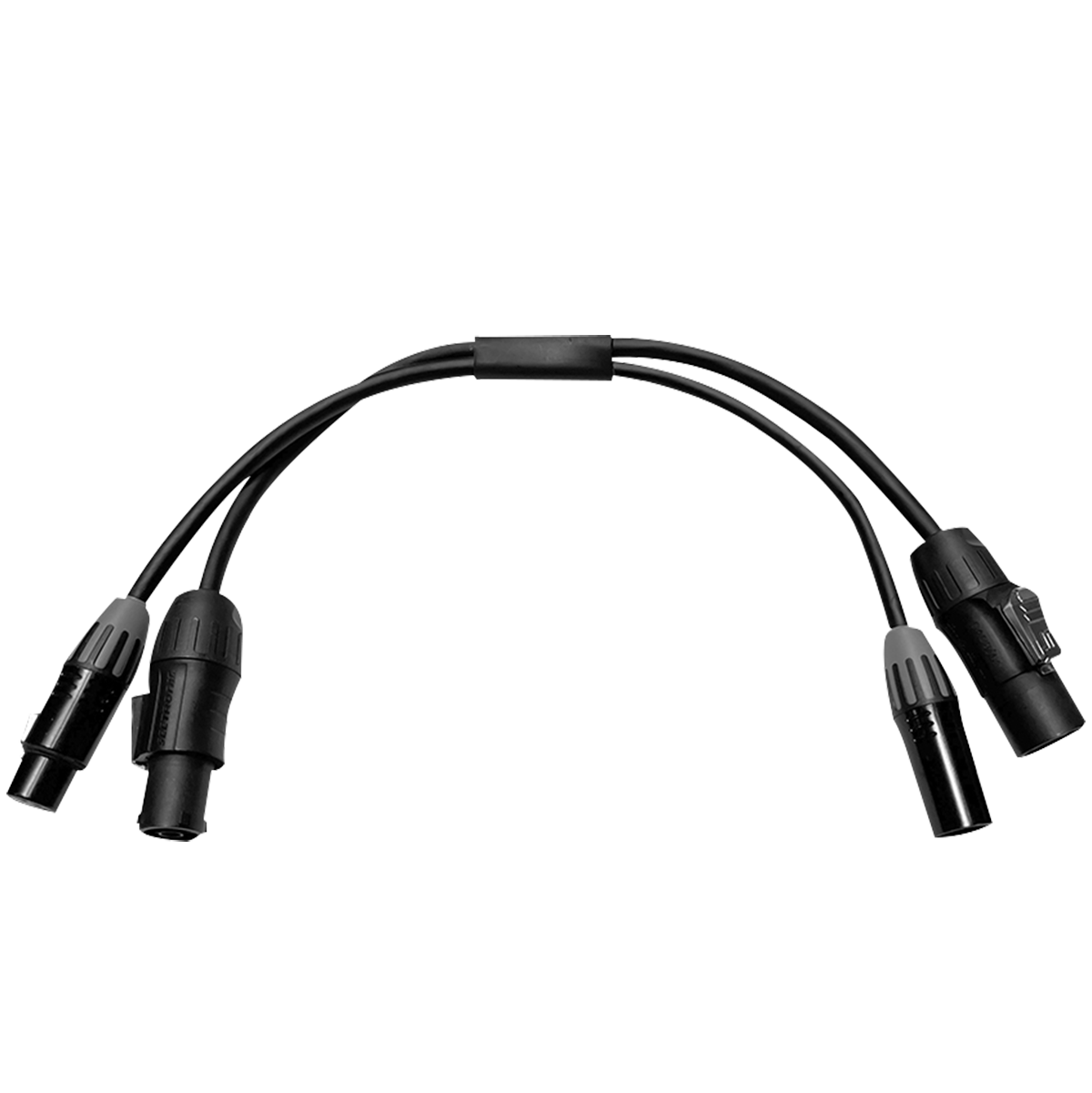

SŌL Power DMX Jumper Cable (PDJ112)

# 8050000053 - Omega Bracket

APPROVALS / RATINGS

CE | cETLus | IP65 | FCC | UKCA

FIRMWARE UPDATE

Current Version: V1.04

Click HERE for software update

Specifications and documentation subject to change without notice.

Downloads
Cad drawing

SŌL I Blinder - 3D Cad Drawing
SŌL I Blinder 2D CAD Drawing
Dimensional drawings

SŌL I Blinder Accessories Dimensions
SŌL I Blinder Dimensional Drawings
SŌL I Blinder Accessories Dimensional drawings
SŌL I Blinder Interconnect Dimensional drawing
Dmx traits

SŌL I Blinder DMX Traits
Specification sheet

SŌL I Blinder Specification Sheet
User manual

SŌL I Blinder User Manual

Lightswitch ENLIGHTEN Michigan’s Frederik Meijer Gardens & Sculpture Park With Elation

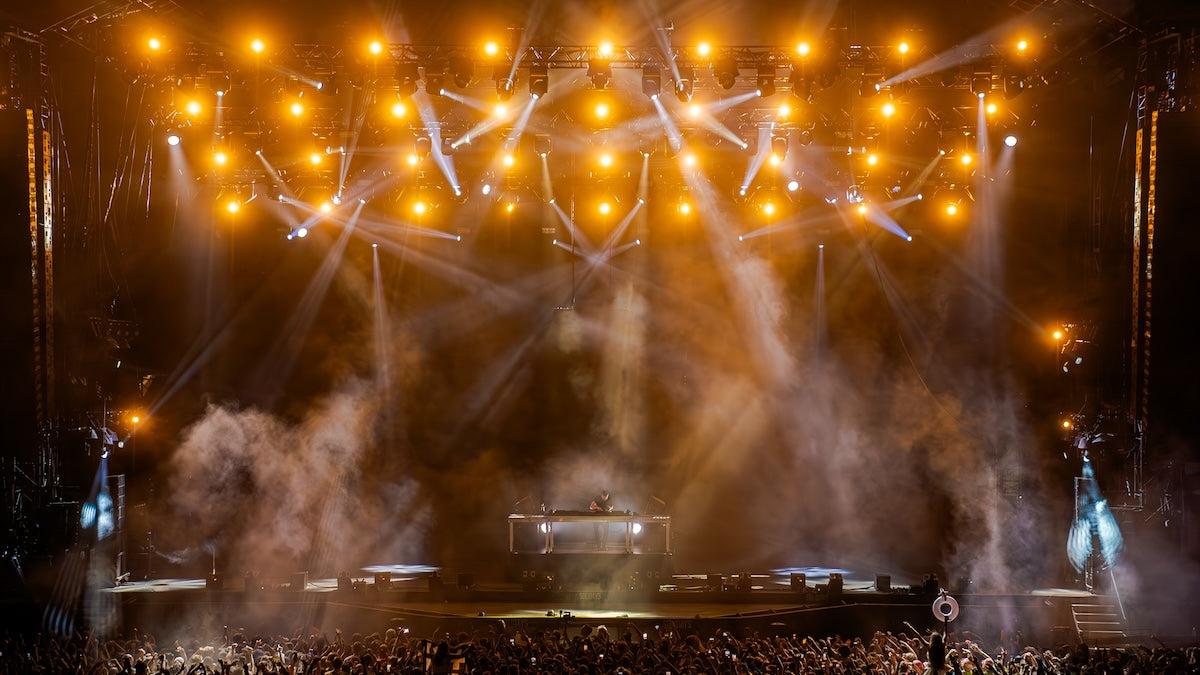

Concept K Lights Solidays Main Stage With 100 Elation SŌL I Blinders

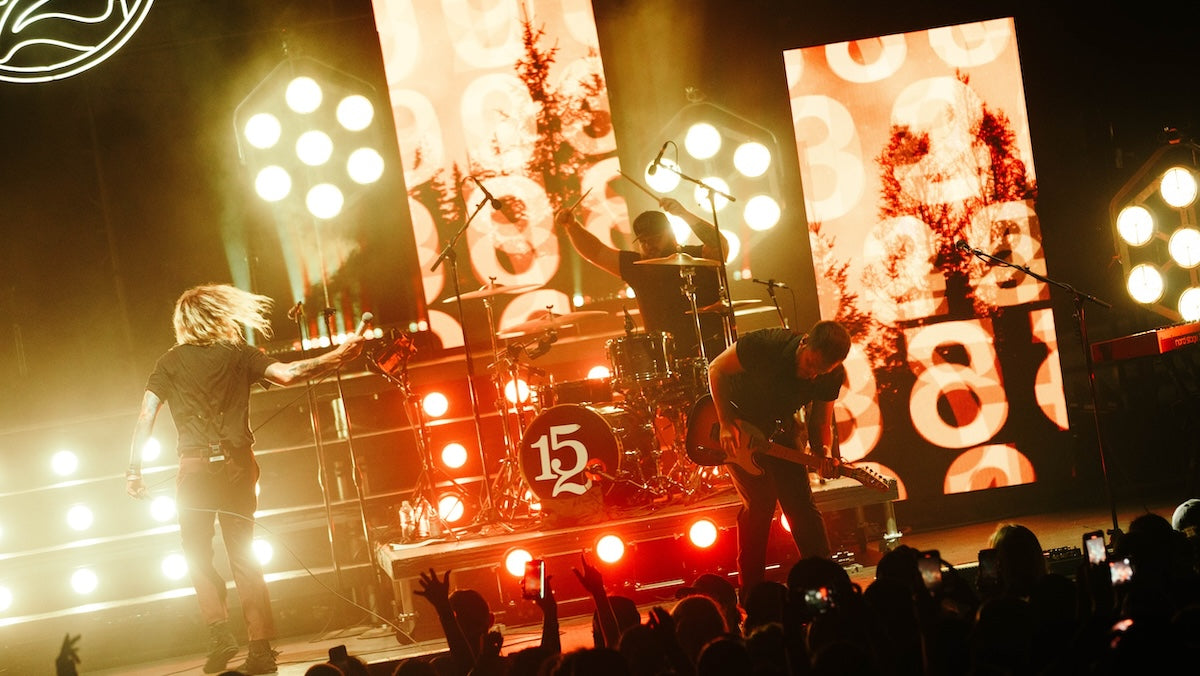

Lighting Designer Eric Price Debuts Elation SŌL I Blinder On Taking Back Sunday Tour
